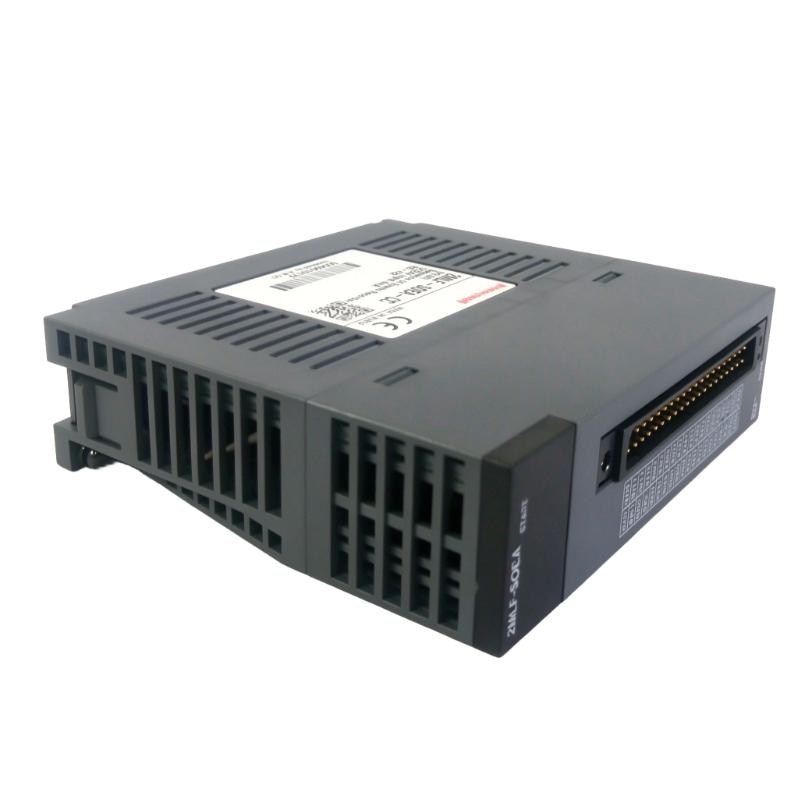

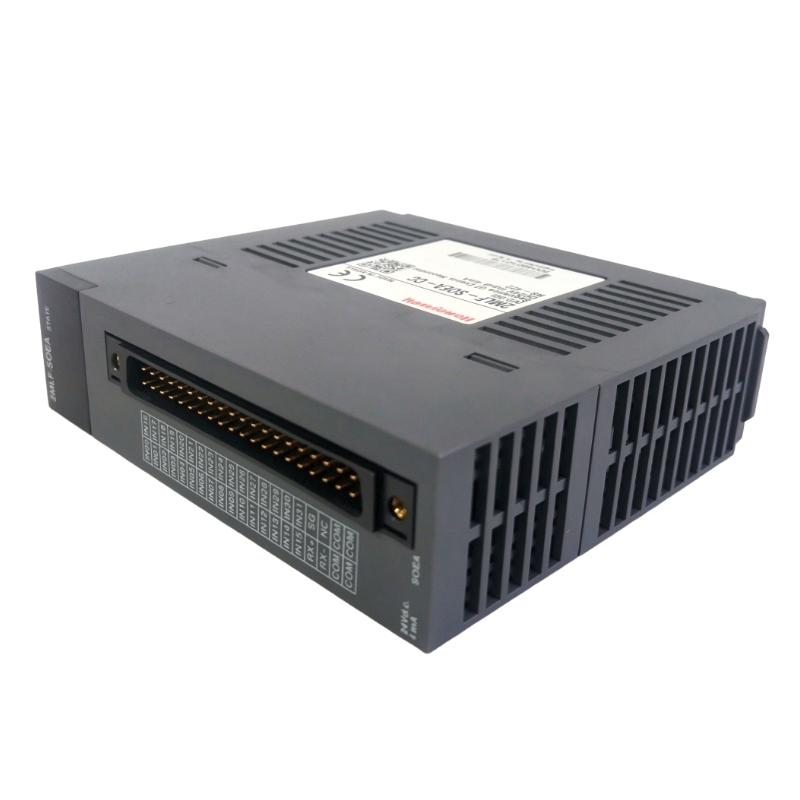

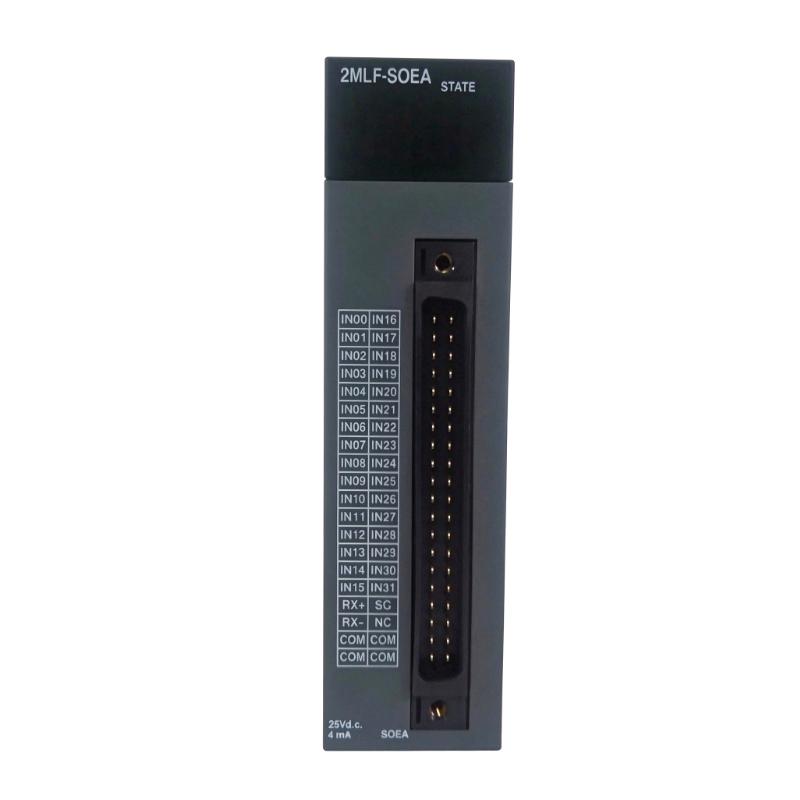

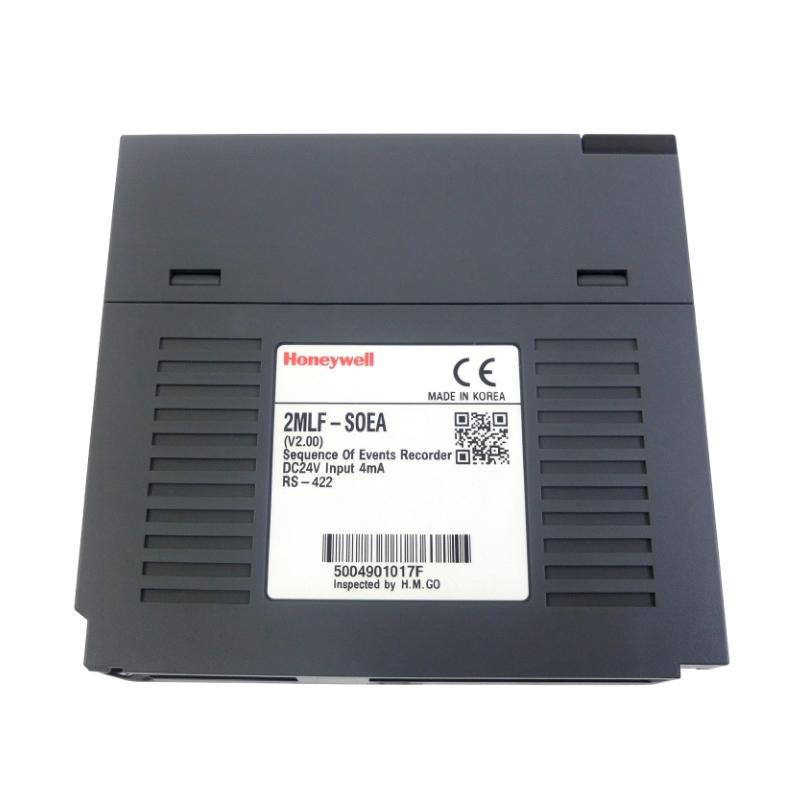

Honeywell 2MLF-SOEA Event Input Module

Applications

The Honeywell 2MLF-SOEA Event Input Module is designed for Sequence of Events (SOE) recording in industrial automation and control systems. As part of the Honeywell MasterLogic-200 PLC platform, it captures changes in external digital input signals and records event information with timestamps, helping operators analyze the sequence of system activities.

Typical applications include:

• Power generation and distribution: Recording digital status changes in control and monitoring systems.

• Substation automation: Tracking the order of alarms, contact changes, and equipment status signals.

• Industrial process monitoring: Maintaining event records for troubleshooting and operational analysis.

• Fault investigation: Helping engineers identify the sequence of events leading to a process interruption.

• PLC-based automation: Collecting digital input events for monitoring through compatible SOE software.

The 2MLF-SOEA is particularly useful when the order and timing of digital signal changes are important for understanding system behavior.

Advantages

• 32 digital input points: Supports the monitoring of multiple external signals through one module.

• Sequence of Events recording: Captures event information to help engineers analyze operational changes.

• Millisecond-level precision: Provides a documented event-recording precision of 1 ms, with a specified inter-module timing error of ±2 ms.

• Built-in event memory: Stores event information locally, reducing reliance on immediate external data collection.

• Photo-coupler isolation: Provides electrical isolation between input signals and internal module circuitry.

• LED status indication: Helps operators identify active input points during troubleshooting.

• MasterLogic-200 integration: Designed for use within a compatible Honeywell PLC system.

Technical FAQs

Q1: What is the Honeywell 2MLF-SOEA used for?

The 2MLF-SOEA is an Event Input Module used to record external digital input changes and their associated event information in a compatible Honeywell MasterLogic-200 system.

Q2: What does SOE mean in industrial automation?

SOE stands for Sequence of Events. It refers to recording the order and timing of events so that engineers can reconstruct system activity during normal operation or after a fault.

Q3: How many input points does the 2MLF-SOEA support?

The module supports 32 digital input points.

Q4: What is the event-recording precision?

The documented precision is 1 ms, with an inter-module timing error specified at ±2 ms. Overall system performance also depends on the controller configuration and synchronization method.

Q5: What input voltage does the module require?

The rated input voltage is 24 V DC. The documented operating range is 20.4–28.8 V DC, subject to the specified ripple limit.

Q6: How much event information can the module store?

The module has 1 Mbit of event memory and can record up to 300 event records per module, according to the product documentation.

Q7: Does the 2MLF-SOEA provide electrical isolation?

Yes. The input circuits use photo-coupler isolation to help separate external digital signals from the module's internal circuitry.

Q8: Can the module be used with any PLC system?

Compatibility should not be assumed across all PLC platforms. The 2MLF-SOEA is designed for the Honeywell MasterLogic-200 series, and the controller and software configuration should be checked before installation.

Q9: How can engineers review recorded events?

Recorded event information can be monitored using compatible SOE software. The available functions and communication setup depend on the installed controller and software version.

Q10: What should be checked when replacing an existing 2MLF-SOEA?

Verify the model number, controller compatibility, input voltage, field wiring, connector arrangement, and SOE software configuration. Confirm that the replacement supports the existing system's event-monitoring requirements before commissioning.
