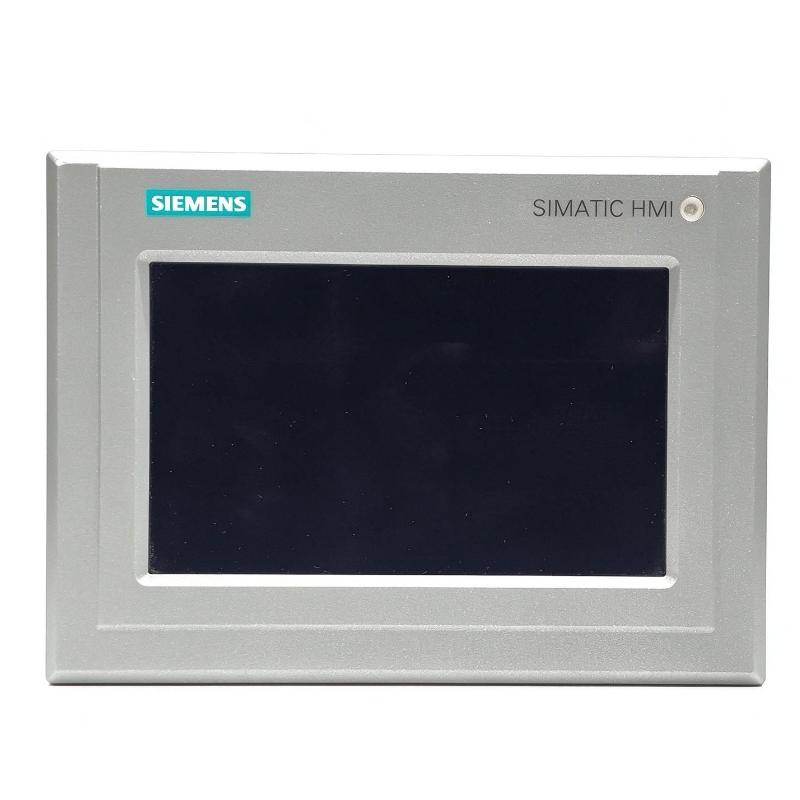

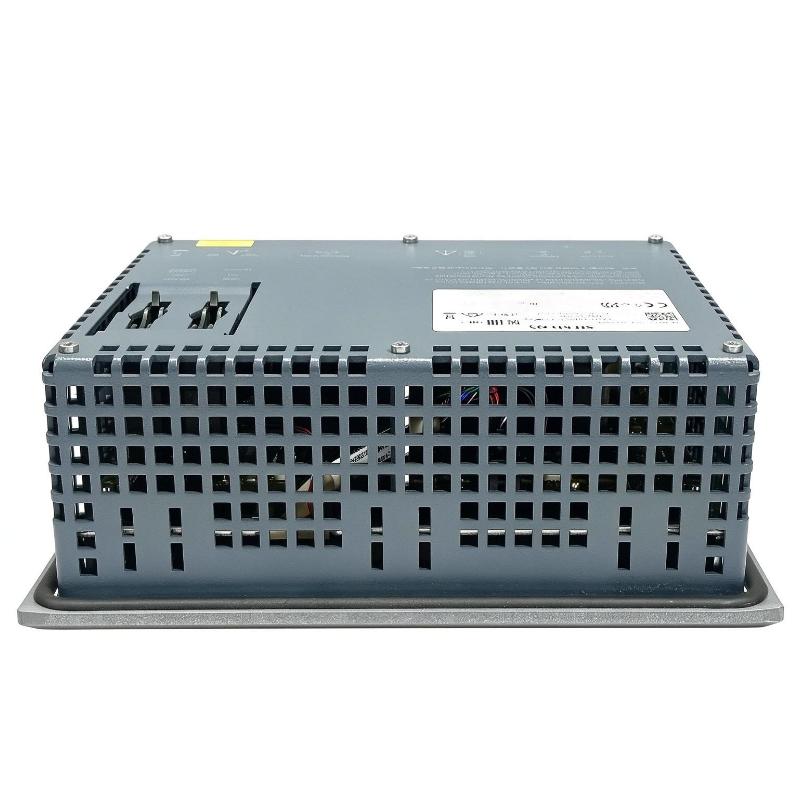

Siemens 6AV2124-0GC13-0AX0 Comfortable Outdoor Panel

Applications

The Siemens 6AV2124-0GC13-0AX0 is a SIMATIC HMI TP700 Comfort Outdoor Panel designed for industrial operator control and process visualization in environments where sunlight readability and front-panel protection are important. It features a 7-inch widescreen TFT display with a bonded, daylight-readable front, helping operators view machine information in bright ambient conditions.

Typical applications include:

• Outdoor Machine Operation: Providing an operator interface for equipment installed in outdoor or exposed industrial locations.

• Industrial Process Monitoring: Displaying process values, equipment status, and operating messages.

• Production and Utility Systems: Supporting operator interaction with compatible automated equipment.

• Alarm Management: Presenting system alarms and notifications to help operators respond to abnormal conditions.

• PLC-Based Automation: Connecting to compatible SIMATIC controllers and other supported automation systems.

• Industrial Control Panels: Integrating touch-based visualization into equipment requiring enhanced front-side protection.

Advantages

• Daylight-Readable Display: The bonded TFT screen is designed to improve visibility under bright ambient lighting.

• 7-Inch Widescreen: Provides a compact interface for monitoring and controlling industrial equipment.

• 16 Million Colors: Supports detailed graphical screens and process visualization.

• Resistive Touchscreen: Enables direct interaction with configured operator screens.

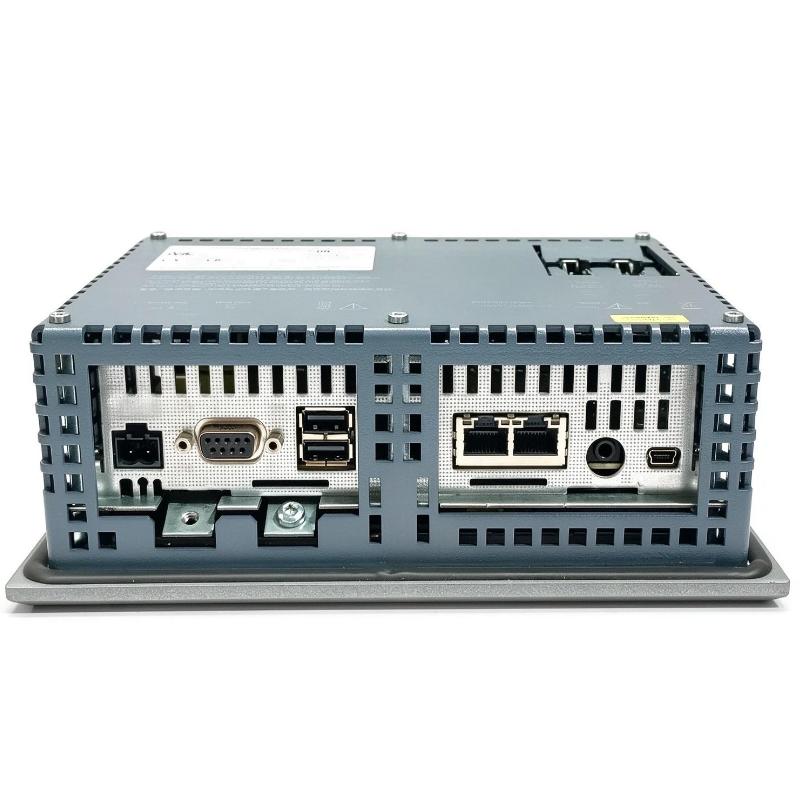

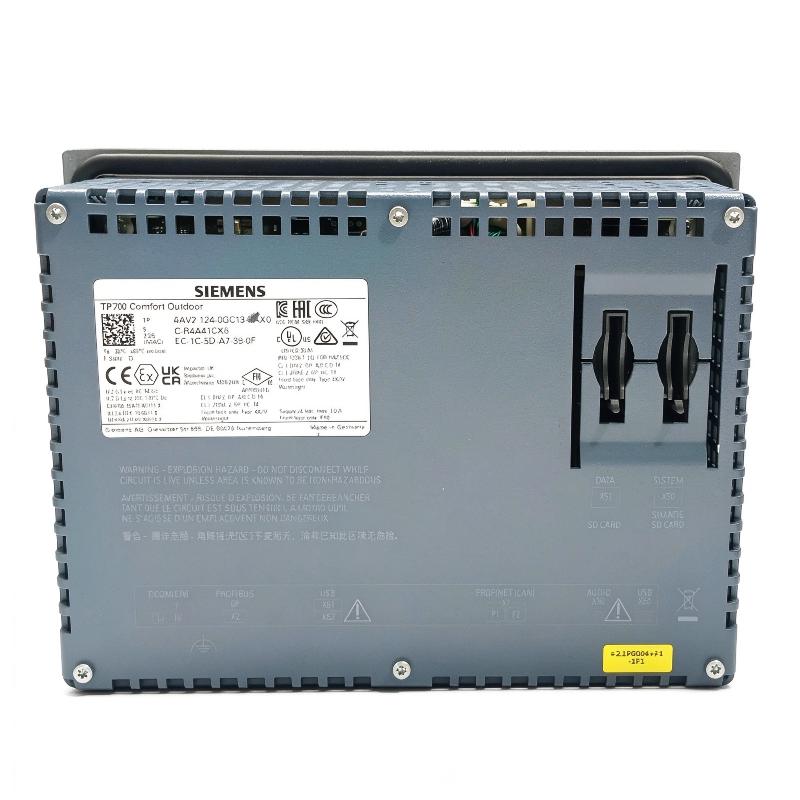

• PROFINET Connectivity: Supports Ethernet-based communication with compatible automation devices.

• MPI/PROFIBUS DP Support: Offers additional connectivity for suitable legacy and industrial control systems.

• IP66 Front Protection: Helps protect the front of the panel against dust and powerful water jets when correctly installed.

• 24 V DC Power Supply: Fits common industrial control power architectures.

• Compact Installation: The supplied dimensions of 214 × 158 × 64.6 mm support integration into suitable control panels.

Technical FAQs

Q1: What is the Siemens 6AV2124-0GC13-0AX0?

It is a SIMATIC HMI TP700 Comfort Outdoor Panel designed for industrial operator control and visualization.

Q2: What is the screen size?

The panel features a 7-inch widescreen TFT display.

Q3: What is the display resolution?

The display resolution is 800 × 480 pixels.

Q4: Is the display suitable for bright outdoor environments?

The panel uses a bonded, daylight-readable display designed to improve visibility in bright ambient conditions. Actual readability depends on installation and lighting conditions.

Q5: Does the panel support touchscreen operation?

Yes. It uses an analog-resistive touchscreen for interacting with configured HMI screens.

Q6: Which communication interfaces does it support?

The panel supports PROFINET and MPI/PROFIBUS DP communication for compatible automation configurations.

Q7: What power supply does this HMI require?

The rated supply voltage is 24 V DC.

Q8: What is the front protection rating?

The front is rated IP66 when installed according to the specified mounting requirements. The rear enclosure has a different protection rating, so the complete installation must be considered.

Q9: Which software is used to configure the panel?

The panel is configurable with WinCC Comfort V13 SP1 or a compatible environment with the required hardware support package.

Q10: What should be checked before replacing an existing HMI?

Verify the full order number, display size, mounting cutout, installation depth, communication interfaces, engineering software compatibility, and project configuration.
