Brand:Siemens Item No.:6ES7521-1BL00-0AB0 Product Origin:Germany Product Dimensions:35 × 147 × 129 mm Product Weight:0.26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

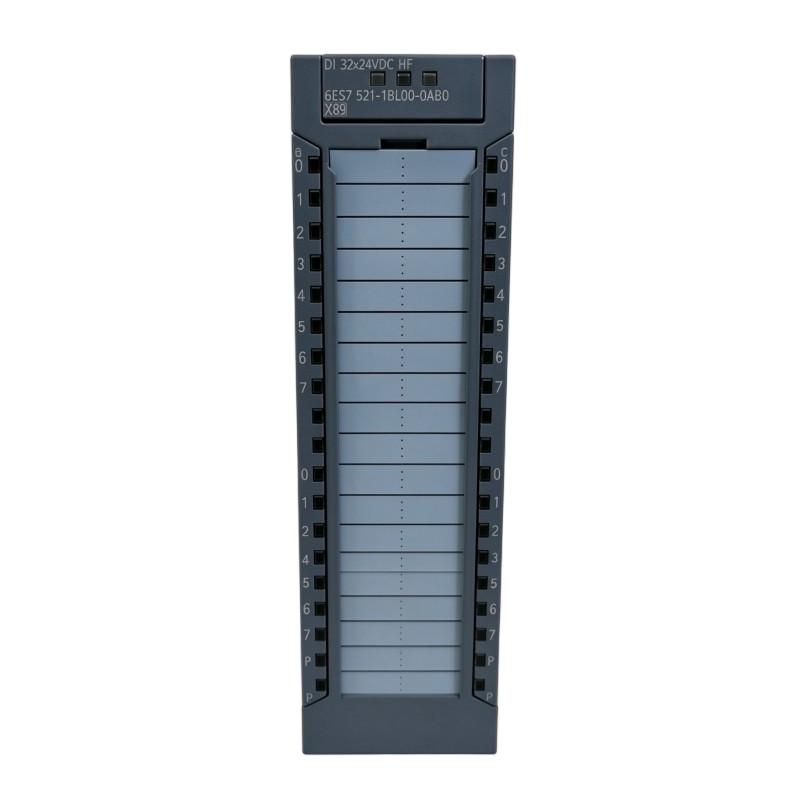

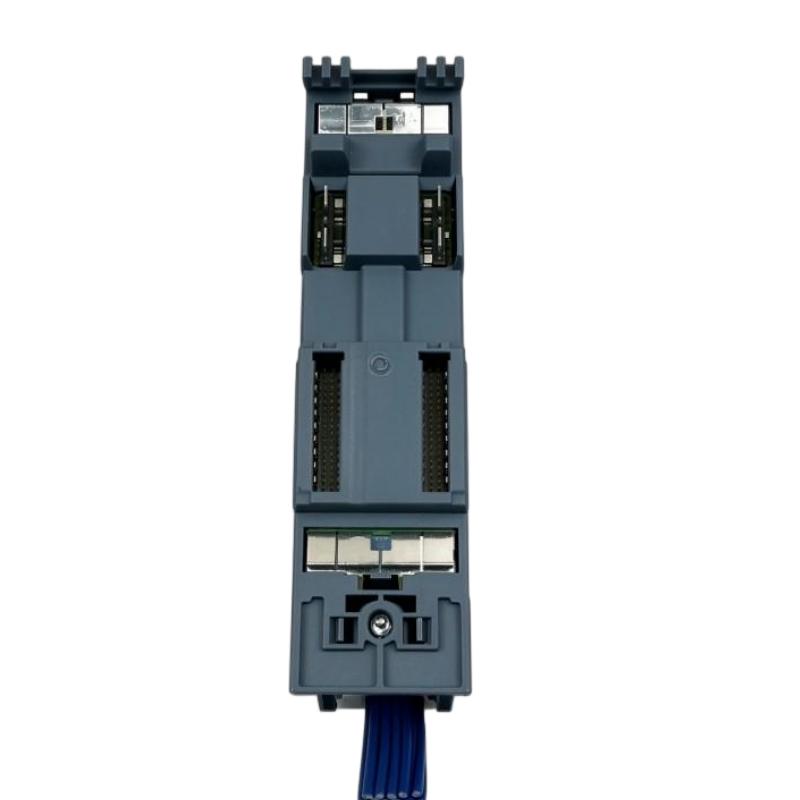

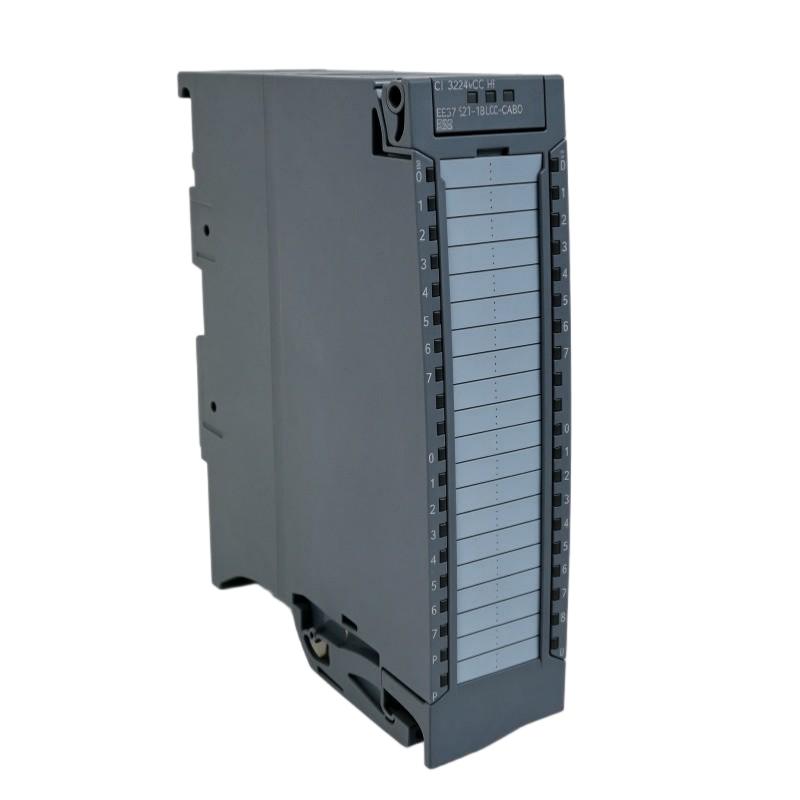

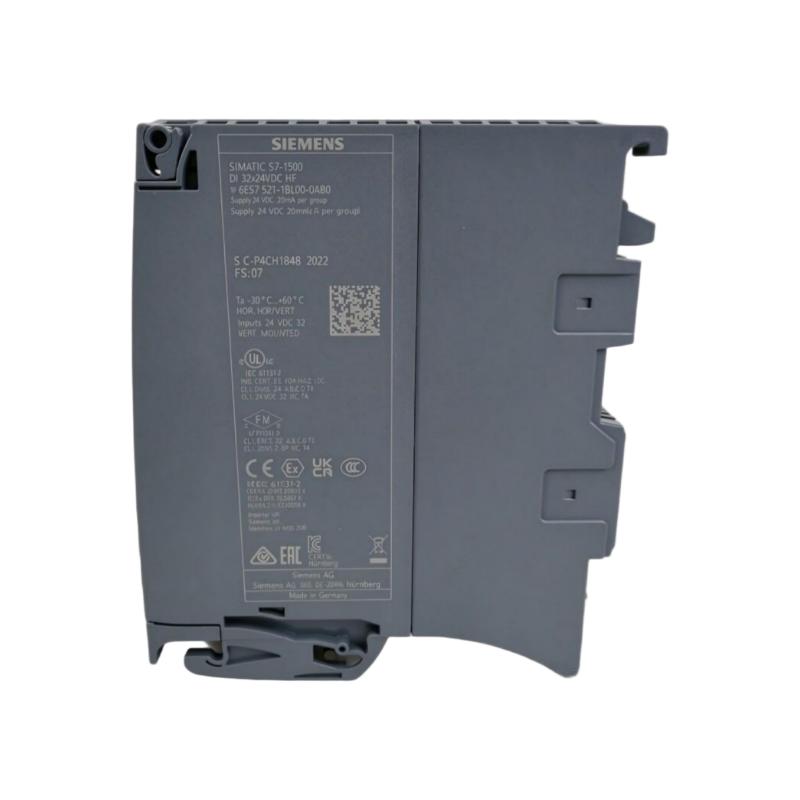

The Siemens 6ES7521-1BL00-0AB0 Digital Input Module is part of the SIMATIC S7-1500 SM 521 family. Designed for industrial automation systems, it provides 32 digital inputs for monitoring signals from field sensors, switches, and other compatible devices.
The module supports 24 V DC input signals and offers configurable input delays, hardware interrupts, and diagnostic functions. It also supports counter functionality on up to two inputs under specified hardware and firmware conditions, making it suitable for applications that require flexible digital signal acquisition.
Designed for integration into compatible SIMATIC S7-1500 and ET 200MP systems, the 6ES7521-1BL00-0AB0 helps expand PLC input capacity and improve visibility into machine and process conditions. Its compact dimensions of 35 × 147 × 129 mm make it suitable for modular control cabinet installations.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7521-1BL00-0AB0
Product Family
SIMATIC S7-1500 SM 521
Product Type
Digital Input Module
Module Designation
DI 32x24VDC HF
Number of Digital Inputs
32
Input Voltage
24 V DC
Permissible Supply Voltage
19.2–28.8 V DC
Input Type
Type 3, IEC 61131
Input Current at Signal 1
Typically 2.5 mA
Configurable Input Delay
0.05–20 ms
Counter Inputs
Up to 2, subject to configuration requirements
Maximum Counting Frequency
Up to 6 kHz under specified hardware and firmware conditions
Diagnostic Functions
Supported
Hardware Interrupts
Supported
Engineering Software
Compatible STEP 7 / TIA Portal
Dimensions
35 × 147 × 129 mm
Weight
0.26 kg / 0.57 lb
Recommended Related Models
Siemens 6ES7521-1BH00-0AB0 – SIMATIC S7-1500 digital input module with 16 digital inputs for smaller I/O configurations.
Siemens 6ES7521-1BL10-0AA0 – Related S7-1500 digital input module variant; verify the exact specifications and compatibility before selection.
Siemens 6ES7522-1BL01-0AB0 – SIMATIC S7-1500 digital output module for compatible output-control applications.
Siemens 6ES7523-1BL00-0AA0 – SIMATIC S7-1500 digital input/output module for combined signal requirements.
The Siemens 6ES7521-1BL00-0AB0 is a SIMATIC S7-1500 SM 521 high-feature digital input module designed to collect digital signals from sensors, switches, and other field devices in industrial automation systems. With 32 digital inputs operating at 24 V DC, it enables controllers to monitor equipment status and respond to changes in machine or process conditions.
Typical applications include:
Industrial Machine Control: Monitoring limit switches, proximity sensors, and other digital field signals.
Production Line Automation: Collecting machine status and position signals from manufacturing equipment.
Process Monitoring: Detecting equipment states and digital events in automated processes.
High-Speed Signal Acquisition: Using supported input functions for applications requiring faster signal processing.
Counter Applications: Configuring up to two inputs for supported counting functions.
PLC System Expansion: Increasing digital input capacity in compatible SIMATIC S7-1500 and ET 200MP configurations.
Advantages
32 Digital Input Channels: Supports the collection of multiple field signals through one module.
24 V DC Input Operation: Suitable for common industrial sensor and switching circuits.
Flexible Input Configuration: Allows input delay settings from 0.05 ms to 20 ms for supported standard inputs.
Counter Capability: Supports up to two configurable counter inputs under the specified hardware and firmware conditions.
System Diagnostics: Provides status and diagnostic indicators to assist troubleshooting.
SIMATIC S7-1500 Integration: Designed for compatible modular PLC and distributed I/O architectures.
Technical FAQs
Q1: What is the Siemens 6ES7521-1BL00-0AB0?
It is a SIMATIC S7-1500 SM 521 DI 32x24VDC HF digital input module for collecting digital signals from industrial field devices.
Q2: How many digital inputs does the module provide?
The module provides 32 digital input channels arranged in two groups of 16.
Q3: What is the rated input voltage?
The rated input voltage is 24 V DC, with a permissible supply voltage range of 19.2–28.8 V DC.
Q4: What types of field devices can be connected?
Compatible devices include digital sensors, switches, and other 24 V DC signal sources that meet the module's electrical input specifications.
Q5: Can the module be used for counter applications?
Yes. Up to two inputs can be configured for supported counter functions, subject to the applicable hardware and firmware requirements.
Q6: What input delay settings are available?
The standard input delay can be parameterized to 0.05, 0.1, 0.4, 1.6, 3.2, 12.8, or 20 ms.
Q7: Does the module support hardware interrupts?
Yes. It supports hardware interrupts for suitable input configurations, allowing the controller to respond to specified signal changes.
Q8: What diagnostic functions are available?
The module supports diagnostic functions and status indicators that help identify operating conditions and certain faults.
Q9: Which engineering software is used to configure the module?
The module can be configured using compatible STEP 7 engineering software in the TIA Portal environment. The required version depends on the module's hardware and firmware support.
Q10: What should be checked before replacing this module?
Verify the complete order number, input count, rated voltage, input delay requirements, firmware compatibility, wiring arrangement, and compatibility with the existing S7-1500 or ET 200MP system.
