Siemens 6AG1215-1HG40-4XB0 DC/DC / Relay

Applications

The 6AG1215-1HG40-4XB0 is well suited to automation projects where compact PLC control and relay-based output switching are required.

• Machine automation – Controls sequencing, interlocking, and discrete machine functions.
• Industrial production equipment – Provides centralized PLC processing for automated machinery.
• Process control – Handles monitoring and control tasks in compact process applications.
• OEM machine building – Integrates controller functionality into space-conscious control panels.
• Material-handling systems – Supports logic control for conveyors, actuators, sensors, and auxiliary equipment.
• Packaging machinery – Coordinates repetitive machine sequences and discrete control operations.
• Industrial retrofit projects – Can serve as a controller in compatible Siemens automation upgrades.
• Harsh-environment automation – The SIPLUS design is intended for applications requiring enhanced environmental suitability compared with standard hardware.

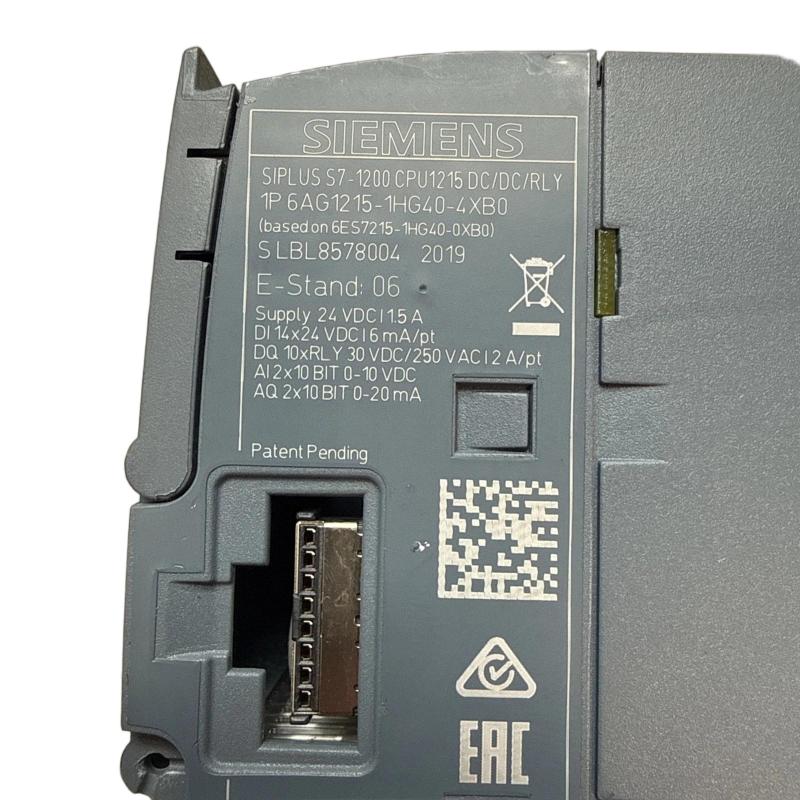

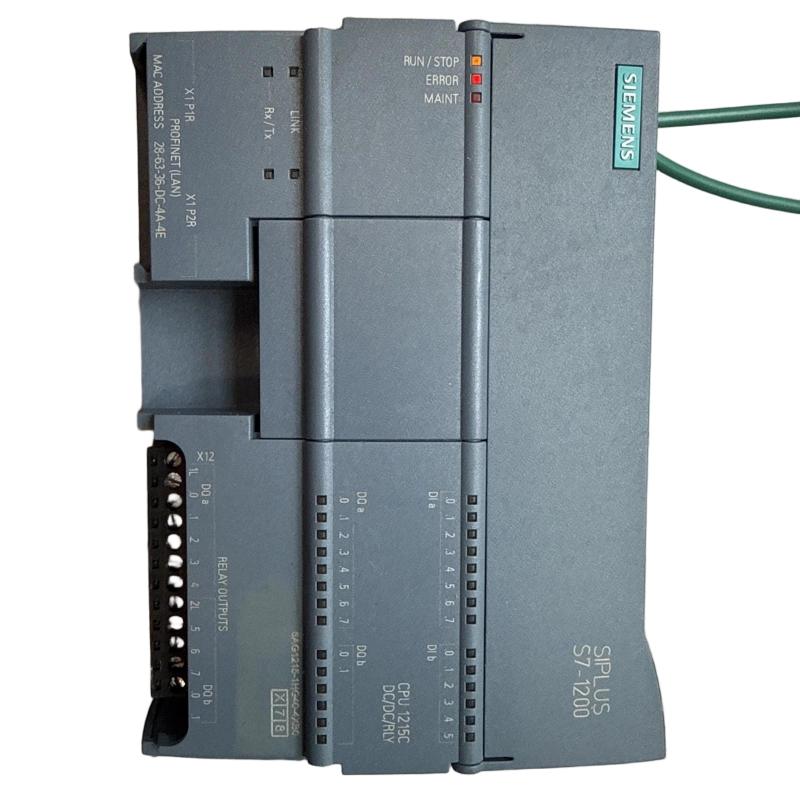

Siemens 6AG1215-1HG40-4XB0 DC/DC / Relay CPU Module

The Siemens 6AG1215-1HG40-4XB0 is a ruggedized DC/DC / Relay CPU Module designed for industrial automation applications requiring dependable PLC control, integrated processing, and relay-based digital output capability. As part of the Siemens SIPLUS S7-1200 family, it is intended for demanding environments where standard automation hardware may need additional environmental robustness.

The DC/DC power arrangement and relay output architecture make this CPU particularly practical for machine control, process equipment, and distributed automation systems. Its integrated PLC functionality can reduce the need for additional control hardware while keeping the overall system compact.

For OEMs, system integrators, and industrial maintenance teams, the 6AG1215-1HG40-4XB0 provides a strong combination of processing capability, flexible I/O control, and ruggedized construction.

Applications

The 6AG1215-1HG40-4XB0 is well suited to automation projects where compact PLC control and relay-based output switching are required.

• Machine automation – Controls sequencing, interlocking, and discrete machine functions.
• Industrial production equipment – Provides centralized PLC processing for automated machinery.
• Process control – Handles monitoring and control tasks in compact process applications.
• OEM machine building – Integrates controller functionality into space-conscious control panels.
• Material-handling systems – Supports logic control for conveyors, actuators, sensors, and auxiliary equipment.
• Packaging machinery – Coordinates repetitive machine sequences and discrete control operations.
• Industrial retrofit projects – Can serve as a controller in compatible Siemens automation upgrades.
• Harsh-environment automation – The SIPLUS design is intended for applications requiring enhanced environmental suitability compared with standard hardware.

Engineering Advantages at a Glance

Integrated CPU and I/O functionality
The 6AG1215-1HG40-4XB0 combines PLC processing with integrated input and output resources, helping reduce the amount of additional hardware required for compact control applications.

DC/DC power architecture
Its DC/DC configuration is useful for systems built around industrial DC power infrastructure, particularly where the control cabinet already uses a suitable DC supply.

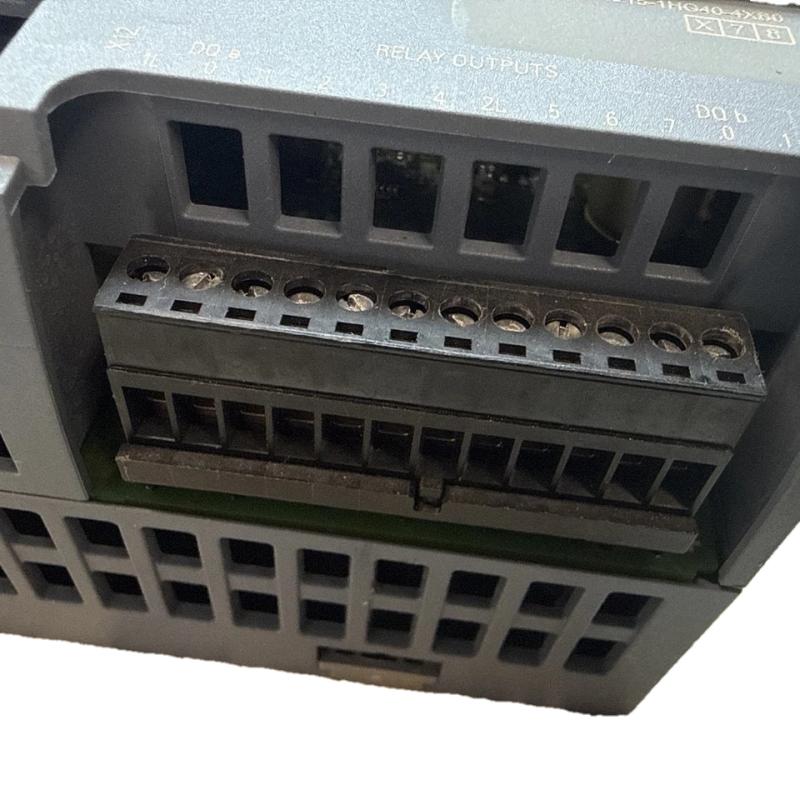

Relay output flexibility
Relay outputs provide a physical switching interface that can be useful for compatible field devices and control circuits where electromechanical contacts are preferred.

SIPLUS ruggedized platform
As a SIPLUS product, this CPU is intended for demanding industrial applications where environmental conditions can be more challenging than those encountered by conventional automation equipment.

Compact control solution
The integrated design helps engineers build smaller control systems without sacrificing the core PLC functions needed for machine automation.

Suitable for OEM applications
Machine builders can benefit from an integrated controller that combines processing and I/O resources in a single compact automation component.

Practical maintenance value
For existing compatible installations, maintaining the correct CPU model can simplify spare-parts planning and reduce the risk of introducing an unsuitable controller into the system.

Technical FAQs

1. What type of Siemens controller is the 6AG1215-1HG40-4XB0?
The 6AG1215-1HG40-4XB0 is a SIPLUS S7-1200 CPU with DC/DC power configuration and relay outputs, intended for industrial automation control.

2. What does DC/DC mean in the model description?
DC/DC indicates that the CPU is designed around a DC input power arrangement and provides the appropriate internal DC power conversion required by the controller.

3. What is the significance of the relay output configuration?
Relay outputs use electromechanical contacts to switch compatible external circuits. They can be useful when the application requires relay-style switching rather than a semiconductor transistor output.

4. What is the difference between relay outputs and transistor outputs?
Relay outputs provide mechanical contacts and can support a broader range of compatible switching circuits, while transistor outputs are generally preferred for faster and more frequent DC switching.

5. What should be checked before connecting a field load to the relay outputs?
Verify the load voltage, current, inrush characteristics, switching frequency, wiring arrangement, and applicable contact ratings. Loads exceeding the specified limits should be controlled through an appropriate external interface.

6. What programming environment is associated with this controller family?
SIPLUS S7-1200 controllers are programmed within the Siemens TIA Portal engineering environment, using the applicable hardware configuration and software versions for the installed CPU.

7. What could cause a relay output to remain inactive?
Possible causes include incorrect PLC logic, an incorrect output address, missing field power, wiring problems, an unsuitable load, or a relay/output circuit fault. The PLC diagnostics and I/O status should be checked systematically.

8. Why would a ruggedized SIPLUS CPU be selected instead of standard S7-1200 hardware?
SIPLUS hardware is intended for applications with more demanding environmental requirements. The appropriate choice depends on the actual operating conditions and the environmental specifications of the specific product variant.

9. What should be considered when replacing this CPU?
Engineers should verify the complete order number, hardware configuration, firmware compatibility, I/O arrangement, power requirements, communication configuration, and existing PLC program before replacement.

10. How should a newly installed CPU be commissioned?
Confirm the wiring and power supply first, then verify the hardware configuration and firmware compatibility, download or restore the approved PLC program, check diagnostics, and perform controlled I/O and communication tests before returning the machine to automatic operation.
