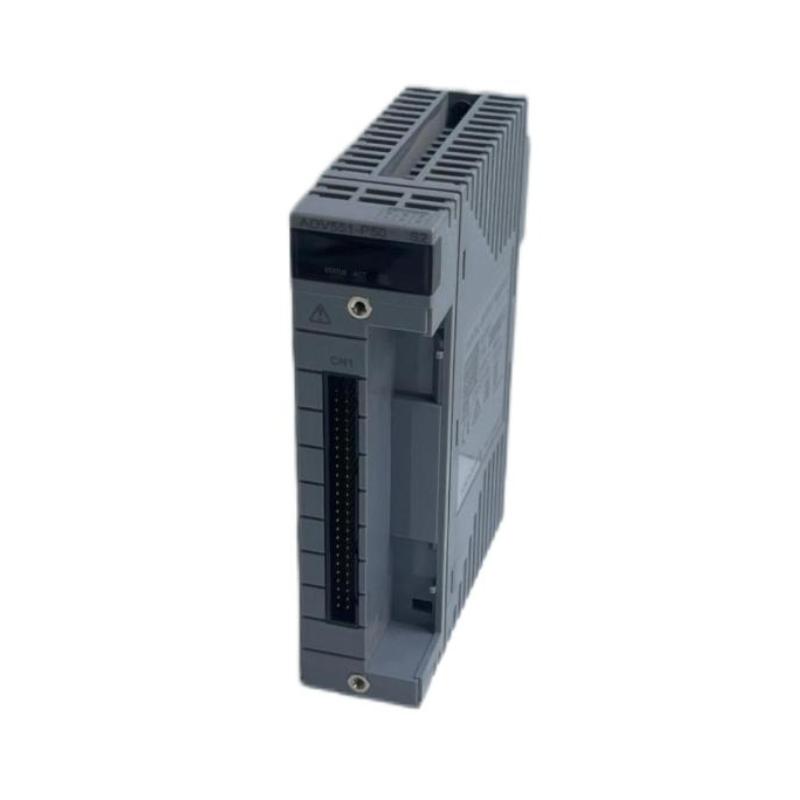

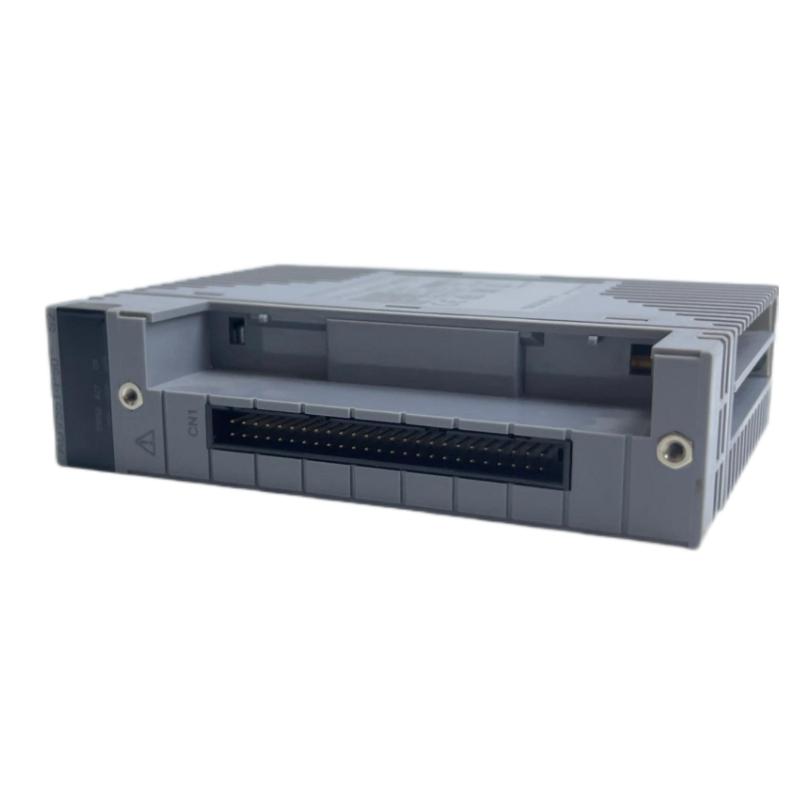

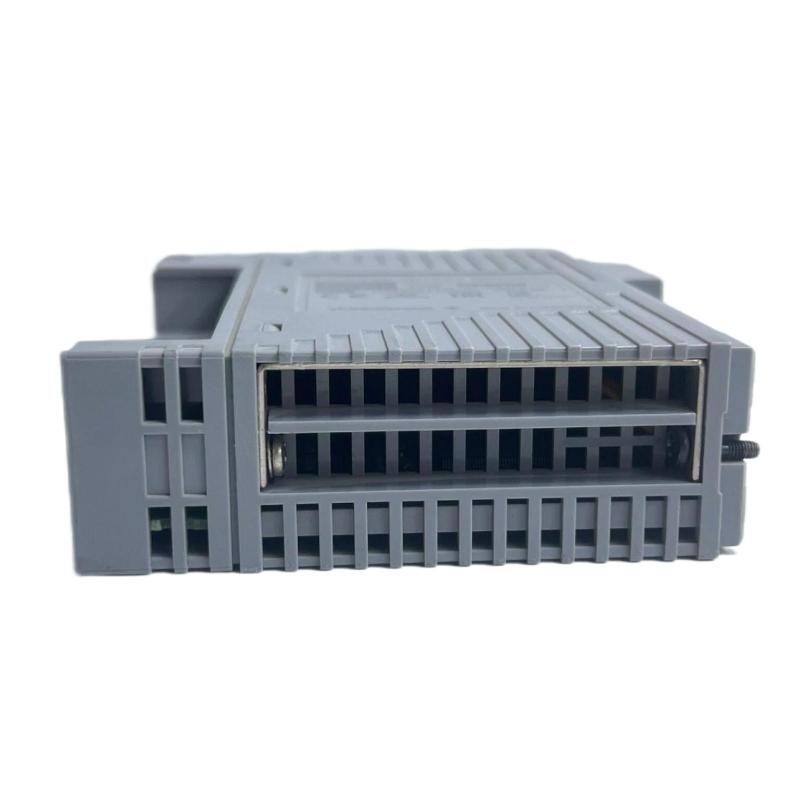

Yokogawa ADV869-P01-2 Yokogawa ADV869-P01-4 Yokogawa ADV869-P01-1 Yokogawa ADV869-P01-3

The Yokogawa ADV869-P01 I/O Module is a next-generation, high-density input/output module designed to deliver exceptional performance in industrial automation and control systems. With its ability to handle both analog and digital signals across a large number of channels, the ADV869-P01 provides flexible and scalable solutions for applications that demand accurate, real-time data acquisition and control.

Ideal for industries such as process control, energy management, manufacturing automation, and building systems, this module is designed to integrate seamlessly with Yokogawa's advanced control systems, ensuring reliability, high-speed communication, and precise monitoring. Whether you're optimizing a large manufacturing plant, a power distribution network, or a chemical processing facility, the ADV869-P01 is built to meet the demands of modern industrial environments.

Technical Specifications

Model: Yokogawa ADV869-P01
Module Type: I/O Module
Input Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete inputs
Output Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete outputs
I/O Capacity:
- Inputs: 64 total (32 analog, 32 digital)
- Outputs: 64 total (32 analog, 32 digital)
Power Supply: 24 V DC
Communication Protocols:
- Ethernet/IP, Modbus TCP
Dimensions: 9.0 x 7.0 x 4.4 inches (229 x 178 x 112 mm)
Weight: 3.2 kg (7.05 lbs)
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 95% RH (non-condensing)
Certifications: UL Listed, CE, RoHS Compliant

Recommended Related Models

Yokogawa ADV860 – Digital I/O Module
Yokogawa ADV850 – Analog Input Module
Yokogawa ADV871 – Signal Conditioning Module
Yokogawa ADV870 – Communication Interface Module
Yokogawa ADV550 – Digital Input Module

These related models provide complementary functionality in data acquisition, signal conditioning, and communication, enhancing the overall performance of your automation system when integrated with the ADV869-P01.

Popular Yokogawa Models

The Yokogawa ADV869-P01 works in harmony with Yokogawa’s broad range of industrial control systems to deliver a unified and powerful automation platform:

Yokogawa Centum VP – Distributed Control System (DCS)
Yokogawa STARDOM – Remote Automation System for decentralized control
Yokogawa ProSafe-RS – Safety Instrumented System (SIS) for critical operations
Yokogawa FAM – Field Asset Management for condition monitoring and diagnostics

These systems work hand-in-hand with the ADV869-P01, allowing seamless integration for comprehensive system control, monitoring, and data management.

Applications

The Yokogawa ADV869-P01 I/O Module is ideal for a wide variety of applications, providing high-density, accurate I/O capabilities in demanding environments:

Process Automation: Used in chemical, petrochemical, pharmaceutical, and food & beverage industries, where reliable data collection and precise control of variables such as temperature, pressure, and flow are essential.
Energy & Utilities: Essential for monitoring and controlling operations in power plants, renewable energy systems, grid management, and utility distribution networks, the ADV869-P01 ensures real-time monitoring and efficient system control.
Manufacturing Automation: In industries such as automotive, electronics, and textiles, this module enhances the automation of production lines, ensuring optimal machine performance, quality control, and efficient material handling.
Building Automation: The ADV869-P01 enables seamless integration of HVAC, lighting, and security systems, optimizing energy use and providing operational control for smart building management.

Advantages

High I/O Capacity: With 128 I/O points (64 inputs and 64 outputs), the ADV869-P01 provides an exceptionally high density of I/O in a single module, making it perfect for large-scale industrial automation systems that require dense data acquisition and control.
Versatile I/O Options: The ADV869-P01 supports both analog (4-20 mA, 0-10 V) and digital (discrete) inputs and outputs, allowing for flexible integration with a wide range of devices and sensors.
Reliable Communication Protocols: The module supports Ethernet/IP and Modbus TCP communication protocols, ensuring reliable and fast data transmission across industrial networks.
Compact and Efficient Design: Despite offering high I/O density, the module’s compact design (229 x 178 x 112 mm) makes it ideal for space-constrained installations while maintaining optimal performance.
Wide Operating Temperature Range: The ADV869-P01 can operate in temperatures ranging from -10°C to 60°C, making it suitable for use in a variety of industrial conditions.
Easy System Integration: Designed to seamlessly integrate with Yokogawa's Centum VP, STARDOM, and ProSafe-RS systems, the ADV869-P01 allows for easy and efficient scaling of automation solutions.

Technical FAQs

How many I/O points can the ADV869-P01 handle?
The ADV869-P01 supports 128 I/O points: 64 inputs (32 analog, 32 digital) and 64 outputs (32 analog, 32 digital), offering high-density I/O for large-scale applications.
What communication protocols are supported by the ADV869-P01?
The module supports Ethernet/IP and Modbus TCP protocols, providing fast and reliable communication between devices and control systems.
What is the power supply requirement for the ADV869-P01?
The ADV869-P01 operates with a 24 V DC power supply, which is common for most industrial automation systems.
What is the operating temperature range of the ADV869-P01?
The module operates in a temperature range of -10°C to 60°C, making it suitable for use in various industrial environments.
What are the dimensions of the ADV869-P01?
The ADV869-P01 measures 9.0 x 7.0 x 4.4 inches (229 x 178 x 112 mm) and weighs 3.2 kg (7.05 lbs), making it a compact yet powerful solution for industrial applications.
Is the ADV869-P01 suitable for hazardous environments?
The ADV869-P01 is designed for general industrial use. For hazardous environments, please check for specific certifications like ATEX or IECEx if needed.
Can I integrate the ADV869-P01 with other Yokogawa systems?
Yes, the ADV869-P01 integrates seamlessly with systems like Centum VP, STARDOM, and ProSafe-RS, allowing you to build scalable and efficient automation solutions.
Is the ADV869-P01 easy to install and configure?
Yes, the ADV869-P01 is designed for easy installation and configuration, and it integrates quickly with Yokogawa’s control systems.
What certifications does the ADV869-P01 have?
The ADV869-P01 is UL Listed, CE Certified, and RoHS Compliant, ensuring it meets global safety and environmental standards.
Does the ADV869-P01 support both analog and digital signals?
Yes, the ADV869-P01 supports both analog (4-20 mA, 0-10 V) and digital signals, providing flexibility for a wide range of sensors and devices.
