Brand:ABB Bailey Item No.:IMDSM05 Product Origin:Sweden (SE) Product Dimensions:271 x 150 x 30 mm Product Weight:0.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

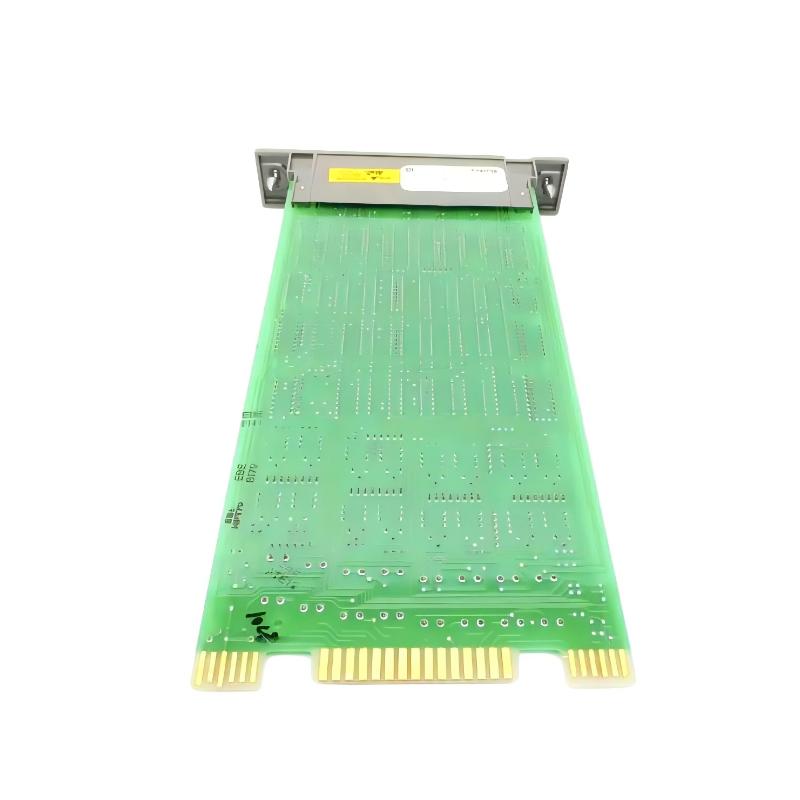

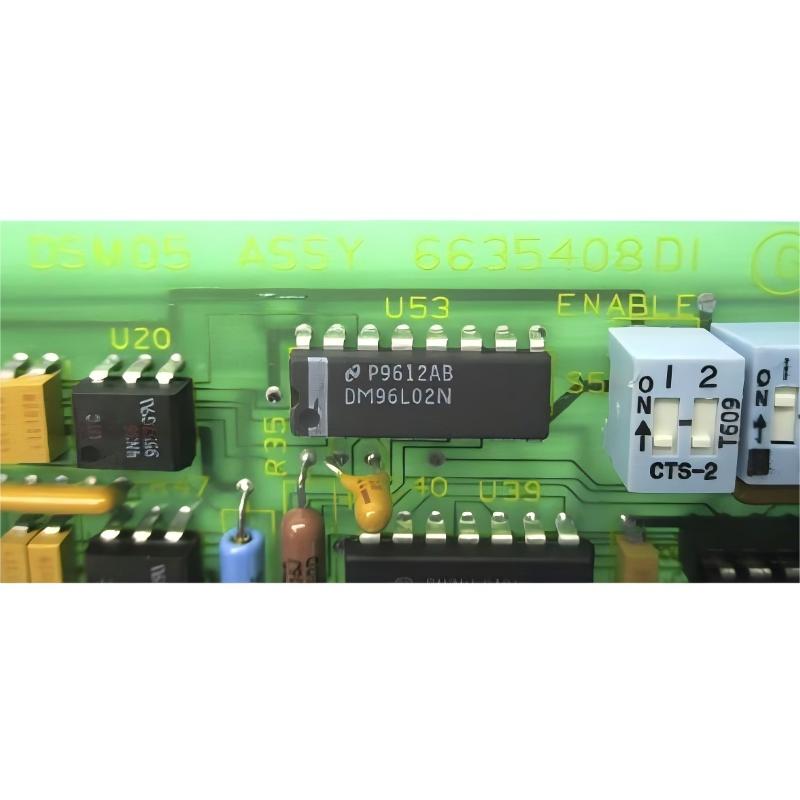

The IMDSM05 is a versatile digital I/O slave module for ABB Bailey INFI 90 control systems. It provides reliable acquisition of digital inputs and control of digital outputs, supporting precise process automation and system expansion. Its rugged industrial design and built-in diagnostics make it suitable for both new installations and upgrades of existing control systems, ensuring high operational reliability.
Technical Specifications
Specification
Details
Product Type
Digital I/O Slave Module
System Platform
ABB Bailey INFI 90
Primary Function
Capture digital inputs and control digital outputs
Channels
Standard discrete digital inputs/outputs per INFI 90 specification
Diagnostics
Status LEDs, test points, fault detection
Electrical Protection
Overvoltage, reverse polarity, EMI/RFI mitigation
Mounting
Rack-mountable
Dimensions
271 × 150 × 30 mm
Weight
0.22 kg
Recommended Related Models
Model
Description
IMDSI13
Digital Input Slave Module
IMDSO13
Digital Output Slave Module
IMCSM01
Master Control Module
IMPSU12
Power Supply Unit
IMBIB13
Binary Input Module
IMBIB14
High-Speed Input Module
IMIOM13
Mixed I/O Module
IMHSM11
High-Speed Counter Module
IMRSI10
Remote Signal Interface Module
IMNET01
Communication Network Interface
Popular Related Models
Model
Application / Function
IMDSM04
Digital I/O module with fewer channels
IMDSI12
Standard digital input module
IMDSO12
Standard digital output module
IMCSM02
Master control module with redundancy
IMPSU11
Industrial power supply unit
IMBIB12
Binary input module with fault detection
IMIOM12
Mixed analog/digital I/O module
IMHSM12
High-speed counter module
IMRSI11
Remote signal interface
IMIOC11
Analog input/output controller
Applications
The ABB Bailey IMDSM05 Digital I/O Slave Module is designed to expand the I/O capacity of Bailey INFI 90 and related control systems, handling both digital inputs and outputs in industrial automation environments.
It is widely used in power generation, chemical processing, and manufacturing facilities, where precise control of discrete field devices—such as sensors, actuators, and relays—is critical. The module ensures reliable, real-time communication with the master controller, supporting process safety, operational efficiency, and system scalability.
Advantages
Dual Functionality: Supports both digital input and output channels, reducing the need for separate modules.
Industrial Reliability: Built to withstand vibration, temperature fluctuations, and electrical noise in demanding plant environments.
Seamless Integration: Fully compatible with ABB Bailey INFI 90 control systems for efficient system expansion.
Diagnostic Support: Provides status indicators and test points for quick fault detection and maintenance.
Compact and Modular Design: Rack-mountable form factor allows easy deployment and future scalability.
FAQs
How many digital I/O channels does the IMDSM05 support?
The module handles a predefined number of input and output channels, enabling simultaneous monitoring and control.
What voltage range is compatible with its digital inputs?
Inputs are designed to accept standard industrial digital levels as defined by INFI 90 specifications.
How does the module communicate input and output status to the master controller?
Through a dedicated fieldbus or backplane interface, providing real-time updates.
Does the IMDSM05 include fault detection for inputs and outputs?
Yes, it can detect open circuits, shorts, and other anomalies to ensure reliable operation.
Is hot-swapping supported for this module?
Depending on system configuration, modules can be replaced with minimal disruption to the overall control system.
How does the module handle signal debouncing for mechanical input devices?
Built-in filtering and timing circuits stabilize readings from contacts prone to chatter.
What diagnostic features assist maintenance personnel?
LEDs, test points, and software status indicators allow for quick verification of module functionality.
How does the module mitigate electromagnetic interference (EMI) on field wiring?
Filtering, grounding, and isolation techniques reduce EMI and RFI effects on digital channels.
Can multiple IMDSM05 modules be combined for larger systems?
Yes, multiple modules can be installed to expand digital I/O capacity while maintaining coordinated control.
What protection mechanisms prevent damage from incorrect wiring or overvoltage?
Internal protective circuitry safeguards the module from reverse polarity and voltage spikes.
