Introduction

Accurate machinery condition monitoring depends on the compatibility of every component in the measurement chain. Sensors, probes, connecting cables, signal-conditioning devices, and monitoring modules must work together to provide useful information about rotating equipment.

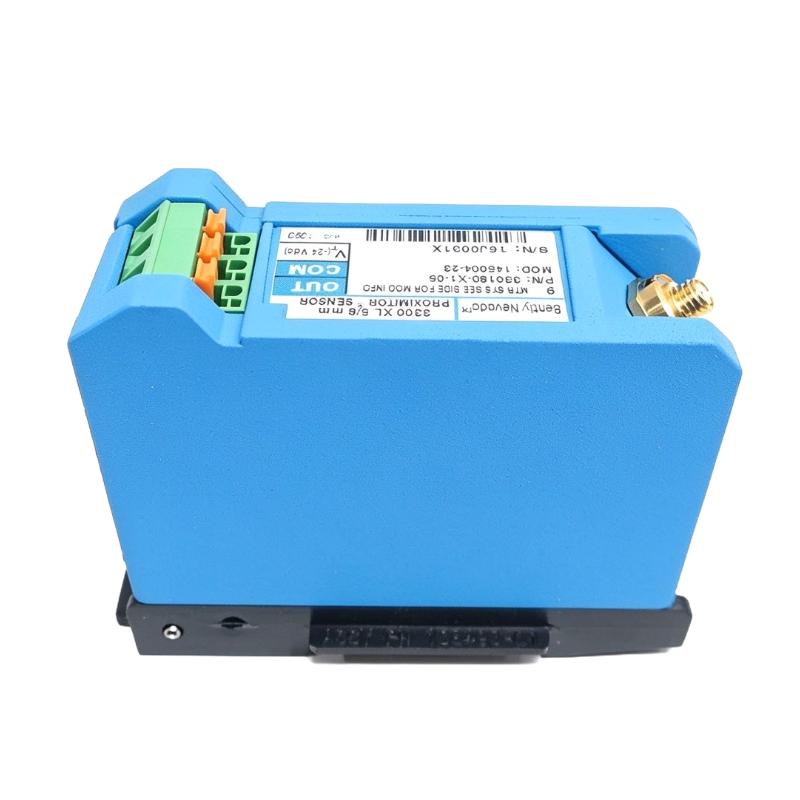

The Bently Nevada 330180-X1-05 145004-99 3300 XL Preamplifier Sensor is identified by the supplied product description as a component for industrial machinery monitoring applications. It is relevant to maintenance engineers, instrumentation specialists, and industrial spare-parts buyers working with Bently Nevada equipment.

In power generation, oil and gas processing, and other process industries, proximity measurement systems can help monitor shaft vibration and relative movement. Selecting the correct associated hardware is important for maintaining the intended measurement configuration and avoiding compatibility issues.

For procurement purposes, both identifiers—330180-X1-05 and 145004-99—should be retained when requesting a quotation or replacement. Because the precise function of this designation requires verification, buyers should confirm the manufacturer's product documentation and system compatibility before installation.

Technical Specifications

Parameter	Specification
Brand	Bently Nevada
Model	330180-X1-05
Associated Part Number	145004-99
Product Description	3300 XL Preamplifier Sensor
Product Family	3300 XL
Dimensions (L × W × H)	81.3 × 35.1 × 63.5 mm
Dimensions (inches)	3.20 × 1.38 × 2.50 in
Weight	0.25 kg / 0.54 lb
Application	Industrial machinery monitoring
System Compatibility	Verify against the exact device specification and installed monitoring system

Note: The product description and identifiers are based on the supplied information. Confirm the exact device function, electrical specifications, connector type, and compatibility before ordering or commissioning.

Recommended Related Models

The following Bently Nevada product families may be relevant when reviewing compatible proximity measurement and machinery monitoring equipment. Their functions differ, and none should be assumed to be a direct replacement for the specified item.

Bently Nevada 3300 XL 8 mm Proximity Probe — A non-contact sensing component used in compatible shaft displacement and vibration measurement systems.
Bently Nevada 3300 XL Extension Cable — Connects compatible proximity probes to associated signal-conditioning hardware.
Bently Nevada 3300 XL Proximitor Sensor — Signal-conditioning equipment used in compatible proximity measurement arrangements.
Bently Nevada 3500 Monitoring System — A machinery monitoring and protection platform used in industrial rotating equipment applications.

Check exact model suffixes, cable configurations, electrical interfaces, and system requirements before selecting associated equipment.

Popular Related Models

For maintenance teams managing industrial machinery monitoring systems, the following product families may also be worth considering:

Bently Nevada 330101 — A 3300 XL 8 mm proximity probe model for compatible measurement installations.
Bently Nevada 330103 — Another 3300 XL proximity probe designation to evaluate for the intended application.
Bently Nevada 330180 — A product designation associated with the 3300 XL proximity measurement ecosystem; verify the exact configuration before purchase.
Bently Nevada 3300 XL Proximitor Sensor — A signal-conditioning component used with compatible proximity probes and extension cables.

Choosing the correct component requires more than matching the product family. Confirm the full part number, device function, electrical interface, and system compatibility to support reliable integration and effective maintenance of industrial monitoring equipment.

Applications

The Bently Nevada 330180-X1-05 145004-99 3300 XL Preamplifier Sensor is associated with industrial machinery monitoring applications where reliable signal transmission and accurate condition assessment are essential. In proximity measurement systems, compatible signal-conditioning components work with probes and extension cables to support the monitoring of shaft vibration and displacement in rotating equipment.

Turbine Monitoring: Used in compatible machinery monitoring arrangements for steam and gas turbines.
Compressor Protection: Supports proximity measurement installations used to assess shaft movement and rotating equipment condition.
Industrial Pump Systems: Relevant to machinery monitoring configurations in process plants and utility facilities.
Power Generation: Suitable for evaluating within compatible monitoring arrangements for critical rotating machinery.
Petrochemical Processing: Supports maintenance activities involving machinery instrumentation and condition monitoring systems.
Equipment Maintenance: Helps maintenance teams identify the required component when servicing existing Bently Nevada monitoring installations.

Before installation, confirm the exact product designation and its intended function within the existing monitoring system.

Advantages

Supports Proximity Measurement Systems

Compatible signal-conditioning hardware helps convert probe measurements into signals that can be interpreted by the associated monitoring equipment.

Designed for Industrial Monitoring Applications

Bently Nevada equipment is widely associated with machinery condition monitoring and protection. Selecting the correct component is important when maintaining compatible installations.

Useful for Critical Equipment Maintenance

The product designation provides a clear identification reference for engineers and purchasing teams responsible for maintaining rotating machinery instrumentation.

Helps Preserve Existing System Configurations

Where an installation already uses compatible 3300 XL equipment, sourcing the specified component can help avoid unnecessary changes to the existing monitoring architecture.

Practical for Spare Parts Procurement

The model designation 330180-X1-05 and associated number 145004-99 help distinguish the requested item during inventory checks and purchasing inquiries.

Supports Equipment Reliability Programs

When correctly specified and integrated, compatible proximity measurement components contribute to monitoring arrangements used to evaluate machinery condition and identify potential operating abnormalities.

Technical FAQs

Q1: What is the function of the Bently Nevada 330180-X1-05?

The supplied product description identifies this item as a 3300 XL preamplifier sensor. Its exact function and configuration should be confirmed against the complete part number and applicable technical documentation before integration.

Q2: What is a preamplifier used for in a proximity monitoring system?

A preamplifier or associated signal-conditioning device processes signals from a compatible sensing arrangement so that the monitoring equipment can interpret the measured information. The precise function depends on the actual device design.

Q3: Is this product compatible with all Bently Nevada 3300 XL probes?

Compatibility should not be assumed across the entire product family. Verify the probe type, cable arrangement, electrical characteristics, and monitoring equipment requirements before selecting a component.

Q4: Can this device be used to monitor shaft vibration?

A compatible proximity measurement system can be used to monitor shaft vibration and relative displacement. Whether this specific item performs the required signal-conditioning function depends on its verified product identity and system configuration.

Q5: What is the purpose of the associated number 145004-99?

It is an additional identifier supplied with the product designation. Confirm whether it represents an assembly, manufacturing, or other reference number for the particular unit before using it for replacement procurement.

Q6: What should be checked before replacing an existing unit?

Verify the complete model number, associated part reference, connector arrangement, electrical characteristics, mounting requirements, and compatibility with the installed monitoring system.

Q7: What can cause an abnormal proximity measurement signal?

Possible causes include probe or cable damage, incorrect installation, unsuitable probe gap, electrical interference, connection problems, or a fault in the associated signal-conditioning equipment. Troubleshooting should follow the system's approved maintenance procedures.

Q8: Does the preamplifier independently provide machinery protection?

A signal-conditioning component should not be assumed to provide independent machinery protection. Protective functions depend on the complete monitoring and control architecture, including the appropriate monitoring modules and configured alarm or trip logic.

Q9: Can this component be integrated into a new monitoring system?

Integration is possible only if the verified device specifications and interfaces meet the new system's requirements. Confirm compatibility with the selected probes, cables, monitoring hardware, and intended measurement function.

Q10: How should this component be maintained?

Inspect connectors, cables, mounting arrangements, and the surrounding installation for physical damage, contamination, and loose connections. Follow the applicable manufacturer instructions for testing, replacement, and commissioning.
