Introduction

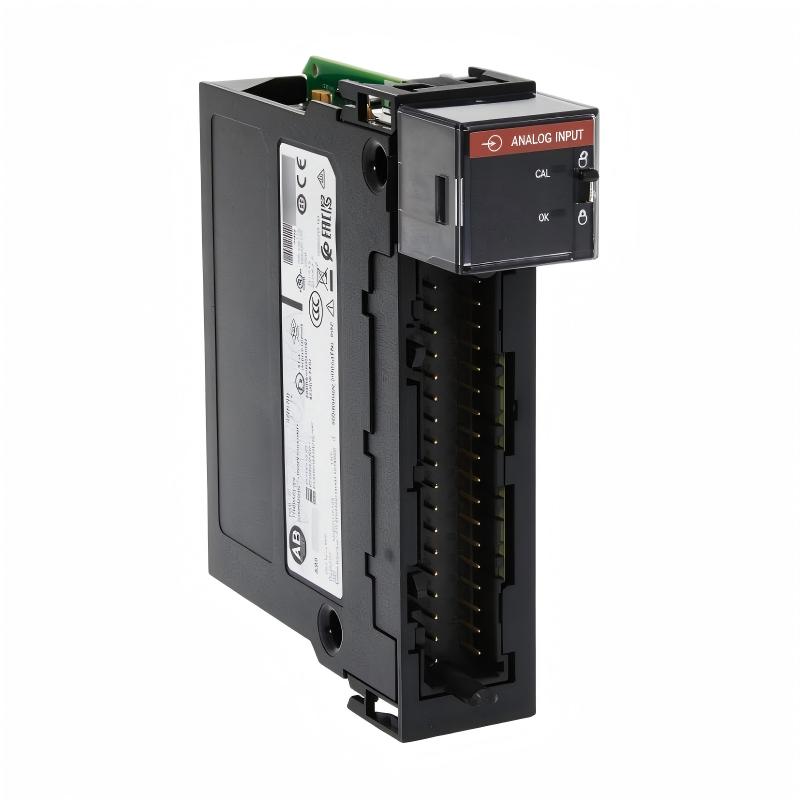

The Allen-Bradley 1756-IF16K ControlLogix Analog Input Module is intended for automation systems that need to acquire analog process data from field instruments. In a ControlLogix architecture, analog input modules allow controllers to monitor changing process variables and use the collected data in control logic, operator displays, and supervisory applications.

Typical applications include process measurement, equipment monitoring, and manufacturing operations where continuous measurements are required. The module's channel configuration makes it a candidate for systems that need multiple analog input points within a centralized control platform.

For replacement and integration projects, engineers should confirm the exact model suffix and supported signal types before installation. Proper channel configuration, wiring, and field-device compatibility are important for reliable analog measurement.

Technical Specifications

Parameter	Specification
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model	1756-IF16K
Product Series	ControlLogix
Product Type	Analog Input Module
Signal Type	Analog
Input Channels	16-channel family; verify exact variant
Primary Function	Analog signal acquisition
Installation	Compatible ControlLogix chassis
Dimensions	144.57 × 22 × 105.42 mm (5.69 × 0.87 × 4.15 in)
Weight	0.227 kg (0.50 lb)

Dimensions and weight are based on the supplied product data. Confirm the exact catalog variant and electrical specifications before installation.

Recommended Related Models

Allen-Bradley 1756-IF16 – ControlLogix analog input module in the 16-channel family.
Allen-Bradley 1756-IF8 – ControlLogix analog input module for applications requiring a different channel count.
Allen-Bradley 1756-OF8 – ControlLogix analog output module for compatible analog signal output applications.
Allen-Bradley 1756-A7 – ControlLogix chassis for compatible system configurations.

These models have different functions or channel configurations. Verify signal requirements and system compatibility before selecting an alternative.

Popular Related Models

Allen-Bradley 1756-IF16 ControlLogix Analog Input Module
Allen-Bradley 1756-IF8 ControlLogix Analog Input Module
Allen-Bradley 1756-IF6I ControlLogix Analog Input Module
Allen-Bradley 1756-OF8 ControlLogix Analog Output Module
Allen-Bradley 1756-OB16E ControlLogix Digital Output Module
Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP Communication Module
Allen-Bradley 1756-L81E ControlLogix Controller

When selecting related modules, confirm the supported signal types, channel count, electrical requirements, firmware compatibility, and chassis configuration for the intended ControlLogix system.

Applications

Process Automation: Collect analog measurements from compatible industrial instruments.
Manufacturing Systems: Monitor process variables used in automated production equipment.
Pressure Monitoring: Receive analog signals from compatible pressure transmitters.
Temperature Monitoring: Acquire analog temperature measurements through supported field instruments.
Flow Measurement: Integrate compatible flow transmitters into PLC-based monitoring systems.
Industrial Equipment Monitoring: Supply analog process data to a compatible ControlLogix controller for monitoring and control

Advantages

Analog Signal Acquisition: Designed to receive analog measurements from compatible industrial field devices.
ControlLogix Integration: Supports integration into compatible Rockwell Automation control architectures.
Multi-Channel Configuration: The 1756-IF16 family provides 16 analog input channels.
Process Data Monitoring: Enables controllers to use analog measurements for monitoring, alarms, and control logic.
Modular Installation: Installs within a compatible ControlLogix chassis configuration.
Industrial Application Flexibility: Suitable for evaluating in process and manufacturing systems that require analog signal monitoring.

Technical FAQs

Q1: What is the Allen-Bradley 1756-IF16K?

It is identified as a ControlLogix analog input module designed to collect analog signals from compatible industrial instruments.

Q2: What is the main function of an analog input module?

It receives analog signals from field devices and converts them into digital values that a compatible controller can process.

Q3: How many input channels does the 1756-IF16 family provide?

The 1756-IF16 family provides 16 analog input channels. Confirm the specifications of the exact catalog variant before installation.

Q4: What types of devices can connect to an analog input module?

Depending on the module's supported signal modes, compatible devices may include pressure transmitters, temperature transmitters, flow instruments, and other analog-output sensors.

Q5: Does the 1756-IF16K support voltage and current signals?

The supported signal types depend on the precise module variant and configuration. Check the manufacturer's specifications before connecting voltage- or current-output instruments.

Q6: Is the 1756-IF16K a standalone controller?

No. It is an analog input module that operates as part of a compatible ControlLogix system.

Q7: Which chassis is required for installation?

A compatible ControlLogix chassis is required. Verify the chassis configuration and module installation requirements before use.

Q8: What should be checked before wiring the module?

Confirm the supported signal ranges, wiring diagram, channel configuration, grounding requirements, and compatibility with the field instruments.

Q9: Can this module replace another analog input module?

Replacement suitability depends on channel count, signal types, electrical characteristics, wiring, and system compatibility. Similar product names alone do not guarantee interchangeability.

Q10: What information should be confirmed before purchasing?

Verify the complete catalog number, product condition, supported analog signals, channel configuration, and compatibility with the intended ControlLogix installation.
