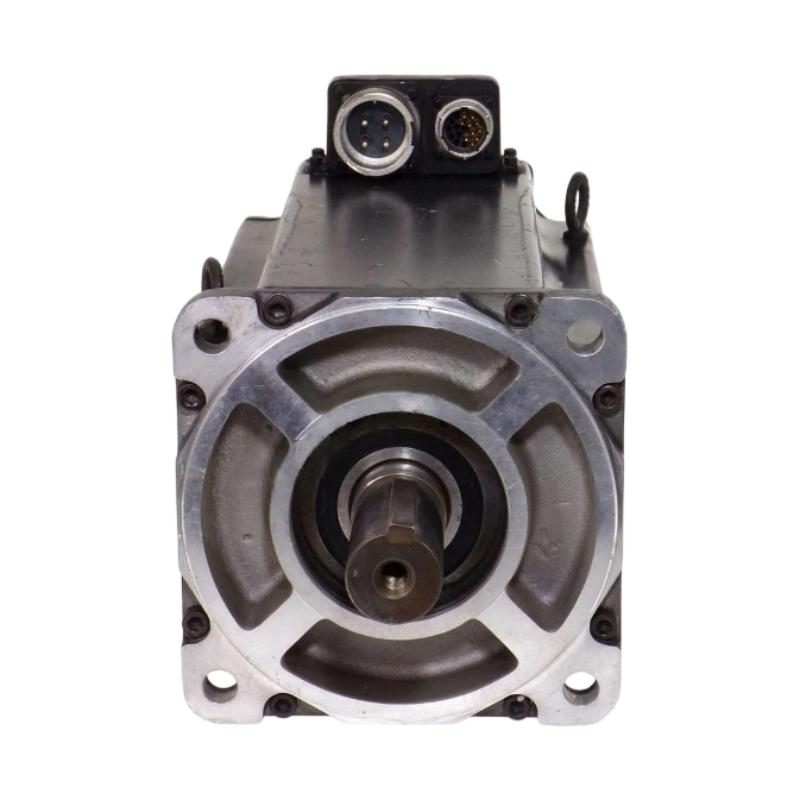

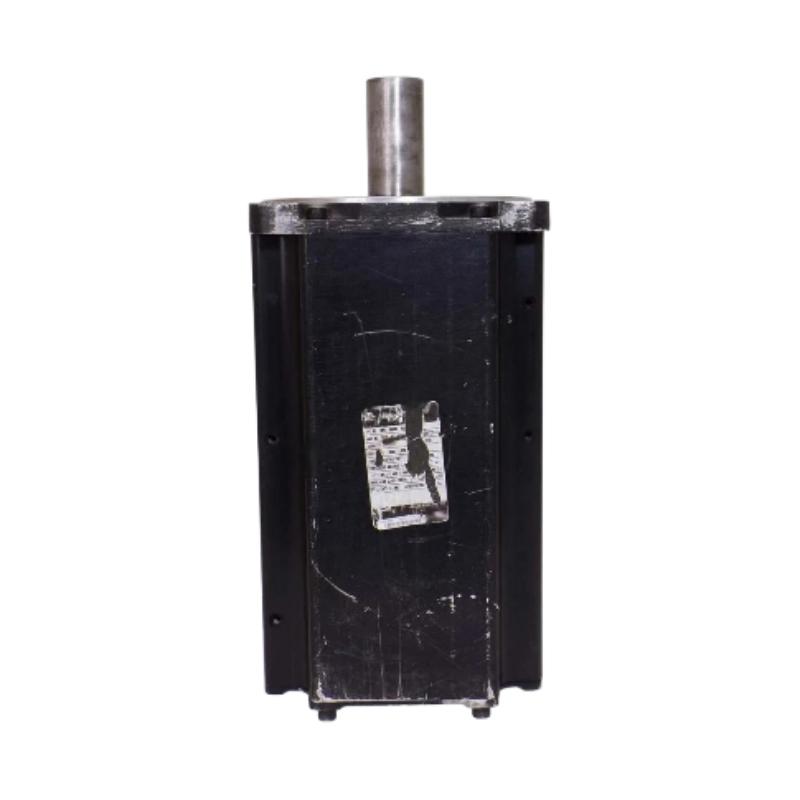

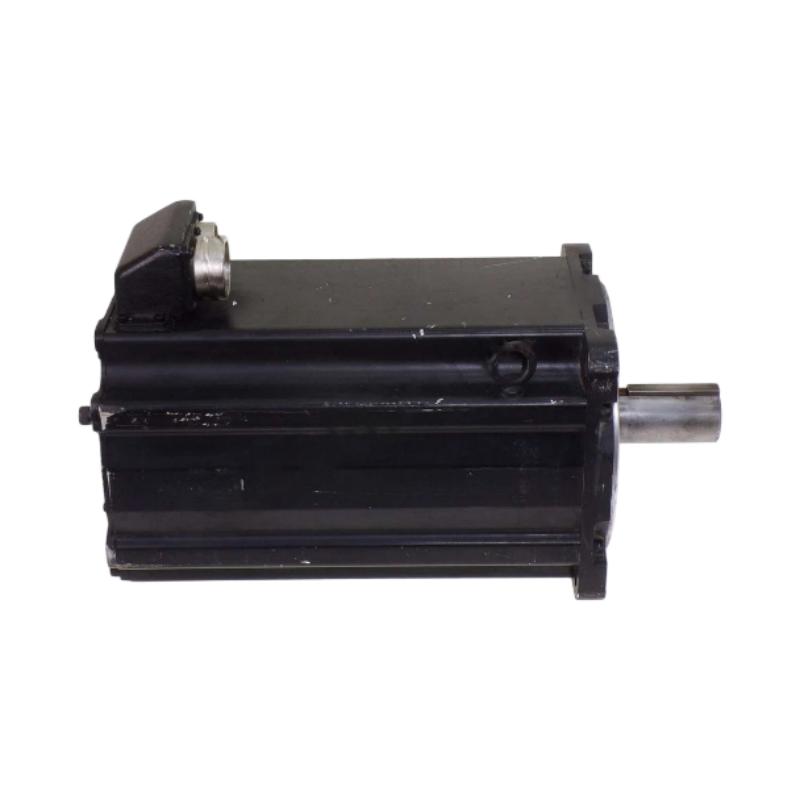

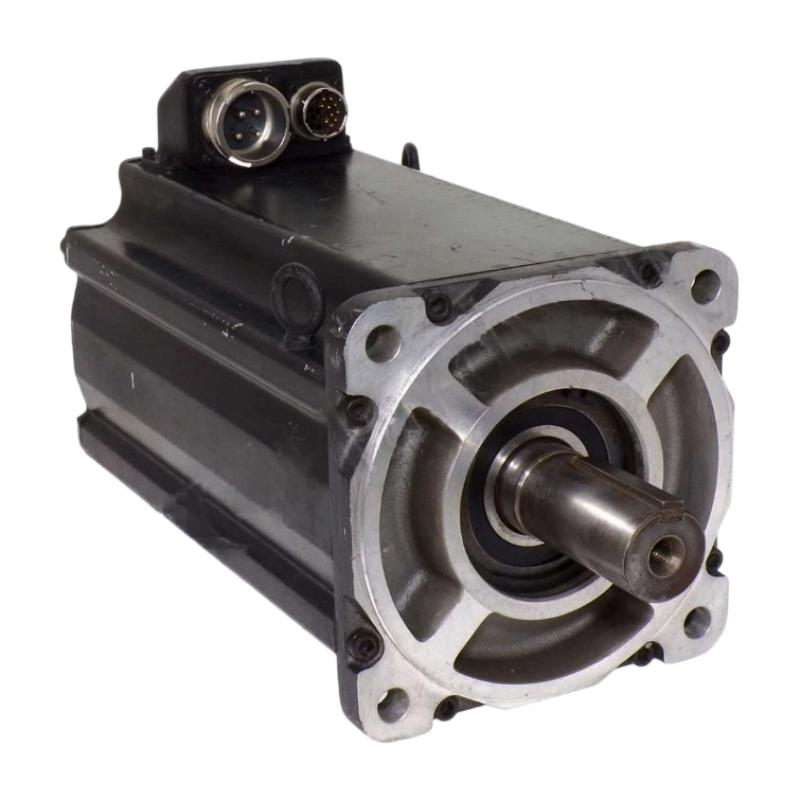

Allen Bradley MPL-B680F-SJ74AA Servo Motor

Applications

• Industrial Automation: Supports motion-control functions in automated manufacturing equipment and production lines.

• Packaging Machinery: Can be considered for packaging systems requiring coordinated movement and repeatable positioning.

• Material Handling: Suitable for evaluation in automated handling and positioning applications.

• Assembly Equipment: Can support servo-based movement in automated assembly systems when correctly integrated.

• Machine Tools: May be used in suitable machinery requiring controlled motion and positioning.

• Manufacturing Systems: Can be incorporated into compatible automation systems for coordinated machine operation.

Advantages

• Responsive Motion Control: The MPL series is designed for industrial servo applications requiring controlled movement and acceleration.

• Positioning Performance: When paired with a compatible drive and feedback system, a servo motor can support accurate positioning and repeatable motion.

• Industrial Integration: Can be evaluated for integration into compatible Allen-Bradley motion-control systems.

• Configuration Options: The MPL family offers different motor configurations for various machine requirements.

• Clear Model Identification: The complete catalog number helps maintenance teams and buyers identify the intended motor.

• Replacement Planning: Verifying the exact motor configuration helps reduce the risk of ordering an incompatible replacement.

Technical FAQs

Q1: What is the Allen-Bradley MPL-B680F-SJ74AA?

A: It is identified as an Allen-Bradley MPL-series servo motor for industrial motion-control applications. Confirm the exact configuration using the manufacturer's documentation and motor nameplate.

Q2: What is the frame size of this motor?

A: The supplied frame-size specification is 215 mm.

Q3: How much does the MPL-B680F-SJ74AA weigh?

A: The supplied weight is 40.4 kg, approximately 89.07 lb.

Q4: What applications can this servo motor support?

A: Potential applications include automated manufacturing, packaging machinery, material handling, assembly equipment, and other motion-control systems, provided the motor meets the application's requirements.

Q5: Can this motor be used for precise positioning?

A: Servo motors are commonly used for positioning applications when integrated with a compatible drive, feedback device, and motion controller. Actual positioning performance depends on the complete system configuration.

Q6: Which servo drive is compatible with this motor?

A: Compatibility depends on the motor's electrical ratings, feedback configuration, and connection requirements. Check the complete catalog number against the drive manufacturer's compatibility documentation.

Q7: Can this model replace another MPL-series servo motor?

A: Not automatically. Different catalog numbers can indicate differences in electrical ratings, feedback options, connectors, or mechanical configuration. Verify compatibility before replacement.

Q8: What should be checked before installation?

A: Verify the rated voltage, current, torque, speed, feedback type, shaft dimensions, mounting arrangement, connectors, and operating environment.

Q9: What information should buyers provide when ordering this motor?

A: Provide the complete catalog number, MPL-B680F-SJ74AA, and confirm the nameplate details, condition, required accessories, and application requirements.

Q10: Is this motor suitable for continuous operation?

A: Suitability depends on its rated duty, load profile, thermal conditions, operating environment, and drive configuration. Review the exact product specifications before use.
