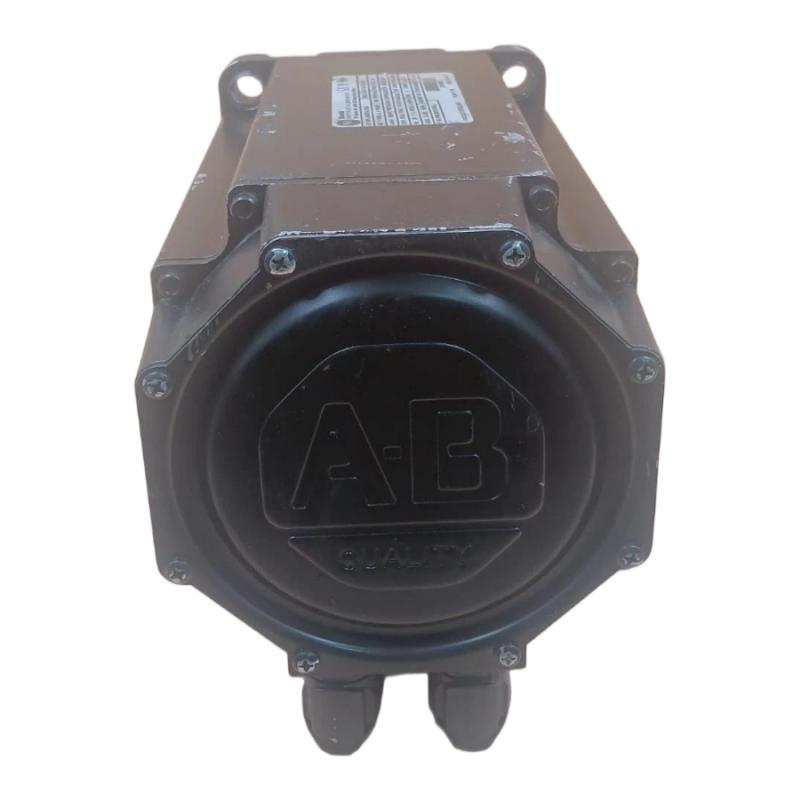

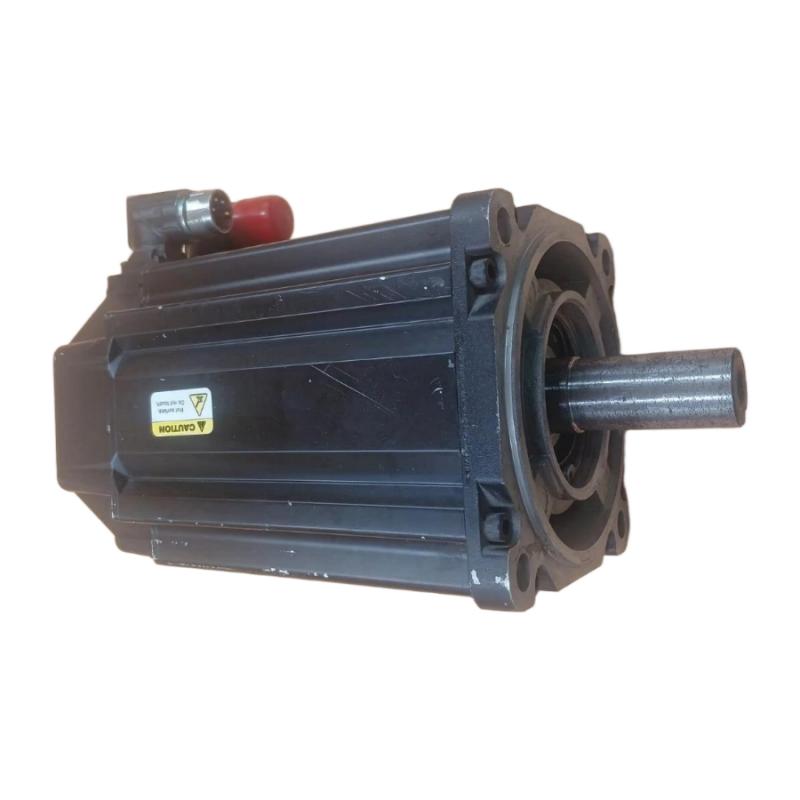

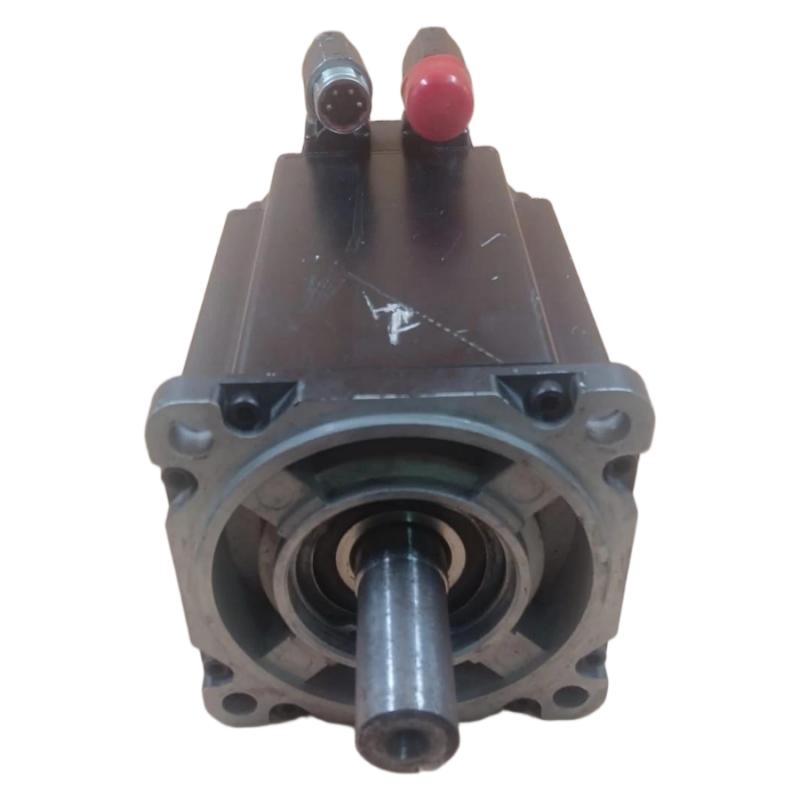

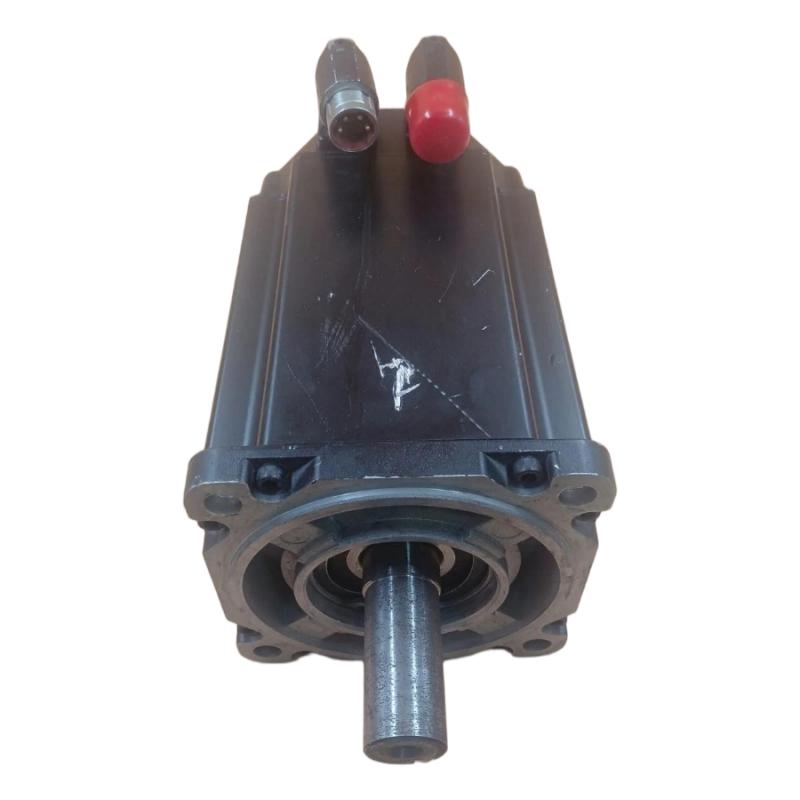

Allen Bradley MPL-B860D-SJ74AA Servo Motor

Applications

The Allen Bradley MPL-B860D-SJ74AA Servo Motor is an industrial motion control component intended for integration into compatible automated machinery. Servo motors are commonly used where controlled rotation, repeatable positioning, and coordinated machine movement are essential to production performance.

Typical application areas include:

• Packaging Systems: Supports controlled movement in automated packaging, labeling, and product handling equipment.

• Material Handling: Used in servo-driven positioning mechanisms and automated transfer systems.

• Assembly Machinery: Suitable for machine axes that require repeatable movement during production cycles.

• Industrial Manufacturing: Can be integrated into automated equipment requiring coordinated motion control.

• Special-Purpose Machines: Provides a potential servo motor option when its electrical, mechanical, and feedback specifications match the application.

Before installation, verify compatibility with the existing servo drive, feedback system, mounting interface, and machine load requirements.

Advantages

• Controlled Motion: Suitable for applications requiring regulated speed, position, and acceleration through a compatible servo system.

• Automation System Integration: Belongs to the Allen-Bradley MPL servo motor family, used in industrial motion control applications.

• Repeatable Positioning: Supports machinery that depends on consistent motion profiles and coordinated operation.

• Configuration Identification: The complete catalog number helps distinguish the required motor variant during maintenance and procurement.

• Industrial Application Flexibility: Can be considered for different machine designs when the required torque, speed, and duty cycle are within its verified ratings.

• Replacement Planning: Matching the motor's electrical and mechanical details helps reduce the risk of selecting an incompatible replacement.

Technical FAQs

Q1: What is the Allen Bradley MPL-B860D-SJ74AA Servo Motor?

It is an Allen-Bradley MPL series servo motor intended for use in compatible industrial motion control systems.

Q2: What equipment is required to operate this servo motor?

A compatible servo drive, motion controller, feedback connection, and appropriate motor cables are generally required. Exact requirements depend on the motor configuration and system design.

Q3: Is this motor suitable for closed-loop motion control?

Servo motors are commonly used in closed-loop systems, where feedback allows the drive to regulate motor movement. Confirm the specific feedback interface for this catalog number.

Q4: How should the matching servo drive be selected?

Compare the motor's rated voltage, current, speed, torque characteristics, and feedback requirements with the drive's supported specifications.

Q5: Why should the full catalog number be checked before ordering?

Motor variants can differ in connector arrangements, feedback configurations, and other details. The full catalog number helps ensure the selected component matches the original installation.

Q6: What factors affect the motor's performance in a machine?

Load inertia, required torque, operating speed, acceleration, duty cycle, environmental conditions, and servo drive tuning all influence system performance.

Q7: Can this motor replace another MPL series motor?

Not automatically. A replacement must match the required electrical ratings, feedback interface, shaft and mounting dimensions, and other application-specific requirements.

Q8: What maintenance checks are recommended?

Inspect motor cables, connectors, grounding, mounting hardware, and the surrounding operating environment. Investigate abnormal vibration, overheating, or recurring drive faults.

Q9: What should be checked if the motor fails to start?

Check the drive's fault history, control signals, power connections, feedback wiring, safety interlocks, and mechanical load. Follow the equipment manufacturer's troubleshooting procedures.

Q10: What information should be collected before purchasing a replacement?

Record the complete motor catalog number, compatible drive model, electrical requirements, feedback configuration, shaft interface, and mounting requirements.
