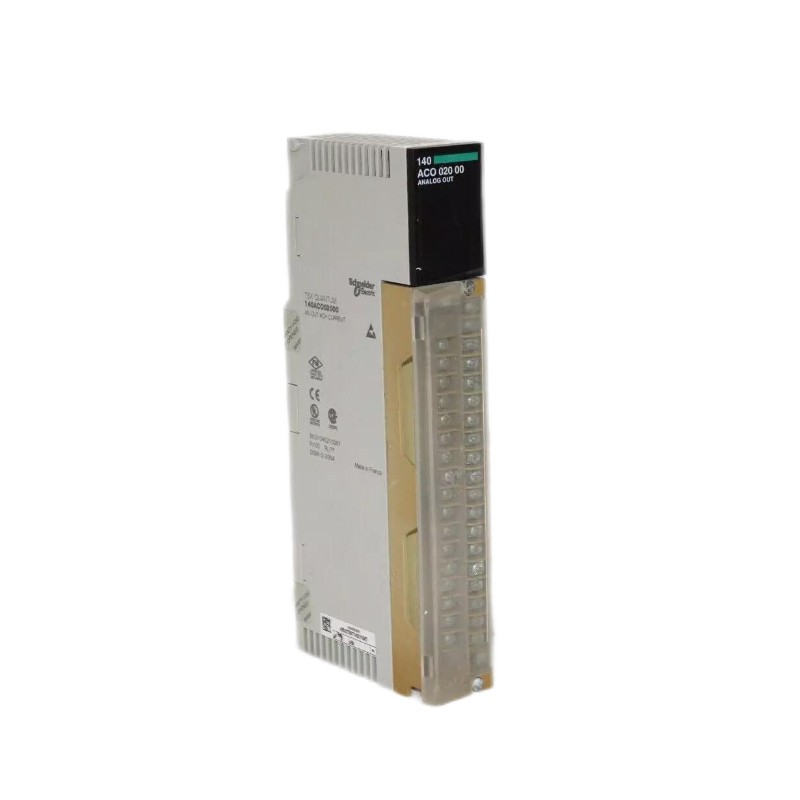

The Schneider Electric 140ACO02000 Analog Output Module is engineered to provide precise control of analog output signals in industrial automation systems. Ideal for use with Schneider Electric's Modicon M340 and M580 PLCs, this module offers reliable and high-performance analog output capabilities for applications in manufacturing, process control, energy management, and more. With up to 8 output channels, the 140ACO02000 enables accurate regulation of systems requiring analog control, including actuators, valve positioners, and other devices requiring precise output signals.

Designed for flexibility and durability, the 140ACO02000 supports both voltage and current outputs, making it suitable for a wide range of industrial applications. Whether you are controlling process variables in a factory or regulating equipment in energy management systems, this module provides the reliability and performance you need for effective control.

Technical Specifications

Model Number: 140ACO02000
Module Type: Analog Output Module
Output Types: Voltage (0-10V), Current (4-20mA)
Number of Channels: 8 Channels
Signal Conversion: 16-bit Resolution
Output Impedance: ≤ 500Ω (Voltage), ≤ 20Ω (Current)
Operating Temperature Range: -25°C to 70°C
Dimensions: 5.9 in x 5.9 in x 2.4 in (150 mm x 150 mm x 61 mm)
Weight: 0.7 lbs (0.32 kg)
Power Requirements: 24V DC, 0.3A

Recommended Related Models

Schneider 140CRP93100: Power Supply Module for Schneider Modicon PLCs.
Schneider 140XBP01000: Digital Output Module for enhancing control capabilities.
Schneider 140CPS11410: Profibus DP Communication Module for seamless communication across networks.

Popular Schneider Electric Models

Schneider 140CPU67160: CPU Module for the Modicon M580 PLC, designed for advanced control.
Schneider 140XTS00300: Digital Output Module for precise switching applications.
Schneider 140CPS21200: Communication Processor Module for network connectivity.
Schneider 140ACI04000: Analog Input Module with 16 channels for comprehensive signal acquisition.
Schneider 140XBP00200: Digital Input Module for extending I/O capabilities.

Applications

Manufacturing Automation: Perfect for controlling devices like actuators, variable frequency drives (VFDs), and positioners, the 140ACO02000 ensures precise output control in automated systems.
Energy Management: Used for controlling energy systems such as HVAC systems, power plants, and substations, where accurate analog output regulation is critical for optimal performance and efficiency.
Process Control: Ideal for controlling valves, pumps, and other process control equipment in industries like chemicals, pharmaceuticals, and food & beverage.
Building Automation: Used for controlling lighting systems, environmental controls, and other equipment in smart buildings and facilities.

Advantages

High-Resolution Output: The 140ACO02000 provides 16-bit resolution for precise analog output control, ensuring accuracy in feedback and regulation processes.
Versatile Output Options: The module supports both voltage (0-10V) and current (4-20mA) outputs, providing flexibility for various applications and equipment requirements.
Multiple Channels: With 8 output channels, the module supports multi-point control for complex systems that require multiple analog outputs.
Durable Design: Built to withstand harsh industrial environments, the module operates within a temperature range of -25°C to 70°C, making it suitable for challenging applications.
Efficient Power Consumption: Operating at 24V DC with low power consumption (0.3A), the 140ACO02000 ensures energy efficiency across a variety of installations.

Technical FAQs

What types of output signals does the 140ACO02000 support?
- The module supports both voltage (0-10V) and current (4-20mA) output signals for a wide range of applications.
How many output channels does the 140ACO02000 have?
- The module provides 8 output channels, allowing control of multiple devices simultaneously.
What is the resolution of the output signals on the 140ACO02000?
- The module offers 16-bit resolution for precise analog output control.
What are the power requirements for this module?
- The module operates with 24V DC and requires 0.3A of current.
Can the 140ACO02000 be used with other Schneider PLCs?
- Yes, the module is compatible with Schneider Electric’s Modicon M340 and M580 PLC systems.
What is the operating temperature range for the 140ACO02000?
- The module operates within a temperature range of -25°C to 70°C, making it suitable for most industrial environments.
Can this module be used in hazardous environments?
- The 140ACO02000 is designed for standard industrial environments. For use in hazardous environments, it is important to consult local safety regulations.
How easy is it to integrate the 140ACO02000 into an existing system?
- The module is designed for easy integration into Schneider Electric’s Modicon PLC systems, making it simple to add to existing setups.
How many modules can be connected to a Modicon M340 PLC?
- A Modicon M340 PLC can support up to 64 I/O modules, allowing you to expand your system as needed.
What warranty is provided for the 140ACO02000?
- Schneider Electric offers a standard 1-year warranty for the 140ACO02000 module.
