Introduction

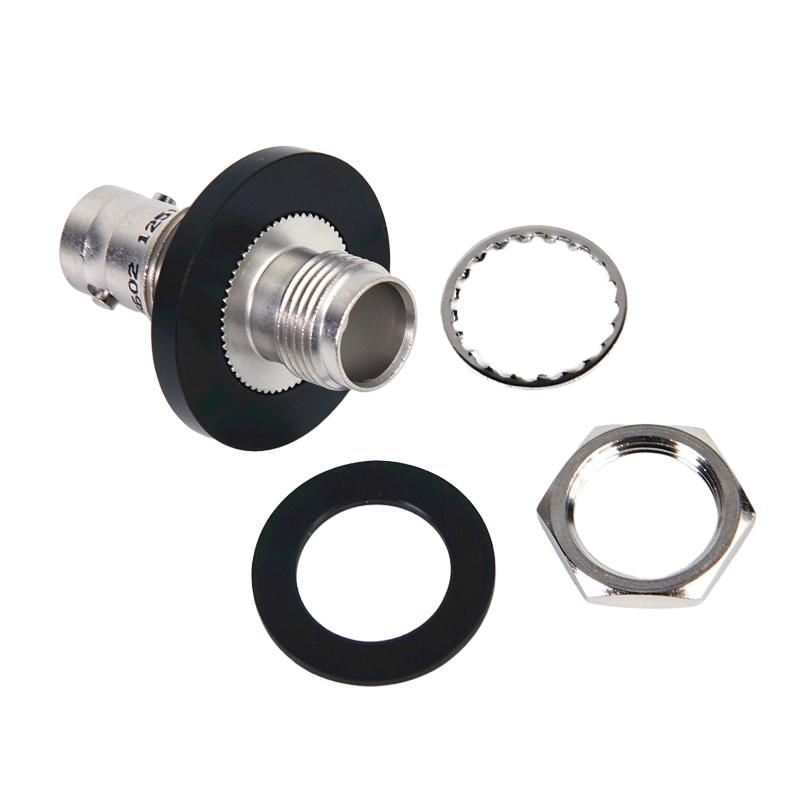

The Allen Bradley 1786-BNC2TNC ControlNet Coaxial Adapter is a specialized connection accessory intended for compatible industrial communication installations. In automation systems, even relatively small connection components can be important to the integrity and serviceability of the overall network.

ControlNet infrastructure is used in industrial environments where controllers and other automation devices need an established communication arrangement. Maintaining the correct cable interfaces helps technicians preserve the original network configuration and carry out maintenance with fewer unnecessary changes.

For industrial distributors, maintenance departments, and system integrators, the 1786-BNC2TNC can be considered when sourcing a specified coaxial adapter for an existing installation. Confirming the connector arrangement and cable requirements before purchase is essential to ensure the selected component matches the intended application.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	1786-BNC2TNC
Product Type	ControlNet Coaxial Adapter
Network Application	ControlNet
Connection Category	Coaxial adapter
Dimensions (L × W × H)	50 × 20 × 40 mm
Weight	0.10 kg / 0.22 lb
Product Category	Industrial Communication Accessories
Application	Compatible industrial ControlNet installations

Technical note: Verify the precise connector configuration and electrical compatibility against the requirements of the existing network before ordering.

Recommended Related Models

The following Allen Bradley models are related to ControlNet connectivity and network infrastructure. Their functions differ, so suitability should be determined by the specific maintenance or integration requirement.

Model	Product Type	Application
1786-TPR	ControlNet Coaxial Tap	Provides a connection point in compatible coaxial network installations
1786-TPS	ControlNet Coaxial Tap	Supports compatible ControlNet coaxial connections
1786-TPYS	ControlNet Y-Tap	Provides a branching connection arrangement for supported applications
1786-RPA	ControlNet Repeater Adapter	Used in compatible repeater configurations
1786-RPFM	ControlNet Fiber Repeater Module	Supports fiber-optic extension in compatible ControlNet networks

Popular Related Models

For broader spare-parts sourcing and ControlNet system maintenance, the following models may also be relevant. They cover network access, programming connectivity, and controller communication interfaces.

Model	Product Type	Application
1786-CP	ControlNet Programming Cable	Connects compatible programming equipment to supported devices
1786-BNC	ControlNet BNC Connector	Used for compatible coaxial cable connections
1756-CNB	ControlLogix ControlNet Bridge Module	Provides ControlNet communication for supported ControlLogix systems
1756-CNBR	ControlLogix Redundant ControlNet Bridge Module	Supports redundant ControlNet communication configurations
1788-CNC	ControlNet Communication Interface	Used in compatible industrial communication applications

The Allen Bradley 1786-BNC2TNC ControlNet Coaxial Adapter is best selected according to the existing network's physical connection requirements. Confirming the part number, connector configuration, and intended application helps streamline purchasing and supports effective maintenance of established industrial automation systems.

Applications

The Allen Bradley 1786-BNC2TNC ControlNet Coaxial Adapter is designed for coaxial cable connections in compatible industrial ControlNet communication systems. It serves as a connection accessory for automation installations where reliable physical network interfaces are essential for maintaining communication between control devices.

ControlNet Network Integration: Supports coaxial cable interfacing in compatible ControlNet installations.
Industrial Control Panels: Suitable for network cabling arrangements within PLC cabinets and industrial control panels.
Manufacturing Automation: Helps support communication infrastructure in automated production lines and machinery.
Process Control Systems: Can be used in compatible industrial communication installations across process-oriented facilities.
Maintenance and Replacement: Provides a potential replacement option when servicing existing ControlNet connections, subject to connector and cable compatibility.

For system integrators and maintenance engineers, selecting the correct adapter helps maintain an organized network installation and reduces the risk of connection mismatches during equipment servicing.

Advantages

Reliable Connection Integration

The 1786-BNC2TNC provides a coaxial connection interface for compatible ControlNet applications. Selecting the appropriate connector accessory helps establish the intended physical connection within an existing communication network.

Designed for Industrial Automation Environments

Industrial communication infrastructure requires suitable cabling, correct connector interfaces, and proper installation practices. This adapter can support connection requirements in established automation systems when used with compatible components.

Convenient for Maintenance and Replacement

When a ControlNet installation requires cable-interface maintenance, the correct adapter can help technicians address connection requirements without unnecessarily changing the wider control architecture.

Compact and Practical Design

Its compact dimensions make it convenient to handle during installation, inspection, and troubleshooting. It can be considered for applications where space around existing control equipment and communication cabling is limited.

Supports Existing ControlNet Infrastructure

Many industrial facilities continue to operate established ControlNet networks. Maintaining compatible connection accessories can help support long-term equipment serviceability and reduce the need for unnecessary network modifications.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 1786-BNC2TNC?

The 1786-BNC2TNC is identified as a ControlNet coaxial adapter. Its intended role is to provide a compatible physical connection within a ControlNet-related coaxial cabling arrangement.

Q2: Which communication protocol is associated with this adapter?

It is associated with ControlNet industrial communication systems. It should not be treated as an Ethernet adapter or a general-purpose network converter.

Q3: Can this adapter be used with any coaxial cable?

No. Compatibility depends on the connector configuration, cable characteristics, electrical requirements, and network design. The cable and adapter must match the intended installation.

Q4: Does the adapter convert ControlNet signals into Ethernet signals?

It should not be regarded as an active protocol converter. Communication between different network types requires appropriately designed interface hardware or a compatible gateway.

Q5: Does the 1786-BNC2TNC require a separate power supply?

A passive coaxial adapter generally does not require an independent power source. However, its exact construction and function should be confirmed before installation.

Q6: Can this adapter improve ControlNet network speed?

The adapter is not a network-speed enhancement device. Overall communication performance depends on the network hardware, cable condition, topology, termination, and installation quality.

Q7: What should be checked if network communication becomes unstable?

Inspect the cable assembly, connector fit, shielding continuity, network termination, and topology. Diagnostic indicators on the connected ControlNet equipment can help identify communication faults.

Q8: Can the adapter be used when expanding an existing ControlNet installation?

Potentially, provided the connector arrangement and network configuration are compatible. Network expansion should follow the installation requirements for cable routing, termination, and supported topology.

Q9: Is the 1786-BNC2TNC a replacement for a ControlNet communication module?

No. An adapter provides a physical connection function and does not replace the processing or communication functions of an active ControlNet interface module.

Q10: What should buyers verify before ordering this part?

Confirm the complete catalog number, connector arrangement, intended cable interface, and compatibility with the installed ControlNet equipment. Comparing the replacement against the original component helps prevent ordering errors.
