Introduction

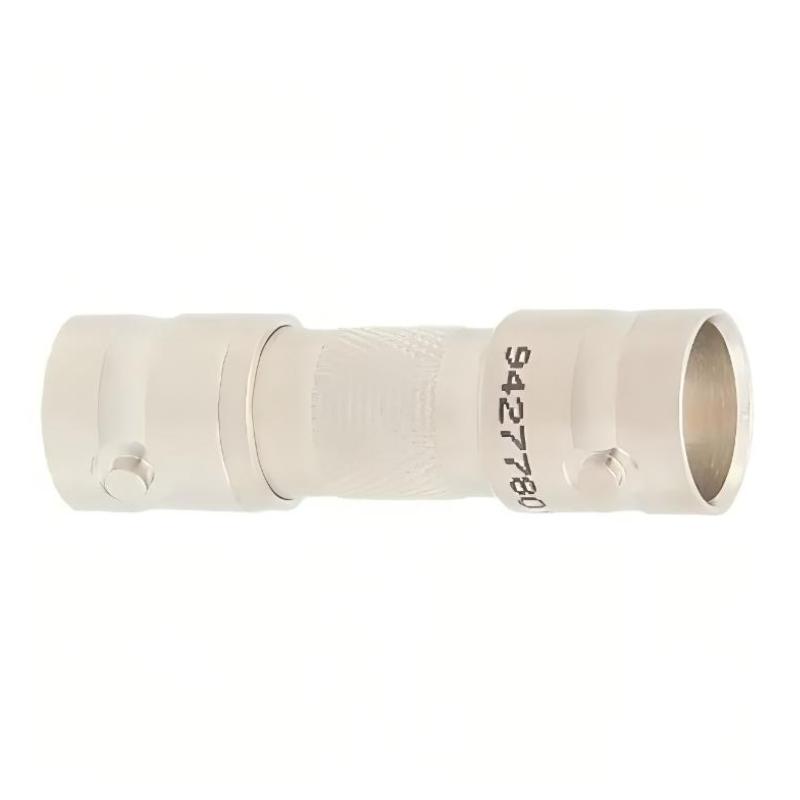

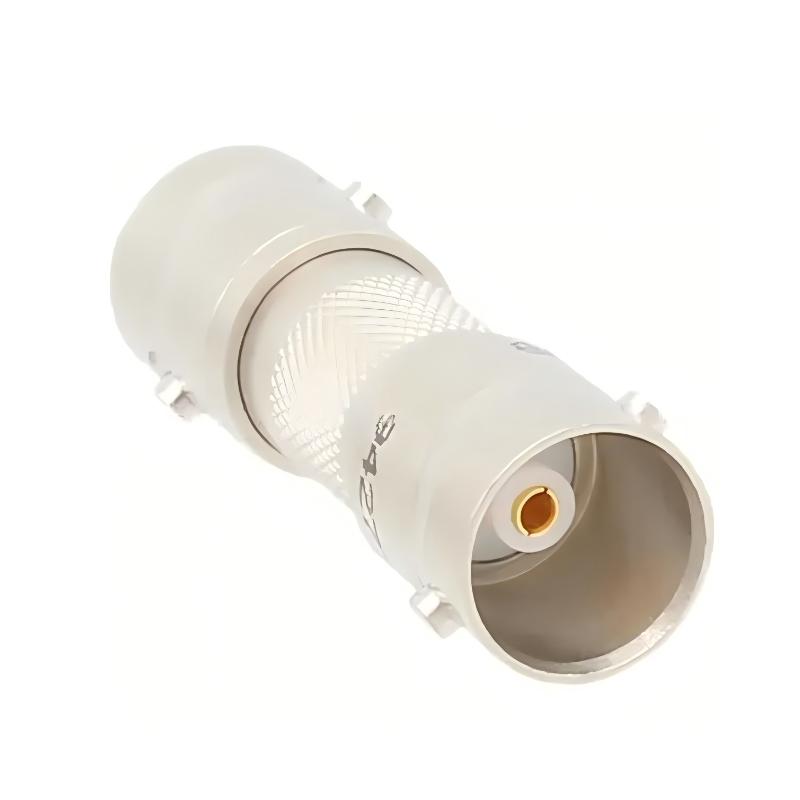

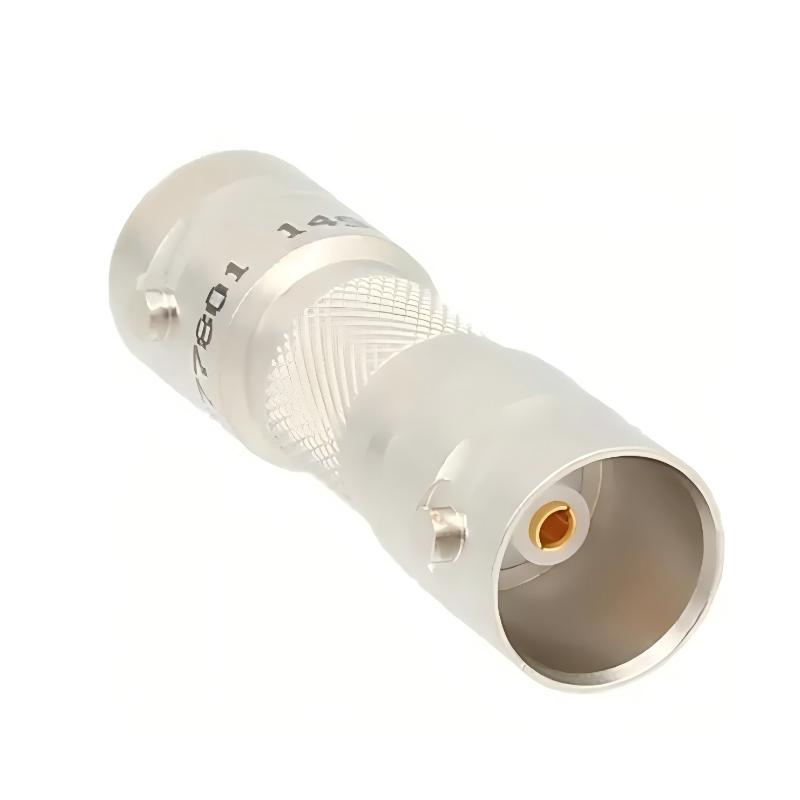

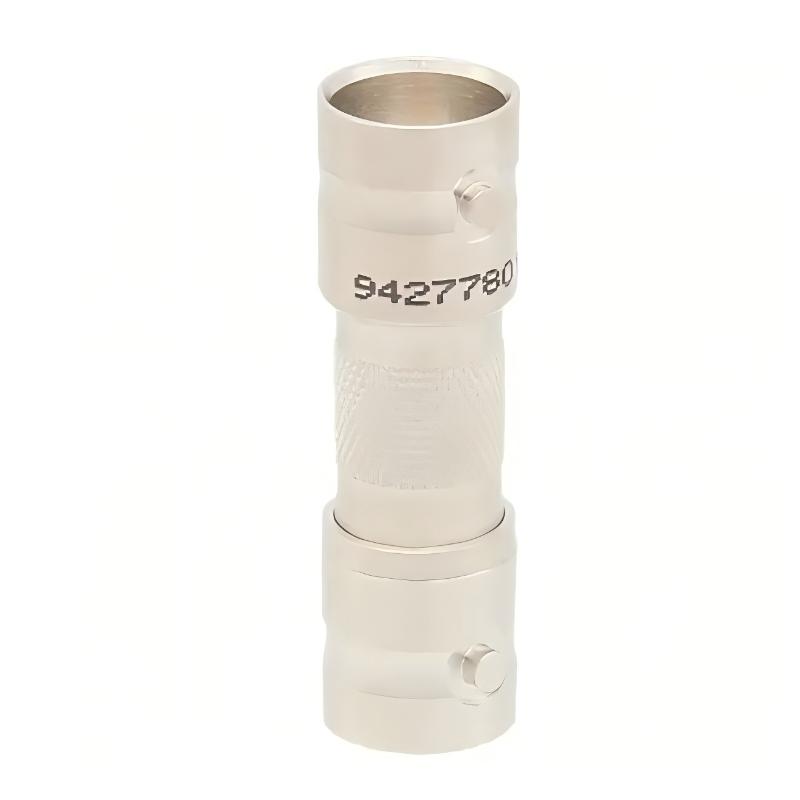

The Allen Bradley 1786-BNCJ ControlNet BNC Coaxial Connector is a connection accessory associated with industrial ControlNet coaxial cabling. In automation systems, the reliability of network communication depends not only on controllers and communication modules but also on the quality and compatibility of the physical connections between components.

For industrial maintenance teams, connector selection is an important consideration when repairing cable assemblies, maintaining existing communication infrastructure, or organizing spare parts. An appropriate connector helps technicians preserve the intended physical interface while minimizing unnecessary changes to the established network design.

The 1786-BNCJ may be relevant to industrial distributors, automation contractors, and facilities maintaining compatible ControlNet systems. Before purchasing, buyers should confirm the exact connector arrangement and cable requirements to ensure that the part is suitable for the intended installation.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	1786-BNCJ
Product Type	ControlNet BNC Coaxial Connector
Network Application	ControlNet
Connection Category	BNC coaxial connector
Dimensions (L × W × H)	50 × 20 × 40 mm
Weight	0.10 kg / 0.22 lb
Product Category	Industrial Communication Accessories
Typical Use	Compatible ControlNet coaxial cable connections

Note: The supplied dimensions and weight are listed for product identification and purchasing reference. Verify the connector's exact electrical and mechanical specifications before installation.

Recommended Related Models

The following Allen Bradley models are associated with ControlNet communication and coaxial network infrastructure. They serve different functions and should be selected according to the requirements of the existing installation.

Model	Product Type	Application
1786-BNC2TNC	ControlNet Coaxial Adapter	Supports compatible coaxial connection arrangements
1786-TPR	ControlNet Coaxial Tap	Provides a network connection point in supported installations
1786-TPS	ControlNet Coaxial Tap	Used in compatible ControlNet coaxial network configurations
1786-TPYS	ControlNet Y-Tap	Supports a compatible branching connection arrangement
1786-RPA	ControlNet Repeater Adapter	Used with compatible ControlNet repeater configurations

Popular Related Models

For broader ControlNet spare-parts planning, the following Allen Bradley products may also be relevant. These models cover network access, programming connections, and controller communication.

Model	Product Type	Application
1786-CP	ControlNet Programming Cable	Programming and connection tasks involving compatible equipment
1756-CNB	ControlLogix ControlNet Bridge Module	Connects supported ControlLogix systems to a ControlNet network
1756-CNBR	ControlLogix Redundant ControlNet Bridge Module	Supports redundant ControlNet communication configurations
1786-RPFM	ControlNet Fiber Repeater Module	Supports fiber-optic extension in compatible network installations
1786-BNC2TNC	ControlNet Coaxial Adapter	Used for compatible coaxial connection requirements

The Allen Bradley 1786-BNCJ ControlNet BNC Coaxial Connector is a specialized accessory for physical network connectivity. Matching the correct catalog number to the cable assembly and installed ControlNet configuration helps support efficient maintenance, reliable component sourcing, and long-term serviceability of industrial automation infrastructure.

Applications

The Allen Bradley 1786-BNCJ ControlNet BNC Coaxial Connector is a connection accessory intended for compatible ControlNet coaxial cable installations. In industrial automation environments, suitable coaxial connectors help establish the physical connections required by network components and support organized cable installation.

ControlNet Network Connections: Used in compatible coaxial cabling arrangements within ControlNet communication systems.
PLC Communication Infrastructure: Supports the physical connection requirements of industrial control networks.
Manufacturing Automation: Suitable for evaluating connection requirements in production lines and automated manufacturing facilities.
Industrial Control Cabinets: Can be considered for compatible coaxial connection arrangements in control panels and equipment cabinets.
Maintenance and Spare Parts: Relevant to maintenance teams sourcing specified BNC connector components for existing ControlNet installations.
Network Inspection and Repair: Supports connector replacement work when the existing connector configuration and cable requirements are matched.

Choosing the correct connector is an important part of maintaining an industrial communication network. For replacement projects, confirm that the 1786-BNCJ matches the original connection arrangement and the requirements of the installed equipment.

Advantages

Purpose-Specific Coaxial Connectivity

The 1786-BNCJ is identified as a ControlNet BNC coaxial connector. Its intended application is physical connectivity rather than active signal processing, making correct connector selection essential to the overall cable installation.

Suitable for ControlNet Maintenance

Industrial facilities often retain established communication infrastructure for many years. Having the correct connection accessories available can simplify maintenance planning and help technicians address cable-interface issues without unnecessarily redesigning the network.

Practical for Industrial Cabling Work

A suitable BNC connector helps provide a defined connection point within a compatible coaxial cabling arrangement. Correct installation and appropriate cable preparation are important for maintaining connection integrity.

Supports Organized Network Installation

Consistent connector selection helps maintenance teams manage cable assemblies and replacement parts more effectively. This is particularly useful when several automation devices share the same industrial communication infrastructure.

A Useful Component for Spare Parts Management

For distributors, system integrators, and industrial maintenance departments, identifying the correct catalog number helps streamline sourcing and reduces the likelihood of ordering an unsuitable connector.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 1786-BNCJ?

The 1786-BNCJ is identified as a ControlNet BNC coaxial connector. It is intended for compatible physical cable connections within an industrial ControlNet installation.

Q2: What is the difference between a coaxial connector and a communication module?

A coaxial connector provides a physical cable interface, while a communication module contains electronics that handle network communication. A connector cannot replace the functions of an active network module.

Q3: Is the 1786-BNCJ compatible with every BNC coaxial cable?

Not necessarily. Compatibility depends on the cable specification, connector configuration, electrical requirements, and intended ControlNet application. Verify these details before installation.

Q4: Does the connector convert ControlNet signals into Ethernet signals?

No. A coaxial connector is not an active protocol converter. Communication between different network types requires suitable interface hardware or a compatible gateway.

Q5: Can a damaged connector affect network communication?

Yes. A loose, damaged, or incorrectly installed connector can compromise the physical connection and contribute to communication faults. Inspect the connector and cable assembly when troubleshooting network problems.

Q6: Does the 1786-BNCJ require an external power supply?

A passive coaxial connector generally requires no independent power supply. It provides a physical connection rather than an electrically powered communication function.

Q7: What should technicians inspect when replacing a BNC connector?

Check the cable condition, connector compatibility, termination quality, shielding continuity, and mechanical fit. The completed installation should also comply with the network's cabling and termination requirements.

Q8: Can this connector be used to extend a ControlNet network?

It may be used in a compatible cable assembly, but the connector alone does not extend the network or increase its supported node count. Network expansion must follow the applicable topology and installation requirements.

Q9: Will replacing the connector improve communication speed?

Not by itself. A correctly installed replacement may resolve problems caused by a defective connection, but network speed depends on the supported communication hardware and overall network configuration.

Q10: What information is important when sourcing a replacement?

Confirm the full catalog number, connector configuration, intended cable type, and compatibility with the original ControlNet installation. Do not select a replacement solely because it has a similar BNC connector appearance.
