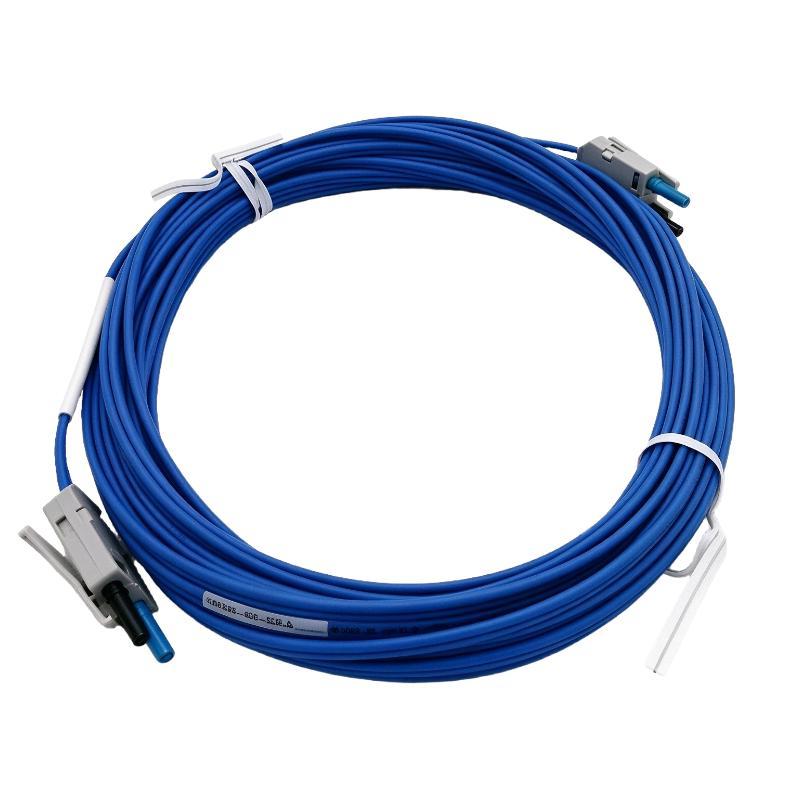

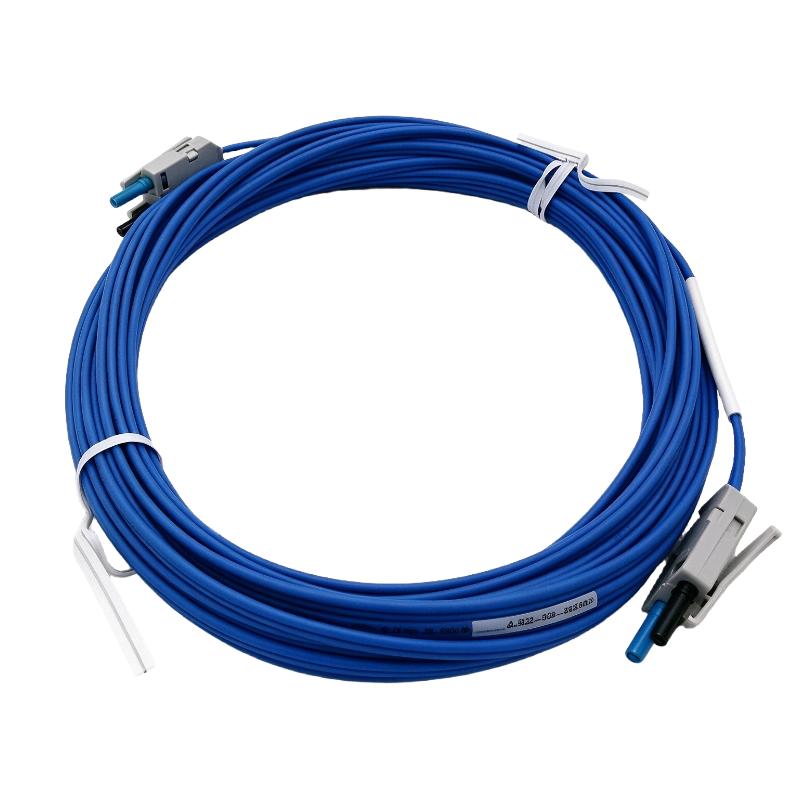

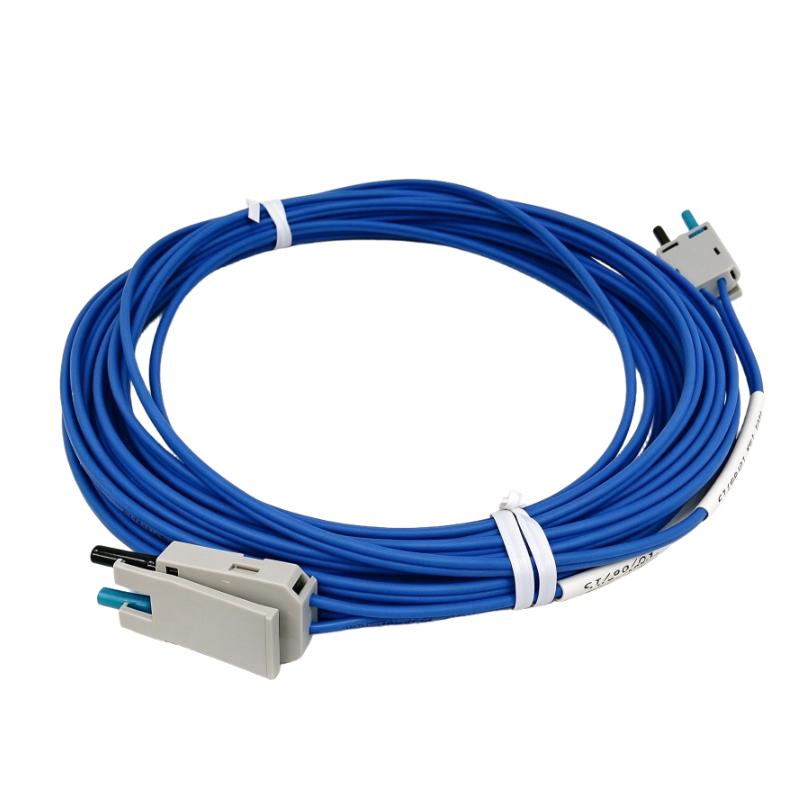

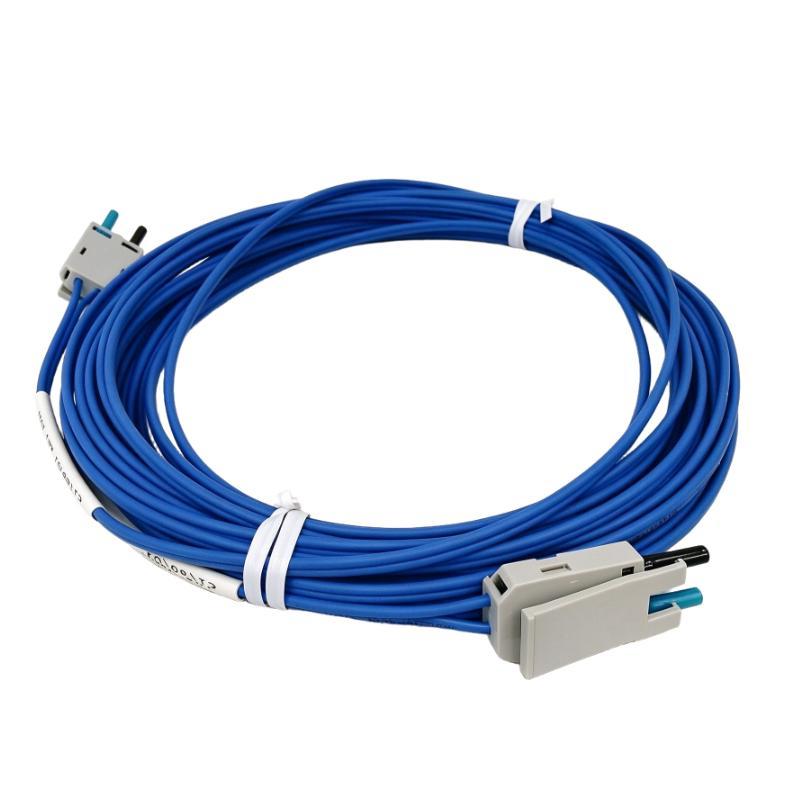

Allen Bradley 1786-FS10 ControlNet Fiber Optic Cable Assemblies

Applications

The Allen Bradley 1786-FS10 ControlNet Fiber Optic Cable Assembly is intended for fiber-optic connectivity in compatible ControlNet communication installations. Fiber-optic cabling can be valuable in industrial environments where electrical isolation, resistance to electromagnetic interference, and flexible network routing are important considerations.

• Industrial Control Networks: Supports fiber-optic connection requirements in compatible ControlNet installations.

• Electrically Noisy Environments: Fiber-optic communication can help reduce the impact of electromagnetic interference commonly encountered around motors, drives, and switching equipment.

• Distributed Automation Systems: Can be considered for network connections between separated equipment areas when supported by the installed fiber-optic interfaces.

• Industrial Plant Infrastructure: Suitable for evaluating fiber-optic cabling requirements in manufacturing facilities and process control environments.

• ControlNet Network Maintenance: Provides a model-specific sourcing option when replacing an existing fiber-optic cable assembly.

• Automation System Integration: Supports cable procurement for compatible network installations where the required fiber type and connector configuration have been confirmed.

For system integrators and maintenance engineers, selecting the correct fiber-optic assembly is essential to achieving compatibility with the network hardware and maintaining the intended communication architecture.

Advantages

Fiber-Optic Connectivity for Industrial Networks

The 1786-FS10 is identified as a ControlNet fiber-optic cable assembly. Fiber-optic transmission can provide electrical isolation between connected equipment and reduce susceptibility to electromagnetic interference compared with conventional copper communication cabling.

Suitable for Industrial Electrical Environments

Factories often contain variable-frequency drives, motors, contactors, and other equipment that generate electrical noise. When supported by compatible fiber-optic interfaces, fiber cabling offers a useful approach to maintaining communication links in these environments.

Defined Cable Length for Installation Planning

The supplied cable length is 10 meters, providing a clear reference for cable routing and procurement. Confirm the required route, connection locations, and permitted optical link characteristics before installation.

Supports Existing ControlNet Infrastructure

Facilities operating established ControlNet networks may need replacement cable assemblies to maintain their existing systems. Matching the original catalog number and optical interface helps reduce the risk of incompatibility.

Useful for Maintenance and Spare Parts Management

A model-specific cable assembly simplifies purchasing identification and helps maintenance teams prepare suitable replacement components for scheduled service activities.

Practical for System Integrators

For industrial automation contractors, confirming cable specifications before installation helps streamline project planning and reduces unnecessary changes to the existing communication infrastructure.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 1786-FS10?

The 1786-FS10 is identified as a ControlNet fiber-optic cable assembly. It is intended for compatible fiber-optic communication connections within a supported ControlNet installation.

Q2: What is the main difference between fiber-optic and coaxial ControlNet cabling?

Fiber-optic cabling transmits information using light, while coaxial cabling carries electrical signals. Fiber-optic links provide electrical isolation and are generally less susceptible to electromagnetic interference.

Q3: Can the 1786-FS10 connect directly to any ControlNet device?

No. Compatibility depends on the optical interface, connector arrangement, fiber type, and supported network hardware. The connected devices must provide compatible fiber-optic interfaces.

Q4: Does the cable assembly convert electrical ControlNet signals into optical signals?

A passive fiber-optic cable assembly does not perform electrical-to-optical conversion by itself. Compatible active interface hardware is required wherever the network architecture requires signal conversion.

Q5: Is fiber-optic cabling suitable for environments with strong electromagnetic interference?

Yes, fiber-optic transmission is inherently resistant to electromagnetic interference along the optical path. However, the complete installation must still account for connector quality, cable protection, routing, and the requirements of the connected equipment.

Q6: Can this cable be used to extend an existing ControlNet network?

It may be suitable when the network architecture includes compatible fiber-optic interfaces. The cable alone does not extend the network without the appropriate supporting communication hardware.

Q7: What should technicians inspect if the optical link fails?

Check the connector condition, cable routing, visible signs of damage, interface compatibility, and the diagnostic indicators on the connected equipment. Inspect and clean optical connectors using approved procedures.

Q8: Can the cable be bent sharply around a control cabinet?

No. Fiber-optic cable must remain within its specified minimum bend radius. Excessive bending, crushing, or pulling force can increase optical losses or damage the fiber.

Q9: Does the 1786-FS10 require an external power supply?

The passive cable assembly itself does not require an independent power supply. Any active optical interface or communication equipment connected to it must be powered according to its own requirements.

Q10: What should buyers verify before ordering the 1786-FS10?

Confirm the full catalog number, optical fiber type, connector configuration, cable length, and compatibility with the intended ControlNet interfaces. These details are essential when sourcing replacement cable assemblies.
