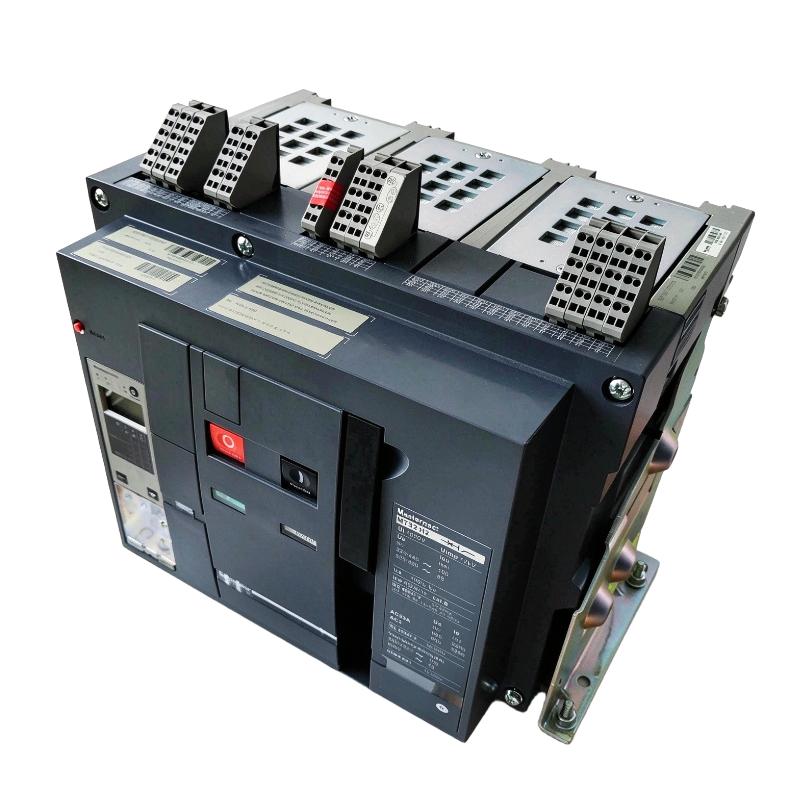

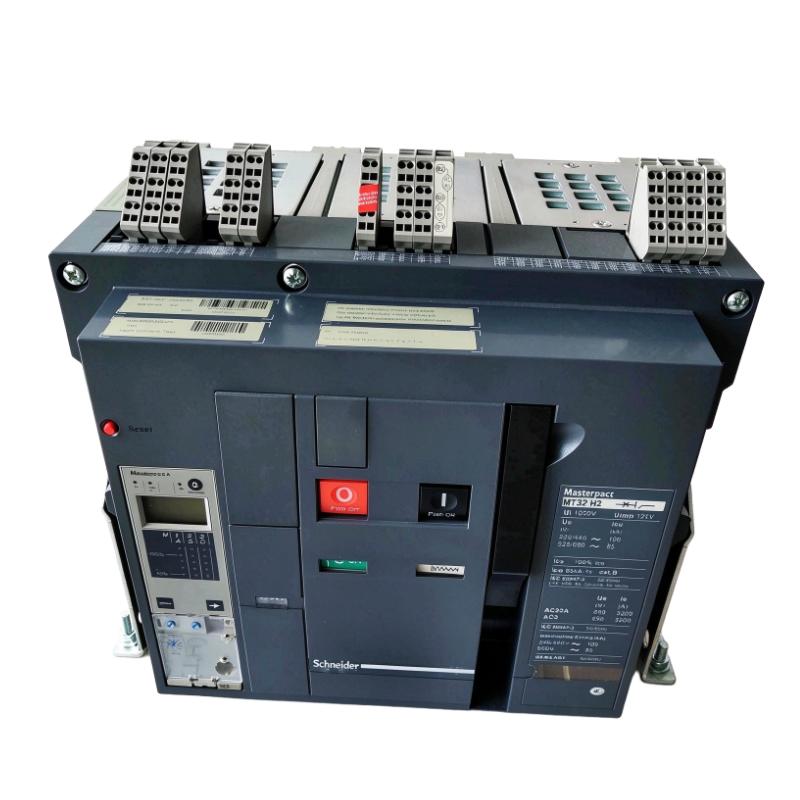

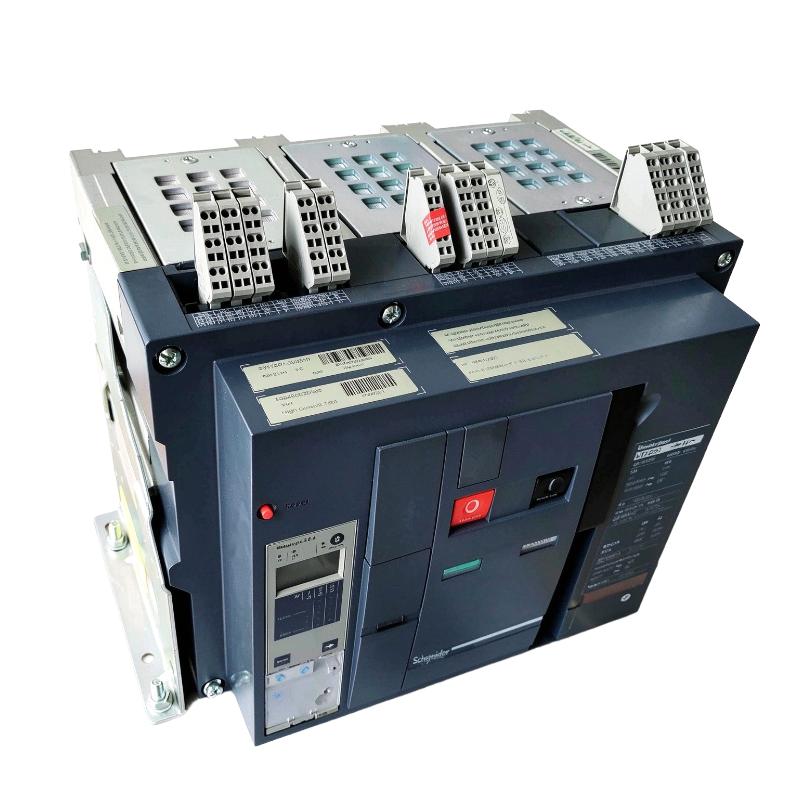

Schneider MT32H2 Breaker

Applications

The Schneider MT32H2 Circuit Breaker is intended for electrical power distribution and circuit protection applications. In industrial environments, circuit breakers provide switching functionality and help interrupt electrical currents under specified fault conditions, supporting the safe operation of machinery and electrical distribution systems.

• Industrial Power Distribution: Used in suitable electrical distribution assemblies to support circuit switching and protection.

• Manufacturing Facilities: Can be considered for electrical systems supplying industrial machinery and production equipment.

• Switchgear Systems: Intended for integration into compatible electrical assemblies when its ratings and mounting requirements match the system.

• Commercial Electrical Installations: May be suitable for appropriate power distribution applications, subject to verification of electrical specifications.

• Equipment Maintenance: Supports circuit isolation as part of an appropriately designed electrical system and established safety procedures.

• Replacement Projects: Can be evaluated for maintenance and replacement work where the exact model and electrical configuration are confirmed.

Advantages

1. Circuit Protection Function

Circuit breakers help protect electrical circuits by interrupting overload or short-circuit currents within their specified operating limits.

2. Switching Capability

A circuit breaker provides a means of switching an electrical circuit, supporting normal operating procedures and maintenance activities.

3. Industrial System Integration

The MT32H2 can be evaluated for compatible power distribution applications based on its rated voltage, current, breaking capacity, and installation requirements.

4. Installation Planning

The supplied dimensions of 422 × 300 × 352 mm provide a reference for checking panel space, mounting arrangements, and required clearances.

5. Support for Maintenance Operations

Correct model identification and periodic inspection can help maintenance teams manage replacement planning and maintain consistency across electrical installations.

6. Electrical System Reliability

Selecting a breaker with suitable protection characteristics helps coordinate circuit protection with upstream and downstream electrical equipment.

Technical FAQs

Q1: What is the main function of the Schneider MT32H2 Circuit Breaker?

Its stated product category is a circuit breaker. Circuit breakers are designed to switch electrical circuits and interrupt current under specified abnormal conditions, depending on their ratings and protection characteristics.

Q2: What electrical faults can a circuit breaker protect against?

Depending on its design, a circuit breaker can interrupt overload and short-circuit currents. The exact protection functions and operating characteristics must be confirmed from the manufacturer's documentation.

Q3: Can the MT32H2 be installed in any switchgear cabinet?

No. Compatibility depends on the mounting arrangement, dimensions, terminal configuration, electrical ratings, and the requirements of the switchgear assembly.

Q4: Why is rated current important when selecting a breaker?

The rated current must be appropriate for the protected circuit, conductors, and connected equipment. Incorrect selection can result in inadequate protection or unnecessary tripping.

Q5: What does short-circuit breaking capacity mean?

Breaking capacity indicates the maximum prospective fault current the breaker can safely interrupt under specified conditions. It must meet or exceed the prospective short-circuit current at the installation point.

Q6: Does the circuit breaker require a separate control supply?

This depends on the breaker's operating mechanism and accessories. Basic operation and any motorized, shunt-trip, undervoltage, or electronic protection functions must be checked against the exact configuration.

Q7: What could cause repeated breaker tripping?

Potential causes include circuit overload, short circuits, equipment faults, unsuitable protection settings, or a mismatch between the breaker and the application. The underlying fault should be identified before the circuit is re-energized.

Q8: What maintenance checks are recommended?

Follow the manufacturer's maintenance instructions. Depending on the design, checks may include inspecting terminals, mounting hardware, insulation, signs of overheating, mechanical operation, and available trip or status indicators.

Q9: Can the MT32H2 replace another breaker with the same dimensions?

Not necessarily. Physical dimensions alone do not establish compatibility. The replacement must also match the electrical ratings, breaking capacity, pole arrangement, mounting system, and required accessories.

Q10: What should be confirmed before purchasing the MT32H2?

Verify the full model designation, rated current, rated voltage, number of poles, breaking capacity, trip-unit configuration, mounting requirements, and accessory compatibility. These details are necessary to determine suitability for the intended installation.
