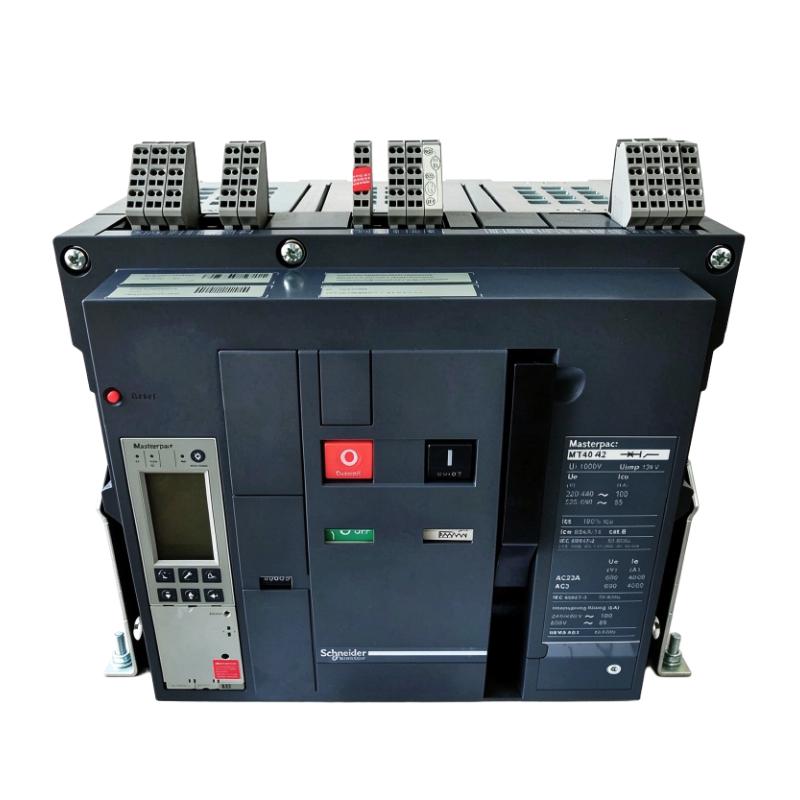

Schneider MT40H2 Breaker

Applications

The Schneider MT40H2 Circuit Breaker is identified as a circuit protection product for electrical power distribution applications. In industrial environments, circuit breakers help control circuit switching and interrupt electrical current under specified fault conditions. Before selecting the MT40H2 for a particular installation, its exact electrical ratings and product configuration should be verified.

• Industrial Power Distribution: Supports circuit protection arrangements in compatible electrical distribution systems.

• Manufacturing Facilities: Can be evaluated for use in power distribution assemblies serving industrial machinery and production equipment.

• Switchgear Integration: May be considered for compatible switchgear installations after confirming its mounting and electrical requirements.

• Commercial Electrical Systems: Potentially applicable to suitable distribution systems when the device ratings meet installation requirements.

• Electrical Maintenance: Supports maintenance and replacement planning for installations requiring a compatible circuit breaker.

• Equipment Protection: Helps interrupt abnormal current conditions when correctly selected and coordinated with the protected circuit.

Advantages

1. Circuit Protection Capability

Circuit breakers are designed to interrupt specified overcurrent and fault conditions, helping protect electrical circuits and connected equipment.

2. Switching Functionality

A circuit breaker provides a controlled switching mechanism for electrical circuits, supporting operation and maintenance procedures.

3. Industrial Power System Compatibility

The MT40H2 can be evaluated for industrial applications after confirming its rated current, voltage, breaking capacity, and system compatibility.

4. Practical Installation Planning

The supplied dimensions of 422 × 300 × 352 mm help with preliminary cabinet-space assessment, handling arrangements, and replacement planning.

5. Maintenance Support

Accurate model identification helps maintenance teams specify replacement components and reduce the risk of ordering incompatible equipment.

6. Protection Coordination

Selecting a breaker with suitable trip characteristics and fault-interruption ratings helps coordinate protection across an electrical distribution system.

Technical FAQs

Q1: What is the primary function of the Schneider MT40H2 Circuit Breaker?

Its stated product category is a circuit breaker. This type of device switches electrical circuits and interrupts current under defined fault conditions according to its design and ratings.

Q2: What types of faults can a circuit breaker interrupt?

Depending on its design, a circuit breaker can interrupt overload and short-circuit currents. The precise protection characteristics of the MT40H2 must be confirmed from its product documentation.

Q3: Is the MT40H2 compatible with every electrical distribution panel?

No. Compatibility depends on the mounting arrangement, electrical ratings, terminal configuration, clearances, and the requirements of the panel or switchgear assembly.

Q4: Why should the rated current be checked before installation?

The rated current must suit the protected circuit, conductors, and connected equipment. An incorrect selection can compromise protection or cause unnecessary tripping.

Q5: What is a circuit breaker's breaking capacity?

Breaking capacity is the maximum prospective fault current the device can safely interrupt under specified conditions. It must be appropriate for the prospective short-circuit current at the installation point.

Q6: What is the difference between overload and short-circuit protection?

Overload protection addresses current that exceeds the intended operating level over time. Short-circuit protection addresses much higher fault currents that can develop rapidly. The available protection functions depend on the breaker's design and trip unit.

Q7: What might cause a circuit breaker to trip repeatedly?

Possible causes include excessive load, a short circuit, faulty downstream equipment, unsuitable protection settings, or a mismatch between the breaker and the application. The underlying issue should be investigated before re-energizing the circuit.

Q8: What maintenance checks should be performed?

Follow the manufacturer's instructions and applicable electrical safety procedures. Depending on the design, inspections may include terminals, mounting hardware, signs of overheating, insulation condition, mechanical operation, and trip indicators.

Q9: Can the MT40H2 replace another breaker with similar dimensions?

Not based on dimensions alone. The replacement must also match electrical ratings, breaking capacity, pole configuration, mounting requirements, terminal arrangements, and accessory compatibility.

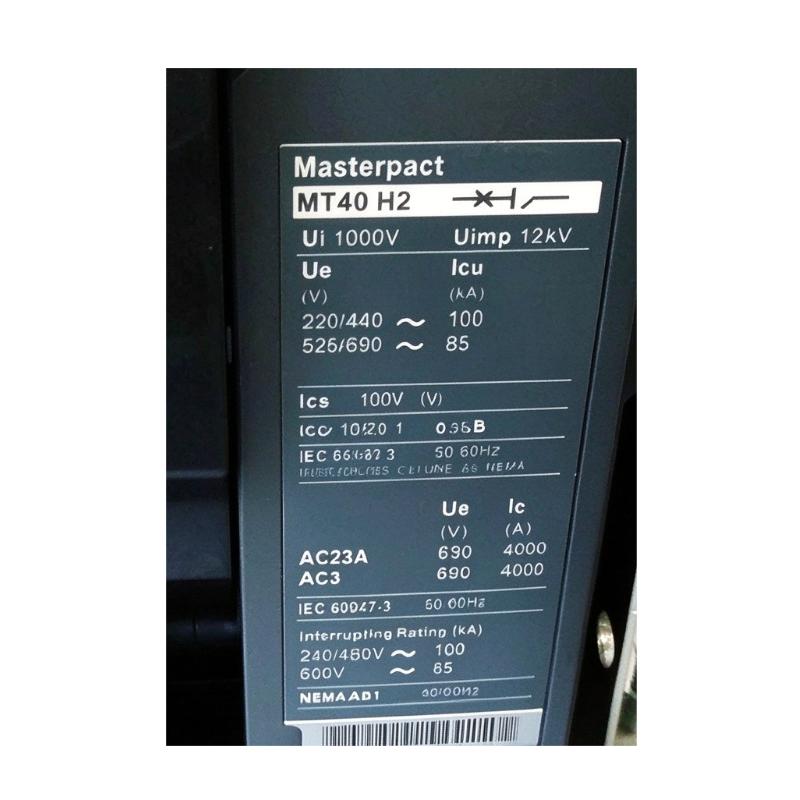

Q10: What information is needed to verify the MT40H2 before purchase?

Confirm the complete model designation, rated current, rated voltage, number of poles, breaking capacity, trip-unit type, mounting configuration, and required accessories. The product nameplate or official technical documentation should be used to verify these details.
