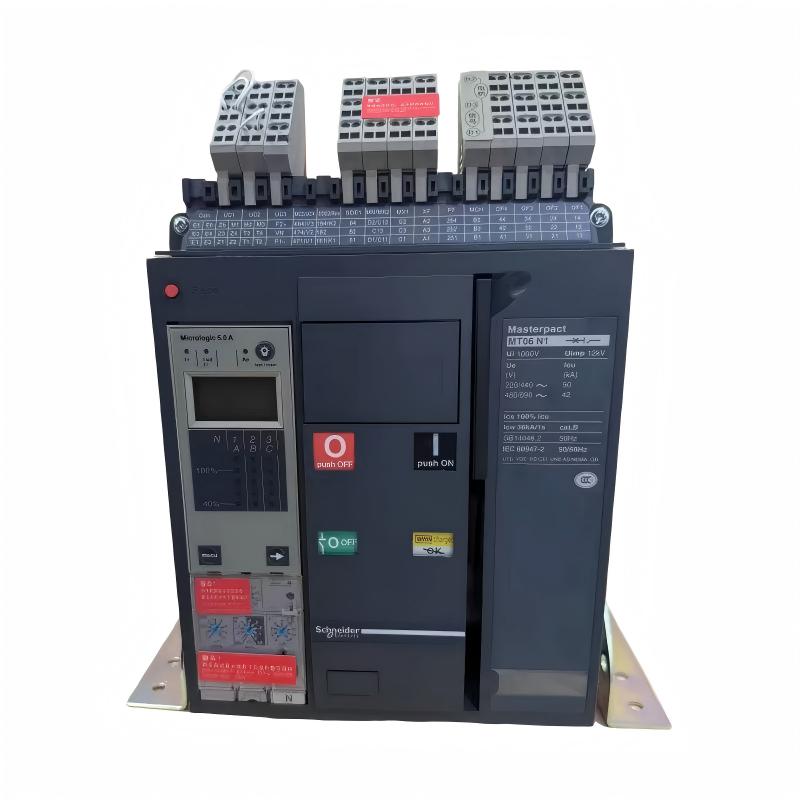

Schneider MT06N1 Breaker

Applications

The Schneider MT06N1 Circuit Breaker is identified by the supplied product name as a circuit protection device for electrical power distribution applications. Circuit breakers are used in industrial and commercial electrical systems to provide switching functionality and interrupt current under specified fault conditions. The exact ratings and configuration of the MT06N1 should be verified before installation.

• Industrial Power Distribution: Supports circuit protection in compatible electrical distribution assemblies.

• Manufacturing Equipment: Can be evaluated for electrical systems supplying industrial machinery and production equipment.

• Switchgear Applications: May be used in compatible switchgear installations after checking mounting requirements and electrical ratings.

• Electrical Circuit Protection: Helps interrupt specified overcurrent conditions when selected to match the circuit requirements.

• Maintenance and Replacement: Supports replacement planning when the original model and its configuration have been confirmed.

• Electrical Infrastructure Upgrades: Can be assessed for projects requiring a circuit breaker compatible with the existing distribution system.

Advantages

1. Circuit Protection Function

Circuit breakers help protect electrical circuits by interrupting current under specified abnormal conditions within their rated operating limits.

2. Switching Capability

A circuit breaker provides a means of switching an electrical circuit, supporting operational procedures and maintenance activities.

3. Industrial System Integration

The MT06N1 can be evaluated for compatible electrical distribution systems after its voltage, current, and fault-interruption ratings have been confirmed.

4. Compact Installation Planning

The supplied dimensions of 301 × 276 × 196 mm provide a useful reference for cabinet-space assessment and installation preparation.

5. Maintenance Convenience

Accurate model identification helps maintenance teams specify replacement equipment and reduce the risk of ordering incompatible components.

6. Protection Coordination

Selecting appropriate trip characteristics and breaking capacity helps coordinate the breaker with upstream protection devices and downstream electrical equipment.

Technical FAQs

Q1: What is the main function of the Schneider MT06N1 Circuit Breaker?

Its stated product category is a circuit breaker. Circuit breakers are designed to switch electrical circuits and interrupt current under specified fault conditions according to their design and ratings.

Q2: What types of electrical faults can a circuit breaker address?

Depending on its design, a circuit breaker can interrupt overload and short-circuit currents. The specific protection characteristics of the MT06N1 must be confirmed from its technical documentation.

Q3: Can the MT06N1 be installed in any electrical panel?

No. Compatibility depends on the panel's design, mounting arrangement, terminal configuration, operating voltage, rated current, breaking capacity, and required clearances.

Q4: Why is rated current important when selecting a circuit breaker?

The rated current must be appropriate for the protected conductors, connected loads, and circuit design. Incorrect selection can result in inadequate protection or unwanted tripping.

Q5: What is breaking capacity?

Breaking capacity indicates the maximum prospective fault current a breaker can safely interrupt under specified conditions. It must be appropriate for the fault level at the installation point.

Q6: What is the difference between overload and short-circuit protection?

Overload protection addresses excessive current that persists over time, while short-circuit protection addresses high fault currents that can develop rapidly. The actual protection functions depend on the breaker design and trip mechanism.

Q7: What can cause a circuit breaker to trip repeatedly?

Potential causes include excessive load, short circuits, faulty downstream equipment, inappropriate protection settings, or an incorrectly selected breaker. The cause should be investigated before restoring power.

Q8: What maintenance checks are recommended?

Follow the manufacturer's maintenance instructions. Depending on the design, checks may include terminal condition, mounting security, signs of overheating, insulation condition, mechanical operation, and trip-unit indicators.

Q9: Can the MT06N1 replace another breaker with similar dimensions?

Not based on dimensions alone. The replacement must also match the electrical ratings, breaking capacity, pole configuration, mounting method, terminal arrangement, and accessory requirements.

Q10: What details should be verified before ordering the MT06N1?

Confirm the complete model designation, rated current, rated voltage, number of poles, breaking capacity, trip-unit configuration, mounting requirements, and accessory compatibility using the product nameplate or applicable technical documentation.
