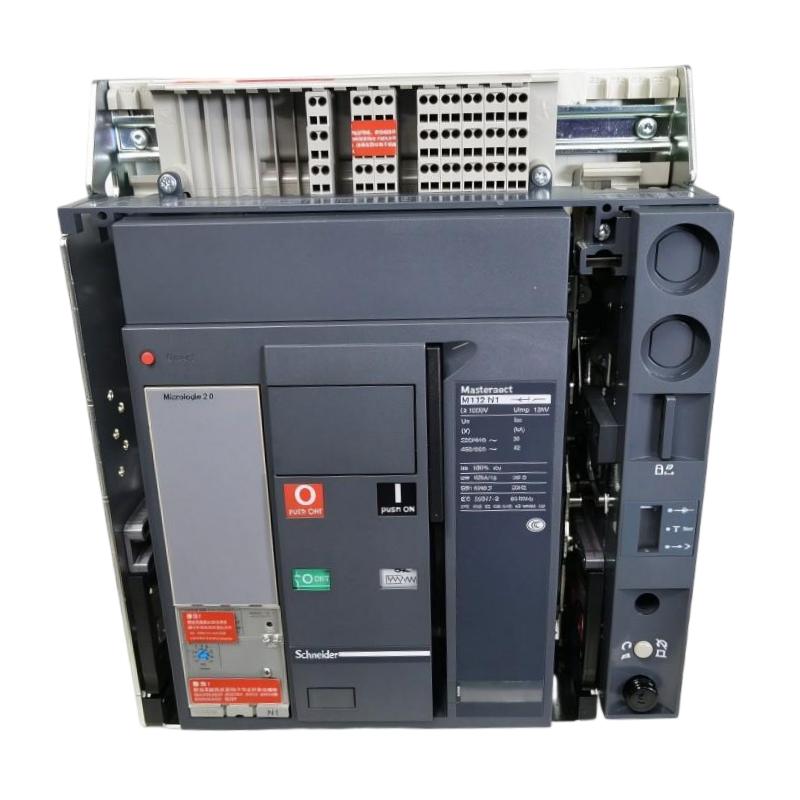

Schneider MT12N1 Breaker

Applications

The Schneider MT12N1 Circuit Breaker is identified as a circuit breaker for electrical power distribution and protection applications. In industrial environments, circuit breakers provide switching functionality and help interrupt current under specified fault conditions. The exact electrical ratings and configuration of the MT12N1 should be confirmed before selecting it for a particular installation.

• Industrial Power Distribution: Supports circuit protection in compatible electrical distribution assemblies.

• Manufacturing Equipment: Can be evaluated for electrical systems supplying industrial machinery and production equipment.

• Switchgear Integration: May be considered for compatible switchgear installations after confirming mounting requirements and electrical specifications.

• Electrical Circuit Protection: Helps interrupt specified fault currents when correctly selected for the circuit.

• Maintenance and Replacement: Supports equipment replacement planning when the original model and configuration have been verified.

• Electrical Infrastructure Projects: Can be assessed for suitable installations requiring compatible circuit protection and switching functionality.

1. Circuit Protection Capability

Circuit breakers help protect electrical systems by interrupting current under specified abnormal conditions within their rated operating limits.

2. Switching Functionality

The breaker provides a means of switching an electrical circuit, supporting routine operation and maintenance procedures.

3. Industrial System Integration

The MT12N1 can be evaluated for compatible electrical distribution systems once its voltage, current, and fault-interruption ratings are confirmed.

4. Practical Installation Planning

The supplied dimensions of 301 × 276 × 196 mm help with preliminary cabinet-space assessment, mounting preparation, and replacement planning.

5. Maintenance Support

Accurate model identification helps maintenance teams specify replacement equipment and reduce the risk of ordering incompatible components.

6. Protection Coordination

Selecting suitable trip characteristics and breaking capacity helps coordinate circuit protection with upstream devices and downstream equipment.

Technical FAQs

Q1: What is the primary function of the Schneider MT12N1 Circuit Breaker?

Its stated product category is a circuit breaker. Circuit breakers are designed to switch electrical circuits and interrupt current under specified fault conditions, according to their design and ratings.

Q2: What types of electrical faults can a circuit breaker interrupt?

Depending on its design, a circuit breaker can interrupt overload and short-circuit currents. The exact protection capabilities of the MT12N1 should be verified using the applicable technical documentation.

Q3: Can the MT12N1 be installed in any electrical distribution panel?

No. Compatibility depends on the panel design, mounting arrangement, terminal configuration, rated voltage, rated current, breaking capacity, and required clearances.

Q4: Why is rated current important when selecting a circuit breaker?

The rated current must match the circuit design and the requirements of the protected conductors and connected equipment. Incorrect selection can result in inadequate protection or unwanted tripping.

Q5: What does breaking capacity mean?

Breaking capacity specifies the maximum prospective fault current a breaker can safely interrupt under defined conditions. It must be suitable for the fault level at the installation point.

Q6: What is the difference between overload and short-circuit protection?

Overload protection addresses excessive current sustained over time, while short-circuit protection addresses high fault currents that can develop rapidly. The available functions depend on the breaker design and trip mechanism.

Q7: What can cause repeated circuit breaker tripping?

Possible causes include overloaded circuits, short circuits, faulty downstream equipment, inappropriate protection settings, or an incorrectly selected breaker. The underlying problem should be identified before restoring power.

Q8: What maintenance checks should be performed?

Follow the manufacturer's maintenance instructions and applicable electrical safety procedures. Checks may include terminal condition, mounting security, signs of overheating, insulation condition, mechanical operation, and trip-unit indicators where applicable.

Q9: Can the MT12N1 replace a breaker with similar dimensions?

Not based on dimensions alone. The replacement must also match electrical ratings, breaking capacity, pole configuration, mounting requirements, terminal arrangements, and accessory compatibility.

Q10: What information should be confirmed before ordering?

Verify the full model designation, rated current, rated voltage, number of poles, breaking capacity, trip-unit configuration, mounting requirements, and accessory compatibility using the product nameplate or applicable technical documentation.
