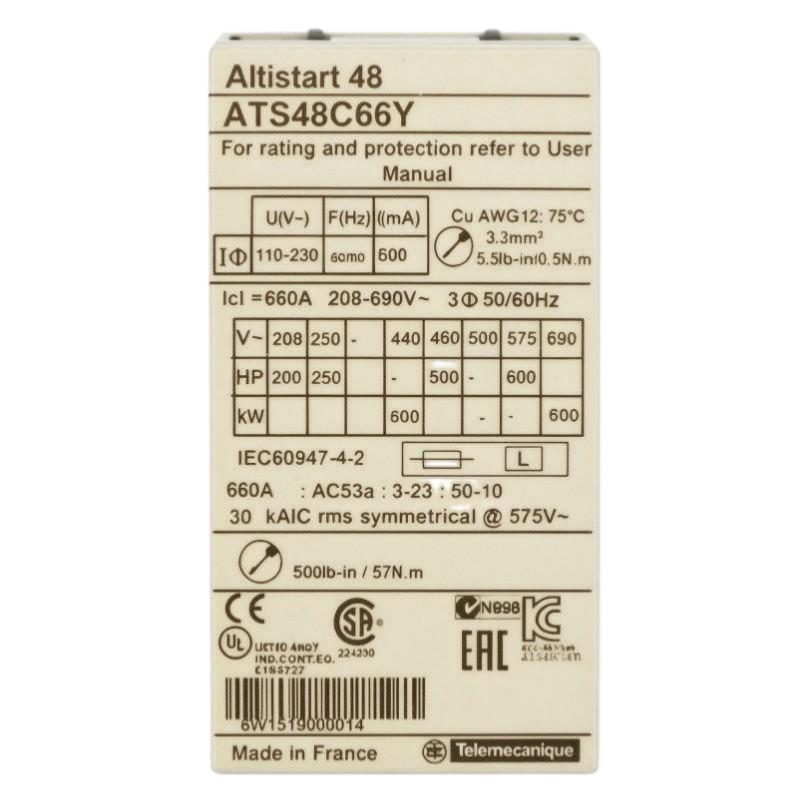

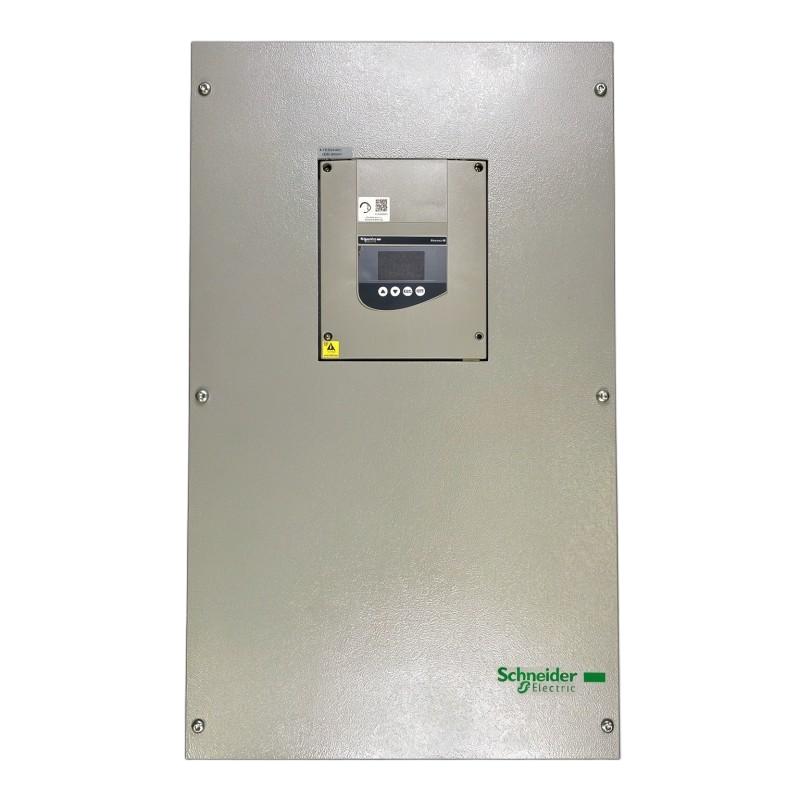

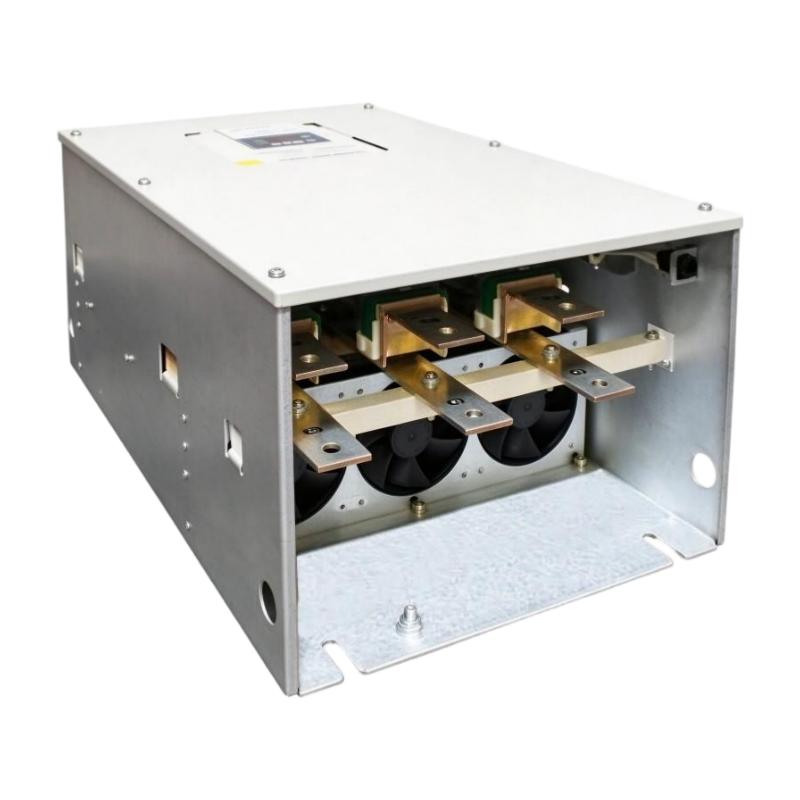

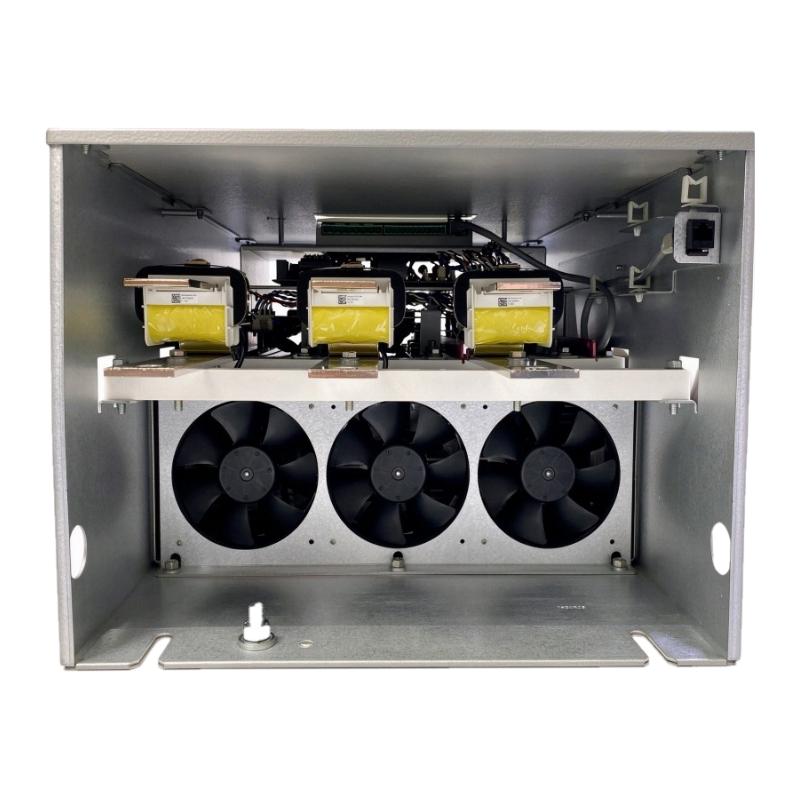

Schneider ATS48C66Y Soft Starter

Applications

The Schneider ATS48C66Y Soft Starter belongs to the Altistart 48 family of industrial motor starters. It is designed to control the starting and stopping of compatible three-phase asynchronous motors, helping reduce high inrush current and mechanical stress on connected equipment.

Typical applications include:

• Pumping systems: Helps reduce hydraulic shock and mechanical stress during motor startup and stopping.

• Fans and blowers: Provides controlled acceleration for ventilation and industrial air-handling equipment.

• Compressors: Supports smoother motor startup in industrial compressed-air and process systems.

• Conveyor systems: Helps reduce sudden torque changes affecting belts, gearboxes, and mechanical drives.

• Industrial machinery: Supports motor control in production equipment and automated manufacturing lines.

• Material handling equipment: Helps reduce mechanical impact during the startup of motor-driven machinery.

Advantages

• Controlled motor starting: Gradually increases motor voltage to support smoother acceleration.

• Reduced mechanical stress: Helps protect connected equipment against abrupt startup torque.

• Controlled stopping: Supports applications that benefit from reduced deceleration shock.

• Integrated motor protection: Provides protection functions that help monitor motor operating conditions when correctly configured.

• Industrial control integration: Can be incorporated into compatible motor control panels and automation systems.

• Maintenance convenience: Model identification supports spare-parts planning, equipment servicing, and replacement assessment.

Technical FAQs

Q1: What is the main purpose of the ATS48C66Y?

It is designed to control the starting and stopping of compatible three-phase asynchronous motors, helping reduce electrical and mechanical stress during startup.

Q2: How does the ATS48C66Y control motor acceleration?

It regulates the voltage applied to the motor during startup, allowing the motor to accelerate more gradually than with direct-on-line starting.

Q3: Can the ATS48C66Y be used with centrifugal pumps?

It may be suitable for compatible centrifugal pump motors. Selection should account for motor current, pump characteristics, starting duty, and the required stopping method.

Q4: Does the ATS48C66Y provide adjustable current limitation?

The Altistart 48 family supports configurable starting-current limitation. The settings must be selected according to the motor, driven load, and application requirements.

Q5: Can this soft starter replace a variable frequency drive?

Not in every application. A soft starter primarily manages starting and stopping, whereas a variable frequency drive can also regulate motor speed during normal operation.

Q6: What can cause a startup fault?

Potential causes include excessive starting time, incorrect motor settings, overload conditions, phase loss, supply-voltage problems, or an unsuitable starter rating.

Q7: How should the ATS48C66Y be integrated with a PLC?

Integration depends on the available control terminals, supported communication options, and the system design. Verify the exact interface and required accessories before commissioning.

Q8: What information is needed when selecting a replacement?

Check the motor nameplate, supply voltage, rated current, starting frequency, load type, control requirements, protection coordination, and physical installation requirements.

Q9: Does the soft starter regulate motor speed continuously?

No. Its primary function is controlled starting and stopping rather than continuous speed regulation. A VFD is generally more suitable when adjustable operating speed is required.

Q10: What maintenance is recommended for this model?

Inspect power connections, wiring, ventilation clearances, signs of overheating, and fault records. Follow the manufacturer's instructions for inspection, cleaning, and electrical safety.
