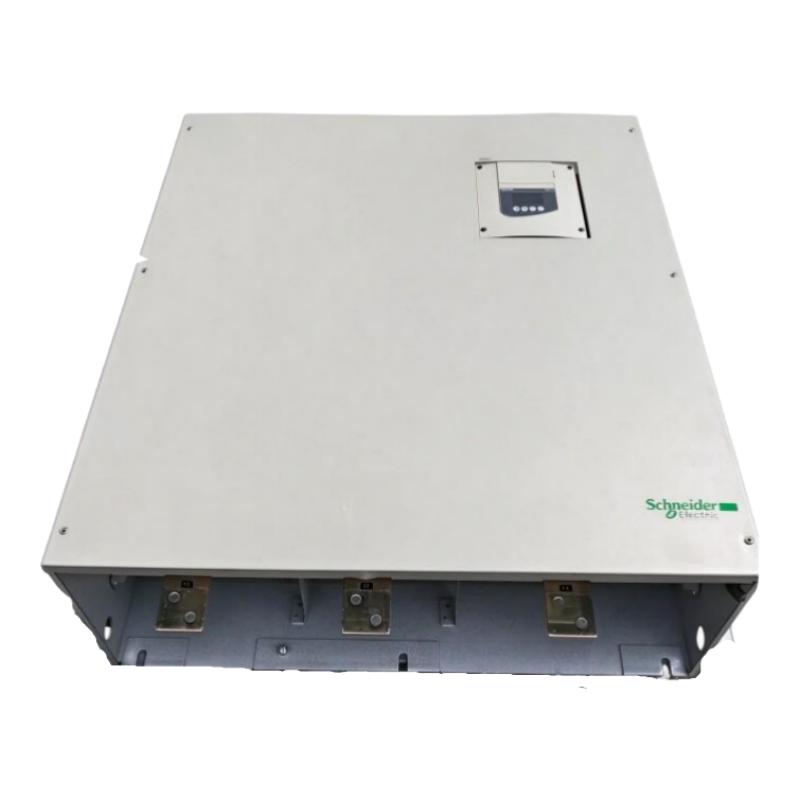

Schneider ATS48C79Y Soft Starter

Applications

The Schneider ATS48C79Y Soft Starter is a high-current motor control device from the Altistart 48 series, designed for starting and stopping compatible three-phase asynchronous motors. It helps reduce motor starting current and mechanical shock, making it suitable for heavy-duty industrial applications and large motor-driven systems.

Typical applications include:

• Industrial pumping systems: Helps reduce mechanical stress and pressure surges during motor startup and stopping.

• Large fans and blowers: Supports controlled acceleration in industrial ventilation and air-handling systems.

• Compressors: Helps manage starting conditions in industrial compressed-air and process applications.

• Conveyor systems: Reduces sudden torque changes that can stress belts, couplings, and gearboxes.

• Heavy industrial machinery: Supports controlled starting of large motors used in manufacturing and processing facilities.

• Water and wastewater facilities: Provides soft-start control for compatible pumping and fluid-handling equipment.

• Process industries: Supports motor control in installations where smooth startup and equipment protection are important.

Advantages

• High-current motor control: Designed for demanding industrial applications with appropriately rated motors.

• Reduced starting stress: Helps limit abrupt torque changes during motor acceleration.

• Controlled stopping: Supports smoother deceleration for applications requiring reduced mechanical impact.

• Integrated protection functions: Offers motor and starter protection features when configured according to application requirements.

• Industrial automation compatibility: Can be integrated into suitable motor control panels and automation systems.

• Heavy-duty application support: Suitable for evaluating in large pumping systems and industrial machinery.

• Replacement planning: Its model number helps maintenance teams identify the correct equipment and assess compatible alternatives.

Technical FAQs

Q1: What is the primary function of the ATS48C79Y?

It controls the starting and stopping of compatible three-phase asynchronous motors to help reduce starting current and mechanical stress.

Q2: What supply voltage does the ATS48C79Y support?

The model is specified for a power supply voltage range of 208–690 V AC. Actual installation conditions must comply with the manufacturer's requirements.

Q3: What is the rated current of the ATS48C79Y?

The published product rating identifies a nominal current of 720 A. Selection should also account for operating conditions, starting duty, and the motor's rated current.

Q4: Can the ATS48C79Y be used for heavy-duty pumping applications?

Yes, it is intended for industrial applications including heavy-duty industry and pumps. The specific motor, pump load, and starting requirements must be evaluated before selection.

Q5: How does a soft starter reduce mechanical stress?

It gradually controls the voltage applied to the motor during startup, helping reduce abrupt acceleration and torque changes in connected equipment.

Q6: Can the ATS48C79Y control motor speed during normal operation?

It is primarily designed for soft starting and stopping, not continuous speed regulation. A variable frequency drive is generally more appropriate when adjustable running speed is required.

Q7: Does the ATS48C79Y support PLC integration?

The Altistart 48 platform supports control-system integration, including serial communication options. Verify the required interface, protocol, and accessories for the intended installation.

Q8: What factors can cause the soft starter to trip?

Potential causes include excessive starting time, motor overload, incorrect configuration, phase loss, supply-voltage problems, inadequate cooling, or an unsuitable starter rating.

Q9: What should be checked before replacing an ATS48C79Y?

Check motor current, supply voltage, starting duty, control supply, wiring, communication requirements, protection settings, and panel clearances. Confirm the replacement model against the manufacturer's documentation.

Q10: What is the recommended replacement for the ATS48C79Y?

The Schneider Electric ATS480C79Y is the manufacturer's identified replacement. Confirm application ratings, control-supply requirements, accessories, and wiring compatibility before installation.
