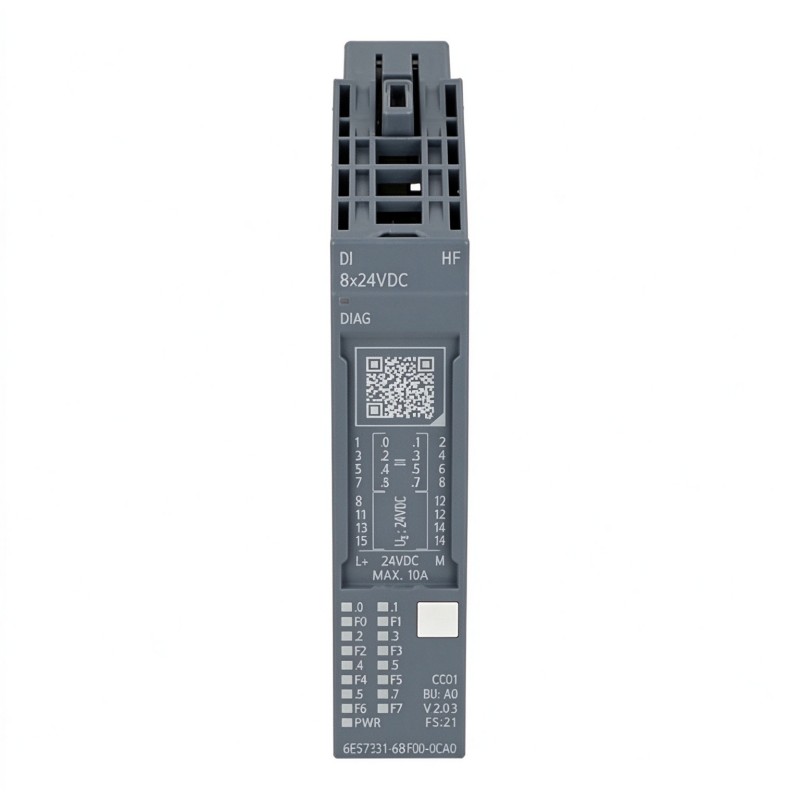

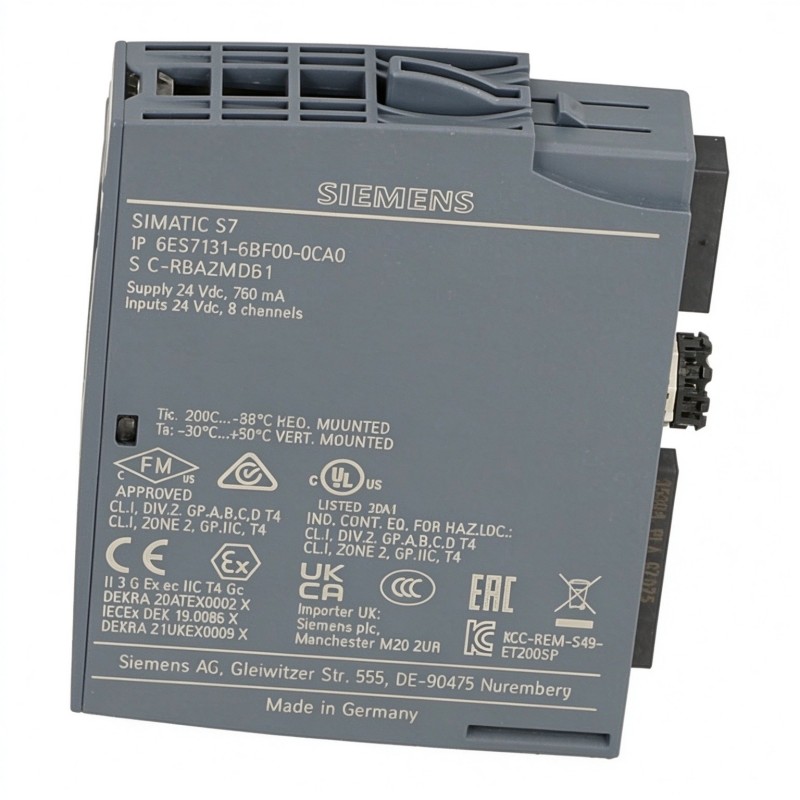

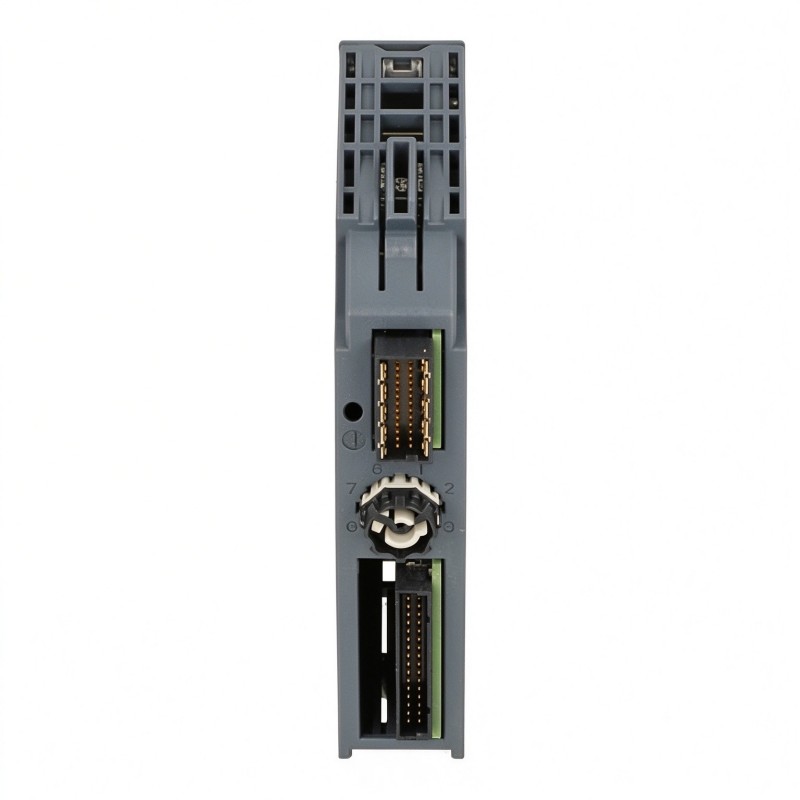

Siemens 6ES7131-6BF00-0CA0 Digital Input Module

Applications

The Siemens 6ES7131-6BF00-0CA0 Digital Input Module is part of the SIMATIC ET 200SP distributed I/O system. It features eight 24 V DC digital inputs and is designed to collect discrete signals from industrial sensors, switches, and field devices for processing by a PLC.

Typical applications include:

• Factory automation: Collects digital signals from sensors and switches on automated production lines.

• Machine control: Monitors equipment status, operating conditions, and control signals.

• Conveyor systems: Receives signals from position sensors, limit switches, and object-detection devices.

• Process automation: Monitors discrete conditions in industrial process equipment.

• Packaging machinery: Supports detection and sequencing functions in automated packaging systems.

• Distributed I/O installations: Provides local signal acquisition close to field devices, reducing the need for extensive point-to-point wiring to the central controller.

Advantages

• Eight digital input channels: Allows multiple discrete field signals to be connected through one compact module.

• 24 V DC signal processing: Supports common industrial digital sensors and switching devices.

• Configurable input delay: Offers adjustable input filtering from 0.05 ms to 20 ms per channel.

• Channel diagnostics: Supports diagnostic functions for wiring faults, supply conditions, and other configured channel-level errors.

• LED status indication: Helps maintenance personnel identify input states and diagnostic conditions.

• Flexible installation: Supports compatible SIMATIC ET 200SP BaseUnits, including BaseUnit type A0.

• PLC integration: Enables field signals to be transferred through the ET 200SP system to the configured controller.

Technical FAQs

Q1: How many digital input channels does the 6ES7131-6BF00-0CA0 provide?

It provides eight digital input channels for monitoring discrete signals from compatible industrial field devices.

Q2: What signal voltage does this module use?

The module is designed for 24 V DC digital input signals, with a rated voltage range of 19.2–28.8 V DC.

Q3: Is the module compatible with the SIMATIC ET 200SP system?

Yes. It is designed for the SIMATIC ET 200SP distributed I/O platform and must be installed with a compatible BaseUnit.

Q4: What types of field devices can be connected?

Compatible devices include industrial proximity sensors, limit switches, push buttons, and other discrete signal sources that meet the module's electrical input requirements.

Q5: What is the purpose of the configurable input delay?

Input delay helps filter short signal disturbances and contact bounce. It can be configured individually for each channel within the supported range.

Q6: Does the module support diagnostic functions?

Yes. It supports configurable channel diagnostics, including detection of specified wiring and supply-related faults. Available diagnostics depend on the configured function and connected equipment.

Q7: Can the module generate hardware interrupts?

The module supports configurable hardware interrupts for individual channels, allowing the controller to respond to selected signal changes without relying solely on routine input scanning.

Q8: What does the PWR LED indicate?

The PWR LED indicates the module's supply status. Channel-status and diagnostic LEDs provide additional information for troubleshooting.

Q9: Can the 6ES7131-6BF00-0CA0 directly drive actuators?

No. It is a digital input module intended to receive signals. Loads such as solenoid valves and contactor coils require suitable output modules or external switching devices.

Q10: What should be checked when replacing this module?

Verify the complete order number, channel count, signal voltage, input characteristics, BaseUnit compatibility, configured diagnostics, and hardware configuration in the engineering software.
