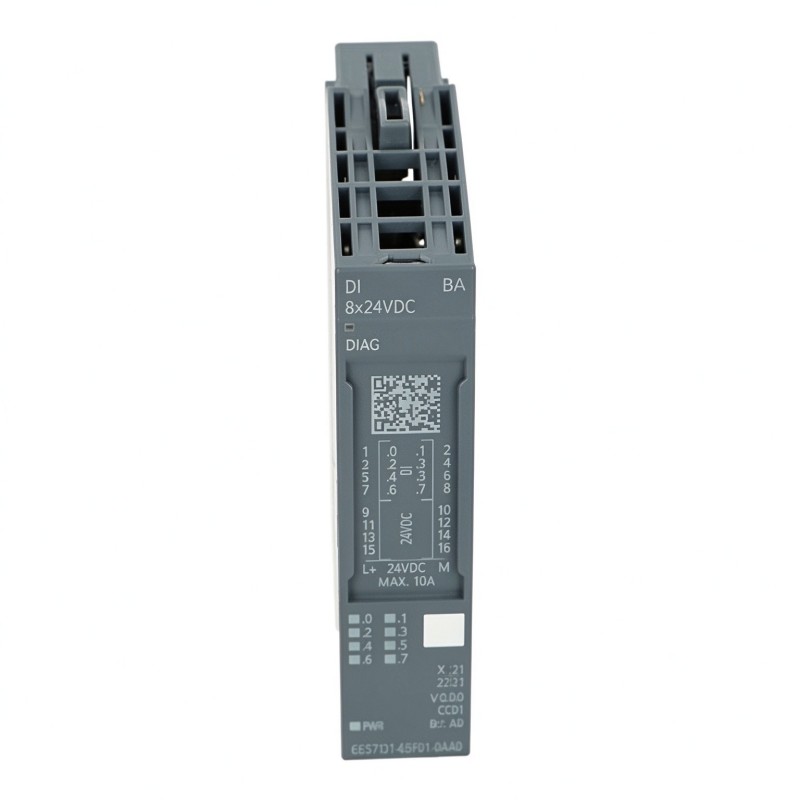

Siemens 6ES7131-6BF01-0AA0 Digital Input Module

Applications

The Siemens 6ES7131-6BF01-0AA0 Digital Input Module is part of the SIMATIC ET 200SP distributed I/O system. It is designed to collect digital signals from industrial sensors, switches, and other field devices and transfer this information to a programmable logic controller (PLC) for processing.

Typical applications include:

• Factory automation: Collects discrete signals from sensors and switches on automated production lines.

• Machine control: Monitors machine states, limit switches, and operating conditions.

• Conveyor systems: Receives signals from proximity sensors and object-detection devices.

• Packaging equipment: Supports product detection, sequence control, and machine status monitoring.

• Process automation: Collects discrete status signals from industrial equipment.

• Distributed I/O systems: Connects field devices to compatible SIMATIC controllers through an ET 200SP station.

Advantages

• Compact design: Fits into space-efficient ET 200SP distributed I/O installations.

• Reliable signal acquisition: Supports monitoring of discrete field signals in industrial environments.

• PLC integration: Transfers input states to the controller through the configured ET 200SP system.

• Modular architecture: Allows digital input modules to be combined with compatible input, output, and communication modules.

• Simplified maintenance: Clear product identification supports spare-parts management and replacement planning.

• Flexible system expansion: Helps accommodate additional field signals when the station configuration supports expansion.

• Reduced wiring complexity: Supports distributed signal collection near machines and process equipment.

Technical FAQs

Q1: What is the main function of the 6ES7131-6BF01-0AA0?

Its purpose is to acquire discrete electrical signals from field devices and make their states available to a compatible PLC through the SIMATIC ET 200SP system.

Q2: What types of devices can connect to a digital input module?

Depending on the electrical specifications, compatible devices may include push buttons, limit switches, proximity sensors, and other discrete signal sources.

Q3: What is the difference between a digital input and a digital output module?

A digital input module receives signals from field devices, while a digital output module sends control signals to compatible actuators or switching devices.

Q4: Is the module compatible with SIMATIC ET 200SP?

The model number belongs to the Siemens ET 200SP digital I/O ordering family. Confirm the exact variant and compatibility requirements using the product nameplate and hardware documentation.

Q5: What supply voltage should be used for the input signals?

The correct signal voltage must be confirmed from the exact module specifications. Do not connect field signals until the rated input voltage and permissible range have been verified.

Q6: Can the module monitor proximity sensors?

Yes, provided the sensors' output type, voltage, and electrical characteristics are compatible with the module inputs.

Q7: How does the module communicate with a PLC?

The module operates as part of an ET 200SP station, where input data is transferred through the station's interface module to the configured controller.

Q8: What can cause a digital input signal to be read incorrectly?

Common causes include incorrect wiring, incompatible signal voltage, loose terminals, faulty sensors, electrical interference, or incorrect controller configuration.

Q9: Does the module require a compatible BaseUnit?

Yes. ET 200SP I/O modules use compatible BaseUnits for mounting and electrical connections. The exact BaseUnit type must be verified for the specific module variant.

Q10: What should be checked before replacing the module?

Verify the full order number, input channel configuration, rated voltage, wiring arrangement, BaseUnit compatibility, firmware or engineering requirements, and the existing PLC hardware configuration.
