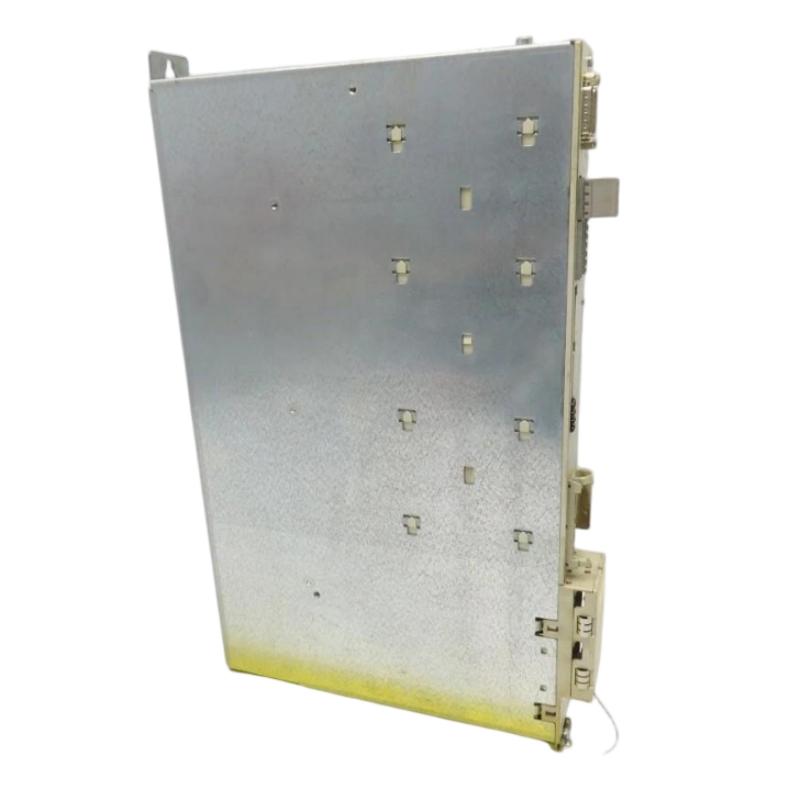

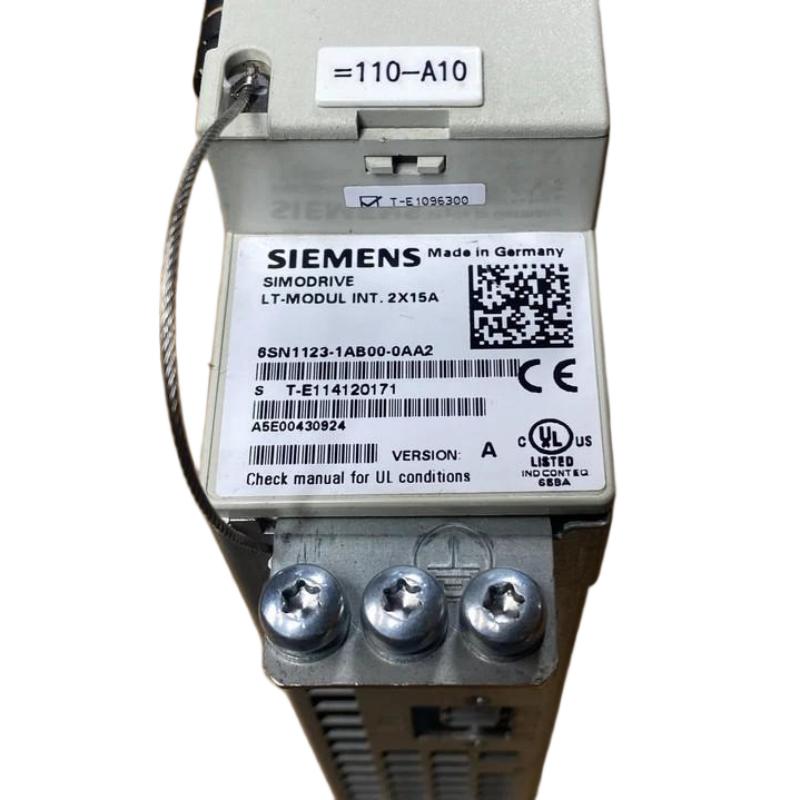

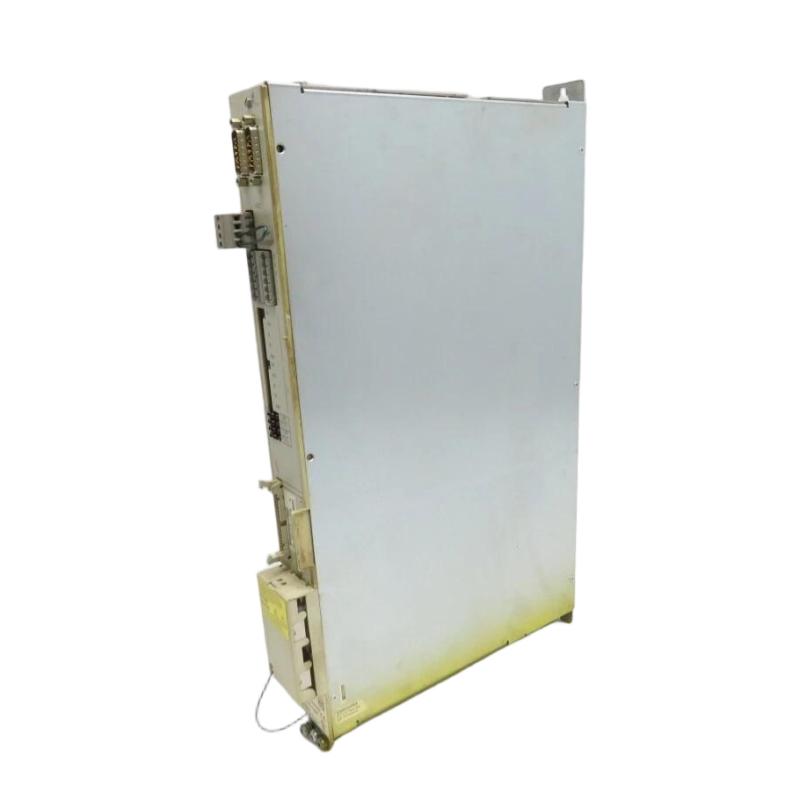

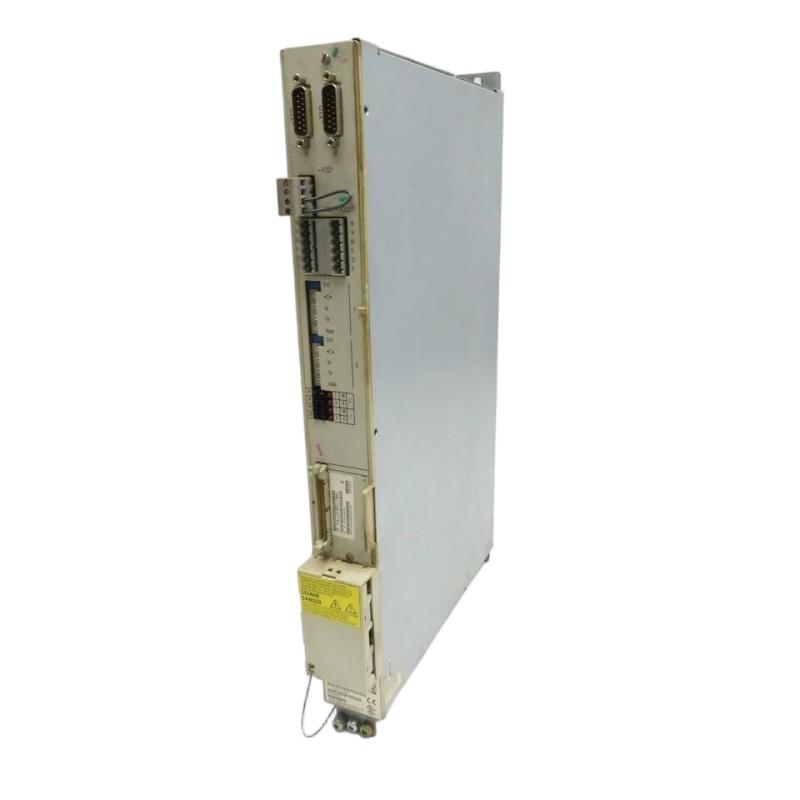

Siemens 6SN1123-1AB00-0AA2 Power Module

Applications

The Siemens 6SN1123-1AB00-0AA2 Power Module is part of the SIMODRIVE 611 drive system, designed for industrial motion-control applications. It supplies power to compatible motor-drive configurations and is used in CNC machinery and automated manufacturing equipment requiring reliable axis control.

Typical applications include:

• CNC machine tools: Supports compatible feed-drive and spindle-drive configurations.

• Industrial automation: Provides drive power for suitable motor-control systems.

• Servo drive systems: Works with compatible control modules to support precise motor operation.

• Manufacturing equipment: Supports motion-control functions in automated production machinery.

• Machine tool maintenance: Serves as a replacement component for compatible legacy SIMODRIVE installations.

• Industrial equipment retrofits: Can be considered when maintaining existing drive systems, subject to electrical and mechanical compatibility.

Advantages

• Industrial drive performance: Designed for demanding motion-control applications.

• Two-axis configuration: Supports compatible feed-drive and spindle-drive applications.

• Compact installation profile: The supplied dimensions help with equipment-layout planning.

• System integration: Designed for use within a compatible SIMODRIVE 611 configuration.

• Maintenance convenience: The complete model number helps identify the correct spare part.

• Legacy equipment support: Useful for evaluating repair and replacement options for existing machinery.

Technical FAQs

Q1: What is the primary function of the 6SN1123-1AB00-0AA2?

It is a power module designed to supply compatible motor-drive applications within the Siemens SIMODRIVE 611 system.

Q2: How many axes does this power module support?

This model is associated with a two-axis configuration for compatible feed-drive and spindle-drive applications.

Q3: What types of equipment use this module?

Typical applications include CNC machine tools, automated manufacturing equipment, and industrial machinery using compatible SIMODRIVE 611 drives.

Q4: Can the module operate independently?

No. It must be installed as part of a compatible drive system with the required control and supporting components.

Q5: What should be checked before replacing the module?

Verify the complete order number, axis configuration, current rating, cooling arrangement, motor specifications, and compatibility with the existing drive system.

Q6: What can cause a power module fault?

Possible causes include overcurrent, overheating, supply problems, motor or cable faults, and incorrect system configuration.

Q7: Is cooling important for this power module?

Yes. Proper cooling and adequate cabinet ventilation are essential for maintaining reliable operation and preventing thermal faults.

Q8: Can a module with a different current rating be used as a substitute?

Not without a detailed compatibility assessment. The current rating, drive configuration, cooling method, and motor requirements must be checked.

Q9: What safety precautions are required during maintenance?

Disconnect the power supply, follow the applicable lockout procedures, and observe the manufacturer's DC-link discharge requirements before servicing the equipment.

Q10: Is the 6SN1123-1AB00-0AA2 suitable for existing CNC installations?

It may be suitable for compatible SIMODRIVE 611 installations. Confirm the machine configuration, motor ratings, and replacement requirements before installation.
