Introduction

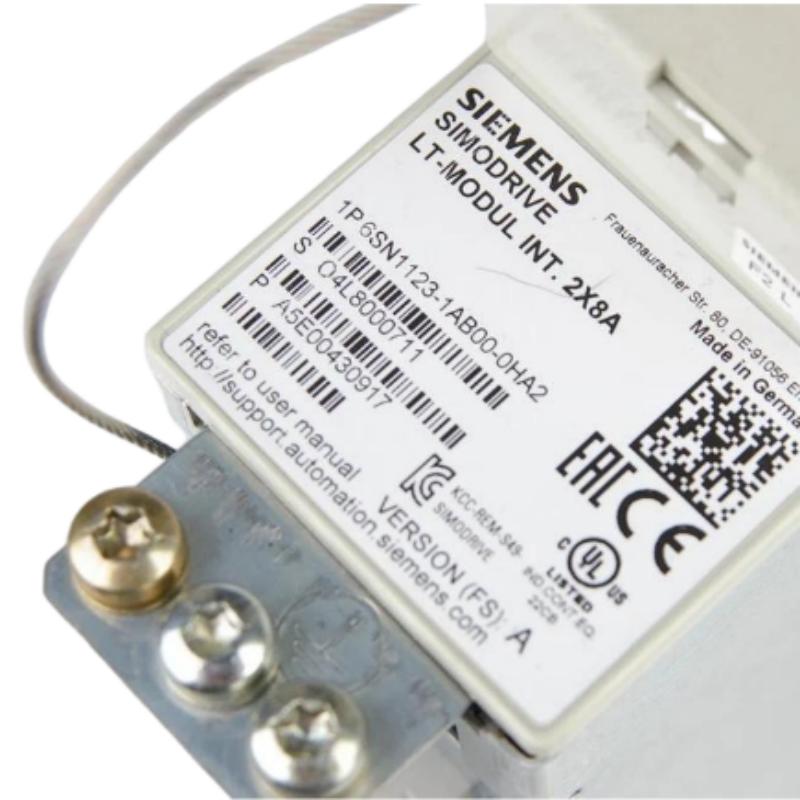

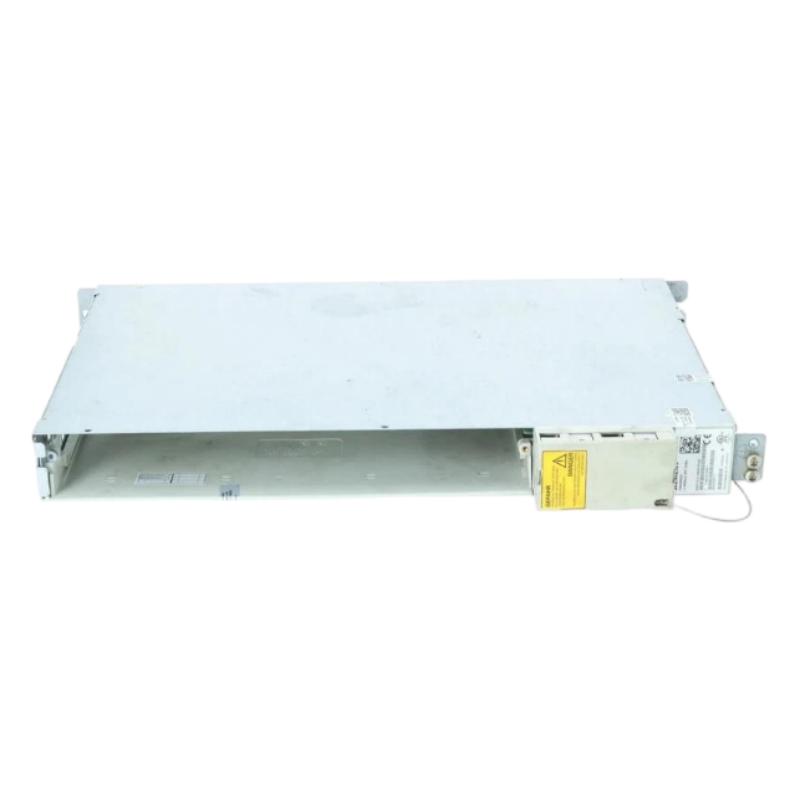

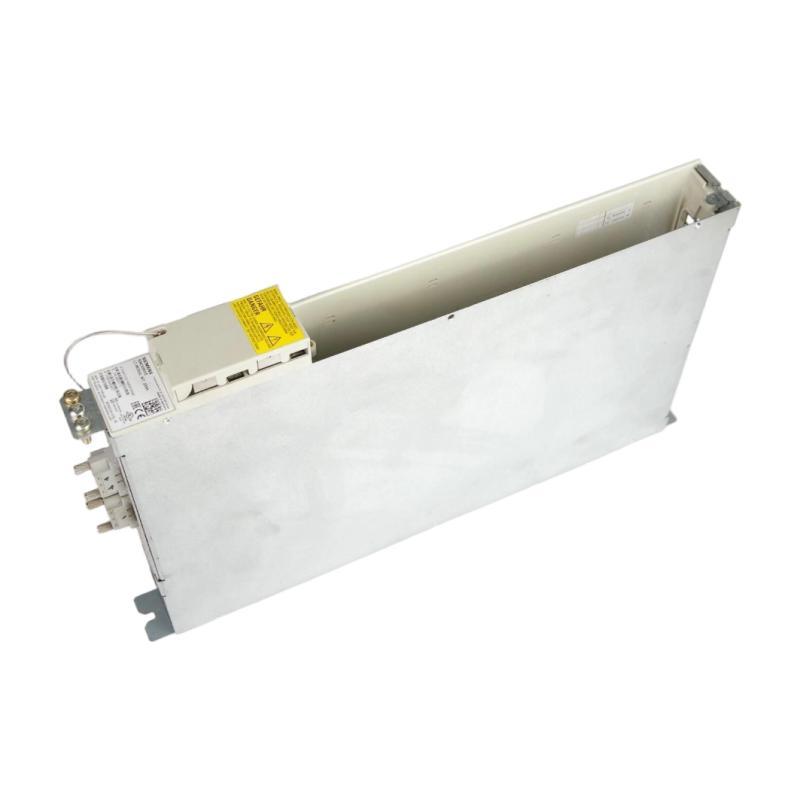

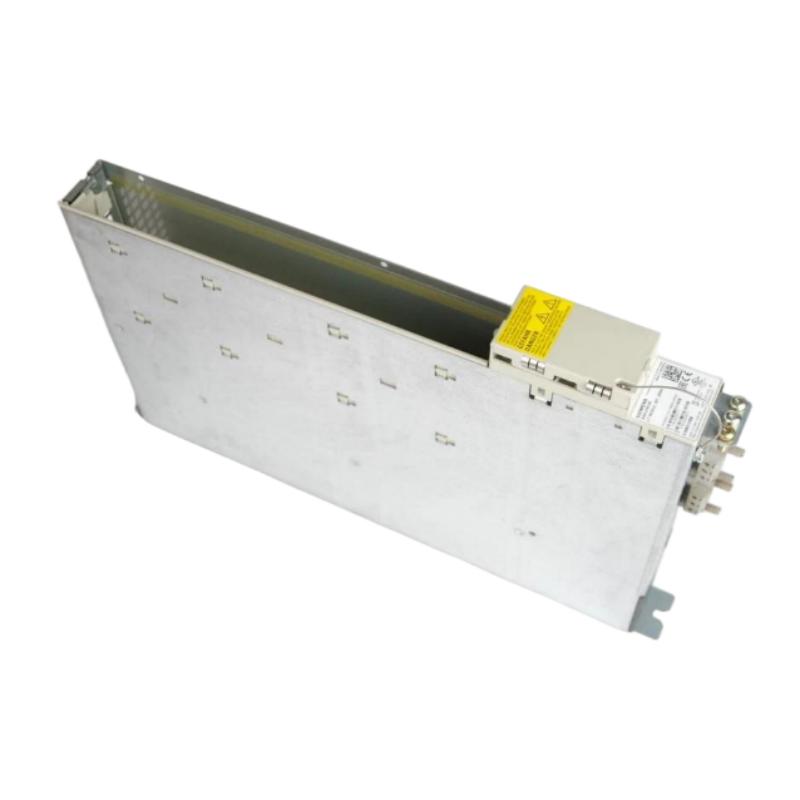

The Siemens 6SN1123-1AB00-0HA2 Power Module is an industrial automation component associated with the SIMODRIVE 611 drive family. It may be relevant to maintenance, spare-parts procurement, and equipment refurbishment involving compatible Siemens drive installations.
When sourcing this component, buyers should verify the complete order number and confirm that the module matches the existing drive configuration. Electrical characteristics, mounting arrangements, cooling requirements, and supporting hardware should be checked against the appropriate technical documentation before installation. Accurate identification helps prevent incompatible replacements and supports dependable maintenance of industrial machinery.
Technical Specifications
Parameter | Specification |
|---|
Brand | Siemens |
Model | 6SN1123-1AB00-0HA2 |
Product Type | Power Module |
Product Family | SIMODRIVE 611 |
Dimensions | 305 × 51 × 533 mm |
Dimensions (inches) | 12.01 × 2.01 × 20.98 in |
Weight | 5.7 kg / 12.57 lb |
Rated Voltage | Verify nameplate |
Rated Current | Verify exact variant documentation |
Electrical Function | Verify exact variant documentation |
Cooling Method | Verify exact variant documentation |
Mounting Requirements | Verify system documentation |
Drive Compatibility | Confirm against the existing configuration |
Condition | Depends on supplier listing |
Recommended Related Models
The following Siemens product families may be relevant when sourcing components for compatible SIMODRIVE installations. They are related product families, not confirmed direct replacements.
Siemens 6SN1123 Series Power Modules
Siemens 6SN1145 Series Infeed Modules
Siemens 6SN1118 Series Control Modules
Siemens SIMODRIVE 611 Drive Components
Siemens SIMODRIVE 611-Compatible Drive Assemblies
Popular Related Models
Siemens 6SN1123-1AB00-0AA2 Power Module
Siemens 6SN1123-1AB00-0BA0 Power Module
Siemens 6SN1123-1AB00-0BA1 Power Module
Siemens 6SN1123-1AB00-0BA2 Power Module
Siemens 6SN1123-1AB00-0CA0 Power Module
Selection Note: Verify the complete Siemens order number, electrical ratings, and system compatibility before purchasing or installing a replacement. Similar model numbers do not guarantee that modules are interchangeable.
Technical FAQs
Q1: What is the Siemens 6SN1123-1AB00-0HA2 Power Module?
A: It is identified as a Siemens Power Module associated with the SIMODRIVE 611 product family. Its exact electrical function should be confirmed using the complete product documentation.
Q2: Which drive system is this module associated with?
A: It is associated with the Siemens SIMODRIVE 611 family. Compatibility with a specific drive assembly must be verified before installation.
Q3: Can this module replace another 6SN1123 series module?
A: Not automatically. Different variants may have different electrical ratings, functions, or hardware configurations. Always compare the complete order number and technical specifications.
Q4: What should be checked before installing the module?
A: Verify the electrical ratings, module function, hardware revision, connector arrangement, mounting requirements, cooling provisions, and compatibility with the existing drive system.
Q5: Is this module suitable for CNC machine tools?
A: It may be suitable for CNC machinery designed around a compatible SIMODRIVE configuration. Confirm the required component against the machine's electrical diagrams and parts documentation.
Q6: Can the module operate independently?
A: It should be evaluated as part of the complete drive architecture. Supporting components and connections depend on the particular system configuration.
Q7: What can cause a drive module to malfunction?
A: Possible causes include electrical faults, excessive temperature, inadequate cooling, loose connections, component aging, or problems elsewhere in the drive system.
Q8: How can reliable operation be supported?
A: Follow the manufacturer's environmental and cooling requirements, keep ventilation paths clear, inspect connections according to approved procedures, and operate within specified limits.
Q9: What safety measures are required before maintenance?
A: Isolate the equipment from power, follow appropriate lockout procedures, and comply with the manufacturer's instructions for discharging stored electrical energy before handling the module.
Q10: How can the correct replacement be confirmed?
A: Compare the complete order number, nameplate data, electrical ratings, mechanical dimensions, connector layout, and compatibility requirements with the original component.
