Introduction

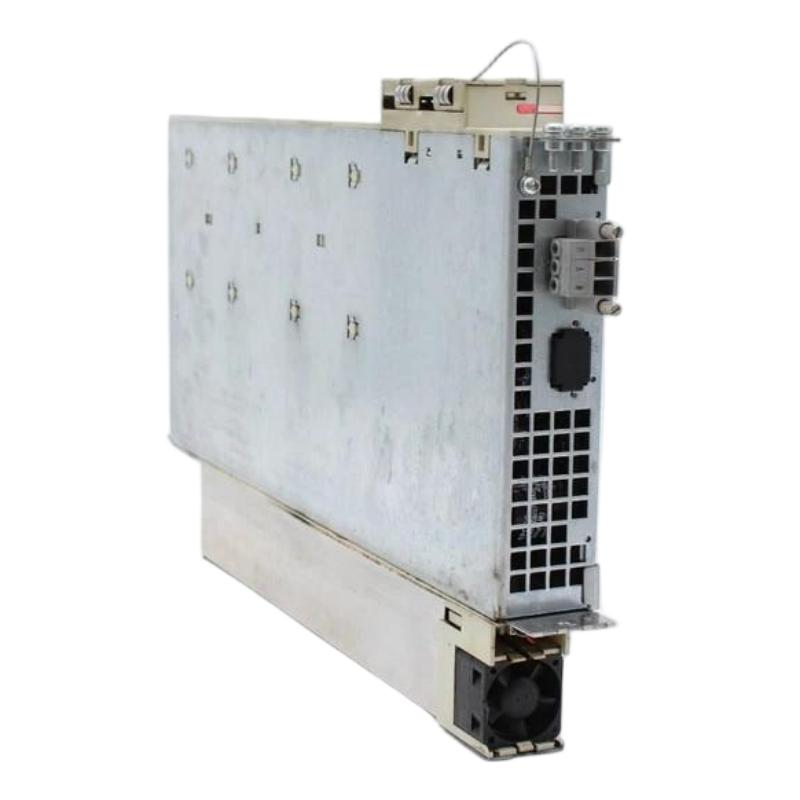

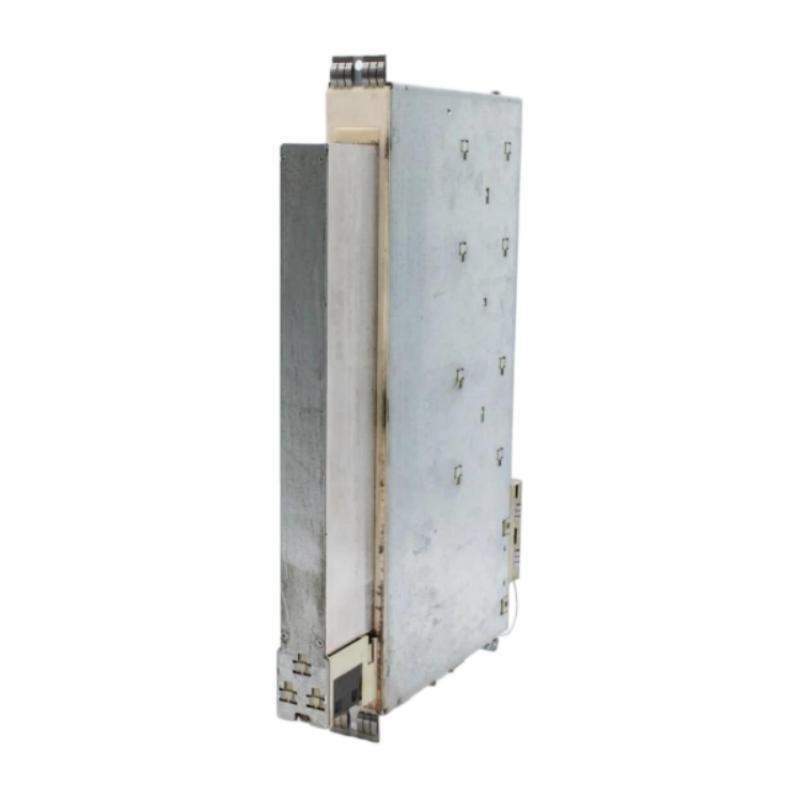

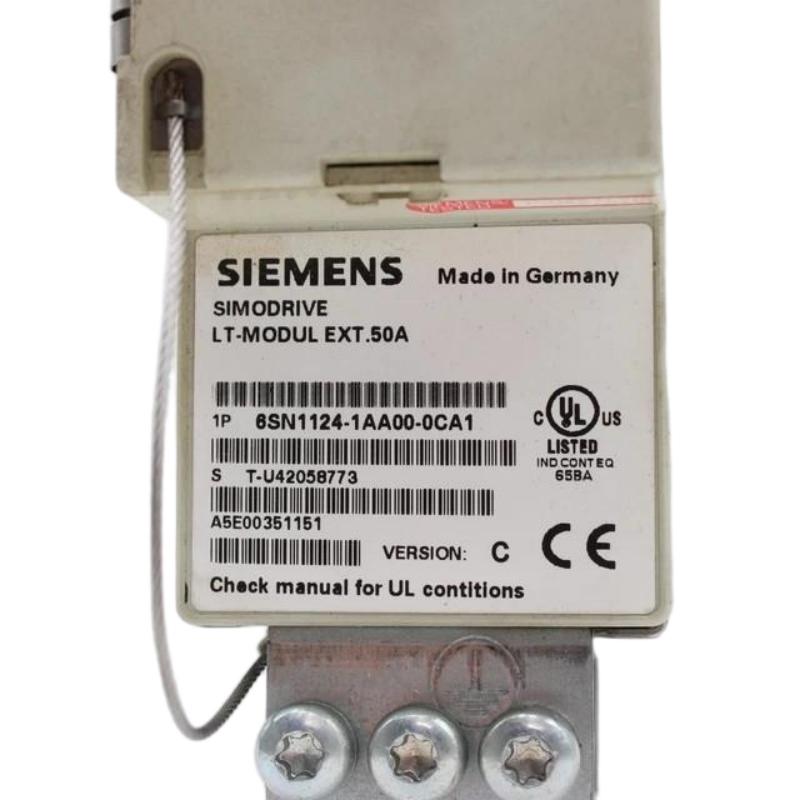

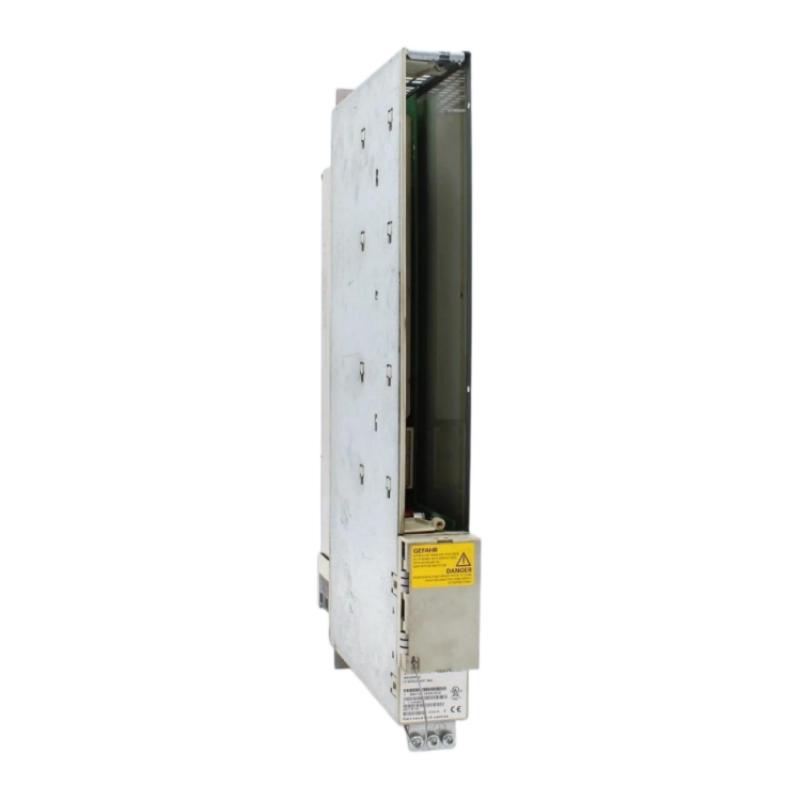

The Siemens 6SN1124-1AA00-0CA1 Power Module is an industrial component identified for power-module applications. It may be relevant to spare-parts procurement, equipment maintenance, and refurbishment projects involving compatible Siemens drive installations.
For maintenance engineers and industrial buyers, confirming the exact variant is essential before ordering. The component's electrical specifications, mechanical fit, cooling requirements, and supporting hardware should be checked against the existing installation and relevant product documentation. Careful verification helps prevent incompatible replacements and supports dependable operation of industrial machinery.
Technical Specifications
Parameter | Specification |
|---|
Brand | Siemens |
Model | 6SN1124-1AA00-0CA1 |
Product Type | Power Module |
Product Family | Verify exact product documentation |
Dimensions | 51 × 483 × 292 mm |
Dimensions (inches) | 2.01 × 19.02 × 11.50 in |
Weight | 6.2 kg / 13.67 lb |
Rated Voltage | Verify nameplate |
Rated Current | Verify exact variant documentation |
Electrical Function | Verify exact variant documentation |
Cooling Method | Verify product documentation |
Mounting Requirements | Verify product documentation |
System Compatibility | Confirm against the original configuration |
Condition | Depends on supplier listing |
Recommended Related Models
The following Siemens drive product families may be useful when identifying related components. They are not confirmed direct replacements for the 6SN1124-1AA00-0CA1.
Siemens 6SN1124 Series Drive Modules
Siemens 6SN1123 Series Power Modules
Siemens 6SN1145 Series Infeed Modules
Siemens 6SN1118 Series Control Modules
Siemens SIMODRIVE Drive System Components
Popular Related Models
Siemens 6SN1123-1AB00-0AA2 Power Module
Siemens 6SN1123-1AB00-0BA0 Power Module
Siemens 6SN1123-1AB00-0BA2 Power Module
Siemens 6SN1124 Series Drive Modules
Siemens 6SN1145 Series Infeed Modules
Selection Note: Confirm the complete Siemens order number and technical specifications before purchasing or installing a replacement. Similar model designations do not guarantee that components are electrically or mechanically interchangeable.
Technical FAQs
Q1: What is the Siemens 6SN1124-1AA00-0CA1 Power Module?
A: It is identified by the supplied product description as a Siemens Power Module. Its exact electrical function and technical ratings should be confirmed from the product nameplate and applicable documentation.
Q2: What applications may use this module?
A: Potential applications include compatible industrial drive and motion-control installations. Suitability for a particular machine depends on the module's specifications and system configuration.
Q3: Can it replace another Siemens 6SN1124 module?
A: Not necessarily. Different variants may have different electrical ratings, functions, or hardware configurations. Confirm the complete order number before selecting a replacement.
Q4: Which electrical parameters should be checked?
A: Verify the rated voltage, current, electrical function, protection requirements, and compatibility with the connected drive equipment using the appropriate technical documentation.
Q5: Is this module suitable for CNC machinery?
A: It may be suitable for CNC machinery designed around a compatible Siemens drive system. Check the machine's electrical diagrams and original parts list before installation.
Q6: Does the module require supporting components?
A: Requirements depend on its exact function and the overall drive architecture. Consult the applicable documentation to determine the necessary power, control, and connection components.
Q7: What factors can cause module failure?
A: Potential causes include electrical faults, excessive temperature, inadequate cooling, loose connections, component aging, or problems elsewhere in the drive system.
Q8: How should the module be maintained?
A: Follow the manufacturer's maintenance instructions, maintain the specified operating environment, keep ventilation paths clear, and inspect connections according to approved procedures.
Q9: What safety precautions are required before servicing?
A: Isolate all relevant power sources, apply lockout procedures, and follow the manufacturer's instructions for discharging stored electrical energy before handling the equipment.
Q10: How can buyers confirm compatibility?
A: Compare the full order number, nameplate data, electrical ratings, connector arrangement, mounting dimensions, and drive-system requirements with the original component.
