Introduction

The ABB FSO-21 Extended Security Module, identified by model FSO-21, is an industrial functional safety option for compatible ACS880 drive systems. It is designed for machine builders, system integrators, and maintenance teams seeking to implement more advanced safety functions in motor-driven applications.

Unlike a conventional communication or I/O expansion module, the FSO-21 focuses on safety-related drive behavior. Its functions can help control stopping responses, monitor operating speed, and supervise motion direction in applications where uncontrolled movement presents a risk.

The module supports eight safety functions and can be combined with the FSE-31 pulse encoder interface for applications requiring encoder-based monitoring. For suitable installations, compatible communication options can also integrate drive safety into a wider machine safety system.

For industrial buyers, the FSO-21 offers a targeted way to extend the capabilities of an existing compatible ABB drive platform. Selecting the correct hardware revision and associated options is essential to achieving the intended functionality and maintaining the integrity of the safety system.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	FSO-21
Product Code	3AXD50000016771
Product Type	Extended Security Module
Functional Category	Drive Functional Safety Module
Compatible Drive Family	Selected ABB ACS880 configurations
Safety Functions	Eight supported functions
Encoder Interface	FSE-31 required for encoder-dependent SDI functionality
Configuration Software	Drive Composer Pro
Safety Capability	SIL 3 / PL e capability, subject to applicable conditions
Installation Type	Internal drive plug-in module
Dimensions	111 × 38 × 76 mm
Weight	0.339 kg / 0.75 lb

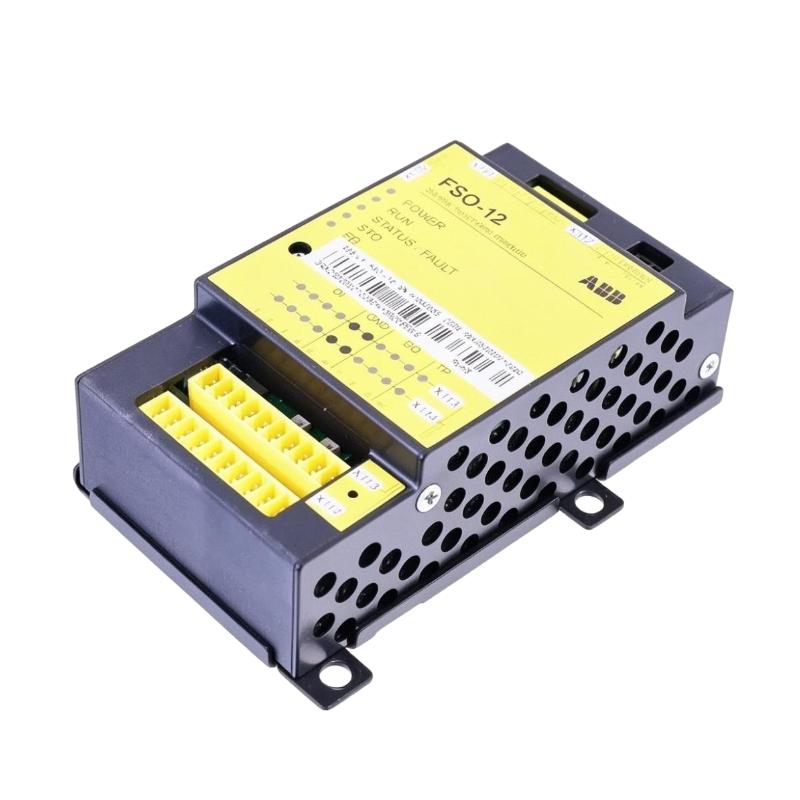

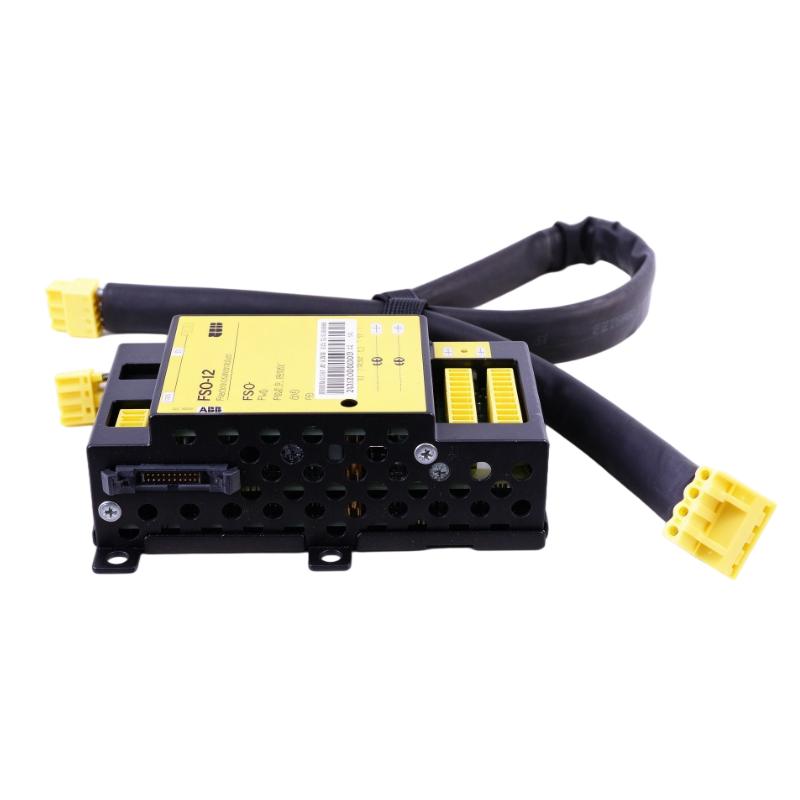

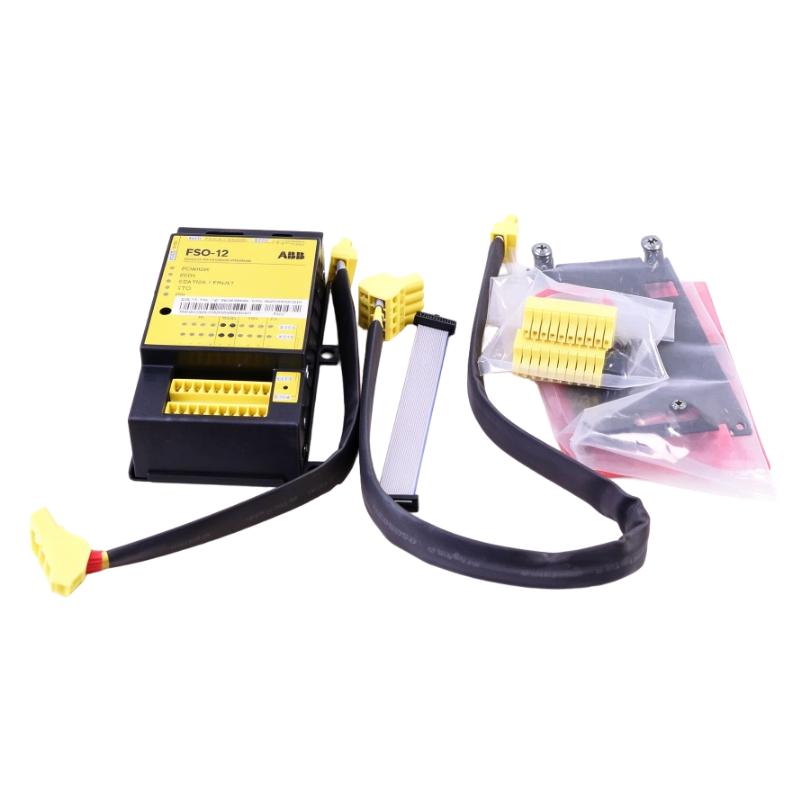

Important identification note: ABB ordering code 3AXD50000016771 is associated with the FSO-12 Safety Functions Module, rather than the FSO-21. The FSO-21 is a different module and should be ordered against its verified part number. Confirm the product label and ordering code before purchasing or replacing the unit.

Recommended Related Models

The following ABB products may be relevant when building or maintaining a compatible drive safety system. Each serves a different function and should be selected according to the application requirements.

Model	Product Type	Application
ABB FSO-12	Safety Functions Module	Core drive safety functions
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback for supported safety functions
ABB FPNO-21	PROFINET Adapter Module	PROFINET connectivity in supported configurations
ABB FENA-21	Ethernet Adapter Module	Ethernet-based drive communication
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety communication for compatible drive systems
ABB FPTC-01	Thermistor Protection Module	Motor temperature protection in supported configurations

Popular Related Models

For maintenance planning, replacement sourcing, and drive system upgrades, these ABB models are worth considering alongside the FSO safety module family.

Model	Product Name	Main Purpose
ABB ACS880-01	Wall-Mounted Drive	General industrial motor control
ABB ACS880-04	Drive Module	Integration into industrial drive cabinets
ABB ACS880-07	Cabinet-Built Drive	High-power industrial drive applications
ABB FSO-12	Safety Functions Module	Drive-level functional safety
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback integration
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety-related communication

When selecting replacement components, verify the complete ordering code, hardware revision, firmware compatibility, and supported options for the target drive. This helps avoid mismatched purchases and reduces commissioning delays.

Applications

The ABB FSO-21 is a functional safety module designed to extend the safety capabilities of compatible ABB ACS880 variable frequency drives. It supports safety-related motion control functions that help reduce risks during machine operation, servicing, and emergency situations.

Typical applications include:

Industrial Machinery: Enhances motion safety in automated production equipment, processing machinery, and manufacturing systems.
Conveyor Systems: Supports controlled stopping and speed monitoring in material handling applications.
Packaging Equipment: Helps implement safety functions for machinery with moving parts and frequent operator interaction.
Motor Control Systems: Provides additional safety functionality for compatible drive-based motor applications.
Automated Production Lines: Supports coordinated safety strategies in systems requiring reliable motor speed and direction monitoring.
Industrial Maintenance: Helps reduce risks associated with unexpected machine movement during maintenance and operational interventions.

The FSO-21 is particularly suitable for installations that require more advanced drive safety functions than basic safe-stop capabilities.

Advantages

Expanded Functional Safety Capabilities

The FSO-21 provides eight safety functions, including Safe Stop 1 (SS1), Safe Stop Emergency (SSE), Safe Brake Control (SBC), Safely-Limited Speed (SLS), Safe Maximum Speed (SMS), Prevention of Unexpected Start-up (POUS), Safe Direction (SDI), and Safe Speed Monitor (SSM).

Support for Encoder-Based Safety

When paired with a compatible FSE-31 pulse encoder interface, the FSO-21 supports encoder feedback for applications requiring additional motion monitoring capabilities.

Compact Drive Integration

The module installs inside compatible drive equipment, helping engineers implement additional safety functions without requiring a separate external safety controller for every drive-level function.

Improved Operational Risk Management

Configurable safety functions help machinery designers establish appropriate responses to hazardous operating conditions, supporting safer maintenance and production workflows.

Flexible Safety System Design

The FSO-21 can form part of a broader machine safety architecture. Compatible fieldbus options can extend safety communication capabilities when the complete drive configuration supports them.

Suitable for Demanding Industrial Environments

Designed for industrial drive applications, the FSO-21 provides a practical option for upgrading functional safety while retaining a compatible ABB drive platform.

Technical FAQs

Q1: What is the primary function of the ABB FSO-21?

The FSO-21 extends the functional safety capabilities of compatible ABB ACS880 drives. It enables additional drive-level safety functions for applications involving controlled stopping, speed monitoring, and motion direction supervision.

Q2: Which drive families support the FSO-21?

The module is intended for compatible ACS880 drive configurations. Actual compatibility depends on the drive hardware, control unit, firmware revision, and installed options. Confirm these details before installation.

Q3: What is the difference between the FSO-21 and FSO-12?

Both modules provide core drive safety functions. The FSO-21 additionally supports Safe Direction (SDI) and Safe Speed Monitor (SSM), with encoder-based functionality requiring the appropriate compatible interface.

Q4: Does the FSO-21 support Safe Torque Off (STO)?

STO is a drive safety function that prevents torque-producing power from being generated by the motor. The FSO-21 works within a compatible drive safety architecture; the availability and implementation of STO depend on the drive hardware and system configuration.

Q5: Is an encoder required for all FSO-21 functions?

No. Not every supported function requires encoder feedback. However, the SDI function requires the compatible FSE-31 pulse encoder interface. Confirm the feedback requirements for the intended safety configuration.

Q6: How is the FSO-21 configured?

Safety function selection and configuration are performed using the compatible Drive Composer Pro engineering tool. Configuration must follow the applicable drive and safety module instructions.

Q7: Can the FSO-21 communicate with a safety PLC?

Safety communication can be implemented through a compatible fieldbus arrangement, such as PROFIsafe over PROFINET with the appropriate supported adapter and system configuration. The module alone does not provide every communication interface.

Q8: What safety performance level can the FSO-21 support?

The FSO-21 has SIL 3 and PL e capability within its specified application conditions. The achieved safety level depends on the complete safety-related control system, its architecture, validation, and installation.

Q9: What should be checked before replacing an existing FSO-21?

Verify the module identification, hardware and revision compatibility, drive firmware, control unit, existing safety configuration, and encoder or fieldbus options. After replacement, perform the required commissioning checks and safety validation.

Q10: Can the FSO-21 be installed while the drive is operating?

Installation and replacement must not be performed on energized equipment unless an explicitly approved procedure permits the operation. Follow the applicable electrical isolation, discharge, and safety procedures before handling the module.
