Introduction

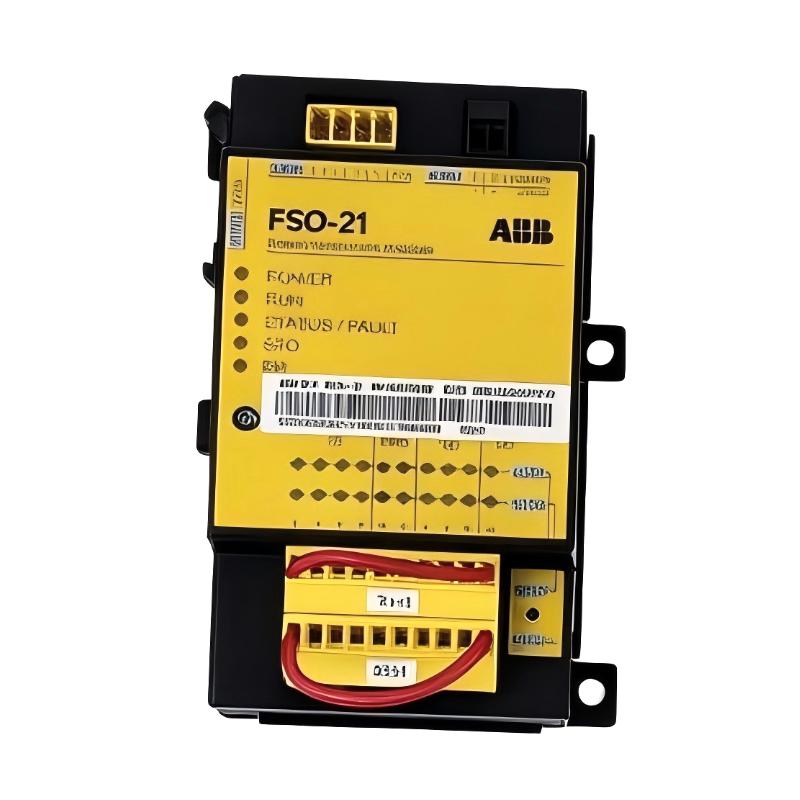

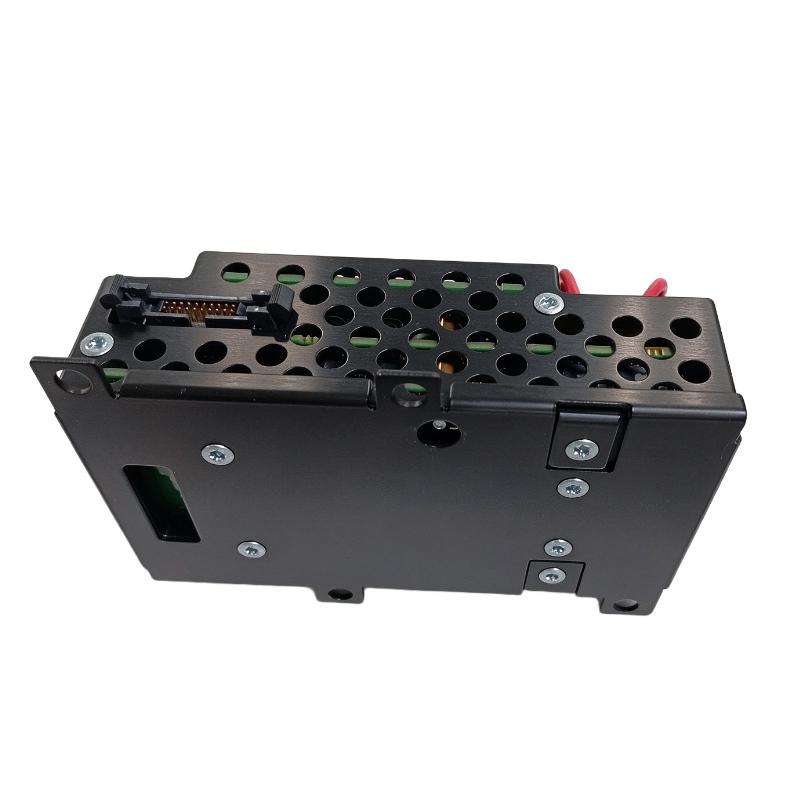

The ABB FSO-21 Safety Function Module is an industrial drive safety component intended for applications that require more than conventional motor control. By extending the functional safety capabilities of compatible ABB drives, it helps system integrators implement safety-related responses to hazardous motion and operating conditions.

In modern manufacturing environments, safety requirements often extend beyond emergency stopping. Machinery may also need to monitor motor speed, supervise direction, manage controlled stopping sequences, and prevent unexpected restart. The FSO-21 supports these requirements through a range of drive-level safety functions that can be selected according to the application.

The module is particularly relevant to industrial automation projects involving material handling, production machinery, processing equipment, and other motor-driven systems. When combined with compatible drive hardware and the appropriate feedback or communication options, it can contribute to a more comprehensive machine safety architecture.

For maintenance departments and industrial procurement teams, confirming the exact model and ordering code is an important part of the selection process. The product should be matched to the target drive configuration and required safety functions to support reliable integration, commissioning, and long-term operation.

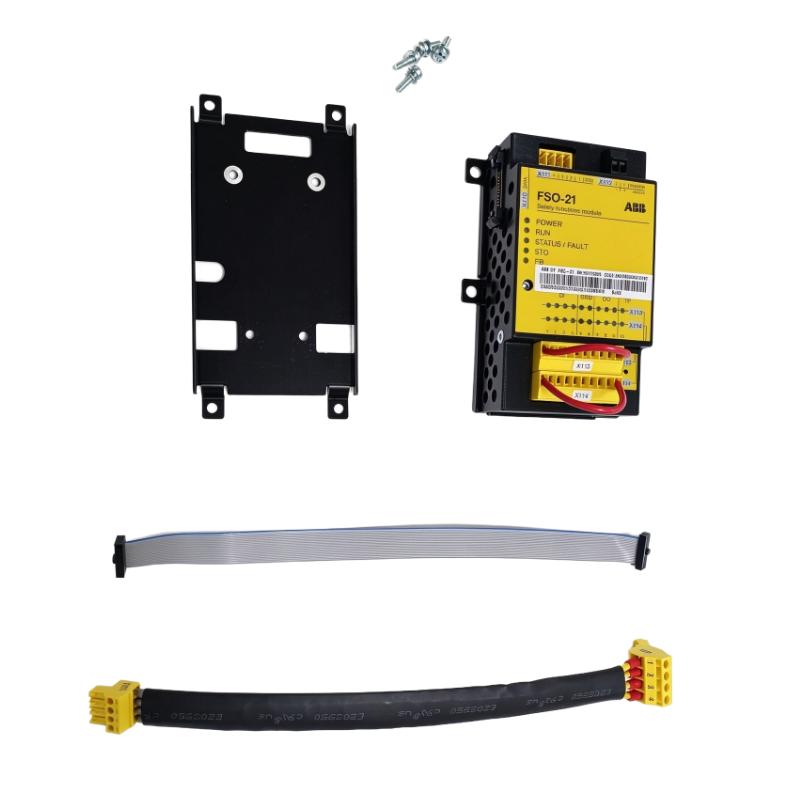

Technical Specifications

Parameter	Specification
Brand	ABB
Model	FSO-21
Ordering Code	3AXD50000023987
Product Type	Safety Function Module
Product Category	Drive Functional Safety
Compatible Platform	Selected ABB ACS880 drive configurations
Safety Functions	SS1, SSE, SBC, SLS, SMS, POUS, SDI, SSM
Encoder Support	Compatible encoder interface required for encoder-dependent functions
Configuration	Compatible ABB engineering tools
Installation	Drive-integrated module, subject to hardware compatibility
Dimensions	111 × 38 × 76 mm
Weight	0.98 kg / 2.16 lb

Compatibility, supported safety functions, and achieved safety performance must be verified against the exact drive hardware, firmware, and approved configuration. Confirm the ordering code against the module's product label before purchasing or replacing the unit.

Recommended Related Models

The following models may be relevant when specifying, maintaining, or expanding an ABB drive safety system. Their suitability depends on the intended application and the compatibility of the complete installation.

Model	Product Type	Typical Purpose
ABB FSO-12	Safety Functions Module	Drive-level functional safety
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback for supported safety functions
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety-related communication in compatible configurations
ABB FENA-21	Ethernet Adapter Module	Ethernet connectivity for supported drives
ABB FPNO-21	PROFINET Adapter Module	PROFINET communication in supported configurations
ABB FPTC-01	Thermistor Protection Module	Motor thermistor protection in compatible installations

Popular Related Models

For industrial drive maintenance, replacement planning, and automation upgrades, the following ABB products may also be relevant.

Model	Product Name	Primary Application
ABB ACS880-01	Wall-Mounted Drive	General-purpose industrial motor control
ABB ACS880-04	Drive Module	Cabinet-integrated drive applications
ABB ACS880-07	Cabinet-Built Drive	Industrial drive systems with integrated cabinet construction
ABB FSO-12	Safety Functions Module	Functional safety for compatible drive systems
ABB FSE-31	Pulse Encoder Interface Module	Encoder feedback integration
ABB FSPS-21	PROFIsafe Safety Functions Module	Safety communication in supported drive systems

When sourcing the ABB FSO-21 3AXD50000023987, verify the product identification, compatibility with the installed drive, and required safety options. Providing the correct component helps streamline procurement and supports a more efficient replacement and commissioning process.

Applications

The ABB FSO-21 Safety Function Module is designed to expand the functional safety capabilities of compatible ABB drive systems. It supports safety-related motion control functions that help machinery designers manage hazardous movement, improve operational protection, and implement application-specific safety strategies.

Automated Manufacturing: Supports safety functions in production machinery where controlled motor movement and predictable stopping behavior are essential.
Material Handling Systems: Helps implement drive-level safety functions for conveyors, transfer equipment, and automated handling systems.
Packaging and Processing Machinery: Supports safety strategies for equipment with moving components and frequent operator interaction.
Machine Tool Applications: Provides additional safety functionality for compatible drive configurations requiring speed or direction monitoring.
Industrial Robotics and Automation: Can be incorporated into suitable drive-based automation systems where the application requires safety-related motion monitoring.
Maintenance and Servicing Operations: Supports safety designs intended to reduce risks from unexpected starting, excessive speed, or unintended movement.

The FSO-21 is intended for applications in which drive-level functional safety must be integrated into a broader machine safety design. Correct selection, configuration, and validation remain essential to achieving the intended safety performance.

Advantages

Advanced Drive Safety Functions

The FSO-21 supports multiple drive safety functions, including Safe Stop 1 (SS1), Safe Stop Emergency (SSE), Safe Brake Control (SBC), Safely-Limited Speed (SLS), Safe Maximum Speed (SMS), Prevention of Unexpected Start-up (POUS), Safe Direction (SDI), and Safe Speed Monitor (SSM).

Enhanced Motion Monitoring

For compatible configurations, the module can support safety-related speed and direction monitoring. These capabilities help engineers develop machine safety strategies suited to applications involving moving equipment.

Integration with Compatible ABB Drives

Designed for supported ABB drive platforms, the module can be incorporated into an existing automation architecture without necessarily requiring a separate external safety controller for every drive-level function.

Flexible System Configuration

The FSO-21 can be used with appropriate drive hardware and compatible options to meet specific functional safety requirements. Encoder-based functions require the relevant supported feedback interface.

Improved Maintenance Planning

By supporting defined safety responses and monitored operating conditions, the module can contribute to maintenance procedures designed to reduce the risks associated with unexpected motor movement.

Practical Industrial Replacement Option

For maintenance teams and system integrators, selecting the correct FSO-21 configuration can help preserve existing drive functionality and reduce unnecessary changes to established control systems.

Technical FAQs

Q1: What is the main purpose of the ABB FSO-21 Safety Function Module?

The FSO-21 extends the functional safety capabilities of compatible ABB drives. It supports safety-related functions for stopping, speed monitoring, direction supervision, and prevention of unexpected start-up, subject to the installed configuration.

Q2: Which ABB drives are compatible with the FSO-21?

The module is intended for supported ABB ACS880 drive configurations. Compatibility must be checked against the specific drive model, control unit, firmware, hardware revision, and installed options before installation.

Q3: Which safety functions are supported by the FSO-21?

Supported functions include SS1, SSE, SBC, SLS, SMS, POUS, SDI, and SSM. Availability and implementation depend on the system configuration and applicable product documentation.

Q4: Does the FSO-21 require an encoder?

Not every supported safety function requires encoder feedback. However, encoder-dependent functions, including SDI, require the appropriate compatible encoder interface and associated configuration.

Q5: Can the FSO-21 work with a safety PLC?

It can form part of a larger machine safety architecture. Safety communication depends on the compatible drive, communication adapter, supported protocol, and required configuration. Do not assume that every FSO-21 installation includes a safety fieldbus interface.

Q6: How is the safety module configured?

Configuration is performed using the supported ABB engineering tools and the procedures specified for the target drive and module. Safety parameters must be set according to the machine risk assessment and verified during commissioning.

Q7: What is the difference between SS1 and STO?

Safe Stop 1 (SS1) initiates a controlled stopping process before the applicable torque-removal action. Safe Torque Off (STO) prevents the drive from producing motor torque. Their implementation and interaction depend on the supported drive safety architecture.

Q8: What should be checked if a safety function does not activate?

Check the configured safety parameters, input conditions, wiring, drive status, fault indications, feedback interface, and applicable interlocks. Follow the approved troubleshooting procedure and repeat the required safety validation after corrective work.

Q9: Can an FSO-21 be transferred to another drive?

Transfer may be possible only when the destination drive and its hardware configuration are compatible. The safety configuration, firmware, feedback devices, and application-specific settings must be reviewed, recommissioned, and validated before operation.

Q10: What precautions are necessary when replacing the module?

Isolate the equipment from hazardous electrical energy, follow the drive's discharge waiting times, and use the approved installation procedure. After replacement, verify module recognition, safety parameters, connected interfaces, and the complete safety function before returning the machine to service.
