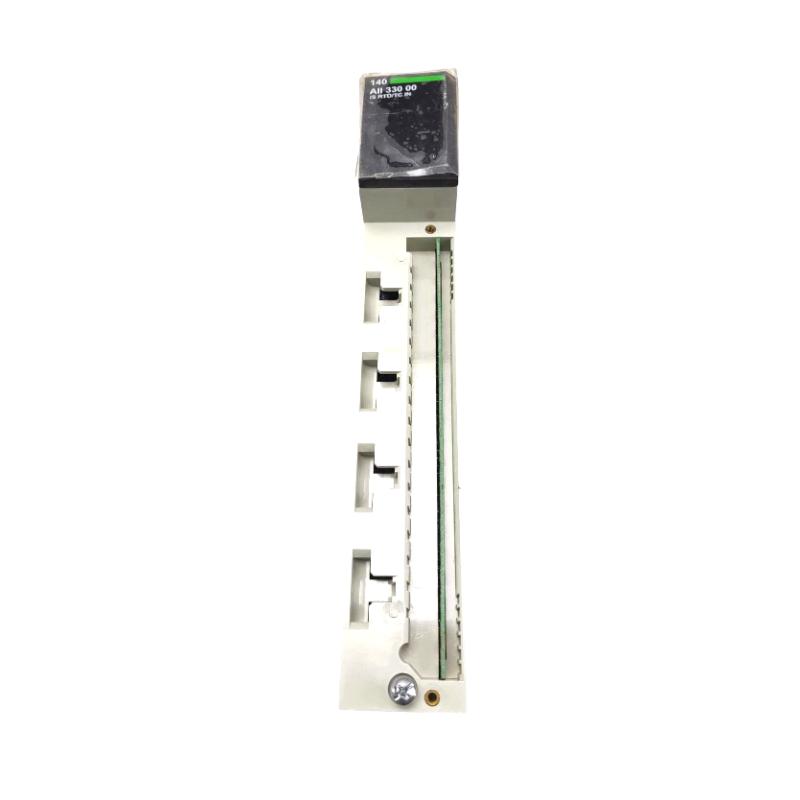

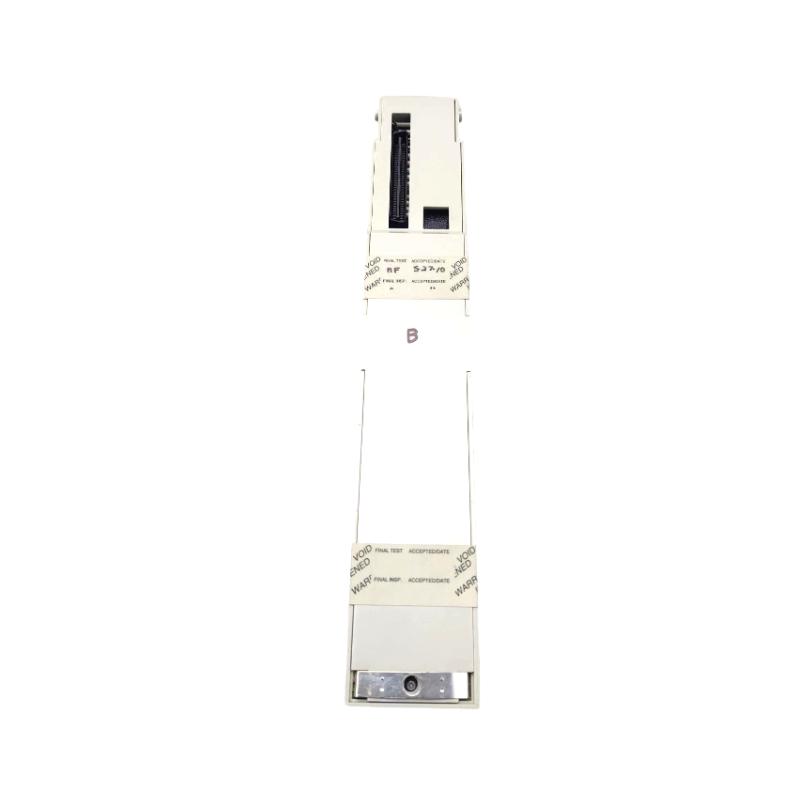

The Schneider Electric 140AII33000C Analog Input Module is a cutting-edge solution for acquiring high-precision analog signals in industrial automation systems. Specifically designed for use with Schneider Electric's Modicon M340 and Modicon M580 PLCs, this module offers superior performance in applications requiring the monitoring and measurement of key process parameters such as temperature, pressure, level, and flow.

With up to 16 input channels and a 16-bit resolution, the 140AII33000C ensures the accurate capture of signals from sensors that output both voltage (0-10V) and current (4-20mA). Whether you're controlling industrial equipment or monitoring critical process variables, this module provides real-time data with exceptional reliability and precision.

Built to endure challenging industrial environments, the 140AII33000C guarantees long-term stability and is engineered to meet the needs of the most demanding applications across various industries such as manufacturing, energy, and process control.

Technical Specifications

Model Number: 140AII33000C
Module Type: Analog Input Module
Input Types: Voltage (0-10V), Current (4-20mA)
Number of Channels: 16 Channels
Signal Conversion: 16-bit Resolution
Input Impedance: ≥ 1 MΩ
Operating Temperature Range: -25°C to 70°C
Dimensions: 5.9 in x 5.9 in x 2.4 in (150 mm x 150 mm x 61 mm)
Weight: 0.7 lbs (0.32 kg)
Power Requirements: 24V DC, 0.3A

Recommended Related Models

Schneider 140CRP93100: Power Supply Module for Schneider Modicon systems, offering reliable power to the entire system.
Schneider 140XBP01000: Digital Output Module for adding digital control capability to your automation system.
Schneider 140CPS11410: Profibus DP Communication Module, enhancing network communication and expanding system capabilities.

Popular Schneider Electric Models

Schneider 140CPU67160: High-performance CPU Module for Modicon M580 PLCs, ideal for advanced automation control.
Schneider 140XTS00300: Digital Output Module for accurate switching and control of devices in your automation system.
Schneider 140CPS21200: Communication Processor for network communication and seamless integration.
Schneider 140ACO02000: Analog Output Module for precise and reliable analog output control.
Schneider 140XBP00200: Digital Input Module, ideal for expanding I/O capabilities in large-scale automation systems.

Applications

Manufacturing Automation: The 140AII33000C is designed to handle critical analog input signals for controlling and monitoring manufacturing processes. It is ideal for systems that require high-accuracy data acquisition from temperature, pressure, and flow sensors.
Energy Management: Perfect for applications in energy distribution, power plants, substations, and smart grids, this module helps with the measurement of electrical parameters such as voltage, current, and power, improving system efficiency and stability.
Process Control: Widely used in industries such as chemicals, pharmaceuticals, food & beverage, and oil & gas, the 140AII33000C enables real-time monitoring and control of process parameters, ensuring safety, compliance, and optimal performance.
Building Automation: The module is essential for controlling building systems such as HVAC, lighting, and energy management systems, allowing for efficient energy usage and maintaining comfort for occupants.

Advantages

High-Resolution Signal Acquisition: Featuring 16-bit resolution, the 140AII33000C offers exceptional accuracy for the measurement of analog signals, ensuring precise control and monitoring.
Multiple Channel Inputs: With 16 channels, the module can handle a large number of input signals simultaneously, making it ideal for complex systems that require multi-point data acquisition.
Versatile Input Types: It supports both voltage (0-10V) and current (4-20mA) input signals, making it compatible with a wide variety of industrial sensors and devices.
Wide Operating Temperature Range: Operating in temperatures ranging from -25°C to 70°C, the module is engineered to perform reliably in harsh environments and demanding industrial conditions.
Energy-Efficient: With a low power consumption of 0.3A at 24V DC, the 140AII33000C helps minimize energy costs while ensuring high performance and reliability.

Technical FAQs

What types of input signals can the 140AII33000C accept?
- The module supports both voltage (0-10V) and current (4-20mA) input signals, allowing it to interface with a wide range of industrial sensors.
How many input channels does the 140AII33000C have?
- The module provides 16 input channels, enabling simultaneous measurement of multiple signals.
What is the resolution of the analog input signals?
- The module offers 16-bit resolution, ensuring highly accurate data acquisition for precise monitoring and control.
What is the power consumption of the 140AII33000C?
- The module operates at 24V DC and requires 0.3A of current, making it energy-efficient for large-scale industrial systems.
Can the 140AII33000C be used with other Schneider PLCs?
- Yes, it is fully compatible with Schneider Electric’s Modicon M340 and Modicon M580 PLC systems.
What is the temperature range of the 140AII33000C?
- The module operates within a wide temperature range of -25°C to 70°C, making it suitable for use in various industrial environments.
Can the 140AII33000C be used in hazardous environments?
- The module is designed for standard industrial environments. Please verify local safety standards for use in hazardous locations.
How is the 140AII33000C installed and configured?
- The module is designed for quick and easy integration with Schneider Electric’s Modicon PLC systems. Installation requires minimal configuration.
Can I expand my system with additional I/O modules using the 140AII33000C?
- Yes, this module is part of Schneider Electric’s modular I/O system, allowing you to expand your system by adding additional input/output modules as needed.
What warranty does Schneider Electric offer for the 140AII33000C?
- Schneider Electric offers a standard 1-year warranty for the 140AII33000C module.
