Brand:Schneider PLC Item No.:MVS08N Product Origin:France Product Dimensions:352 x 422 x 297 mm Product Weight:40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

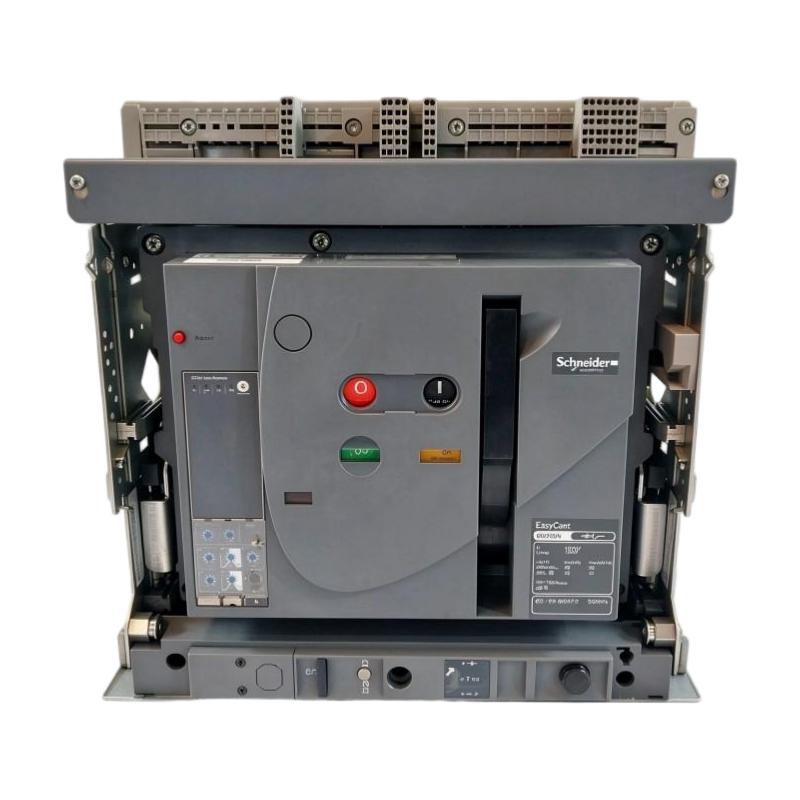

The Schneider MVS08N Circuit Breaker is designed for low-voltage power distribution and electrical protection in industrial and commercial facilities. As part of the EasyPact MVS range, it is available in different configurations to suit distribution requirements, switchboard designs, and protection strategies.
For maintenance teams, choosing the correct breaker configuration is essential to preserving electrical safety and system reliability. Differences in pole count, trip unit, operating mechanism, mounting arrangement, and fault-interruption rating can affect whether a replacement is suitable for an existing installation.
When sourcing an MVS08N breaker, verify the complete product code and electrical specifications rather than relying on the family designation alone. This helps ensure that the selected unit matches the original equipment and the requirements of the electrical system.
We support industrial automation and electrical spare-parts sourcing for maintenance teams, panel builders, and industrial facilities. Contact us with your full model number and application details to discuss availability and replacement requirements.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
MVS08N
Product Series
EasyPact MVS
Product Type
Air Circuit Breaker
Application
Low-voltage power distribution
Dimensions
352 × 422 × 297 mm
Weight
40 kg / 88.18 lb
Rated Current
800 A for specified MVS08N configurations
Rated Operational Voltage
Up to 690 V AC for specified configurations
Network Frequency
50/60 Hz
Pole Configuration
3-pole or 4-pole, depending on model
Mounting Type
Fixed or drawout, depending on model
Trip Unit
Varies by configuration
System Compatibility
Verify the complete model code and installation requirements
Note: The dimensions and weight are based on the supplied information. Electrical ratings vary by complete model designation. Confirm the nameplate and manufacturer specifications before ordering or installation.
Recommended Related Models
The following Schneider Electric models belong to the EasyPact MVS08N family. The correct choice depends on the required pole count, operating mechanism, mounting arrangement, and trip unit.
Model
Product Description
Schneider MVS08N3NF2L
800 A, 3-pole, fixed, manually operated circuit breaker
Schneider MVS08N3NF6L
800 A, 3-pole, fixed, electrically operated circuit breaker
Schneider MVS08N3MW2L
800 A, 3-pole, drawout, manually operated circuit breaker
Schneider MVS08N4MW6A
800 A, 4-pole, drawout, electrically operated circuit breaker
These are distinct configurations, not interchangeable substitutes. Verify the complete code and electrical requirements before selecting a replacement.
Popular Related Models
Other EasyPact MVS models offer different rated-current options for low-voltage distribution applications.
Model
Product Category
Schneider MVS10N
1000 A-class circuit breaker family
Schneider MVS12N
1250 A-class circuit breaker family
Schneider MVS16N
1600 A-class circuit breaker family
Schneider MVS20N
2000 A-class circuit breaker family
Schneider MVS25N
2500 A-class circuit breaker family
These models have different current ratings and may require different electrical and mechanical arrangements. Confirm the required specifications and compatibility before selecting an alternative.
Applications
The Schneider MVS08N Circuit Breaker is part of the EasyPact MVS low-voltage air circuit breaker range, designed for power distribution and electrical protection in industrial and commercial installations. It helps protect electrical systems against overloads and short circuits while providing a means of switching and isolating circuits for maintenance.
With a frame rating associated with 800 A configurations, the MVS08N family is suitable for applications requiring high-capacity power distribution. The exact electrical characteristics depend on the complete breaker model, trip unit, pole configuration, and fixed or drawout mounting arrangement.
Typical application areas include:
Industrial power distribution panels
Main low-voltage switchboards
Factory electrical distribution systems
Commercial building power infrastructure
Electrical protection and maintenance projects
The complete model designation should be checked before selection, as MVS08N is a product family rather than a unique configuration.
Advantages
High-current power distribution: MVS08N configurations are available with an 800 A rated current, making the range suitable for specified high-current distribution applications.
Electronic protection options: Depending on the selected trip unit, the breaker can provide electronic protection functions for detecting overloads and short circuits.
Flexible installation configurations: The product family includes fixed and drawout variants, allowing selection according to switchboard design and maintenance requirements.
Industrial switching capability: Designed for low-voltage distribution systems, the breaker supports switching and circuit isolation when installed and operated according to applicable requirements.
Designed for demanding installations: The EasyPact MVS range offers different configurations to accommodate varying electrical distribution and protection requirements.
For safe and reliable operation, select the breaker according to the installation's rated current, prospective fault current, voltage, protection coordination, and applicable electrical standards.
Technical FAQs
Q1: What is the Schneider MVS08N circuit breaker used for?
It is a low-voltage air circuit breaker from Schneider Electric's EasyPact MVS range, used for electrical distribution and circuit protection.
Q2: What is the rated current of the MVS08N range?
The MVS08N range includes 800 A configurations. Verify the complete model number and nameplate to confirm the rating of the specific unit.
Q3: What type of electrical faults can the breaker protect against?
Depending on the installed trip unit and configuration, the breaker can provide protection against overloads and short circuits. Additional protection functions depend on the selected model.
Q4: What is the difference between fixed and drawout versions?
A fixed breaker is installed in a fixed mounting arrangement. A drawout breaker can be moved between defined positions within a compatible chassis, facilitating isolation and maintenance procedures.
Q5: What voltage can the MVS08N support?
Published MVS08N configurations specify an operational voltage of up to 690 V AC at 50/60 Hz. The permitted voltage depends on the exact model and application.
Q6: What does the breaking capacity rating mean?
Breaking capacity indicates the fault current a circuit breaker is designed to interrupt under specified test conditions. It must be selected according to the prospective short-circuit current at the installation point.
Q7: Can the MVS08N be used in a three-phase system?
Yes. Three-pole configurations are available for suitable three-phase applications. Four-pole versions are also available within the product family.
Q8: Are all MVS08N breakers electrically operated?
No. Depending on the full model code, configurations may use manual or electrical operating mechanisms. Confirm the operating method before ordering a replacement.
Q9: What information is needed to replace an existing MVS08N?
Check the complete model code, rated current, pole count, trip unit, breaking capacity, mounting type, operating mechanism, and connection arrangement.
Q10: What safety precautions are required during installation?
Installation and maintenance must be performed by qualified personnel following applicable electrical safety procedures. Isolate the equipment, verify the absence of voltage, and follow the manufacturer's instructions before working on the breaker.
