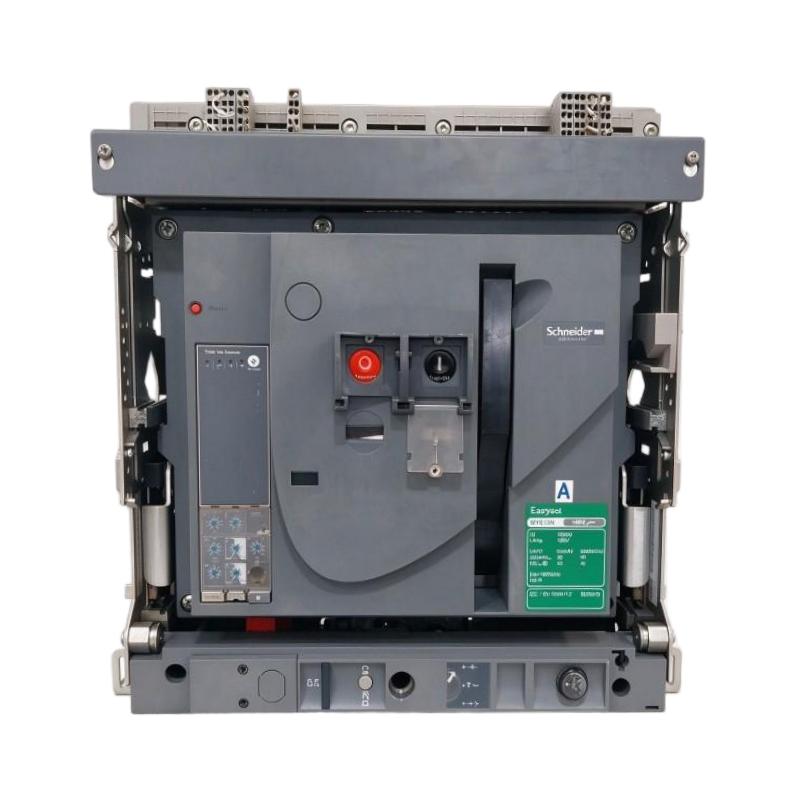

Schneider MVS12N Breaker

Applications

The Schneider MVS12N Breaker is intended for use in industrial power distribution systems where dependable circuit protection and controlled power isolation are essential. Circuit breakers in this class are commonly used in electrical distribution assemblies serving factories, commercial facilities, infrastructure projects, and large equipment installations.

Typical application areas include:

• Industrial Power Distribution: Supports protection requirements in main and secondary distribution systems.

• Electrical Switchboards: Can be considered for integration into suitable switchboard and distribution panel designs.

• Commercial Buildings: Supports power distribution arrangements in facilities with substantial electrical loads.

• Industrial Equipment: Helps protect downstream circuits against abnormal current conditions when correctly selected for the application.

• Maintenance and Equipment Upgrades: May be considered as part of a replacement or refurbishment project after confirming the required electrical ratings and mounting configuration.

Before installation, verify the exact MVS12N variant, rated current, breaking capacity, trip unit, and connection arrangement against the existing system requirements.

Advantages

The Schneider MVS12N Breaker is a candidate for installations that require a robust circuit protection component within a structured low-voltage distribution system. Correct selection and installation help maintain safe and manageable power distribution.

• Circuit Protection: Designed for use in an electrical protection arrangement that must respond to specified overcurrent conditions.

• Distribution System Integration: Suitable for consideration in switchboards and power distribution assemblies that match its electrical and mechanical requirements.

• Maintenance Accessibility: A properly designed installation can provide a practical means of isolating circuits for inspection and servicing.

• Industrial Application Potential: Can be evaluated for demanding electrical distribution environments where equipment reliability is important.

• Replacement Planning: Model and configuration verification helps reduce the risk of selecting an unsuitable breaker during maintenance or system upgrades.

• Equipment Support: Provides an option for procurement teams sourcing Schneider circuit protection equipment for industrial projects.

The breaker’s actual protection performance depends on its configuration, electrical ratings, installation conditions, and coordination with upstream and downstream protective devices.

Technical FAQs

Q1: What is the Schneider MVS12N Breaker used for?

It is identified as a circuit breaker for electrical distribution applications. Its suitability for a particular installation depends on the system voltage, current requirements, fault level, and protection scheme.

Q2: What electrical ratings should be checked before purchasing?

Confirm the rated operational voltage, rated current, short-circuit breaking capacity, number of poles, and applicable operating frequency. These values must match the intended distribution system.

Q3: How do I verify the correct trip unit?

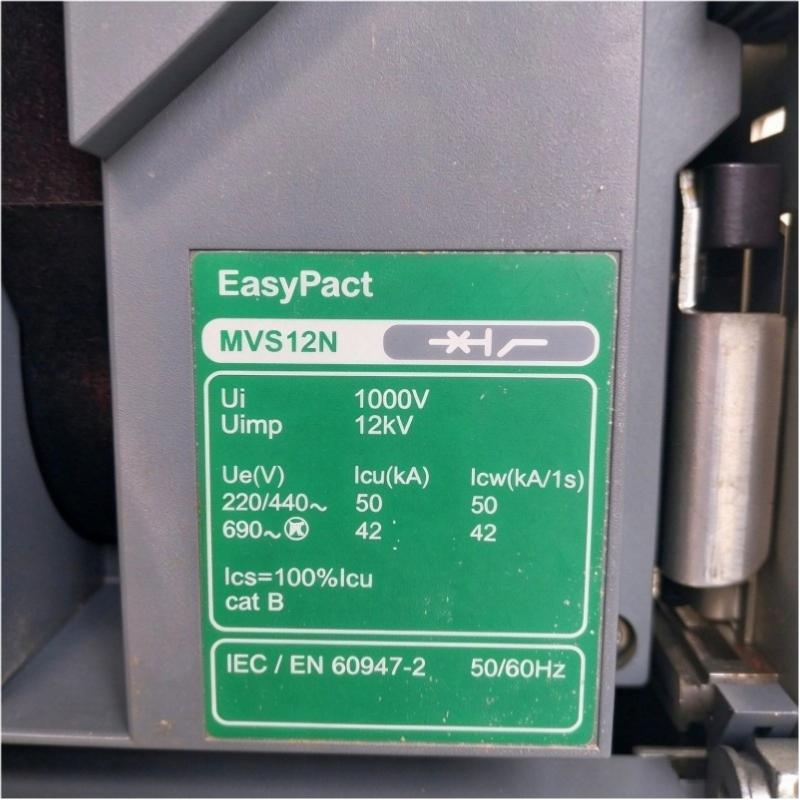

Check the breaker nameplate and the product configuration records for the specified trip unit and protection functions. Do not assume that different MVS12N configurations have identical protection settings or capabilities.

Q4: Can the MVS12N replace another Schneider breaker?

Not based on model name alone. Compare electrical ratings, frame and mounting dimensions, terminal arrangements, accessories, trip unit, and applicable product documentation before approving a replacement.

Q5: What is the difference between rated current and breaking capacity?

Rated current indicates the current the breaker is designed to carry under specified conditions. Breaking capacity indicates its ability to interrupt a fault current under defined test conditions. Both ratings are important for correct selection.

Q6: Does this breaker provide overload and short-circuit protection?

The available protection functions depend on the specific breaker configuration and trip unit. Confirm the installed protection unit and its settings before relying on particular functions.

Q7: How should the breaker be coordinated with other protective devices?

Coordination requires reviewing time-current characteristics, fault-current levels, upstream protection, downstream equipment requirements, and the manufacturer's coordination data. Qualified electrical engineers should assess the complete protection scheme.

Q8: What should be inspected during maintenance?

Inspection may include checking the enclosure, terminals, connections, operating mechanism, auxiliary components, and signs of overheating or physical damage. Follow the applicable maintenance instructions and site safety procedures.

Q9: Can auxiliary contacts or other accessories be installed?

Accessory availability depends on the exact breaker version. Confirm the supported accessory list and installation requirements before ordering or fitting additional components.

Q10: What information should be provided when requesting a replacement?

Provide the complete model designation, nameplate information, rated current, breaking capacity, trip unit details, accessory configuration, and photographs of the existing unit where appropriate. This helps establish whether the proposed replacement matches the original installation.
