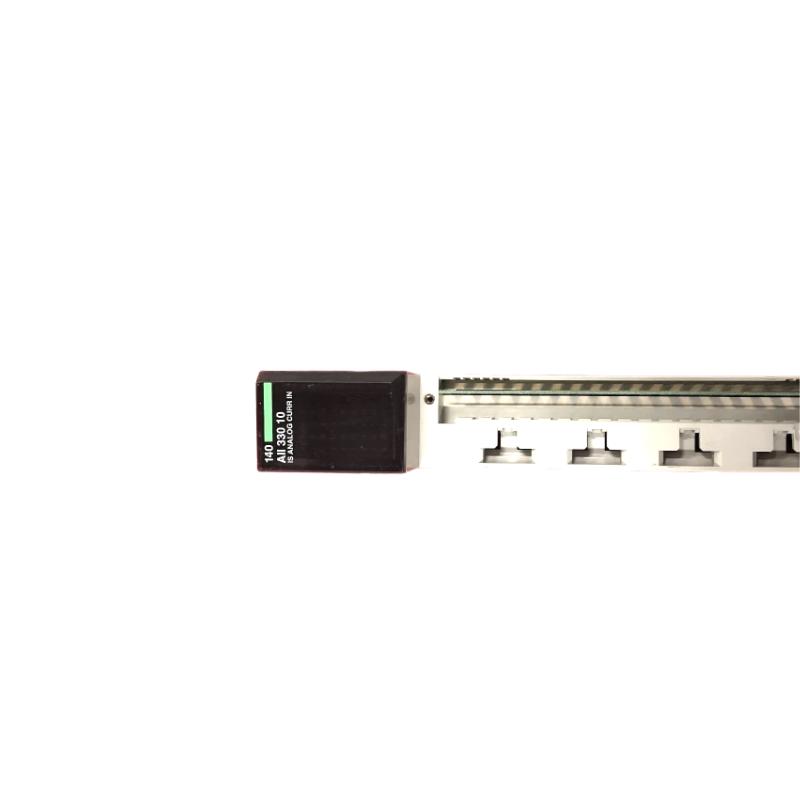

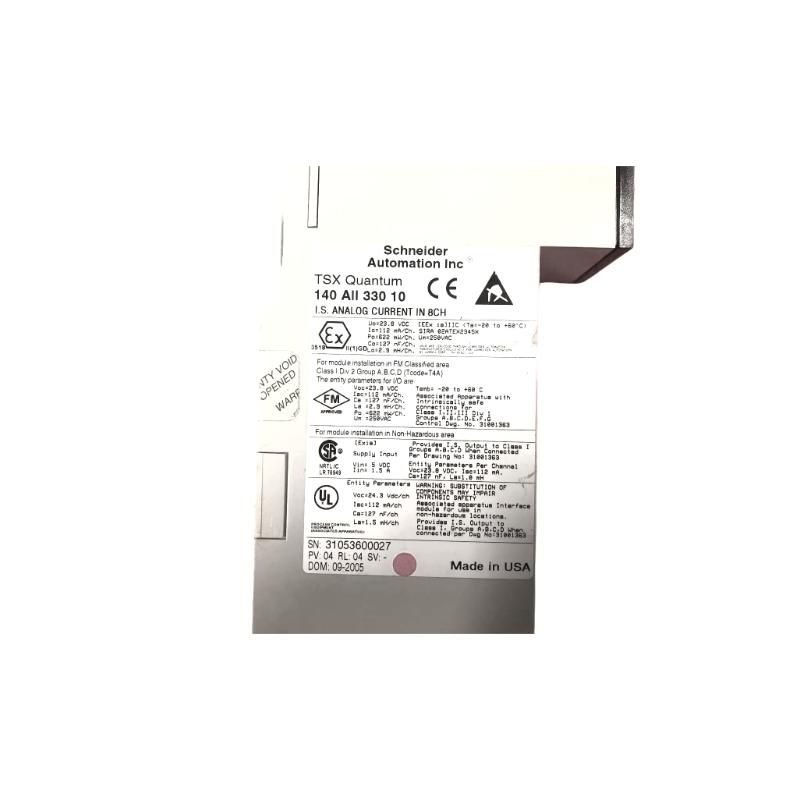

Schneider Electric 140AII33010 Analog Input Module: Precision Signal Acquisition for High-Performance Automation Systems

Applications

• Manufacturing Automation: The 140AII33010 is ideal for controlling and monitoring production parameters such as temperature, pressure, flow, and level, ensuring precise control in automated manufacturing processes.

• Energy Management: Perfect for energy monitoring and control in systems such as power plants, substations, and smart grids. The module helps monitor electrical parameters, ensuring efficient energy use and system stability.

• Process Control: Widely used in industries like chemicals, pharmaceuticals, and food & beverage, the 140AII33010 enables real-time monitoring of critical process parameters, helping to maintain consistency, safety, and compliance.

• Building Automation: The module can be used in building management systems (BMS) for controlling HVAC systems, lighting, and energy management, contributing to energy savings and occupant comfort.

Advantages

• High-Resolution Signal Acquisition: The 140AII33010 offers 16-bit resolution, ensuring high accuracy in analog signal acquisition, which is crucial for real-time monitoring and control of industrial processes.

• Multiple Input Channels: The module provides 8 input channels, allowing simultaneous acquisition of multiple signals from sensors, ideal for systems with a variety of input sources.

• Versatile Input Types: It supports both voltage (0-10V) and current (4-20mA) input signals, making it compatible with a wide range of industrial sensors and devices.

• Reliable Performance in Harsh Environments: With an operating temperature range of -25°C to 70°C, the module is designed for use in demanding industrial environments, ensuring consistent performance in challenging conditions.

• Low Power Consumption: With a power requirement of just 0.3A at 24V DC, the module ensures efficient energy consumption without compromising performance.

Technical FAQs

1. What input signal types does the 140AII33010 support?

   • The module supports both voltage (0-10V) and current (4-20mA) input signals, providing flexibility for various industrial applications.

2. How many input channels are available on the 140AII33010?

   • The module provides 8 input channels, which makes it suitable for applications that require the monitoring of multiple sensors or process parameters simultaneously.

3. What is the resolution of the analog input signals?

   • The module provides 16-bit resolution, offering high-precision data acquisition and ensuring accurate control and monitoring of industrial processes.

4. What is the power consumption of the 140AII33010?

   • The module operates at 24V DC and consumes 0.3A of current, making it energy-efficient while delivering high performance.

5. Can the 140AII33010 be used with other Schneider PLCs?

   • Yes, it is compatible with Schneider Electric’s Modicon M340 and Modicon M580 PLC systems, ensuring easy integration with existing setups.

6. What is the temperature range of the 140AII33010?

   • The module operates within a temperature range of -25°C to 70°C, making it suitable for use in a wide variety of industrial environments.

7. Can the 140AII33010 be used in hazardous environments?

   • The module is designed for use in standard industrial environments. For use in hazardous locations, please verify with local safety standards.

8. How is the 140AII33010 installed and configured?

   • The module is designed for simple installation and integration with Schneider Electric’s Modicon PLC systems, requiring minimal configuration for deployment.

9. Can I expand my system with additional I/O modules using the 140AII33010?

   • Yes, the 140AII33010 is part of Schneider Electric’s modular I/O system and can be expanded with other input/output modules to meet system requirements.

10. What warranty is offered for the 140AII33010?

    • Schneider Electric provides a standard 1-year warranty for the 140AII33010 module, ensuring reliable support and customer satisfaction.
