Brand:Schneider PLC Item No.:MT08H2 Product Origin:France Product Dimensions:352 x 422 x 297 mm Product Weight:50 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

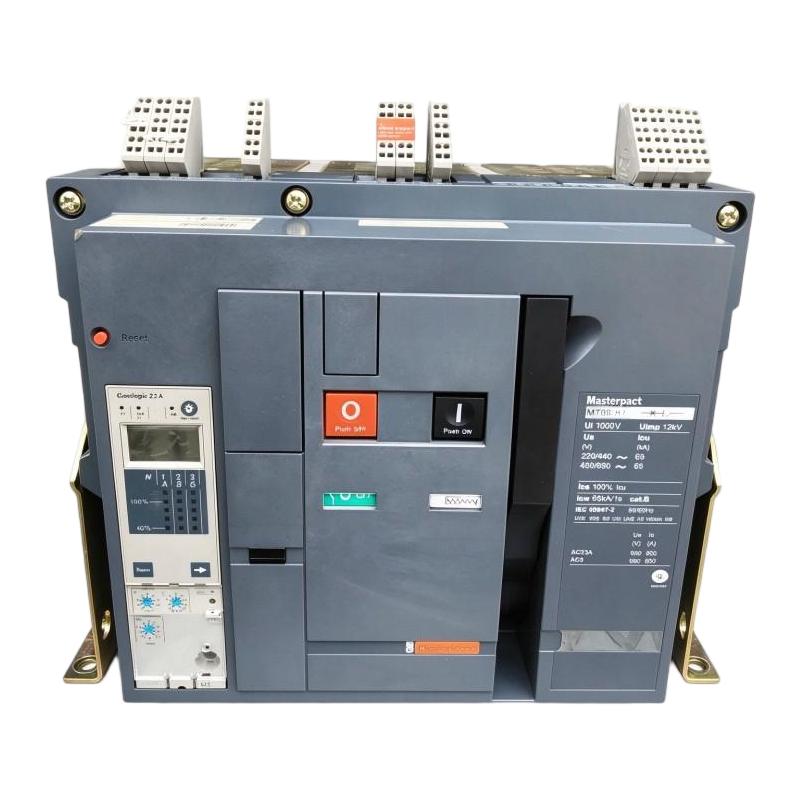

The Schneider MT08H2 Breaker is a model-specific circuit protection component to evaluate when sourcing equipment for electrical distribution systems. Correct selection requires more than matching the model name; the breaker must also meet the installation's electrical requirements and fit the existing switchboard or distribution assembly.
For industrial maintenance teams, electrical contractors, and procurement specialists, confirming the complete model designation helps reduce sourcing errors. Rated current, breaking capacity, trip unit configuration, and connection requirements are particularly important when planning replacements or upgrading existing equipment.
When purchasing the Schneider MT08H2 Breaker, verify the product nameplate and relevant technical specifications before placing an order. This supports more accurate procurement, effective maintenance planning, and appropriate integration into the intended electrical system.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
MT08H2
Product Type
Circuit Breaker
Product Category
Electrical Power Distribution and Protection
Dimensions
352 × 422 × 297 mm
Shipping Weight
50 kg / 110.23 lb
Application
Electrical distribution and circuit protection
Rated Voltage
Verify against the product nameplate
Rated Current
Verify against the product nameplate
Breaking Capacity
Verify against the product documentation
Pole Configuration
Confirm the exact version
Trip Unit
Confirm the installed configuration
Accessories
Subject to model compatibility
Installation
According to verified product specifications and system requirements
Recommended Related Models
The following Schneider Electric circuit breaker models may be useful for comparison when reviewing equipment requirements. They are not confirmed direct replacements for the MT08H2.
Schneider MT08H1 Breaker — A model designation to compare if evaluating variants within the MT08 series.
Schneider MT10H2 Breaker — A related model designation to investigate when comparing breaker requirements.
Schneider MT12H2 Breaker — Another model designation for technical and procurement comparison.
Schneider MVS08N Breaker — A separate model to evaluate against the application's electrical protection requirements.
Confirm that each proposed model exists in the required configuration and meets the installation's electrical and mechanical requirements before ordering.
Popular Related Models
Other Schneider Electric circuit breaker product families that may be relevant to industrial electrical equipment sourcing include:
Schneider Masterpact MTZ Circuit Breakers
Schneider Masterpact NW Circuit Breakers
Schneider Masterpact NT Circuit Breakers
Schneider Compact NSX Circuit Breakers
These product families have different ratings, designs, and application ranges. They should not be treated as interchangeable with the MT08H2 without a detailed technical compatibility check.
Applications
The Schneider MT08H2 Breaker is a circuit breaker model intended for evaluation in electrical power distribution and protection applications. In industrial installations, selecting the correct breaker is essential for managing electrical faults, protecting connected equipment, and maintaining reliable power distribution.
Potential application areas include:
Industrial Power Distribution: Supports circuit protection in systems where the breaker ratings match the electrical design.
Switchboards and Distribution Panels: May be considered for compatible assemblies after verifying installation and connection requirements.
Manufacturing Facilities: Can be evaluated for power distribution systems supplying industrial machinery and auxiliary equipment.
Commercial Infrastructure: May be suitable for consideration in larger electrical distribution projects, subject to verified specifications.
Maintenance and Replacement: Provides a model designation for equipment identification, spare-parts sourcing, and planned maintenance.
Before selecting the MT08H2, confirm the complete model designation, rated current, operating voltage, short-circuit breaking capacity, trip unit, and installation configuration.
Advantages
The Schneider MT08H2 Breaker can be evaluated for applications requiring a properly specified circuit protection device. Correct selection helps support electrical system compatibility and effective coordination with other protective equipment.
Circuit Protection: Supports protection against specified fault conditions when selected and configured for the application.
Distribution Integration: Can be assessed for use in compatible switchboards and power distribution assemblies.
Equipment Identification: The model designation assists procurement teams with product identification and ordering.
Maintenance Planning: Supports replacement planning and spare-parts management for industrial electrical systems.
Configuration Assessment: Reviewing ratings, trip units, and accessories helps reduce the risk of ordering an unsuitable unit.
System Coordination: Allows engineers to evaluate the breaker as part of the complete electrical protection arrangement.
Actual performance depends on the verified product specifications, installation conditions, and coordination with upstream and downstream protective devices.
Technical FAQs
Q1: What is the Schneider MT08H2 Breaker used for?
It is identified as a circuit breaker for electrical protection applications. Its suitability depends on the verified electrical ratings, configuration, and requirements of the installation.
Q2: Which electrical ratings should be checked before purchase?
Confirm the rated operational voltage, rated current, short-circuit breaking capacity, pole configuration, and operating frequency against the system design.
Q3: Can the MT08H2 replace another Schneider breaker?
Not automatically. Verify the electrical ratings, mounting arrangement, terminal connections, trip unit, and accessory configuration before considering a replacement.
Q4: Why is short-circuit breaking capacity important?
It indicates the fault current that a breaker can interrupt under specified conditions. The selected rating must be suitable for the prospective fault current at the installation point.
Q5: What does the trip unit do?
The trip unit monitors specified electrical conditions and initiates breaker opening when its protection criteria are met. Available protection functions depend on the installed configuration.
Q6: How can I confirm whether the breaker supports specific accessories?
Check the exact model and version against the applicable accessory documentation. Do not assume that accessories used with other Schneider breaker models are compatible.
Q7: How should the MT08H2 be coordinated with upstream protection?
Coordination requires reviewing protection characteristics, fault-current levels, time-current curves, and downstream equipment requirements. Qualified electrical personnel should assess the complete system.
Q8: What installation factors should be considered?
Verify the mounting method, busbar or cable connections, required clearances, conductor specifications, and applicable electrical standards before installation.
Q9: What maintenance checks can help maintain reliable operation?
Follow the relevant maintenance instructions. Depending on the breaker design, inspections may include the operating mechanism, electrical connections, insulation, and signs of overheating or physical damage.
Q10: What information should be provided when ordering a replacement?
Provide the complete model designation, nameplate ratings, trip unit details, accessory configuration, connection arrangement, and photographs of the existing unit where available.
