Introduction

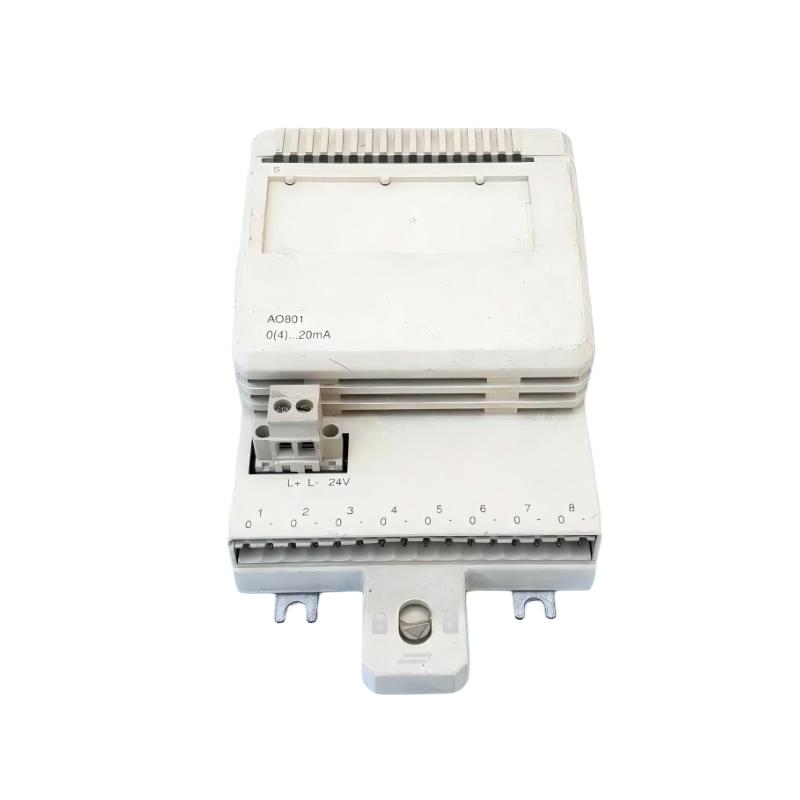

The ABB AO801 3BSE020514R1 Analog Output Module is crafted for precision-driven automation environments that cannot tolerate downtime or output instability. Designed for smooth integration within ABB’s control ecosystem, it delivers the accuracy, durability, and consistency demanded by modern process industries. Whether operating complex control loops or managing critical field devices, the AO801 ensures that your system responds exactly as intended—every time.

Technical Specifications

Parameter	Specification
Model	ABB AO801 3BSE020514R1
Output Channels	8 Analog Outputs
Output Signal	4–20 mA
Resolution	High-resolution DAC
Accuracy	±0.1% of span
Redundancy Support	Yes (DCS compatible)
Diagnostic Features	Loop fault detection, module health monitoring
Operating Temperature	-20°C to 70°C
Dimensions	86.1 x 58.5 x 110 mm
Weight	0.24 kg
Power Consumption	5 W typical

Recommended Related Models

ABB AI801 Analog Input Module
ABB DO801 Digital Output Module
ABB DI810 Digital Input Module

Popular Related Models

ABB AO845 Analog Output Module
ABB AO880 High-Performance Output Module
ABB SD802F Safety Output Module

Primary Applications

The ABB AO801 3BSE020514R1 Analog Output Module is engineered for demanding industrial automation environments where stable and precise analog control is essential. It is widely used across:

Continuous process control loops in oil & gas and petrochemical plants
High-reliability applications in power generation and utilities
Industrial automation requiring accurate analog signals for actuators and field instruments
Distributed Control System (DCS) platforms needing scalable and stable output performance

Key Advantages

With the AO801 module, ABB delivers a strong combination of reliability, performance, and long-term operational stability. Its benefits include:

High-accuracy analog output for precise valve and actuator control
Rugged design optimized for continuous 24/7 operation in harsh industrial environments
Comprehensive self-diagnostics that help reduce maintenance downtime
Seamless integration with ABB 800xA and Advant Control systems
Stable signal performance ensuring consistent output even under fluctuating load conditions

Technical FAQs (10)

How many analog output channels does the AO801 provide?
It offers 8 independent analog output channels.
Which output signal types are supported?
The module supports 4–20 mA analog output signals.
Can it be used in redundant system configurations?
Yes, the AO801 integrates smoothly with redundant ABB DCS architectures.
Does the module include built-in diagnostics?
Yes, it provides health monitoring, loop fault detection, and system alerts.
What is the resolution level of the analog outputs?
High-resolution D/A conversion ensures accurate, stable output values.
Is field calibration required?
Factory calibrated; field verification may be performed for critical loops.
What industrial systems is it compatible with?
Compatible with ABB 800xA, Symphony Plus, and Advant systems.
What is the module’s typical power consumption?
It consumes approximately 5 W during operation.
What is the expected lifespan of the AO801 module?
Designed for long-term reliability, typically exceeding 20 years.
Can it operate in extreme industrial temperatures?
Yes, it is designed for -20°C to 70°C operating environments.
