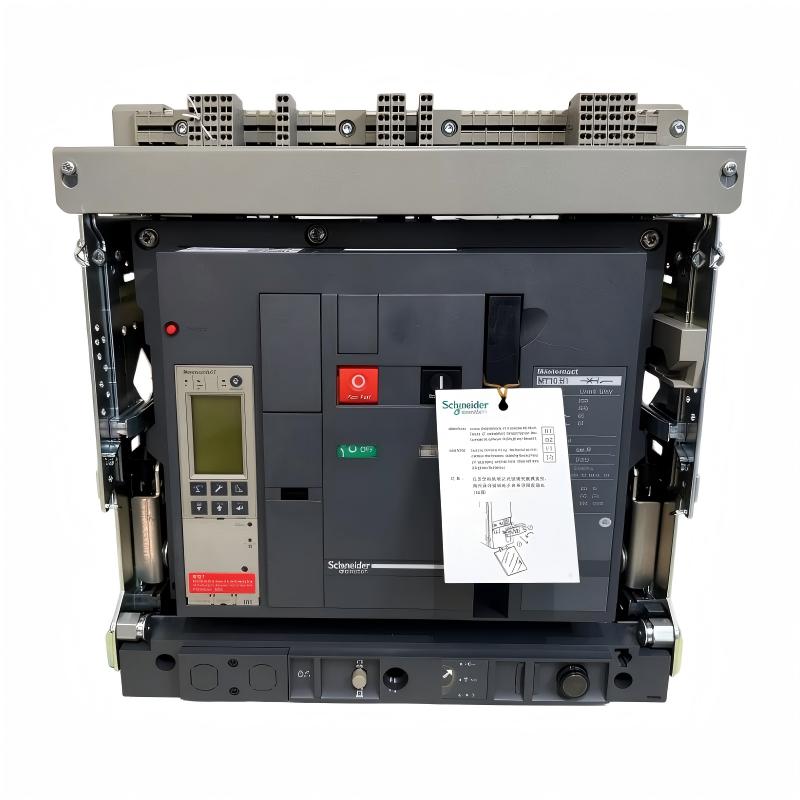

Schneider MT10H1b Breaker

Applications

The Schneider MT10H1B Breaker is designed for consideration in low-voltage electrical distribution systems where dependable circuit protection and power management are required. It can be used in industrial and commercial electrical installations when its rated parameters match the requirements of the distribution network.

Typical application areas include:

• Industrial switchboards and power distribution cabinets.

• Manufacturing plants and processing facilities.

• Commercial building electrical distribution systems.

• Infrastructure power distribution installations.

• Electrical equipment requiring coordinated circuit protection.

The final selection should be based on the system voltage, rated current, short-circuit level, pole configuration, and protection requirements.

Product Advantages

1. Reliable Electrical Protection

The MT10H1B is a circuit breaker intended to form part of an electrical protection system. Its suitability depends on the specified breaking capacity and trip characteristics.

2. Industrial Distribution Applications

The model can be evaluated for industrial power distribution assemblies and switchboard installations where appropriately rated circuit protection is required.

3. Practical Equipment Identification

Its complete model designation supports spare-parts identification, purchasing, and maintenance planning.

4. Clear Installation Dimensions

With supplied dimensions of 439 × 556 × 395 mm, the product information provides a useful reference for panel-space assessment and installation preparation.

5. Maintenance-Oriented Procurement

Accurate model identification and specification checking help maintenance teams reduce the risk of ordering an unsuitable replacement device.

Technical FAQs

Q1: What is the primary function of the Schneider MT10H1B Breaker?

Its primary role is electrical circuit protection in a distribution system. The exact protection characteristics depend on the product's rated specifications and trip-unit configuration.

Q2: Is the MT10H1B intended for industrial applications?

It can be considered for industrial electrical distribution installations when its technical ratings and mounting requirements match the application.

Q3: Which parameters are important when selecting this breaker?

The main parameters include rated current, rated operational voltage, short-circuit breaking capacity, pole configuration, and trip-unit characteristics.

Q4: How is the appropriate breaking capacity determined?

The required breaking capacity must be selected according to the prospective short-circuit current at the installation point. The product rating should meet or exceed the applicable system requirement.

Q5: Can the breaker be used for overload protection?

That depends on the installed trip unit and its protection settings. Check the product configuration and technical documentation before use.

Q6: What information is needed when ordering a replacement?

Provide the complete model designation and verify the nameplate ratings, trip-unit type, terminal arrangement, mounting configuration, and any installed accessories.

Q7: Does the breaker require periodic inspection?

Yes. Inspection should follow the manufacturer's maintenance instructions and include checking connections, insulation condition, operating mechanisms, and signs of overheating or damage.

Q8: Can the MT10H1B be installed in an existing electrical cabinet?

Only after confirming available space, mounting compatibility, electrical clearances, connection arrangements, and the cabinet's thermal conditions.

Q9: What precautions should be taken before servicing?

Disconnect and isolate the power supply, apply lockout/tagout procedures, and verify the absence of voltage. Qualified electrical personnel should perform maintenance.

Q10: Why should the model suffix be checked carefully?

Suffixes can distinguish product variants or configurations. Confirming the full designation helps ensure that the selected breaker matches the original equipment requirements.
