Brand:Schneider PLC Item No.:MT25H1b Product Origin:France Product Dimensions:439 x 556 x 395 mm Product Weight:70 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

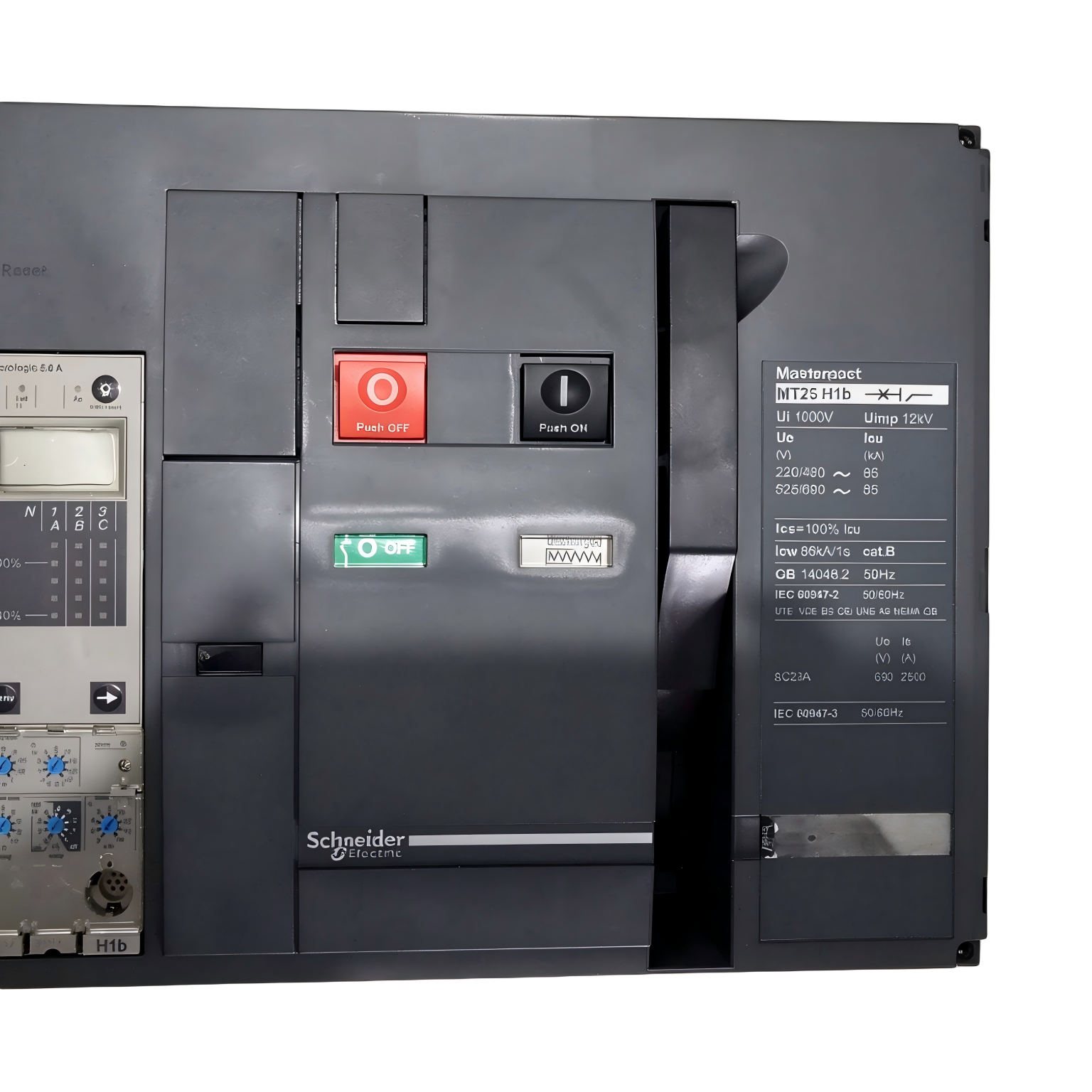

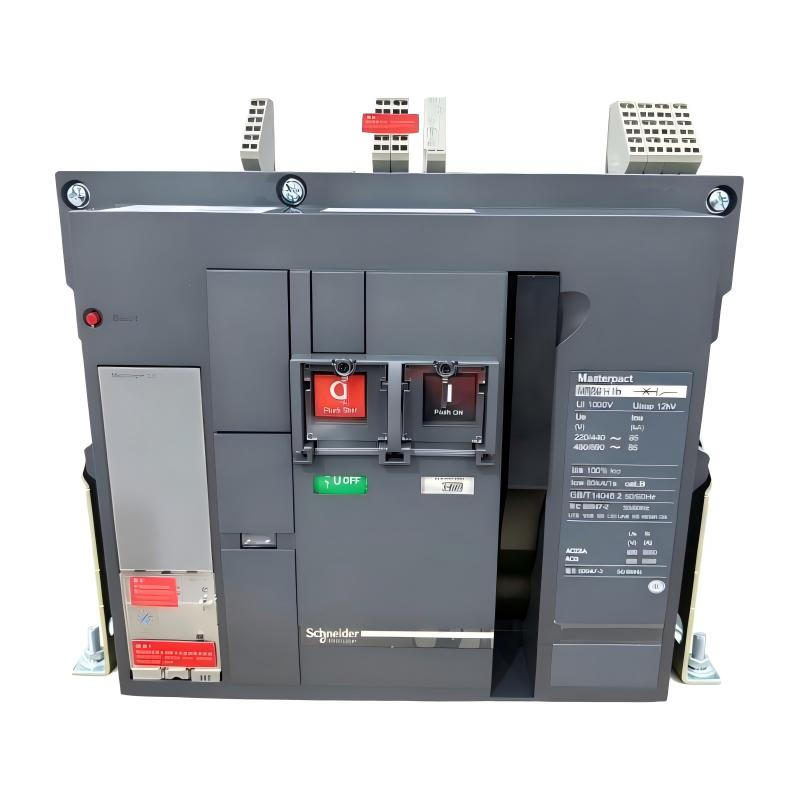

The Schneider MT25H1B Breaker is an electrical protection component intended for low-voltage power distribution applications. It is relevant to industrial facilities and commercial installations where circuit protection, electrical system reliability, and equipment maintenance are important.
For industrial buyers and maintenance engineers, selecting the correct breaker requires careful attention to the complete model reference and technical configuration. Similar model designations do not necessarily indicate identical electrical ratings or mechanical compatibility.
Before procurement, users should verify the rated current, operational voltage, short-circuit breaking capacity, pole arrangement, trip-unit characteristics, and terminal configuration. These parameters determine whether the selected breaker is appropriate for the intended electrical system.
The MT25H1B can be considered for spare-parts sourcing and replacement planning after its specifications have been checked against the original equipment documentation.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
MT25H1B
Product Type
Circuit Breaker
Product Series
MT
Dimensions
439 × 556 × 395 mm
Weight
70 kg (154.32 lb)
Application
Low-voltage electrical distribution
Rated Current
Verify on product nameplate
Rated Operational Voltage
Verify on product nameplate
Short-Circuit Breaking Capacity
Verify in manufacturer documentation
Pole Configuration
Verify on product nameplate
Trip Unit
Verify according to product configuration
Note: Dimensions and weight are based on the supplied information. Confirm the complete model reference and electrical specifications before ordering or installation.
Recommended Related Models
The following Schneider breaker models may be useful for comparison and procurement within related product families. Their interchangeability should be confirmed through technical documentation.
Schneider MT06N1 Breaker
Schneider MT08N1 Breaker
Schneider MT10N1 Breaker
Schneider MT12N1 Breaker
Schneider MT16N1 Breaker
Popular Related Models
Other Schneider breaker references that may be relevant to industrial electrical distribution projects include:
Schneider MT25H2 Breaker
Schneider MT32H2 Breaker
Schneider MT40H2 Breaker
Schneider MT50H2 Breaker
Schneider MT63H2 Breaker
When comparing these models, verify their rated current, operating voltage, breaking capacity, trip-unit configuration, mounting dimensions, and connection requirements to ensure compatibility with the intended installation.
Applications
The Schneider MT25H1B Breaker is intended for low-voltage electrical distribution systems where reliable circuit protection and controlled power distribution are required. It can be evaluated for industrial switchboards, power distribution assemblies, and commercial electrical installations according to the system's technical requirements.
Typical application scenarios include:
Industrial power distribution and switchgear cabinets.
Manufacturing and processing facilities.
Commercial building electrical systems.
Infrastructure power distribution projects.
Industrial machinery and equipment power circuits.
Electrical system maintenance and replacement applications.
Before selecting the MT25H1B, verify its rated current, operating voltage, short-circuit breaking capacity, pole configuration, and trip-unit characteristics.
Product Advantages
1. Electrical Circuit Protection
The MT25H1B is designed as a circuit breaker for electrical distribution applications. Its protection capability must be evaluated according to the actual product ratings and configuration.
2. Industrial Equipment Applications
The model can be considered for industrial electrical distribution assemblies where its electrical characteristics and installation requirements are appropriate.
3. Convenient Spare-Parts Identification
The complete model designation supports accurate identification during equipment maintenance, purchasing, and replacement planning.
4. Installation Space Planning
The supplied dimensions of 439 × 556 × 395 mm help engineers evaluate cabinet space, mounting arrangements, and required installation clearances.
5. Support for Maintenance Management
Correct model identification and technical specification matching help reduce procurement errors and improve spare-parts management.
Technical FAQs
Q1: What is the main purpose of the Schneider MT25H1B Breaker?
It is intended for circuit protection in low-voltage electrical distribution systems. Its exact operating characteristics depend on the product configuration.
Q2: Where can the MT25H1B be used?
Potential applications include industrial distribution panels, switchboards, and commercial electrical systems, provided the device meets the installation requirements.
Q3: What specifications should be checked before purchasing?
Confirm rated current, rated operational voltage, short-circuit breaking capacity, pole configuration, trip-unit type, and connection arrangement.
Q4: Why is breaking capacity important when selecting a breaker?
Breaking capacity determines the fault-current level that the device can interrupt under specified conditions. It must be suitable for the prospective short-circuit current at the installation point.
Q5: Does the MT25H1B provide overload protection?
This depends on the installed trip unit and its settings. The protection functions should be verified against the exact product documentation.
Q6: Can this breaker be used as a replacement for another MT-series model?
Not automatically. Electrical ratings, mounting dimensions, terminal arrangements, and trip-unit configurations must be compared before replacement.
Q7: What should be inspected during routine maintenance?
Inspect the enclosure, terminals, connections, operating mechanism, and visible signs of overheating or mechanical damage. Follow the manufacturer's maintenance instructions.
Q8: What should engineers check before commissioning?
Verify the mechanical installation, electrical connections, conductor compatibility, protection settings, and coordination with upstream and downstream protection devices.
Q9: How should electrical servicing be performed safely?
Isolate the power supply, implement lockout/tagout procedures, and verify the absence of voltage. Only qualified electrical personnel should perform maintenance.
Q10: What information helps confirm the correct MT25H1B replacement?
The complete model designation, product nameplate, rated parameters, trip-unit details, and connection configuration are important for accurate identification.
