Product Introduction

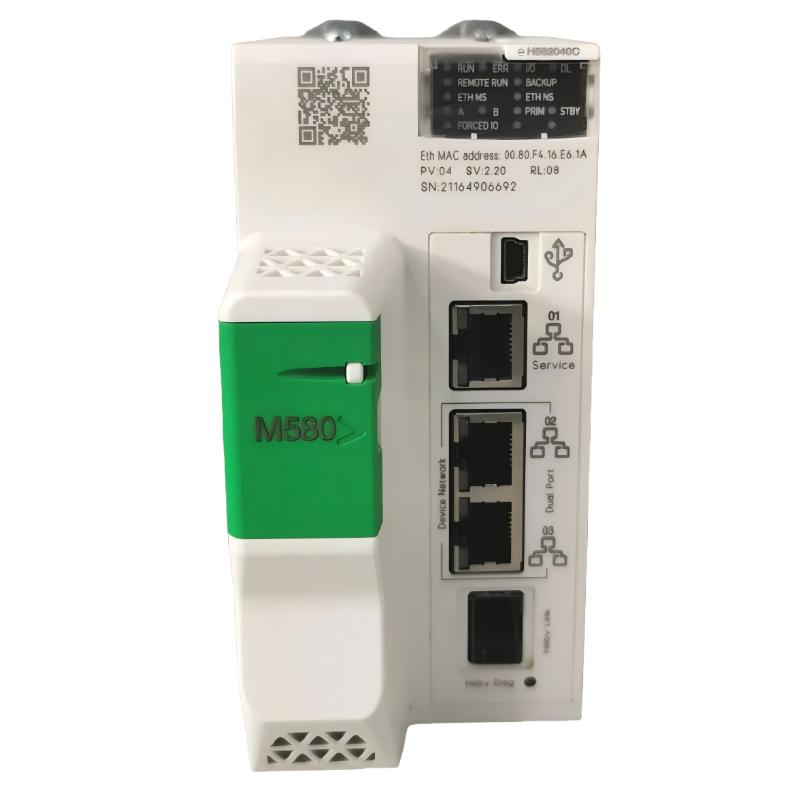

The Schneider BMEH582040C Redundant Processor Module is a high-availability controller component within the Modicon M580 platform. Designed for industrial process automation, it combines programmable control capabilities, Ethernet communication, and Hot Standby redundancy support.

One of its important characteristics is its ability to operate in a redundant processor architecture. In applications where unexpected controller interruptions can affect production or process stability, a properly configured Hot Standby system provides an additional layer of operational continuity.

The BMEH582040C features 8 MB of program memory, 768 kB of data memory, and expandable 4 GB flash storage. Its communication architecture includes Ethernet service, device-network, and HSBY connections, supporting integration with distributed automation equipment.

Another distinguishing feature is its conformal-coated electronic design, which provides additional protection for industrial operating environments. The module also supports remote I/O communication and distributed equipment management within the Modicon M580 architecture.

For industrial automation engineers, system integrators, and maintenance departments, the BMEH582040C is an important component to consider when maintaining or expanding compatible M580 redundant control systems.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	BMEH582040C
Product Type	Redundant Processor Module
Product Series	Modicon M580
Processor Architecture	Hot Standby (HSBY)
Dimensions	134.6 × 130.3 × 64.6 mm
Weight	0.849 kg (1.87 lb)
Program Memory	8 MB
Data Memory	768 kB
System Memory	10 kB
Expandable Flash Storage	4 GB
Ethernet Service Port	1
Ethernet Device Network Ports	2
Ethernet HSBY Port	1
USB Interface	Mini-B
Current Consumption	270 mA at 24 V DC
Power Supply	Internal supply via rack
Remote I/O Support	Up to 8 remote I/O stations
Distributed Equipment	Up to 64
Protective Treatment	Conformal Coating
Protection Rating	IP20
MTBF	650,000 hours

Note: Specifications are based on the BMEH582040C product documentation. Confirm hardware revision, firmware requirements, and system compatibility before installation.

Recommended Related Models

The following Schneider Electric models are relevant to Modicon M580 redundant processor systems and associated communication arrangements:

Schneider BMEH582040 Redundant Processor Module
Schneider BMEH584040 Redundant Processor Module
Schneider BMEH586040 Redundant Processor Module
Schneider BMECRA31210 Remote I/O Adapter
Schneider BMENOC0301 Ethernet Communication Module

Popular Related Models

Other Schneider Modicon M580 automation components frequently considered for industrial control-system projects include:

Schneider BMEP582040 Standard Processor Module
Schneider BMEP583040 Standard Processor Module
Schneider BMEP584040 Standard Processor Module
Schneider BMEP585040 Standard Processor Module
Schneider BMEP586040 Standard Processor Module

When selecting replacement or expansion components, verify processor compatibility, firmware versions, rack configuration, communication interfaces, and redundancy requirements to ensure reliable integration into the existing automation system.

Applications

The Schneider BMEH582040C Redundant Processor Module is part of the Modicon M580 automation platform. It is designed for high-availability industrial control systems that require continuous operation, reliable processing, and coordinated communication between redundant controllers.

With Hot Standby (HSBY) functionality, the module supports redundant processor architectures designed to maintain control-system availability if the primary processor encounters a fault.

Typical application areas include:

Continuous industrial process automation.
Oil and gas production and processing facilities.
Power generation and electrical infrastructure.
Water and wastewater treatment plants.
Chemical and pharmaceutical manufacturing.
Large-scale industrial production lines.
Distributed control and remote I/O systems.

Its conformal-coated construction makes it suitable for demanding industrial environments where additional protection against environmental contaminants is required.

Key Advantages

1. Hot Standby Redundancy

The BMEH582040C supports Modicon M580 Hot Standby architectures. A primary and standby processor work together to improve control-system availability and reduce the impact of processor failures.

2. Powerful Processing Capability

The module provides 8 MB of integrated program memory, 768 kB of data memory, and 10 kB of system memory, supporting complex industrial automation applications.

3. Multiple Ethernet Connections

Its integrated communication interfaces include Ethernet service and device-network ports, together with a dedicated Ethernet HSBY connection for redundant processor communication.

4. Conformal-Coated Protection

The conformal coating provides additional protection for electronic components against environmental influences, making the module suitable for demanding industrial installations.

5. Distributed I/O Support

The Modicon M580 platform supports remote I/O and distributed equipment communication, allowing automation systems to connect equipment across larger industrial facilities.

6. Industrial Reliability

With a specified MTBF of 650,000 hours, the module is designed for demanding automation applications where system availability is an important consideration.

Technical FAQs

Q1: What is the Schneider BMEH582040C used for?

It is a redundant processor module used in Schneider Electric Modicon M580 automation systems. It performs PLC processing and supports Hot Standby redundancy architectures.

Q2: What does Hot Standby (HSBY) mean?

Hot Standby is a redundancy arrangement in which two processors operate in coordinated roles. If the primary processor encounters a failure, the standby processor can take over according to the configured system architecture.

Q3: How much program memory does the BMEH582040C provide?

It provides 8 MB of integrated RAM for program storage, 768 kB for data, and 10 kB for system memory. It also supports expandable flash storage for data.

Q4: What communication interfaces are integrated into this module?

The module provides one Ethernet TCP/IP service port, two Ethernet TCP/IP device-network ports, one Ethernet HSBY port, and one Mini-B USB connection.

Q5: Does the BMEH582040C support remote I/O?

Yes. It supports Modicon X80 remote I/O architectures, with up to eight remote I/O stations under the specified system configuration.

Q6: What is the purpose of the conformal coating?

The conformal coating protects the electronic circuitry against environmental contaminants and helps improve resistance in demanding industrial environments.

Q7: What is the operating power requirement?

The specified current consumption is 270 mA at 24 V DC. The module receives its power internally through the rack.

Q8: Can the BMEH582040C communicate with other Ethernet devices?

Yes. Its Ethernet interfaces support communication within the Modicon M580 automation architecture, including device-network and service functions.

Q9: What should be checked when replacing an existing processor?

Verify the complete model number, firmware compatibility, application configuration, rack arrangement, communication settings, and Hot Standby system requirements before replacement.

Q10: What do the RUN, ERR, PRIM, and STBY indicators mean?

These indicators help identify processor operating conditions. RUN indicates processor operation, ERR indicates a processor or system fault, while PRIM and STBY identify the processor's current role in the redundancy arrangement.
