Brand:Schneider PLC Item No.:TM3RDM32R Product Origin:France Product Dimensions:90 x 84.6 x 51 mm Product Weight:0.208 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

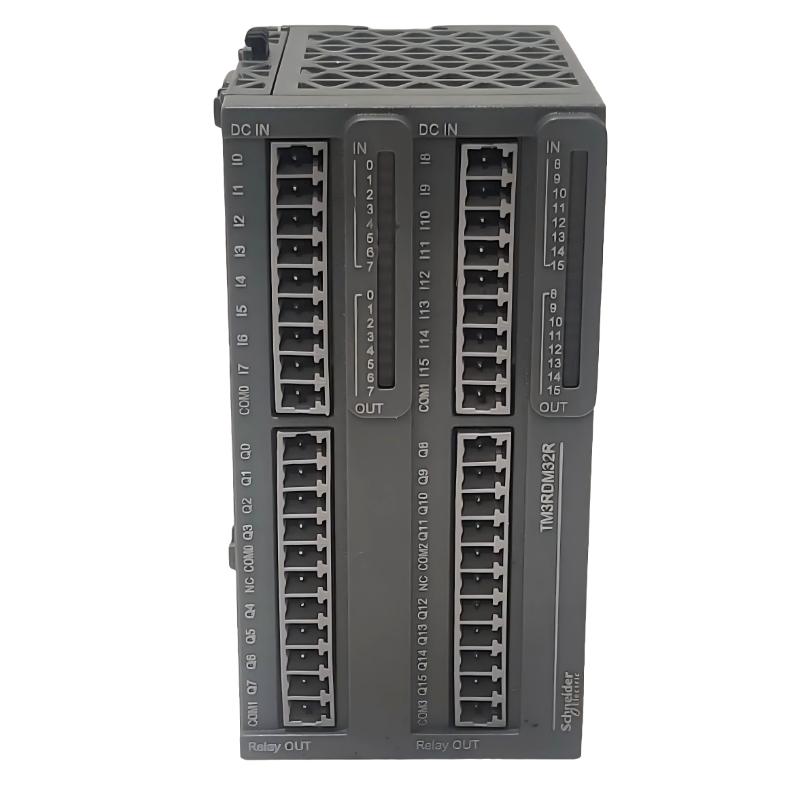

The Schneider TM3RDM32R Discrete I/O Module is an expansion component within the Modicon TM3 automation platform. It is designed to increase the discrete signal-handling capacity of compatible Schneider programmable logic controllers.
In industrial automation systems, discrete I/O modules connect controller logic with field devices. Input channels receive operating information from sensors, switches, and other equipment, while output channels allow the PLC to control external electrical devices.
The TM3RDM32R combines input and output functionality in one compact module, making it useful for machine automation and control applications requiring additional signal points. Its relay output arrangement provides switching flexibility for suitable external loads.
For system integrators, automation engineers, and maintenance departments, this module offers an option for expanding an existing PLC installation. Before procurement, verify the controller model, I/O allocation, output ratings, and wiring configuration to ensure proper integration.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
TM3RDM32R
Product Type
Discrete I/O Module
Product Series
Modicon TM3
Dimensions
90 × 84.6 × 51 mm
Weight
0.208 kg (0.46 lb)
I/O Configuration
32 discrete I/O points
Output Type
Relay
Application
PLC input and output expansion
Compatible PLC Families
Modicon M221 / M241 / M251
Input Characteristics
Verify in manufacturer documentation
Output Voltage
Verify in manufacturer documentation
Output Current
Verify in manufacturer documentation
Connection Type
Verify against product terminal diagram
Note: Dimensions and weight are based on the supplied product information. Confirm the exact I/O allocation, electrical ratings, and controller compatibility before installation.
Recommended Related Models
The following Schneider automation products may be useful when expanding or maintaining Modicon TM3-based control systems:
Schneider TM3DI16 Digital Input Module
Schneider TM3DI32K Digital Input Module
Schneider TM3DQ16T Digital Output Module
Schneider TM3DQ16R Digital Output Module
Schneider TM3DM8R Discrete I/O Module
Popular Related Models
Other Schneider Modicon PLC and expansion products frequently considered for industrial automation projects include:
Schneider TM221CE16R PLC Controller
Schneider TM221CE24R PLC Controller
Schneider TM221CE40R PLC Controller
Schneider TM241CE24T PLC Controller
Schneider TM251MESE PLC Controller
When selecting related products, check PLC compatibility, available expansion capacity, I/O allocation, output technology, electrical ratings, and programming requirements to ensure reliable integration into the automation system.
Applications
The Schneider TM3RDM32R Discrete I/O Module is designed to expand the input and output capabilities of compatible Modicon M221, M241, and M251 PLC systems. It provides an interface for receiving discrete signals from field devices and controlling external equipment in automated applications.
This module is suitable for automation projects requiring additional I/O points, flexible machine control, and organized signal management.
Typical application areas include:
Industrial machine automation and control.
Packaging and material handling systems.
Automated production and assembly lines.
Conveyor and sorting equipment.
Building automation and equipment control.
Small and medium-sized industrial control panels.
PLC-based manufacturing systems.
Before installation, verify the controller compatibility, I/O configuration, electrical ratings, and terminal wiring requirements.
Product Advantages
1. Expanded I/O Capacity
The TM3RDM32R provides additional discrete input and output resources, allowing compatible PLC systems to manage more field signals and control devices.
2. Flexible Signal Management
Its combined input/output functionality supports applications that require both signal acquisition and output control within the same expansion module.
3. Relay Output Switching
Relay outputs provide switching flexibility for compatible electrical loads. Load voltage, current, and switching frequency must remain within the manufacturer's specified limits.
4. Compact Installation Design
With dimensions of 90 × 84.6 × 51 mm, the module offers a compact form factor for installation in industrial control cabinets.
5. Modicon TM3 System Integration
The module belongs to the Schneider Modicon TM3 expansion family and is designed for use with supported Modicon M221, M241, and M251 controllers.
6. Simplified System Expansion
Using an expansion module allows users to increase PLC I/O capacity without replacing the main controller, provided the system configuration supports the additional module.
Technical FAQs
Q1: What is the Schneider TM3RDM32R used for?
It is a discrete I/O expansion module used to increase the input and output capacity of compatible Schneider PLC systems.
Q2: How many I/O points does the TM3RDM32R provide?
The module provides 32 discrete I/O points. The exact input/output allocation and terminal arrangement should be confirmed against the product wiring diagram.
Q3: Which PLC controllers are compatible with this module?
It is designed for supported Schneider Modicon M221, M241, and M251 controller configurations. Check the controller hardware and firmware documentation before installation.
Q4: What is the function of relay outputs?
Relay outputs use electrically operated contacts to switch compatible external circuits. They provide flexibility for controlling different types of loads within their specified electrical limits.
Q5: Can the module connect directly to industrial sensors?
Suitable discrete sensors can be connected to the input channels when their signal voltage, wiring arrangement, and electrical characteristics match the module specifications.
Q6: Can the relay outputs control motors?
The outputs should generally control suitable contactors or motor starters rather than supply motor power directly. Verify the load ratings and use appropriate external switching equipment.
Q7: Does the module require software configuration?
Yes. The expansion module should be recognized and configured in the compatible PLC programming environment, with the I/O addresses assigned correctly.
Q8: What could cause an input channel to show an incorrect status?
Possible causes include incorrect wiring, missing field power, incompatible sensor signals, loose terminals, or a damaged input channel.
Q9: How can relay output problems be diagnosed?
Check the PLC logic, output status, external supply, terminal wiring, connected load, and relay contact condition. Always follow electrical safety procedures during testing.
Q10: What should be checked when replacing an existing TM3RDM32R?
Confirm the complete model number, controller compatibility, I/O allocation, electrical ratings, terminal arrangement, and physical installation requirements.
