Brand:Schneider PLC Item No.:TCSESM043F2CU0 Product Origin:France Product Dimensions:131 x 111 x 47 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

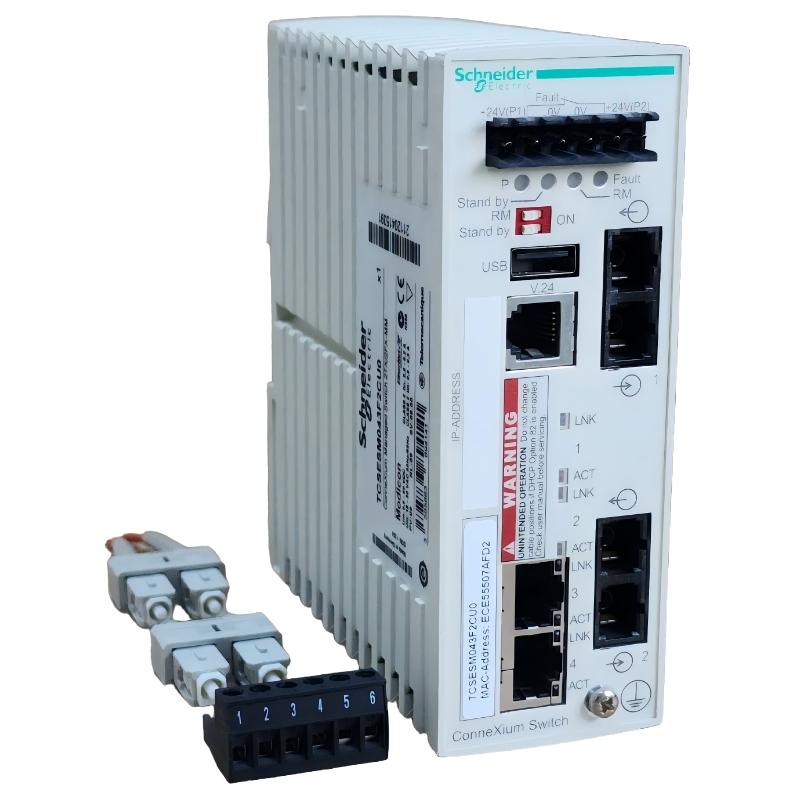

The Schneider TCSESM043F2CU0 belongs to the ConneXium industrial networking product family. It is intended for applications that require managed Ethernet connectivity between automation equipment and control-system components.
In industrial environments, network infrastructure plays an important role in maintaining communication between PLCs, remote I/O stations, engineering workstations, HMIs, and supervisory systems. A managed switch can help provide a more organized network structure and support maintenance activities through its management capabilities.
When selecting this model for a new installation or as a replacement part, engineers should confirm the exact interface configuration, supported network functions, power requirements, and installation conditions against the product label and applicable technical documentation.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
TCSESM043F2CU0
Product Family
ConneXium
Product Type
Managed Industrial Ethernet Switch
Dimensions
131 × 111 × 47 mm
Weight
0.4 kg / 0.88 lb
Application
Industrial Ethernet networking
Installation
Industrial control cabinet or designated mounting location, subject to product requirements
Confirm interface details, power ratings, and environmental specifications using the product nameplate and manufacturer documentation before installation.
Recommended Related Models
The following Schneider Electric models are relevant to industrial Ethernet networking and automation communication. Verify product generation, interfaces, and network compatibility before selecting a replacement or expansion component.
Important product status: Schneider Electric lists the TCSESM043F2CU0 as discontinued. Its specified replacement is MCSESM063F2CU0, a Modicon managed switch with four copper ports and two multimode fiber-optic ports.
Schneider Electric Ireland+1

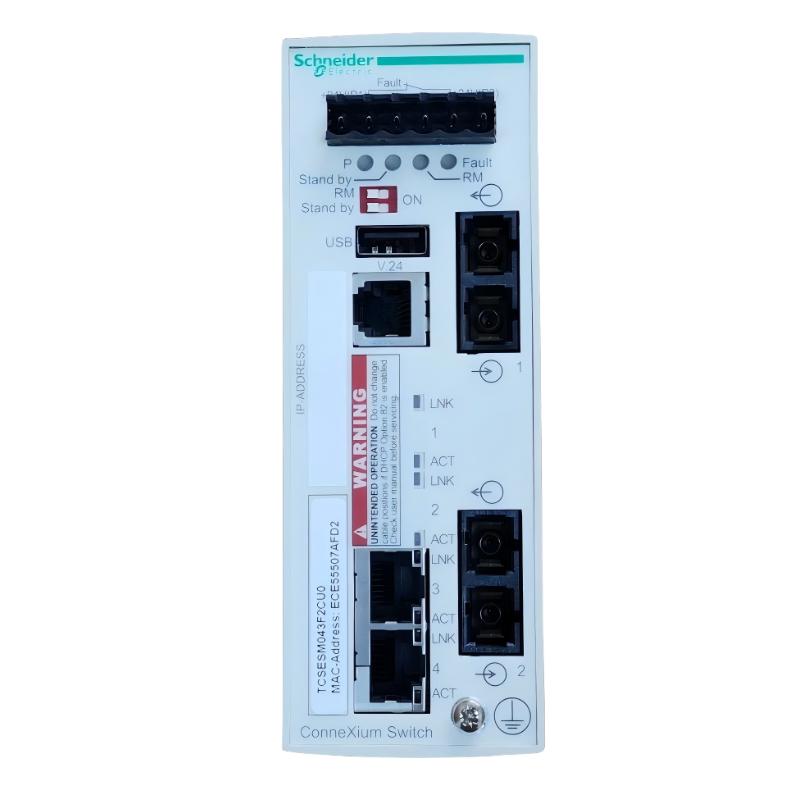

For greater technical accuracy, the TCSESM043F2CU0 has:
2 × 10/100BASE-TX copper Ethernet ports with RJ45 connections
2 × 100BASE-FX multimode fiber-optic ports with duplex SC connections
24 V rated supply voltage
7.7 W power consumption
35 mm DIN-rail mounting
IP20 protection rating
mouser.com+2
The supplied dimensions and weight are consistent with the product specifications: 131 × 111 × 47 mm; 0.4 kg (0.88 lb). For replacement orders, verify the new switch's port configuration and network settings before installation.
Industrial Applications
The Schneider TCSESM043F2CU0 ConneXium Managed Switch is designed for industrial Ethernet networking, where reliable communication between automation devices is essential. Managed switching helps network administrators organize connected equipment, monitor communication status, and manage traffic across an industrial network.
Typical application areas include:
PLC and distributed control system (DCS) networks
Industrial Ethernet connections between controllers and remote I/O
Communication infrastructure for production lines and machinery
Factory automation and process control systems
Industrial network cabinets and control panels
Ethernet links between supervisory systems and automation equipment
Its suitability for a specific network depends on the required port configuration, transmission media, environmental conditions, and network architecture.
Key Features and Advantages
Managed network functionality: Supports structured administration of industrial Ethernet connections.
Industrial automation integration: Intended for use in automation communication environments.
Network visibility: Managed switching can help maintenance personnel monitor network operation and investigate communication issues.
Cabinet installation: Its compact form factor can be useful where control-panel space is limited.
Centralized network management: Helps organize connections between industrial controllers, operator interfaces, and other Ethernet-enabled devices.
Maintenance support: Provides a network infrastructure component that can be incorporated into an industrial troubleshooting and maintenance strategy.
Technical FAQs
Q1: What is the Schneider TCSESM043F2CU0 used for? It is a ConneXium managed Ethernet switch intended to connect industrial network devices and support managed communication within automation systems.
Q2: What is the difference between a managed and an unmanaged industrial switch? A managed switch provides network configuration and monitoring functions, while an unmanaged switch generally operates with basic plug-and-play connectivity and fewer administrative options.
Q3: Can this switch be used in a PLC network? It can be considered for industrial Ethernet network designs involving PLCs, provided its interfaces and network features meet the PLC system's requirements.
Q4: Can it connect multiple automation devices? Yes. An Ethernet switch is used to interconnect network devices. The number and type of supported connections must be checked against the exact product configuration.
Q5: Does a managed switch help with network troubleshooting? Managed switching features can provide useful network status and diagnostic information, helping technicians investigate connectivity and communication problems.
Q6: Is it suitable for a DCS communication network? It may be used as part of an industrial Ethernet infrastructure where the network design and system requirements permit it. Confirm the required redundancy, protocols, and interface specifications before installation.
Q7: What should be checked before replacing an existing switch? Check the model number, port types, transmission speed, fiber or copper requirements, power supply, mounting arrangement, and network configuration.
Q8: Does replacing the switch require network reconfiguration? It may. Managed switch settings can include network addresses, VLANs, redundancy settings, and other parameters. Back up the existing configuration where possible before replacement.
Q9: What can cause communication interruptions? Potential causes include damaged Ethernet cables, loose connectors, incorrect network settings, power interruptions, port faults, or network topology problems.
Q10: What information is needed when ordering a replacement? Provide the complete part number TCSESM043F2CU0 and confirm the hardware revision, condition, required accessories, and compatibility with the existing network.
