Brand:Schneider PLC Item No.:SR2A201BD Product Origin:France Product Dimensions:124.6 x 90 x 59.5 mm Product Weight:0.38 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

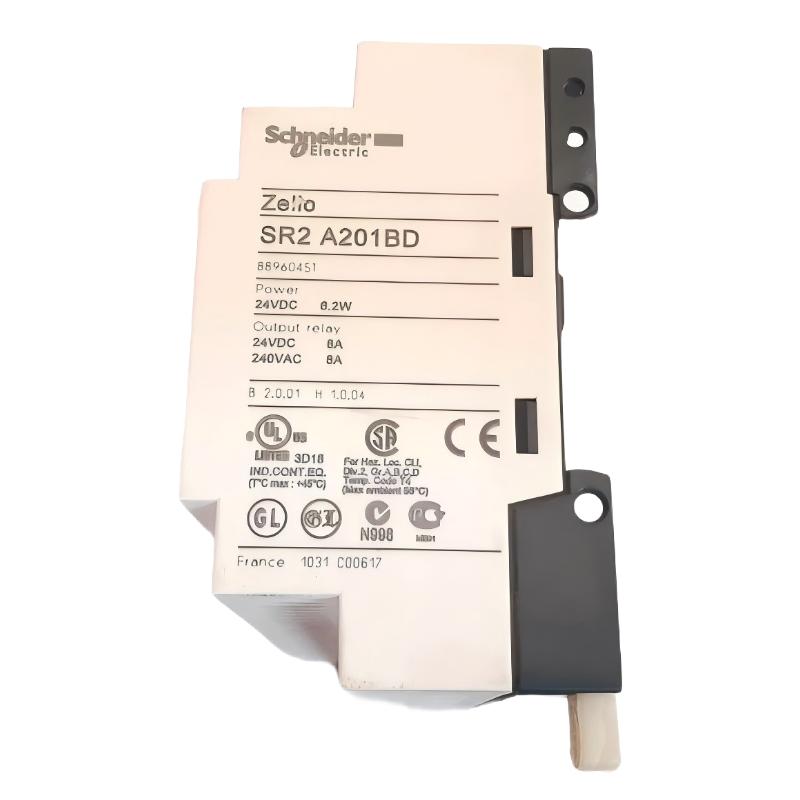

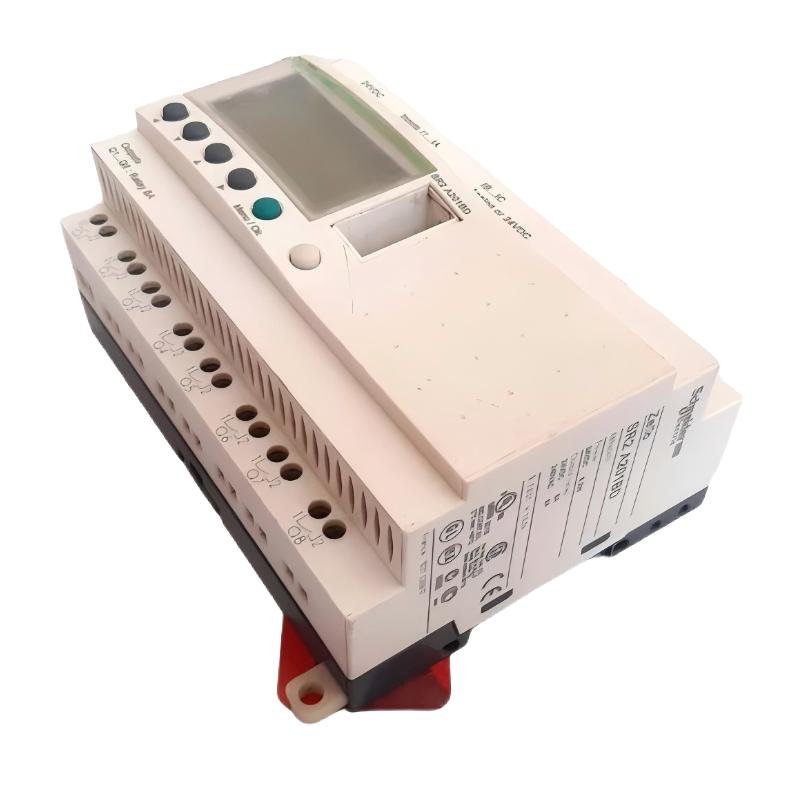

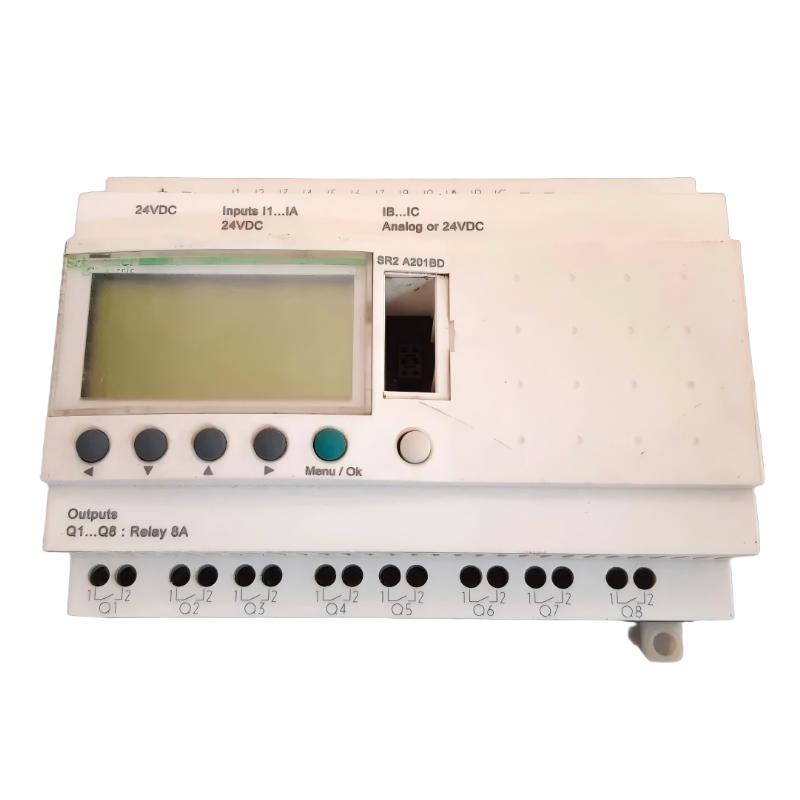

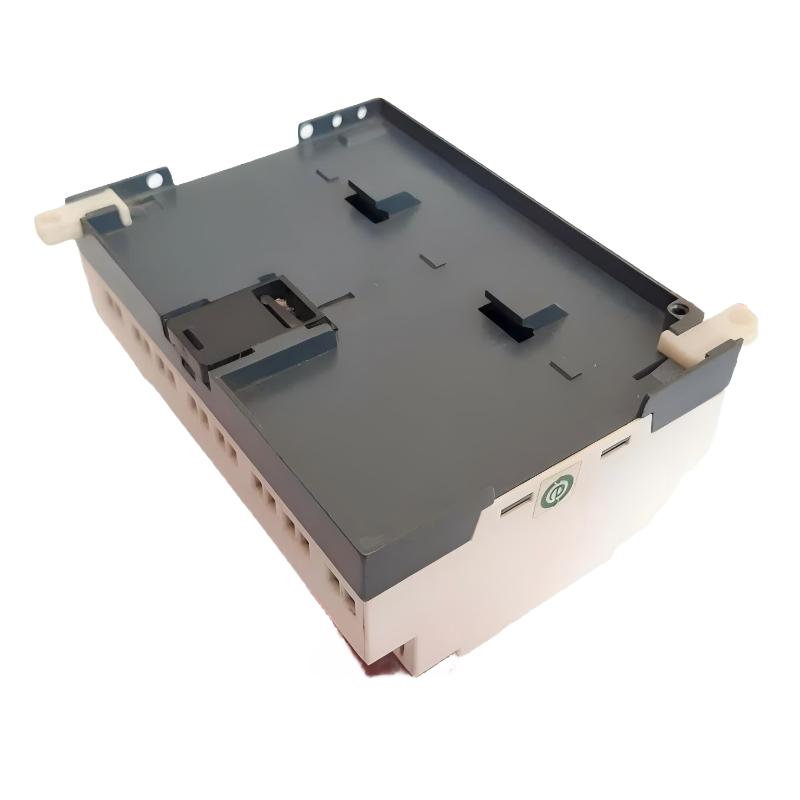

The Schneider Electric SR2A201BD is a compact smart relay in the Zelio Logic product family. It is designed to simplify control tasks that would otherwise require conventional relay wiring or a more extensive programmable controller.
This model combines a 24 V DC power supply, 12 discrete inputs, 2 analog inputs, and 8 relay outputs. Its integrated display provides convenient local access, while its programmable logic functions allow users to configure control sequences for small machines and auxiliary equipment.
The SR2A201BD is supplied without a real-time clock, making it important to distinguish it from other Zelio Logic models when selecting equipment for time-dependent applications. For maintenance teams and system integrators, it offers a compact control solution for straightforward automation projects and equipment upgrades.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
SR2A201BD
Product Series
Zelio Logic
Product Type
Compact Smart Relay
Total I/O
20
Discrete Inputs
12
Analog Inputs
2
Outputs
8 relay outputs
Rated Supply Voltage
24 V DC
Supply Voltage Range
19.2–30 V DC
Local Display
Integrated LCD
Real-Time Clock
No
Programming
Ladder Logic
Maximum Power Consumption
6 W (without extension)
Maximum Supply Current
100 mA (without extension)
Program Backup
Up to 10 years at 25°C
Dimensions
124.6 × 90 × 59.5 mm
Weight
0.38 kg / 0.84 lb
Recommended Related Models
The following Schneider Electric Zelio Logic models may be considered for related automation requirements:
The Schneider SR2A201BD Zelio Logic Compact Smart Relay is designed for simple automation and control tasks in industrial and commercial environments. With 24 V DC power supply, 12 discrete inputs, 2 analog inputs, and 8 relay outputs, it provides a compact solution for controlling equipment and automating routine operations.
Typical applications include:
Small machine automation and control
Pump and motor control systems
Conveyor and material-handling equipment
Lighting control and switching
Heating, ventilation, and air-conditioning systems
Access control and building automation
Monitoring and control of auxiliary equipment
Decentralized control functions in larger machinery
Key Features and Advantages
Compact 20 I/O configuration: Combines 12 discrete inputs, 2 analog inputs, and 8 relay outputs in one controller.
24 V DC power supply: Designed for control panels using a 24 V DC power system.
Integrated LCD display: Provides local access to operating information and device navigation.
Built-in programming functions: Supports ladder programming for implementing control logic.
Analog signal processing: Two analog inputs support compatible voltage signals for basic measurement and control applications.
Relay output flexibility: Eight relay outputs can switch suitable control loads within their rated electrical limits.
Program backup: Built-in memory provides program retention, with a specified backup period of up to 10 years at 25°C.
Straightforward installation: Its compact design makes it suitable for space-conscious control cabinets.
Technical FAQs
Q1: What is the Schneider SR2A201BD used for?
The SR2A201BD is a programmable smart relay used to control simple automation processes, including machine operations, lighting, pumps, and auxiliary equipment.
Q2: What power supply does the SR2A201BD require?
It operates on a rated 24 V DC supply. Its specified supply voltage range is 19.2–30 V DC.
Q3: How many I/O points does this smart relay provide?
It provides 20 I/O points in total: 12 discrete inputs, including 2 configurable analog inputs, and 8 relay outputs.
Q4: Does the SR2A201BD have a built-in display?
Yes. It includes an integrated LCD display for local monitoring and navigation.
Q5: Does this model include a real-time clock?
No. The SR2A201BD version is supplied without a built-in clock. Applications requiring clock-based scheduling should use a suitable model with that function.
Q6: What programming method does it support?
The Zelio Logic range supports ladder logic programming. Check the applicable Zelio Soft 2 version and product documentation for the programming functions available for this specific model.
Q7: Can the analog inputs be used with voltage sensors?
Yes. The two analog inputs support compatible voltage signals, including 0–10 V and 0–24 V ranges. Sensor wiring and input configuration must follow the manufacturer's specifications.
Q8: What type of outputs does the SR2A201BD provide?
It has eight relay outputs. The connected loads must remain within the specified switching voltage and current ratings.
Q9: Does the smart relay retain its program after a power interruption?
Yes. Its built-in memory provides program backup, with a specified retention period of up to 10 years at 25°C.
Q10: What should be checked before replacing an existing SR2A201BD?
Confirm the supply voltage, I/O configuration, terminal wiring, program requirements, output load ratings, and mounting arrangement. Back up the existing program before replacement whenever possible.
