Brand:Schneider PLC Item No.:STBACO1210K Product Origin:France Product Dimensions:128.3 x 70 x 13.9 mm Product Weight:0.117 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

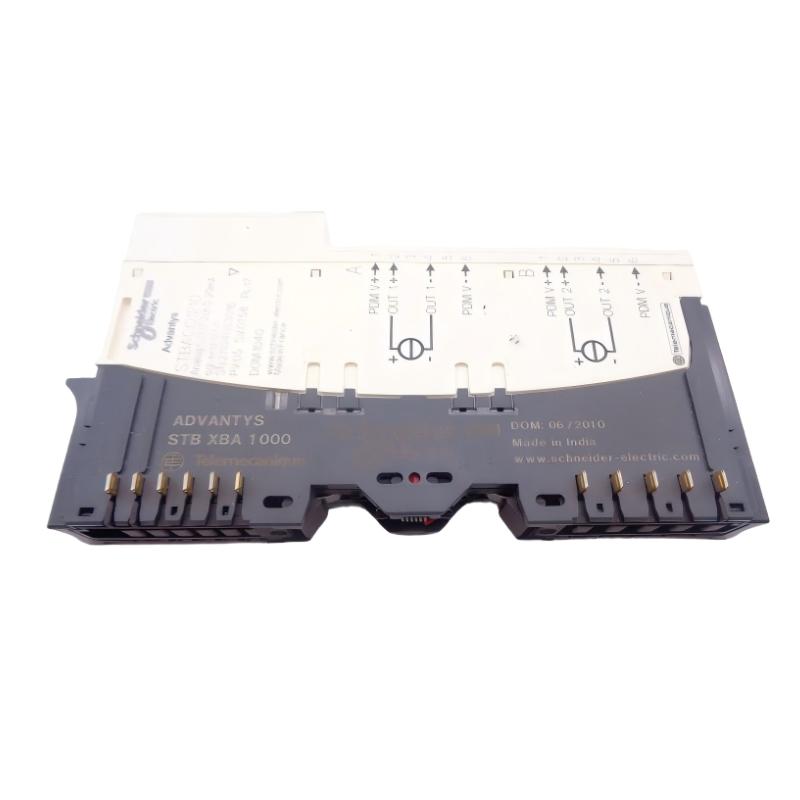

The Schneider Electric STBACO1210K is a standard analog output kit in the Modicon STB distributed I/O product family. It is designed to connect automation controllers with field devices that require analog current signals for proportional control and operation.

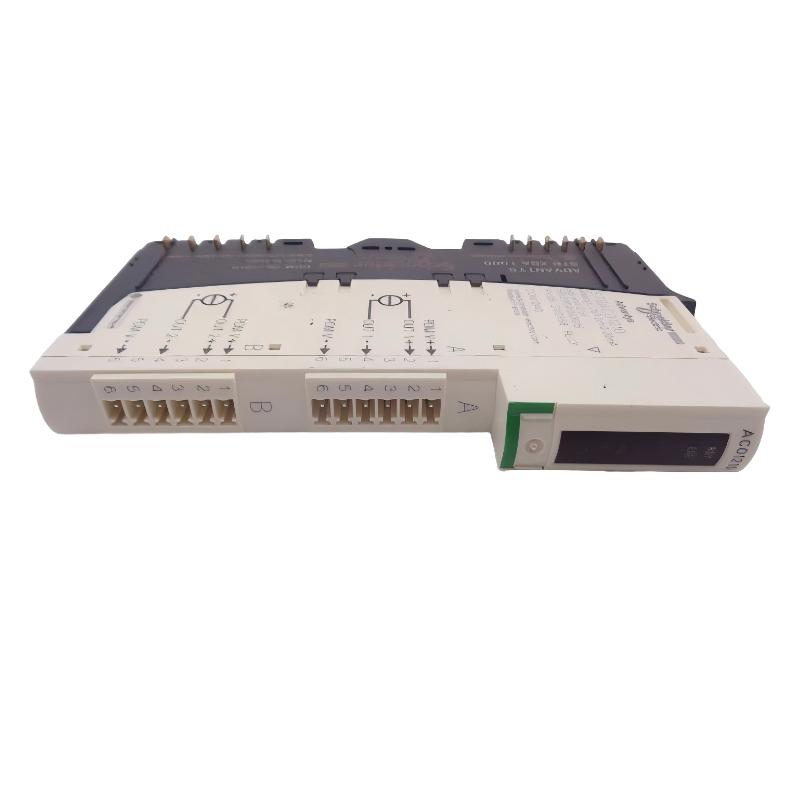

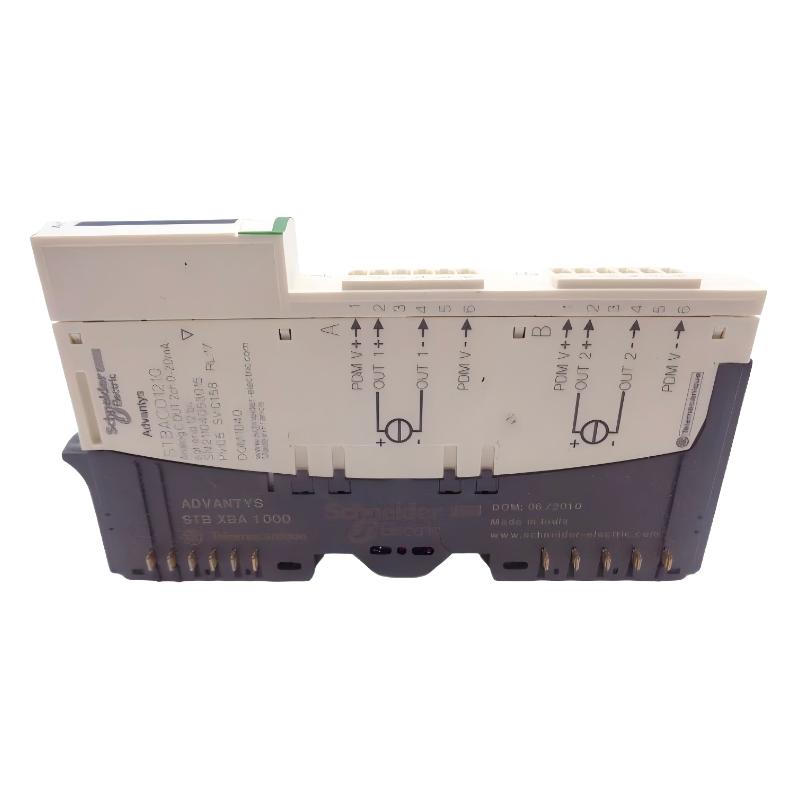

The kit includes the STBACO1210 analog output module, an STBXBA1000 mounting base, an STBXTS1100 six-terminal screw connector, and an STBXTS2100 six-terminal spring-clamp connector. This integrated configuration simplifies component selection and supports installation in compatible Modicon STB systems.
With two 0–20 mA outputs and 12-bit resolution, the STBACO1210K can be used in applications involving control valves, actuators, and other current-controlled equipment. Its short-circuit protection and module status indicators also support routine maintenance and troubleshooting.
For replacement or system expansion projects, users should verify the mounting base, power distribution module, network interface, and output wiring before installation.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
STBACO1210K
Product Series
Modicon STB
Product Type
Standard Analog Output Kit
Number of Analog Outputs
2
Analog Output Type
Current
Output Signal Range
0–20 mA
Output Resolution
12 bits
Rated Supply Voltage
24 V DC
Logic Bus Current Consumption
40 mA at 5 V DC
Response Time
3 ms
Update Time
25 ms
Short-Circuit Protection
Yes
Mounting Base
STBXBA1000
Compatible Power Distribution Modules
STBPDT3100 / STBPDT3105
Protection Rating
IP20
Kit Components
STBACO1210, STBXBA1000, STBXTS1100, STBXTS2100
Dimensions
128.3 × 70 × 13.9 mm
Weight
0.117 kg / 0.26 lb
Recommended Related Models
Schneider STBACI0320K – Modicon STB Analog Input Kit
Schneider STBDDO3705K – Modicon STB Digital Output Kit
Schneider STBDDI3725K – Modicon STB Digital Input Kit
Schneider STBPDT3100 – Modicon STB Power Distribution Module
Schneider STBXBA1000 – Modicon STB Mounting Base
Popular Related Models
Schneider STBACO1210 – Standard Analog Output Module
Schneider STBACI0320 – Standard Analog Input Module
Schneider STBACO0220K – Modicon STB Analog Output Kit
The Schneider STBACO1210K Standard Analog Output Kit is part of the Modicon STB distributed I/O system. It provides two analog current outputs for PLC-based automation systems, allowing controllers to send variable control signals to compatible field devices.
Typical applications include:
Industrial process control and regulation
Control of variable-speed drives and motor controllers
Valve and actuator positioning
Pump and flow control systems
Packaging and bottling machinery
Manufacturing and assembly lines
Distributed automation and remote I/O installations
Temperature, pressure, and flow control applications using compatible actuators
Key Features and Advantages
Two analog output channels: Provides two independent current output channels for connecting compatible field devices.
0–20 mA output range: Supports current-based analog control signals for industrial actuators and equipment.
12-bit resolution: Provides 12-bit analog output resolution for control applications requiring variable signal levels.
Integrated kit configuration: Includes the STBACO1210 module, mounting base, and two connector types.
Short-circuit protection: Helps protect the output circuit under specified fault conditions.
Flexible installation: Supports integration into the Modicon STB distributed I/O architecture.
Hot-swapping support: Supports hot swapping with standard NIM configurations, subject to system requirements.
Status indication: Includes LED indicators for module readiness and error status.
Technical FAQs
Q1: What is the Schneider STBACO1210K used for?
It is a standard analog output kit used in Modicon STB distributed I/O systems to provide current control signals to compatible industrial field devices.
Q2: How many analog outputs does the STBACO1210K provide?
It provides two analog output channels.
Q3: What is the output signal range?
The module provides a 0–20 mA current output range.
Q4: What is the analog output resolution?
The STBACO1210K has a 12-bit analog output resolution.
Q5: Which mounting base is compatible with this kit?
It is designed for use with the Schneider STBXBA1000 mounting base, which is included in the kit.
Q6: Which power distribution modules are supported?
The specified compatible power distribution modules are STBPDT3100 and STBPDT3105.
Q7: Does the module support short-circuit protection?
Yes. The analog output channels have short-circuit protection.
Q8: Can the module be hot-swapped?
Hot swapping is supported with standard NIM configurations. The actual procedure should follow the system architecture and Schneider Electric installation instructions.
Q9: How can technicians identify a module error?
The module provides a green RDY LED for status indication and a red ERR LED for error indication. These indicators help maintenance personnel identify operating conditions.
Q10: What should be checked before replacing the STBACO1210K?
Check the complete model number, output signal range, channel count, mounting base, power distribution module, terminal connections, and system configuration before replacement.
