Brand:Schneider PLC Item No.:TSXMRPC003M Product Origin:France Product Dimensions:130 x 90 x 30 mm Product Weight:0.076 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

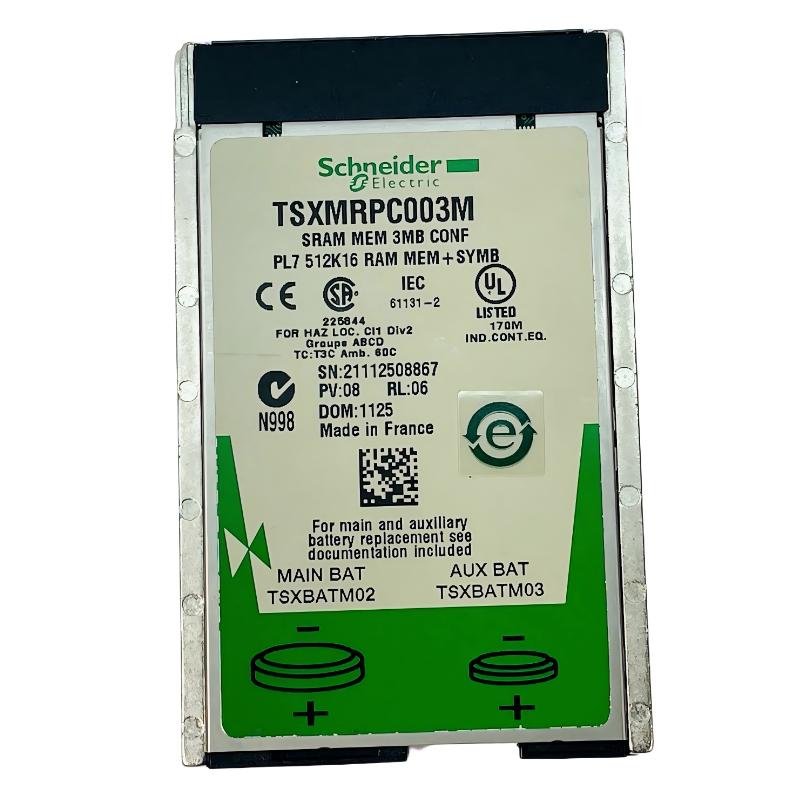

The Schneider Electric TSXMRPC003M is a configurable SRAM application and data memory extension for the Modicon Premium automation platform. It is designed to increase the available memory capacity of compatible PLC processors, helping automation systems accommodate larger applications and additional stored data.
The memory card supports configurable application memory from 192 kB to 3072 kB and data storage capacity from 2880 kB down to 0 kB. This allocation flexibility allows users to balance application program requirements and data storage needs according to the processor configuration.
Installed in Slot 0, the TSXMRPC003M provides an additional memory resource for compatible Modicon Premium processors. Its SRAM technology also supports online application modifications when the relevant processor configuration permits this operation.
For industrial maintenance teams and system integrators, this component is particularly relevant when maintaining existing Modicon Premium installations, replacing memory cards, or managing PLC application storage requirements. Before installation, verify the processor model and existing memory configuration to ensure proper operation.
Product lifecycle information:The Schneider TSXMRPC003M has been discontinued. Its published end-of-service date is December 31, 2027. It has no direct manufacturer-designated replacement, so verify processor compatibility and memory requirements before purchasing an alternative.
Industrial Applications
The Schneider TSXMRPC003M SRAM Memory Extension is designed for the Modicon Premium automation platform. It expands the memory capacity of compatible PLC processors, providing additional space for application programs and data storage in industrial automation systems.
Typical applications include:
PLC program memory expansion
Large-scale industrial automation projects
Manufacturing process control systems
Production data and recipe storage
Complex machine control applications
Process automation and monitoring
Industrial equipment upgrades and maintenance
Existing Modicon Premium system expansion
Key Features and Advantages
Configurable SRAM memory: Provides configurable memory allocation for application programs and data storage.
Expandable application capacity: Supports application memory configurations from 192 kB to 3072 kB.
Additional data storage: Provides configurable data storage capacity of up to 2880 kB.
Modicon Premium compatibility: Designed for supported Modicon Premium processor platforms.
PCMCIA memory format: Uses a compact memory card format for installation in the designated processor slot.
Online program modification: SRAM-based application storage supports online program modifications when the processor configuration permits.
Industrial automation support: Helps maintain application and data storage requirements in established PLC systems.
Compact construction: Its small form factor supports integration into existing automation equipment.
Technical FAQs
Q1: What is the Schneider TSXMRPC003M used for?
The TSXMRPC003M is a configurable SRAM memory extension used to expand application and data storage capacity in compatible Modicon Premium PLC processors.
Q2: What type of memory does this module use?
It uses SRAM (Static Random Access Memory) technology for application and data storage.
Q3: What is the maximum application memory capacity?
The configurable application memory capacity ranges from 192 kB to 3072 kB, depending on the selected configuration and processor limitations.
Q4: How much data storage capacity does it provide?
The card supports configurable data storage capacity ranging from 0 to 2880 kB.
Q5: Which PLC systems are compatible with the TSXMRPC003M?
It is designed for compatible Modicon Premium processors, including the TSX570 to TSX576 series, TSX57C, and TSXPCI572/573 platforms. Always verify the exact processor reference.
Q6: Which slot should be used for installation?
The TSXMRPC003M is designed for installation in Slot 0 of a compatible processor.
Q7: Can this memory extension support online program modifications?
Yes. SRAM memory cards storing the application program support online modifications when the processor and application configuration allow this function.
Q8: Can the memory allocation be changed?
The application and data storage allocation is configurable within the supported capacity limits. The selected configuration must also comply with the processor's memory requirements.
Q9: What should be checked before installing the memory card?
Check processor compatibility, available memory capacity, slot requirements, application configuration, and the condition of the memory card and connector.
Q10: What should be considered when replacing an existing TSXMRPC003M?
Confirm the exact model number, memory allocation, stored application requirements, processor compatibility, and backup status. Preserve the original application and data before carrying out replacement work.
