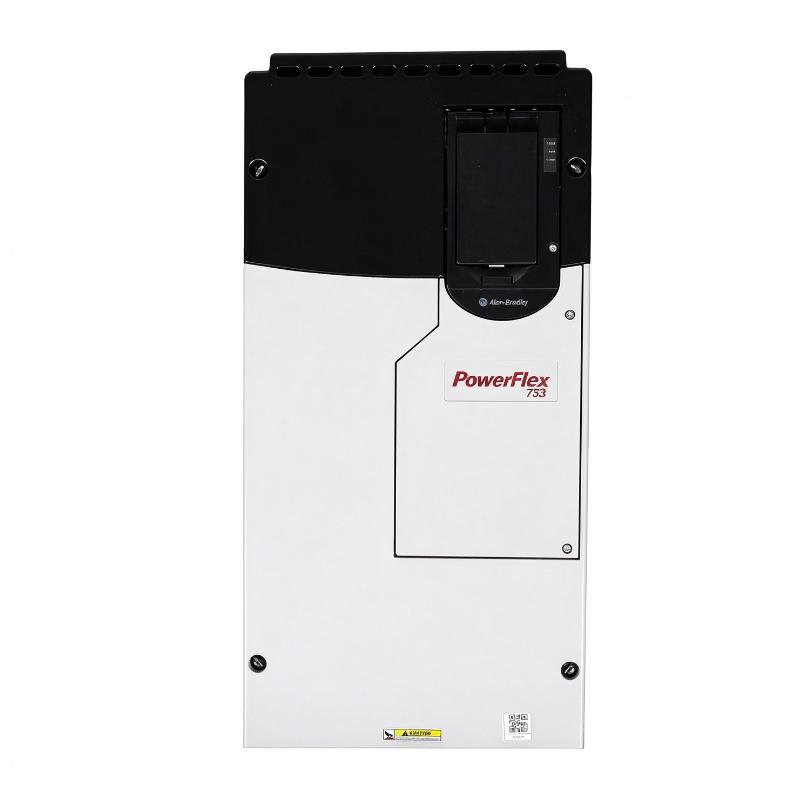

Allen Bradley 20F1AGE053AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1AGE053AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F1AGE053AA0NNNNN Product Origin:USA Product Dimensions:1298.3 x 609.4 x 464.7 mm Product Weight:91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F1AGE053AA0NNNNN is a PowerFlex 753 AC Packaged Drive developed for industrial motor control applications. It belongs to the PowerFlex 750-Series, which is designed to support variable-speed operation and integration into industrial automation environments.
This model features a 600 V AC three-phase electrical configuration and a 53 A output rating. It combines embedded I/O, forced-air cooling, EMC filtering, and a dynamic braking transistor. These features make it suitable for industrial equipment that requires controlled motor operation and integration with automation systems.
The PowerFlex 753 platform can be applied to pumps, fans, conveyors, compressors, and other motor-driven machinery. By adjusting motor speed to match operating requirements, a variable-frequency drive can help improve process control and support more efficient equipment operation.
The 20F1AGE053AA0NNNNN is a Frame 6 configuration with an IP54, NEMA Type 12 enclosure. Its installation should account for ventilation, electrical clearances, environmental conditions, and the manufacturer's wiring requirements.
For maintenance and replacement projects, it is important to confirm the complete catalog number and existing drive configuration. Rockwell Automation has discontinued this specific catalog number and identifies 20F1AGE053JA0NNNNN as its direct replacement. Verify the replacement's configuration before ordering.
Technical Specifications
Parameter
Specification
Brand
Allen Bradley
Model
20F1AGE053AA0NNNNN
Product Series
PowerFlex 753
Product Type
AC Drive
Drive Configuration
AC Packaged Drive
Input Voltage
600 V AC
Input Phase
Three-phase
Output Current
53 A
Normal-Duty Power Rating
50 HP
Heavy-Duty Power Rating
40 HP
Frame Size
Frame 6
Cooling Method
Forced Air
Enclosure Rating
IP54, NEMA Type 12
I/O Configuration
Embedded I/O
EMC Filtering
Filtered
Dynamic Braking
DB Transistor
Dimensions
1298.3 × 609.4 × 464.7 mm
Weight
91 kg / 200.62 lb
Recommended Related Models
The following Allen Bradley models are relevant to PowerFlex 750-Series motor control applications. Check voltage, current, enclosure, and braking configurations before selecting an alternative.
20F1AGE053JA0NNNNN – PowerFlex 753 AC Drive, direct replacement configuration
20F1ANE053JA0NNNNN – PowerFlex 753 AC Drive
20F1ANE053JN0NNNNN – PowerFlex 753 AC Drive
20F1ANE242JN0NNNNN – PowerFlex 753 AC Drive
20G1 – PowerFlex 755 AC Drive Series
Popular Related Models
Allen Bradley 20F1AGE053AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1AGE053JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1ANE053JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F1ANE053JN0NNNNN PowerFlex 753 AC Drive
Allen Bradley PowerFlex 755 AC Drive
Industrial Applications
The Allen Bradley 20F1AGE053AA0NNNNN PowerFlex 753 AC Drive is designed for industrial motor speed and torque control in demanding automation environments. As part of the PowerFlex 750-Series, it provides variable-frequency motor control for applications requiring reliable operation, flexible configuration, and integration with industrial control systems.
Typical applications include:
Industrial pumps and water treatment equipment
Fans and ventilation systems
Conveyor belts and material handling machinery
Compressors and industrial processing equipment
Manufacturing and production lines
Packaging and material processing systems
Heavy-duty machinery and industrial equipment
Automated production facilities and process control systems
Key Features and Advantages
PowerFlex 753 platform: Provides an established AC drive solution for industrial motor control applications.
53 A output rating: Supports motor applications requiring a substantial current capacity.
600 V AC operation: Designed for three-phase industrial power systems.
Variable-speed control: Allows motor speed to be adjusted according to process requirements.
Integrated I/O: Supports connection with external control devices and automation systems.
Forced-air cooling: Helps manage operating temperatures during drive operation.
EMC filtering: Includes an EMC filter configuration to support electromagnetic compatibility requirements.
Dynamic braking transistor: Provides a braking interface for suitable dynamic braking configurations.
Industrial enclosure: Designed for installation in an appropriate industrial electrical enclosure and environment.
Technical FAQs
Q1: What is the Allen Bradley 20F1AGE053AA0NNNNN used for?
It is a PowerFlex 753 variable-frequency AC drive used to control the speed and torque of three-phase AC motors in industrial automation applications.
Q2: What is the rated output current of this drive?
The model has a 53 A output current rating. Actual motor selection must consider the applicable normal-duty and heavy-duty ratings.
Q3: What power supply does the 20F1AGE053AA0NNNNN require?
This model is designed for a 600 V AC three-phase input supply. The electrical installation must comply with the drive's rated input requirements.
Q4: What is the difference between a PowerFlex 753 and a standard AC drive?
The PowerFlex 753 belongs to Rockwell Automation's industrial drive family and provides motor control functions alongside integration options for industrial automation systems.
Q5: Can this drive control pumps and fans?
Yes. Variable-frequency control makes it suitable for compatible pump and fan applications where motor speed needs to change according to system demand.
Q6: Does the 20F1AGE053AA0NNNNN include dynamic braking capability?
This catalog configuration includes a dynamic braking transistor. A suitable external braking resistor and correctly configured braking system may be required depending on the application.
Q7: Does the drive support industrial automation integration?
Yes. The PowerFlex 753 platform supports integration with industrial control systems. Communication requirements and available interfaces depend on the installed configuration and options.
Q8: What cooling method does this model use?
It uses forced-air cooling. Adequate ventilation and the required installation clearances are important for maintaining operating temperature.
Q9: What should be checked when troubleshooting a PowerFlex 753 drive?
Check the input power supply, motor connections, drive fault codes, cooling system, parameter settings, and connected control signals. Always isolate power and follow appropriate electrical safety procedures before inspection.
Q10: What should be considered when replacing this drive?
Verify the complete catalog number, voltage rating, current rating, duty classification, enclosure type, braking configuration, control wiring, and application parameters. A replacement should be selected according to the actual motor and system requirements.
