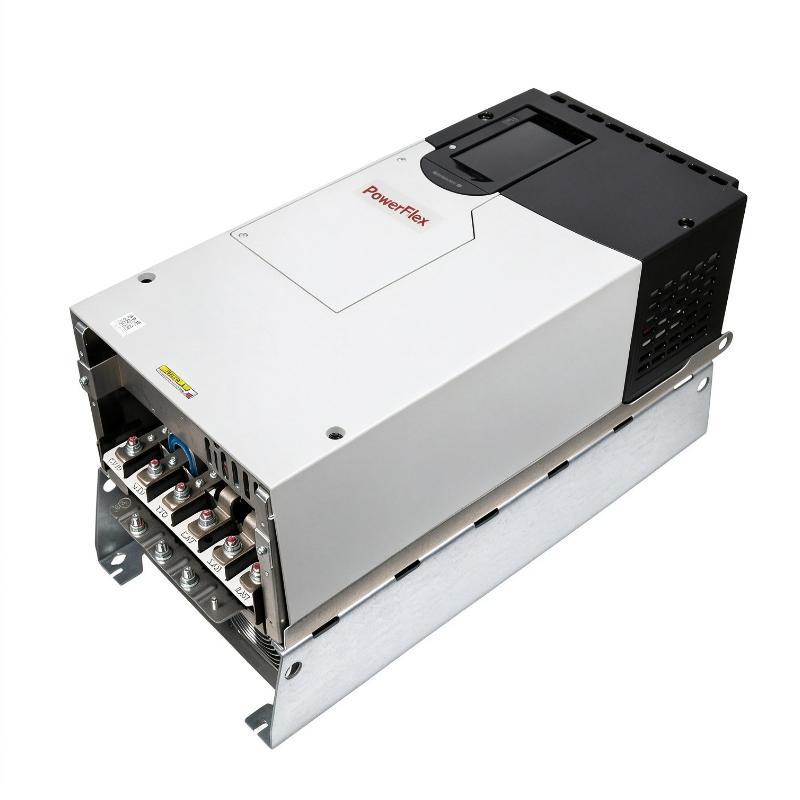

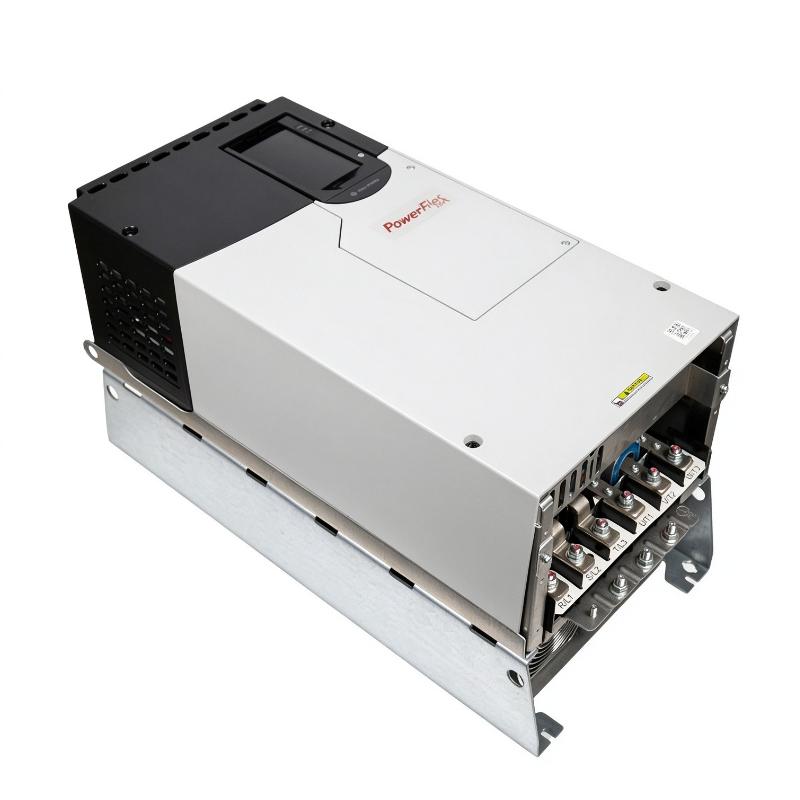

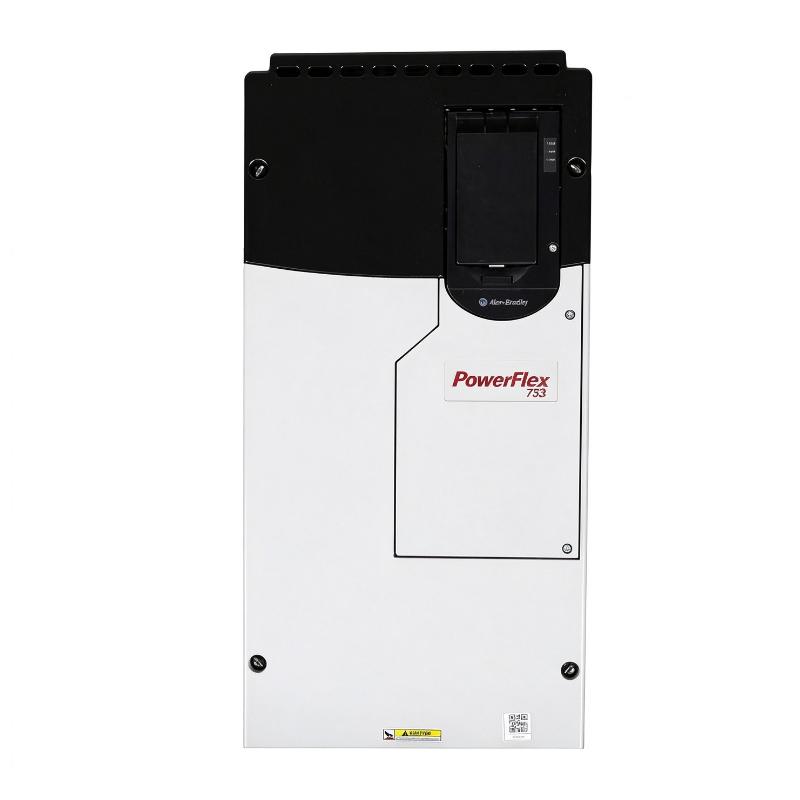

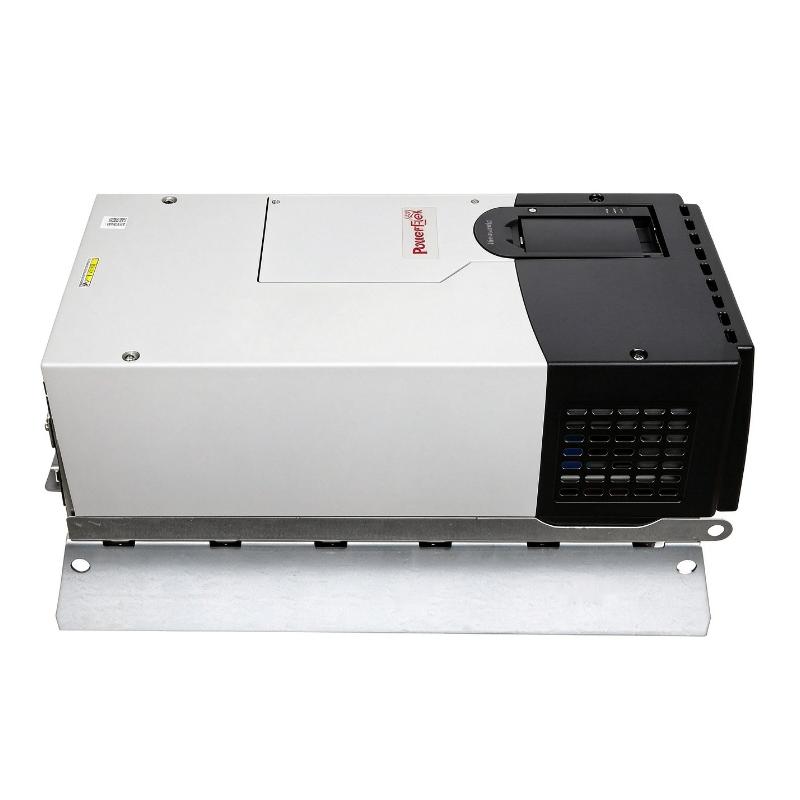

Allen Bradley 20F1AGE077AN0NNNNN PowerFlex 753 AC Drive

Industrial Applications

The Allen Bradley 20F1AGE077AN0NNNNN PowerFlex 753 AC Drive is designed for variable-speed control of three-phase AC motors in industrial automation systems. With a 600 V AC input configuration and a 77 A output rating, it supports demanding motor-driven applications requiring reliable speed regulation and process control.

Typical applications include:

• Industrial pumps and water treatment systems

• Ventilation fans and industrial blowers

• Conveyor and material handling equipment

• Air compressors and processing machinery

• Manufacturing and production lines

• Packaging and material processing systems

• Industrial machinery and automated equipment

• Process control and material handling installations

Key Features and Advantages

• PowerFlex 753 platform: Provides an industrial AC drive solution for motor speed and torque control.

• 77 A output rating: Supports motor applications requiring substantial output current.

• 600 V AC three-phase input: Designed for compatible industrial power distribution systems.

• 75 HP normal-duty rating: Suitable for motor applications within the specified normal-duty operating conditions.

• 60 HP heavy-duty rating: Supports applications requiring the specified heavy-duty performance.

• Embedded I/O: Provides integrated interfaces for connecting compatible control signals and external devices.

• Forced-air cooling: Helps maintain operating temperatures during continuous drive operation.

• EMC filtering: Includes an EMC filter configuration to support electromagnetic compatibility.

• IP54 / NEMA Type 12 enclosure: Provides protection for suitable industrial installation environments.

• Compact system integration: Supports integration into industrial automation and motor control architectures.

Technical FAQs

Q1: What is the Allen Bradley 20F1AGE077AN0NNNNN used for?

It is a PowerFlex 753 variable-frequency AC drive used to control the speed and torque of three-phase AC motors in industrial automation applications.

Q2: What is the rated output current?

The drive has a rated output current of 77 A. Actual motor selection should consider the applicable duty rating and operating conditions.

Q3: What input voltage does this model support?

It is designed for a 600 V AC three-phase power supply. The incoming electrical supply must comply with the drive's rated requirements.

Q4: What are its normal-duty and heavy-duty power ratings?

The specified ratings are 75 HP for normal-duty applications and 60 HP for heavy-duty applications.

Q5: Does the drive have embedded I/O?

Yes. The PowerFlex 753 platform provides embedded I/O for connecting compatible control signals and external equipment.

Q6: Does the 20F1AGE077AN0NNNNN include a dynamic braking transistor?

No. This particular catalog configuration does not include an integrated dynamic braking transistor. Applications requiring dynamic braking should use a suitably configured drive and external braking components.

Q7: What enclosure protection does this model provide?

It features an IP54, NEMA Type 12 enclosure, making it suitable for compatible industrial installation environments.

Q8: What cooling method does the drive use?

It uses forced-air cooling. Proper ventilation, airflow clearance, and installation conditions are important for maintaining reliable operation.

Q9: Does this model include a Human Interface Module (HIM)?

No. This configuration is supplied without a HIM. A compatible interface option may be needed for local parameter adjustment and operation.

Q10: What should be checked before replacing this drive?

Verify the complete catalog number, input voltage, output current, motor duty rating, enclosure type, braking requirements, control connections, and application parameters. Back up the existing drive configuration before replacement whenever possible.
