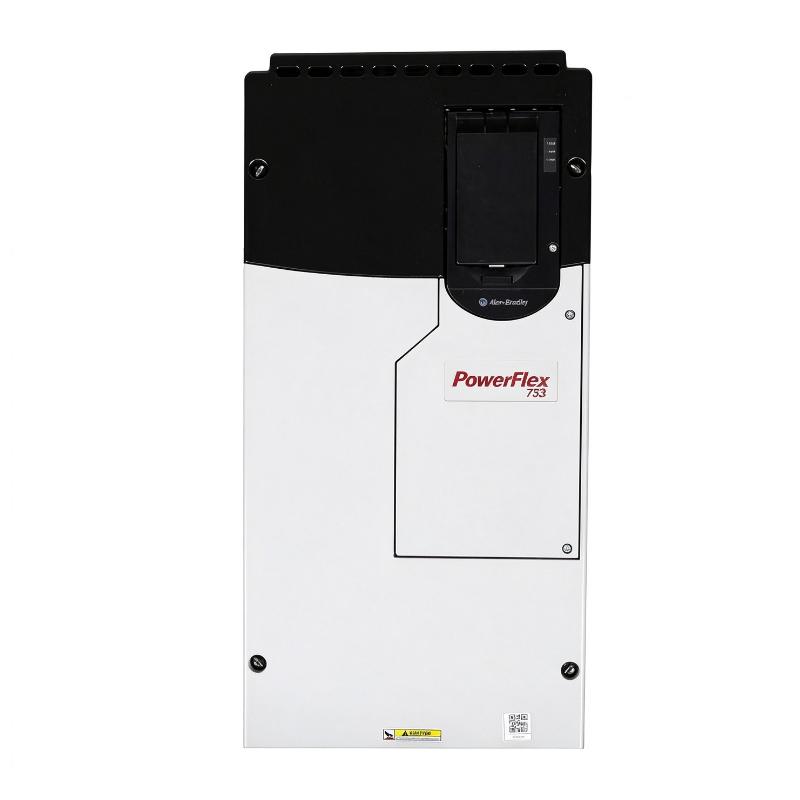

Allen Bradley 20F1AGE192AA0NNNNN PowerFlex 753 AC Drive

Industrial Applications

The Allen Bradley 20F1AGE192AA0NNNNN PowerFlex 753 AC Drive is designed for high-capacity industrial motor control applications. As part of the PowerFlex 750-Series, it provides variable-frequency control for three-phase AC motors, allowing industrial facilities to regulate motor speed and torque according to production and process requirements.

With a 600 V AC input configuration and a 192 A output rating, this drive is suitable for demanding applications involving large motors and heavy industrial machinery.

Typical applications include:

• Large industrial pump and water treatment systems

• Heavy-duty conveyor and material handling equipment

• Industrial ventilation fans and blowers

• Compressors and processing machinery

• Manufacturing and production facilities

• Packaging and material processing systems

• Industrial mixing and mechanical equipment

• Automated production and process control systems

Key Features and Advantages

• High-current motor control: Provides a 192 A output rating for demanding industrial applications.

• PowerFlex 753 platform: Combines variable-frequency motor control with industrial automation integration capabilities.

• 600 V AC three-phase input: Designed for compatible industrial power distribution systems.

• 200 HP normal-duty rating: Supports high-capacity motor applications under normal-duty operating conditions.

• 150 HP heavy-duty rating: Provides a suitable power rating for applications requiring heavy-duty performance.

• Embedded I/O: Supports connections with compatible control signals and external automation devices.

• Forced-air cooling: Helps maintain suitable operating temperatures during drive operation.

• EMC filtering: Supports electromagnetic compatibility in industrial electrical installations.

• Dynamic braking transistor: Provides an integrated braking interface for applications requiring controlled deceleration.

• Industrial enclosure: The IP54 / NEMA Type 12 configuration is designed for suitable industrial installation environments.

Technical FAQs

Q1: What is the Allen Bradley 20F1AGE192AA0NNNNN used for?

It is a PowerFlex 753 variable-frequency AC drive used to control the speed and torque of three-phase AC motors in industrial automation systems.

Q2: What is the rated output current?

The model belongs to the 192 A output-current class. Actual operating current should remain within the applicable drive ratings and environmental limitations.

Q3: What input voltage does this drive support?

It is designed for a 600 V AC three-phase power supply.

Q4: What are the normal-duty and heavy-duty power ratings?

The specified ratings are 200 HP for normal-duty applications and 150 HP for heavy-duty applications.

Q5: Does the drive support industrial automation integration?

Yes. The PowerFlex 753 platform supports integration with industrial automation systems and compatible control equipment.

Q6: Does the 20F1AGE192AA0NNNNN include dynamic braking?

This catalog configuration includes a dynamic braking transistor. An appropriately rated external braking resistor may be required depending on the application.

Q7: What cooling method does this drive use?

It uses forced-air cooling. Proper ventilation, airflow clearance, and installation conditions are important for thermal management.

Q8: Does this model include a Human Interface Module (HIM)?

No. This configuration is supplied without a HIM. A compatible interface option may be required for local operation and parameter adjustment.

Q9: What should be checked during drive troubleshooting?

Inspect the incoming power supply, motor wiring, fault codes, cooling fans, control signals, and parameter settings. Always follow electrical isolation and safety procedures before maintenance.

Q10: What should be verified before purchasing a replacement?

Check the complete catalog number, input voltage, output current, duty classification, enclosure rating, braking configuration, control interfaces, and motor requirements. Confirm that the replacement matches the existing system configuration.
