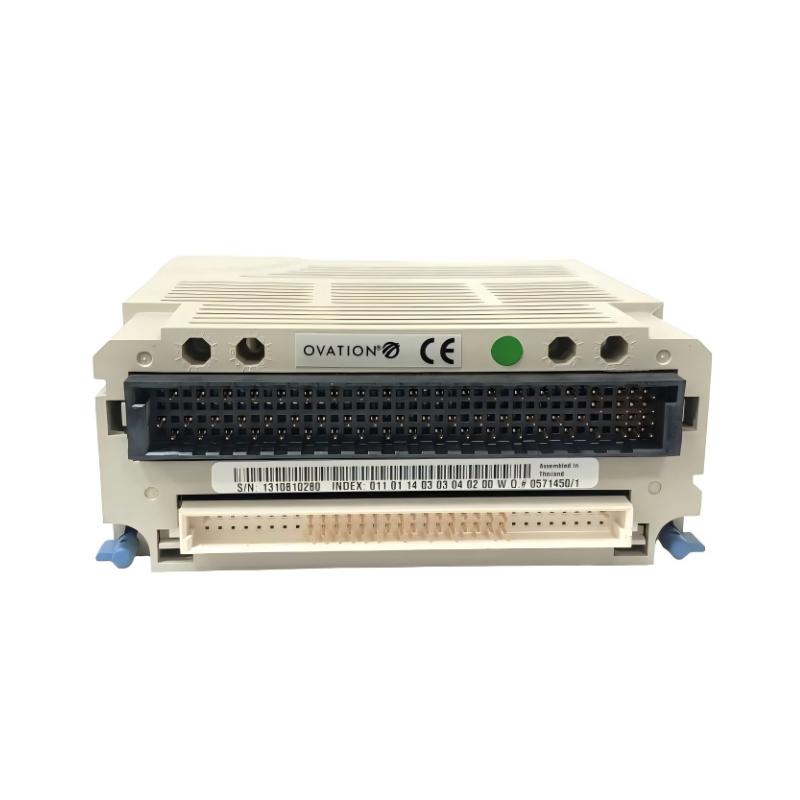

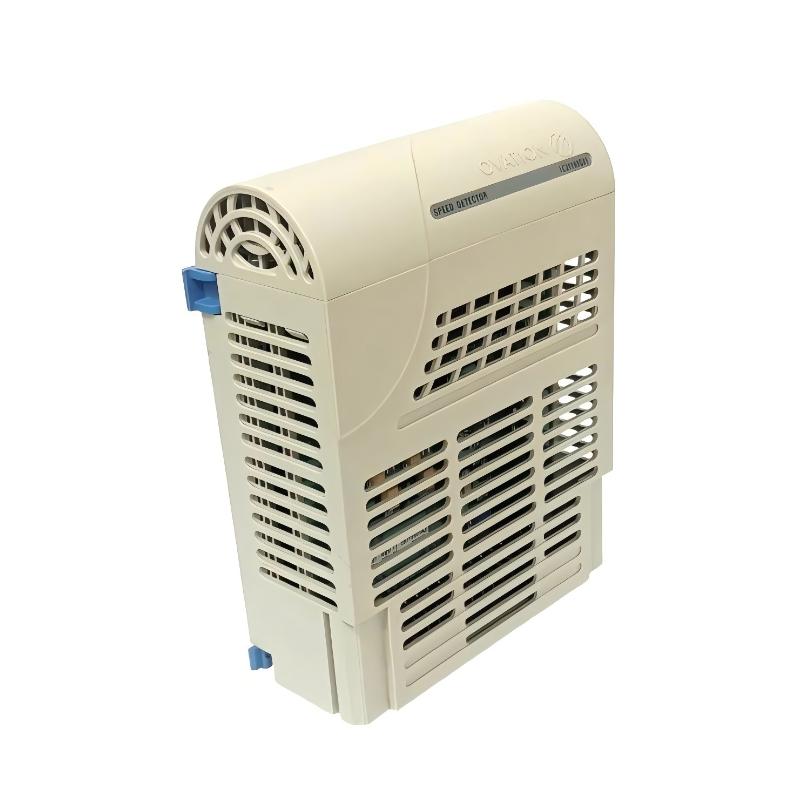

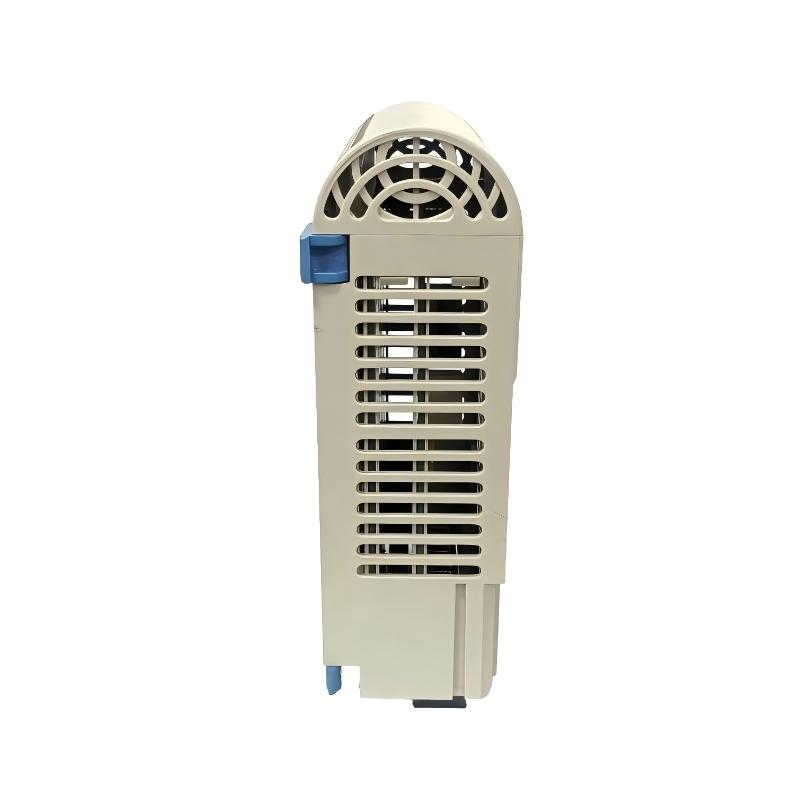

Ovation 1C31189G01 Speed Detector Interface

Applications

The Ovation 1C31189G01 Speed Detector Interface is engineered to provide accurate speed monitoring and detection for rotating machinery in Emerson Ovation control systems. It interfaces with sensors on turbines, motors, and generators to supply real-time speed data for control, protection, and process optimization.
Common applications include power generation, petrochemical plants, and industrial manufacturing, where precise speed monitoring is critical for safe and efficient operation. The module enables the Ovation system to detect abnormal speed conditions, trigger alarms, and adjust control parameters in real time.

Advantages

• Precise Speed Monitoring: Provides accurate and real-time detection of rotating machinery speeds.

• Industrial Reliability: Designed to withstand vibration, temperature fluctuations, and electrical noise in demanding environments.

• Seamless System Integration: Fully compatible with Ovation distributed control systems for smooth data acquisition.

• Built-in Diagnostics: Status indicators simplify fault detection and maintenance.

• Compact Design: Rack-mountable, saving space while allowing easy integration and system expansion.

FAQs

1. What types of sensors can the module interface with?
   The module supports standard speed sensors, including proximity probes and magnetic pickups.

2. How is speed data communicated to the master Ovation controller?
   Real-time speed information is transmitted via fieldbus or backplane interface for monitoring and control.

3. Does the module provide fault detection for sensor signals?
   Yes, it detects signal loss, irregular pulses, and sensor malfunctions.

4. Can the module be installed in harsh industrial environments?
   Yes, it is built to handle vibration, temperature extremes, and electrical noise.

5. Is hot-swapping supported for maintenance purposes?
   Depending on system configuration, modules may be replaced with minimal disruption.

6. How does the module mitigate electrical noise from machinery?
   Filtering, isolation, and shielding techniques reduce EMI and RFI effects on sensor signals.

7. Can multiple modules be used for monitoring several machines?
   Yes, multiple units can be integrated to monitor multiple rotating devices simultaneously.

8. What diagnostic features assist operators and maintenance personnel?
   LEDs and test points allow verification of proper signal acquisition and module operation.

9. Does the module support both high and low-speed detection?
   Yes, it is capable of accurate detection across a wide speed range suitable for industrial machinery.

10. What protections are in place against wiring errors or overvoltage?
    The module includes overvoltage, reverse polarity, and transient protection to safeguard internal circuits.
