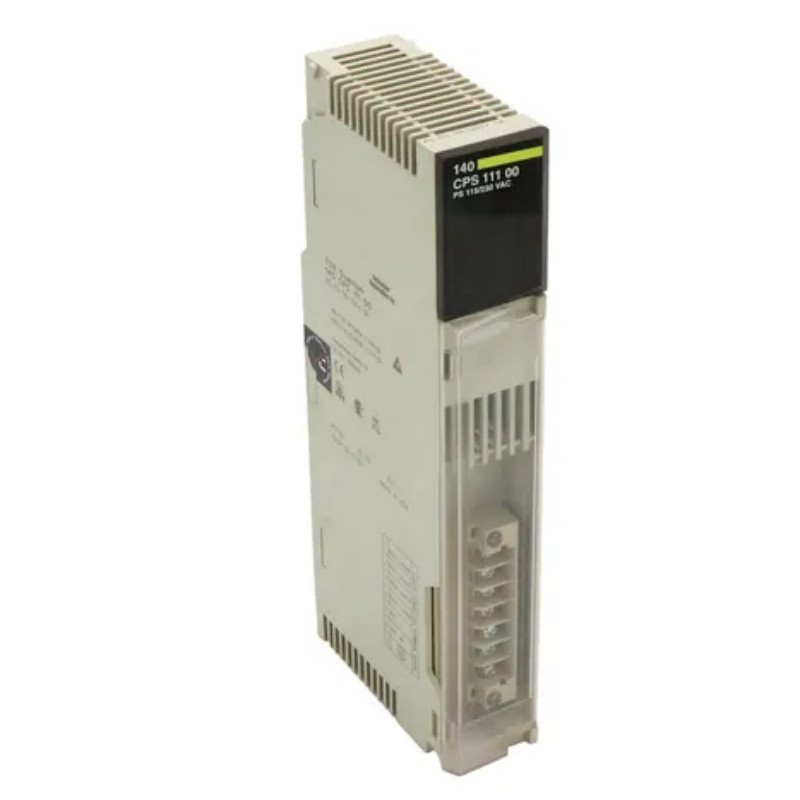

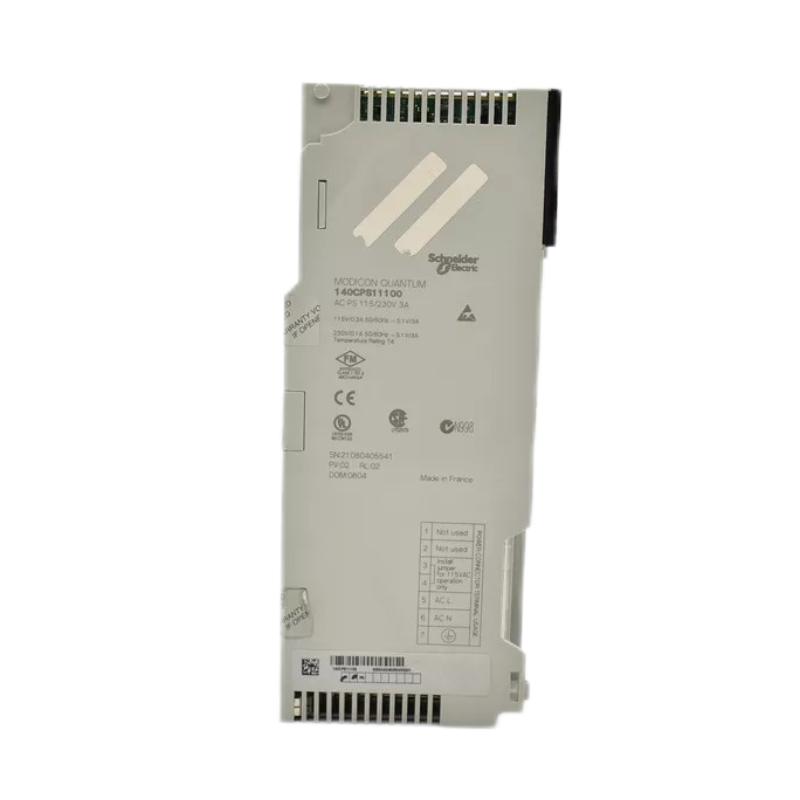

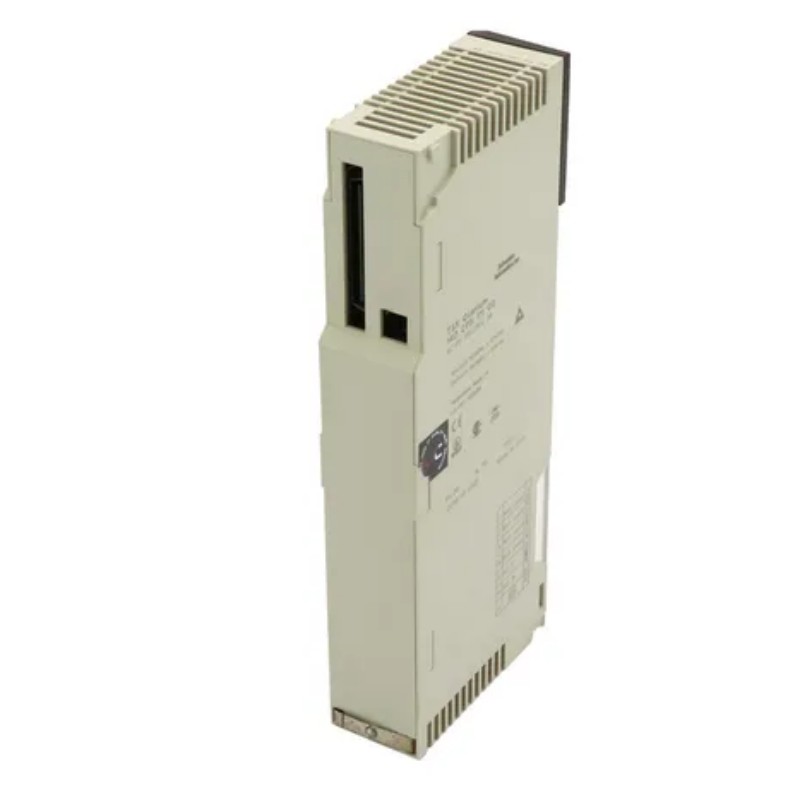

The Schneider Electric 140CPS11100 is a power supply module specifically designed for use with Modicon M340 and Modicon M580 programmable logic controllers (PLCs). This module ensures reliable power delivery to the PLC system and its components, supporting smooth operation in demanding industrial environments. With its high efficiency and compact design, the 140CPS11100 provides a stable and uninterrupted power source, ensuring that your automation systems perform optimally and without failure. Whether deployed in industrial automation, process control, or building management systems, the 140CPS11100 is a critical component for ensuring reliable PLC performance.

Featuring an input voltage range of 85-264 VAC and an output of 24V DC, the 140CPS11100 ensures compatibility with a wide range of industrial power sources. Its high-quality components and robust design allow the power supply to handle varying loads efficiently, delivering a constant and clean output voltage to all connected devices, even under fluctuating conditions. It is a perfect fit for systems requiring continuous, stable power, particularly in environments with demanding operational requirements.

Technical Specifications

Specification	Details
Model	140CPS11100
Module Type	Power Supply Module
Input Voltage Range	85-264 VAC, 47-63 Hz
Output Voltage	24 VDC
Output Current	5 A maximum (120W)
Power Consumption	120W (maximum)
Efficiency	≥ 93%
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)	4.9 x 3.2 x 5.4 inches (125 x 82 x 137 mm)
Weight	0.75 lbs (0.34 kg)
Protection Features	Overvoltage, overcurrent, and short-circuit protection
Environmental Protection	IP20 (protected against solid objects greater than 12mm)

Recommended Related Models

Schneider Electric 140DPS11400 – High-efficiency power supply designed for Modicon M340 PLCs, offering more robust power capabilities for large-scale systems.
Schneider Electric 140CPS11400 – A 24V DC power supply module that provides increased output capacity for demanding applications with higher power needs.
Schneider Electric 140CRA31200 – Modicon M340 CPU module that integrates seamlessly with the 140CPS11100 to provide high-performance control for industrial automation systems.

Popular Schneider Electric Models

Modicon M340 PLC – A flexible and modular PLC system that supports various communication modules, including the 140CPS11100, for advanced control in industrial automation.
Modicon M580 ePAC – An Ethernet-based PAC system designed for high-performance applications, ideal for industries requiring integrated control and monitoring systems.
140DDI35300 – Digital Input Module used with the 140CPS11100 to provide fast, reliable digital signal processing for industrial systems.
140CPS11000 – A power supply module compatible with multiple Schneider PLC systems, offering a reliable 24V DC output for controlling peripheral devices.

Applications

The 140CPS11100 power supply module is critical for systems requiring a consistent and reliable power source. Its applications span various industrial sectors, including:

Industrial Automation: Ensures stable power delivery to PLCs, sensors, and actuators in automation systems, supporting seamless and continuous control.
Process Control: Vital for chemical, pharmaceutical, and food & beverage industries, where uninterrupted operation is essential for maintaining production efficiency and safety.
Energy and Utilities: Provides reliable power to PLC systems in power plants, smart grids, and substations, where power stability is crucial for system integrity.
Building Automation: Integrated into HVAC, lighting, and security systems, ensuring reliable operation of building management controls.
Remote Monitoring: Essential for systems that require constant power supply in remote locations for monitoring and controlling devices.

Advantages

High Efficiency: The 140CPS11100 has an efficiency rating of ≥ 93%, ensuring minimal energy loss and contributing to overall operational cost savings.
Wide Input Voltage Range: It supports a wide input voltage range of 85-264 VAC, making it compatible with various industrial power sources worldwide.
Reliable Power Delivery: Capable of supplying 5A (120W) of stable 24V DC output, this module ensures that PLCs and connected devices receive the power they need, even under variable conditions.
Compact Design: Despite its high power output, the 140CPS11100 has a compact form factor (4.9 x 3.2 x 5.4 inches), allowing for easy integration in tight spaces in control panels and industrial cabinets.
Protection Features: Equipped with overvoltage, overcurrent, and short-circuit protection, the module helps safeguard the system against potential electrical faults, enhancing the longevity and reliability of the equipment.
Environmental Durability: The module has an IP20 rating, making it suitable for use in environments with minimal exposure to dust and other contaminants.
Wide Operating Temperature Range: With an operating temperature range of 0°C to 60°C (32°F to 140°F), the 140CPS11100 is built to handle a variety of environmental conditions.
Low Maintenance: Thanks to its high reliability and robust design, the 140CPS11100 requires minimal maintenance, reducing downtime and improving operational efficiency.
Ease of Installation: The module is easy to install in standard Modicon M340 and M580 PLC systems, reducing setup time and complexity.
Cost-Effective: Offering high efficiency and protection features at a competitive price point, the 140CPS11100 is a cost-effective solution for industrial power supply needs.

Technical FAQs

What is the output voltage of the 140CPS11100?
The output voltage of the 140CPS11100 is 24 VDC.
What is the maximum output current of the 140CPS11100?
The module can supply 5A, with a maximum power output of 120W.
What is the input voltage range for the 140CPS11100?
The 140CPS11100 operates within an input voltage range of 85-264 VAC.
What protection features does the 140CPS11100 have?
It includes overvoltage, overcurrent, and short-circuit protection to safeguard the module and the connected system.
What is the efficiency of the 140CPS11100?
The module operates with an efficiency of ≥ 93%, reducing energy waste and improving overall system performance.
What is the operating temperature range of the 140CPS11100?
The operating temperature range is from 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
What is the environmental protection rating of the 140CPS11100?
The module has an IP20 rating, meaning it is protected against solid objects larger than 12mm but is not dust-tight.
What industries use the 140CPS11100?
It is widely used in industries such as industrial automation, process control, energy and utilities, and building automation.
Can the 140CPS11100 be used in remote monitoring systems?
Yes, the 140CPS11100 is ideal for remote monitoring systems, ensuring reliable power delivery to remote PLCs and control devices.
How is the 140CPS11100 installed?
The module can be easily installed into Modicon M340 or Modicon M580 PLC systems, simplifying setup and integration.
