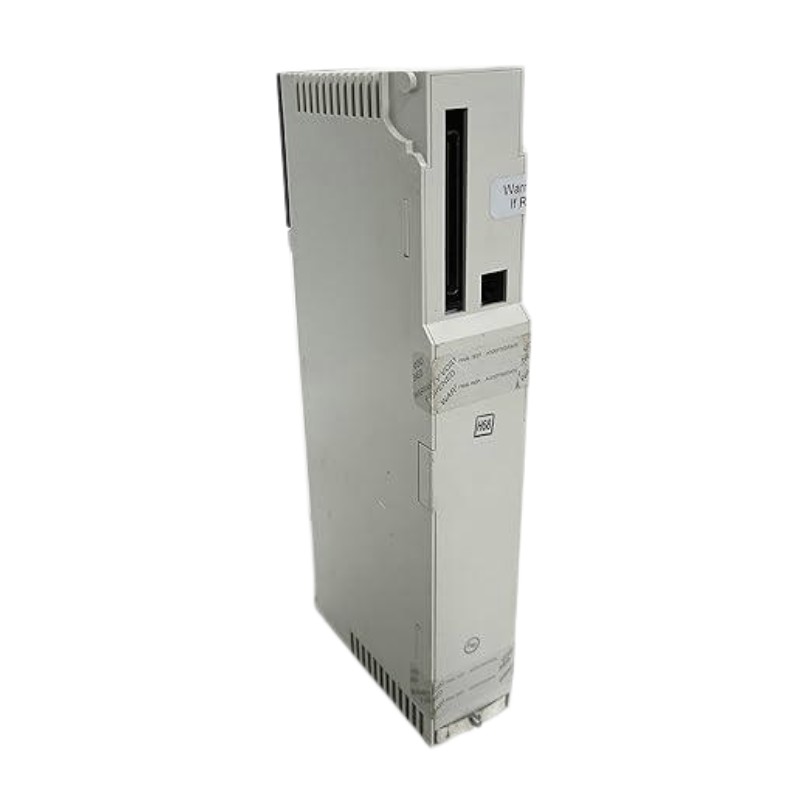

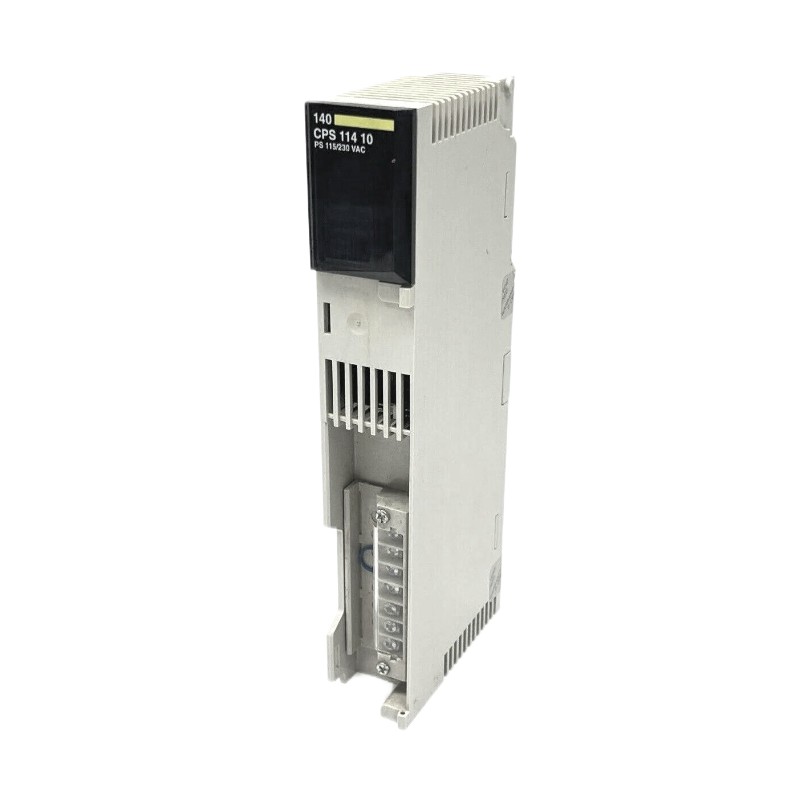

The Schneider Electric 140CPS11410 is a high-capacity power supply module designed specifically for use with Modicon M340 and Modicon M580 PLC systems. This module ensures that your PLCs and associated field devices receive a stable and reliable 24V DC power supply, essential for maintaining consistent operation in demanding industrial environments. With its robust design, high power output, and advanced protection features, the 140CPS11410 is ideal for powering large-scale automation systems, complex industrial applications, and process control systems that require continuous power without interruptions.

Offering overvoltage, overcurrent, and short-circuit protection, the 140CPS11410 ensures the safe operation of connected devices while maintaining peak performance across extended operational periods. The module is well-suited for environments that demand high reliability and durability, such as manufacturing, energy distribution, transportation, and utilities sectors. Its high efficiency ensures reduced energy loss, which helps minimize operating costs while maintaining system performance.

Technical Specifications

Specification	Details
Model	140CPS11410
Module Type	Power Supply Module
Input Voltage Range	85-264 VAC, 47-63 Hz
Output Voltage	24 VDC
Output Current	10 A maximum (240W)
Power Consumption	240W (maximum)
Efficiency	≥ 93%
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)	5.5 x 3.5 x 6.0 inches (140 x 90 x 150 mm)
Weight	1.1 lbs (0.5 kg)
Protection Features	Overvoltage, overcurrent, and short-circuit protection
Environmental Protection	IP20 (protected against solid objects greater than 12mm)

Recommended Related Models

Schneider Electric 140CPS11100C – A 24V DC power supply module offering lower power output (120W) for smaller or less demanding systems.
Schneider Electric 140DPS12100 – A high-efficiency power supply module designed for larger Modicon M580 systems, offering a 24V DC output with higher current capacity for bigger installations.
Schneider Electric 140CRA31200 – A Modicon M340 processor module that integrates seamlessly with the 140CPS11410, providing advanced control and monitoring capabilities.

Popular Schneider Electric Models

Modicon M340 PLC – A modular PLC system offering flexibility and scalability for complex automation tasks. The 140CPS11410 ensures reliable power for large-scale operations.
Modicon M580 ePAC – A high-performance Ethernet-based PLC designed for industrial control systems that require high-speed communication and robust power supply modules like the 140CPS11410.
140DDI35300 Digital Input Module – A digital input module that can be used with the 140CPS11410 to capture and process real-time digital signals from various industrial devices.
140CPS11000 – A 24V DC power supply module with a slightly lower output capacity, ideal for medium-scale industrial automation systems requiring reliable power delivery.

Applications

The 140CPS11410 power supply module is designed for industries where high-capacity and continuous power delivery is required. Some of its common applications include:

Industrial Automation: Provides stable power to control systems, sensors, and actuators, supporting seamless automation processes in large manufacturing plants and factories.
Process Control: Used in chemical, oil & gas, and pharmaceutical industries, where continuous power supply is critical for maintaining control over production processes.
Energy and Utilities: Ensures uninterrupted power in power plants, smart grids, and substations, which require a high-capacity and reliable power supply for efficient operation.
Transportation: Powers control systems for railways, airports, and automated systems in transport infrastructure, ensuring safe and efficient operation.
Building Automation: Delivers power for HVAC systems, lighting, and security systems in large commercial and industrial buildings, maintaining operational efficiency and comfort.

Advantages

High Power Output: The 140CPS11410 provides a maximum output of 10A (240W), making it suitable for large-scale applications requiring significant power.
High Efficiency: Operating with an efficiency of ≥ 93%, this power supply minimizes energy waste, reducing operational costs while maintaining performance.
Reliable Power Delivery: Ensures continuous 24V DC power for Modicon M340 and M580 systems, providing consistent power to all connected devices and minimizing downtime.
Advanced Protection Features: Includes overvoltage, overcurrent, and short-circuit protection to safeguard connected systems from potential electrical faults and ensure system longevity.
Compact Design: Despite its high power output, the module is compact (5.5 x 3.5 x 6.0 inches) and can be easily integrated into control panels, making it suitable for space-constrained environments.
Wide Input Voltage Range: The module supports an input voltage range of 85-264 VAC, ensuring compatibility with global power sources, making it ideal for international applications.
Environmental Durability: With an IP20 rating, the module is protected from solid objects greater than 12mm in size, ensuring safe operation in typical industrial environments.
Wide Temperature Range: The module operates effectively in a temperature range of 0°C to 60°C (32°F to 140°F), ensuring consistent performance in diverse environments.
Scalability: The 140CPS11410 is scalable, making it suitable for both small and large installations, allowing for easy upgrades as system demands increase.
Global Compatibility: Its wide input voltage range and high output capacity make the 140CPS11410 ideal for use in global operations that require versatile and reliable power supply solutions.

Technical FAQs

What is the output voltage of the 140CPS11410?
The 140CPS11410 provides a 24V DC output to power Modicon M340 and M580 PLC systems.
What is the maximum output current of the 140CPS11410?
The module can provide a maximum output of 10A, with a power output of 240W.
What input voltage does the 140CPS11410 support?
The module supports an input voltage range of 85-264 VAC, suitable for global applications.
What protection features are included with the 140CPS11410?
The module includes overvoltage, overcurrent, and short-circuit protection, which help protect the system from electrical damage.
What is the efficiency rating of the 140CPS11410?
The module operates with an efficiency of ≥ 93%, ensuring minimal energy loss.
What is the operating temperature range of the 140CPS11410?
The operating temperature range is from 0°C to 60°C (32°F to 140°F).
What is the environmental protection rating of the 140CPS11410?
The module has an IP20 rating, which protects against solid objects larger than 12mm.
Can the 140CPS11410 be used for large industrial automation systems?
Yes, the 140CPS11410 is specifically designed for high-capacity applications and is ideal for large-scale industrial automation systems.
How is the 140CPS11410 integrated into a system?
The 140CPS11410 integrates seamlessly with Modicon M340 and M580 PLC systems, simplifying installation and setup.
What industries benefit from using the 140CPS11410?
The module is suitable for industries such as energy and utilities, industrial automation, process control, transportation, and building automation.
