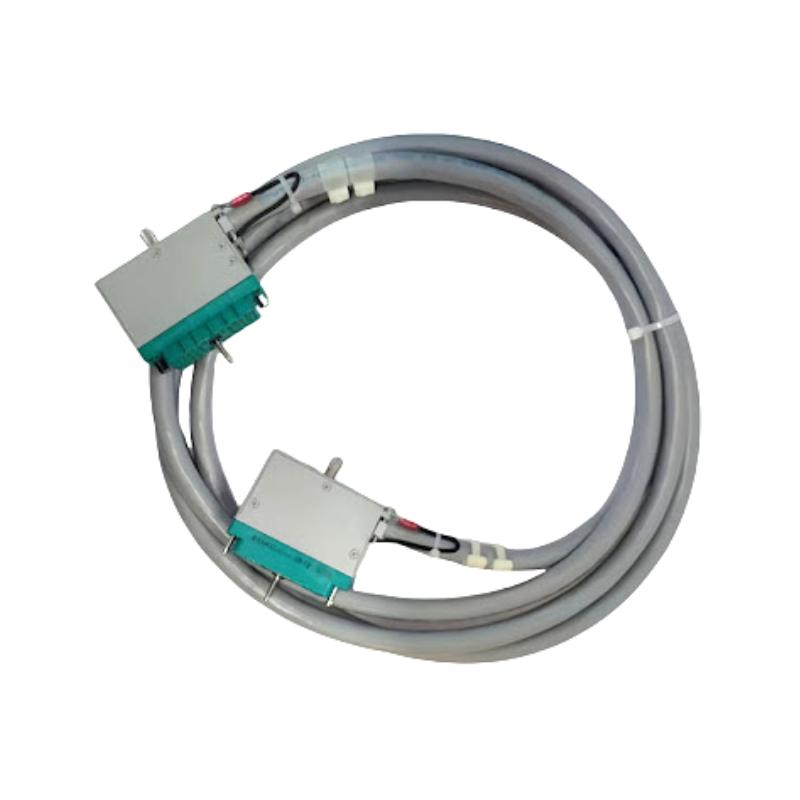

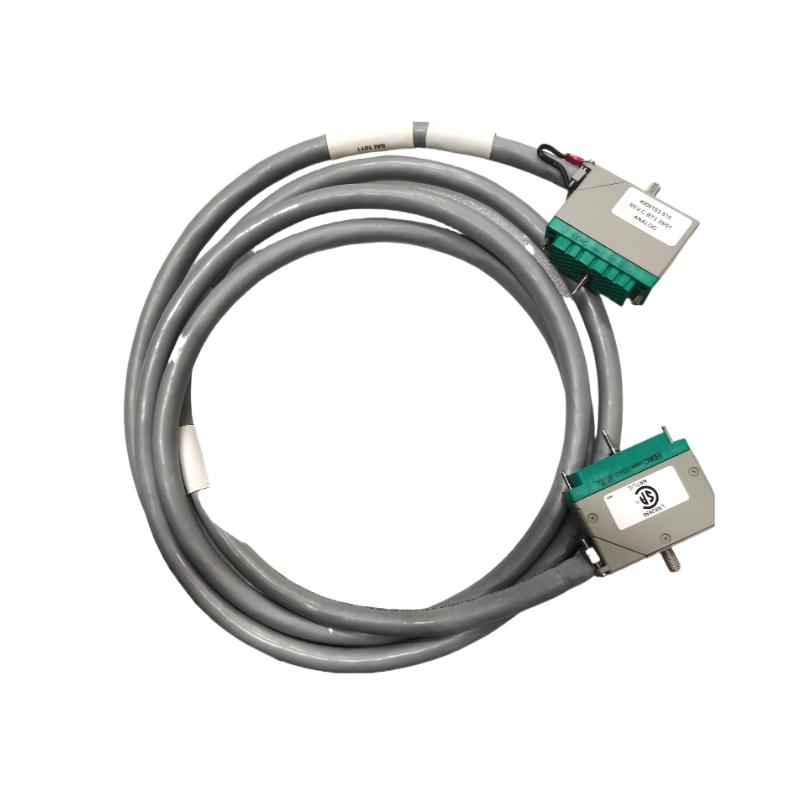

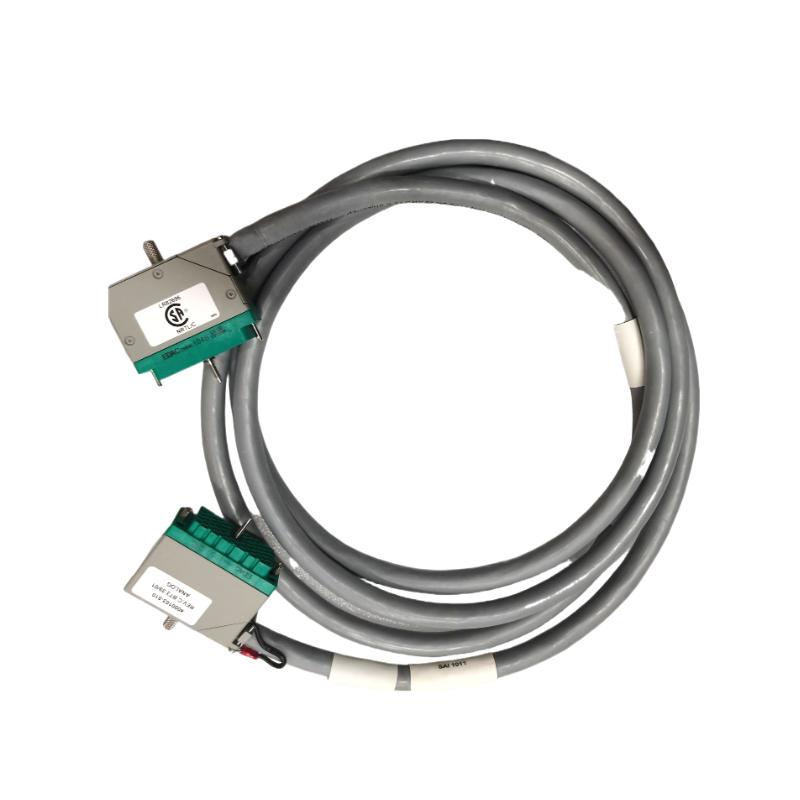

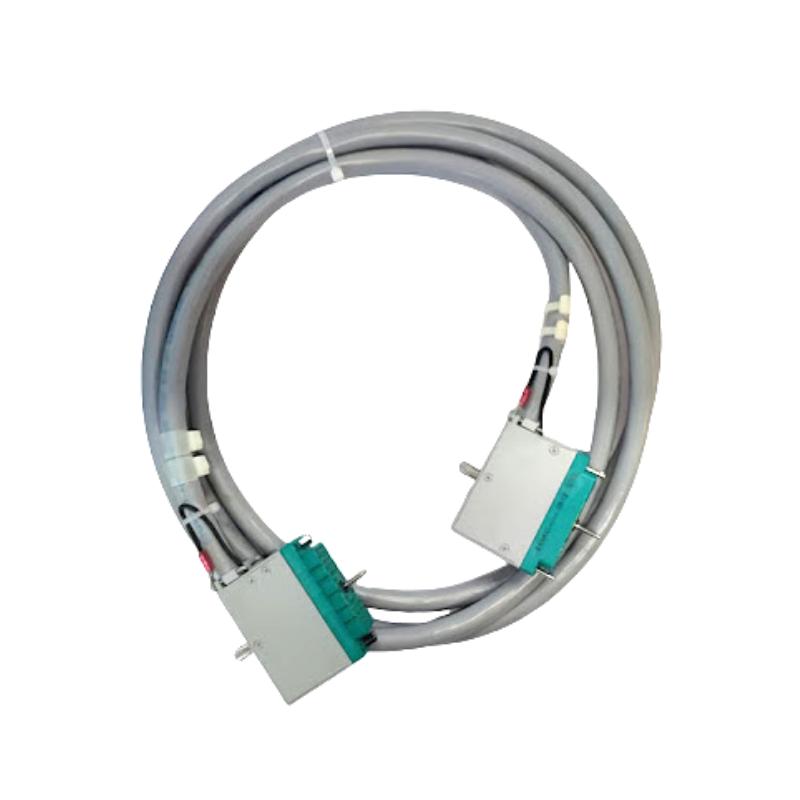

Invensys Triconex 4000029-025 Cable Assembly

Industrial Application Scenarios

The Invensys Triconex 4000029-025 Cable Assembly is engineered for reliable signal and power interconnection within Triconex safety and automation systems. It is widely used in distributed control architectures, safety instrumented systems (SIS), and mission-critical industrial installations where deterministic communication integrity is paramount — including oil & gas, petrochemical plants, power generation, and heavy manufacturing facilities. This assembly supports robust inter-module connectivity in racks, enclosures, and distributed installations while maintaining system integrity under demanding conditions.

Core Functional Advantages

• Robust Connectivity: Ensures dependable transmission of signals and power between Triconex modules and system components.

• Industrial-Grade Construction: Designed to withstand rugged plant environments and continuous operation.

• Optimized for Triconex Systems: Specifically matched to Triconex control, I/O, and safety architectures for seamless integration.

• Minimum Bend Radius Awareness: Incorporates a 13.97 cm (5.5 in) minimum bend radius for proper installation and longest service life.

• Enhanced System Reliability: Reduces risk of signal degradation, failure, or interference in critical systems.

Technical FAQs

1. What is the primary purpose of the 4000029-025 Cable Assembly?
   It provides secure interconnection between system modules and components in Triconex automation and safety systems.

2. What does “minimum bend radius” mean?
   It’s the smallest allowable radius the cable can be bent without risking internal damage — for this assembly, 13.97 cm.

3. Can this cable handle continuous industrial operation?
   Yes, it is designed for continuous use in industrial environments.

4. Is it compatible with Triconex systems?
   Yes, it is engineered specifically to match Triconex module connectivity requirements.

5. Does the cable support both signal and power interconnection?
   Yes, it is typically used for mixed signal and power routing within centralized racks or distributed locations.

6. Is specialized installation required?
   Standard industrial wiring practices, including respecting bend radius, are sufficient.

7. Does this cable improve system reliability?
   Yes — proper cables minimize signal loss and support stable communication.

8. Can it be used outdoors or in harsh plant environments?
   It is built for rugged industrial use; additional protection may be used in extreme ambient conditions.

9. Does cable handling affect performance?
   Yes, maintaining the minimum bend radius is critical for maintaining electrical performance.

10. Is this assembly a long-life component?
    With proper installation and handling, it provides dependable service over extended duty cycles.
