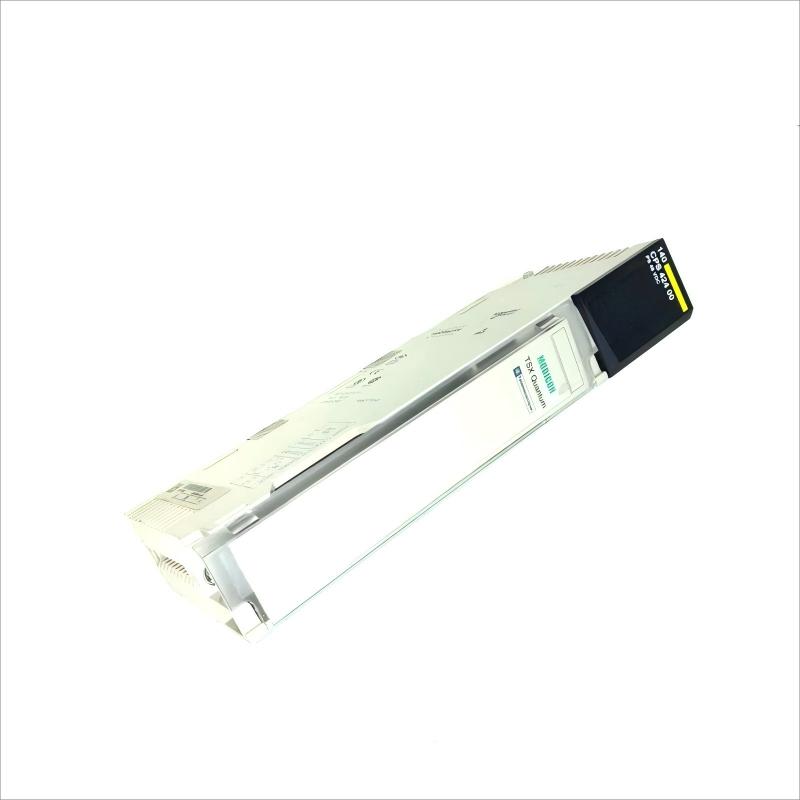

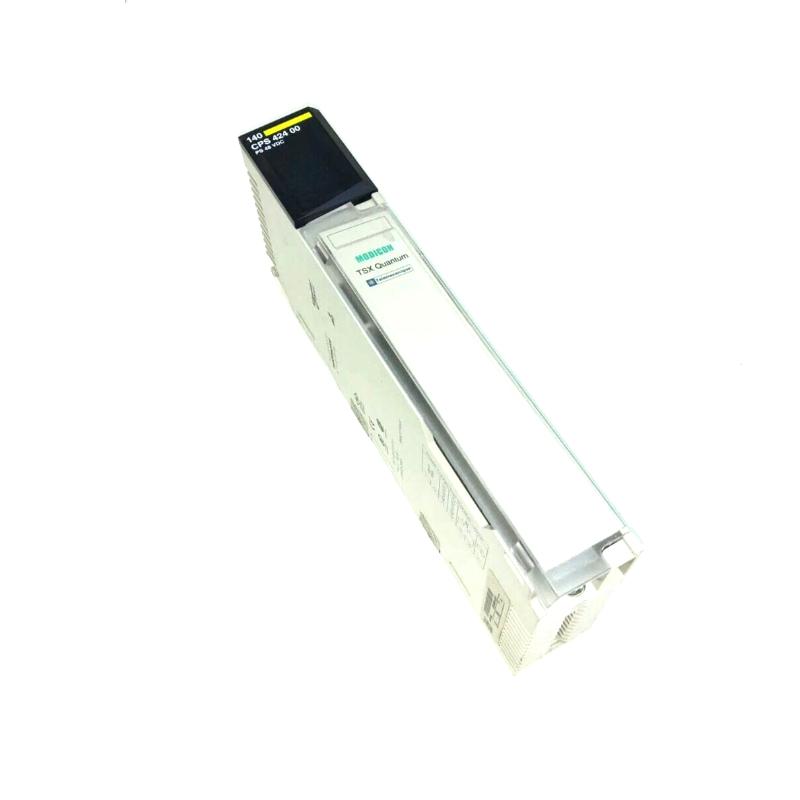

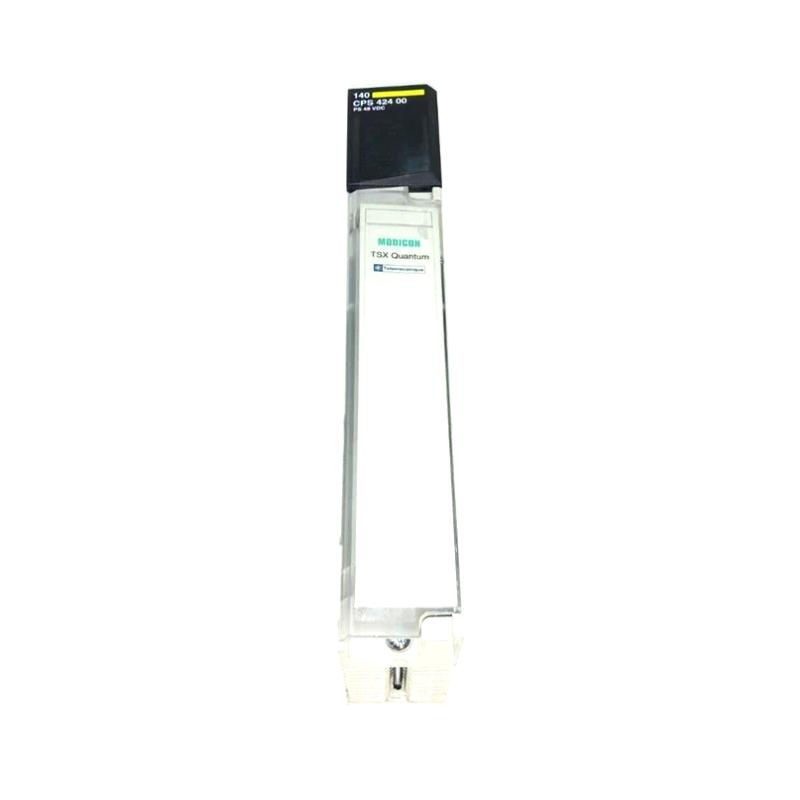

The Schneider Electric 140CPS42400C is a high-performance 24V DC power supply module designed specifically for Modicon M340 and Modicon M580 PLC systems. Delivering a robust 480W (20A) of power, this module is engineered to support the most demanding industrial automation and control systems, ensuring continuous, stable power for large-scale applications. Whether you're powering automated manufacturing, robotic systems, process control networks, or complex energy management solutions, the 140CPS42400C ensures reliable performance with enhanced safety and efficiency.

With built-in features like overvoltage, overcurrent, and short-circuit protection, the 140CPS42400C provides a secure and reliable power source, helping to prevent damage to both the power supply and the connected equipment. Designed with high efficiency (≥93%), this module reduces energy waste and operational costs, making it an ideal choice for organizations looking to optimize energy consumption.

The 140CPS42400C integrates seamlessly into Modicon M340 and Modicon M580 PLC setups, offering enhanced scalability and flexibility for a wide range of industrial control applications.

Technical Specifications

Specification	Details
Model	140CPS42400C
Module Type	Power Supply Module
Input Voltage Range	85-264 VAC, 47-63 Hz
Output Voltage	24 VDC
Output Current	20 A maximum (480W)
Power Consumption	480W (maximum)
Efficiency	≥ 93%
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)	6.3 x 4.0 x 7.0 inches (160 x 100 x 180 mm)
Weight	1.5 lbs (0.7 kg)
Protection Features	Overvoltage, overcurrent, and short-circuit protection
Environmental Protection	IP20 (protected against solid objects larger than 12mm)

Recommended Related Models

Schneider Electric 140CPS12400C – A similar power supply module providing 480W output, perfect for smaller Modicon PLC configurations.
Schneider Electric 140CPS11400C – A mid-range power supply module with 400W output, ideal for lower-power PLC systems.
Schneider Electric 140DPS12100 – A high-output power supply module delivering 1200W, designed for larger industrial automation systems.
Schneider Electric 140CRA31200 – A Modicon M340 processor module that pairs well with power supplies like the 140CPS42400C for integrated control solutions.

Popular Schneider Electric Models

Modicon M340 PLC – A modular PLC system that offers flexible control options for industrial applications. The 140CPS42400C powers M340 systems effectively in large-scale automation.
Modicon M580 ePAC – A high-performance Ethernet-based PLC used for advanced process control and automation. The 140CPS42400C ensures stable power for these systems in critical environments.
Schneider Electric 140CPS11400C – A mid-range power supply providing 400W output for more compact Modicon configurations.
Schneider Electric 140CPS12400C – A similar power supply that delivers 480W, ideal for automation systems requiring reliable and efficient power.

Applications

The 140CPS42400C is designed to serve in industries where high-efficiency and continuous power are vital. Common applications include:

Industrial Automation: Powering robotic arms, automated production lines, and material handling systems.
Process Control: Providing reliable power to process control systems in industries like chemical production, oil & gas, pharmaceuticals, and food & beverage.
Energy Management: Ensuring the power supply for smart grids, energy distribution systems, and power monitoring applications.
Transportation Systems: Powering systems in rail, aviation, and logistics for reliable automation and control in transportation infrastructure.
Building Automation: Powering HVAC systems, lighting, security, and fire safety controls in commercial and industrial buildings.

Advantages

High Power Output: The 140CPS42400C delivers 480W (20A) of reliable power, perfect for high-demand industrial automation systems.
Energy Efficient: With an efficiency rating of ≥ 93%, it helps to minimize energy waste, reduce operational costs, and improve overall system performance.
Built-in Protection: This module includes overvoltage, overcurrent, and short-circuit protection, safeguarding both the power supply and the connected equipment.
Compact Size: The compact design (160 x 100 x 180 mm) makes it suitable for installation in tight spaces, while its lightweight (1.5 lbs) adds convenience in panel integration.
Global Compatibility: The 85-264 VAC input voltage range makes this module compatible with global industrial standards, ensuring seamless operation in international environments.
Environmental Durability: With an IP20 protection rating, the 140CPS42400C is built to withstand common industrial conditions, including dust and debris.
Wide Temperature Range: Operating in temperatures between 0°C to 60°C (32°F to 140°F), the module is designed for use in both moderate and harsh environments.
Continuous 24V DC Power: This power supply ensures reliable 24V DC power for critical systems, minimizing downtime and maximizing system uptime.
Scalable Power Solution: The 140CPS42400C is scalable, making it suitable for both small and large industrial systems.
Cost-Effective: High efficiency and robust protection features help reduce long-term maintenance costs, making this power supply a cost-effective solution.

Technical FAQs

What is the output voltage of the 140CPS42400C?
The 140CPS42400C provides a 24V DC output, making it suitable for Modicon M340 and Modicon M580 PLC systems.
What is the maximum output current of the 140CPS42400C?
The module delivers up to 20A with a maximum output of 480W.
What is the efficiency rating of the 140CPS42400C?
The 140CPS42400C operates with an efficiency of ≥ 93%, reducing energy waste and improving overall system efficiency.
What protection features are included with the 140CPS42400C?
The module comes with overvoltage, overcurrent, and short-circuit protection, offering robust protection for both the power supply and connected devices.
What is the input voltage range for the 140CPS42400C?
The module supports an input voltage range of 85-264 VAC, ensuring global compatibility.
What is the operating temperature range for the 140CPS42400C?
The module operates effectively in a temperature range of 0°C to 60°C (32°F to 140°F).
Is the 140CPS42400C suitable for use in large industrial systems?
Yes, the module delivers 480W of power, making it ideal for large-scale automation systems that require reliable, continuous power.
What is the environmental protection rating of the 140CPS42400C?
The module is rated IP20, offering protection from dust and solid objects greater than 12mm.
How easy is it to integrate the 140CPS42400C into existing systems?
The module is designed for seamless integration with Modicon M340 and Modicon M580 PLC systems, making installation simple and reliable.
Can the 140CPS42400C be used internationally?
Yes, with its 85-264 VAC input voltage range, it is compatible with global power standards, making it suitable for use in international industrial environments.
