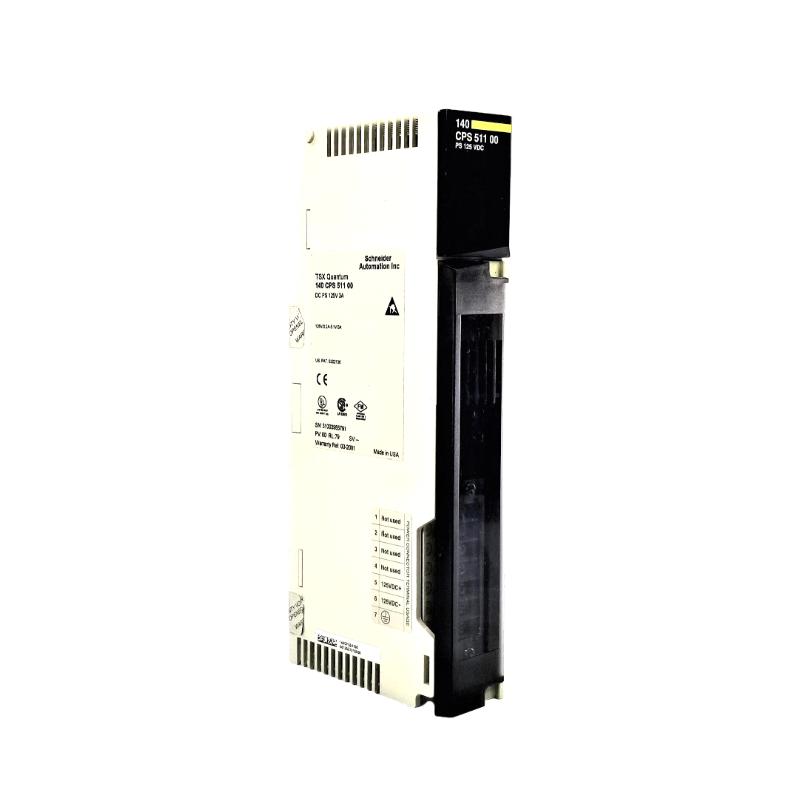

The Schneider Electric 140CPS51100 is a high-performance power supply module designed for use with Modicon M340 and Modicon M580 PLC systems. This power supply module delivers a 1000W output (41.67A max), providing a robust and reliable 24V DC power source for complex, large-scale industrial automation and control systems.

Built for demanding environments, the 140CPS51100 offers advanced protection features, including overvoltage, overcurrent, and short-circuit protection, ensuring a safe and secure power supply for connected equipment. Additionally, the module operates with an efficiency rating of ≥ 93%, which reduces energy consumption and minimizes operational costs, making it an ideal solution for applications requiring high power and reliability.

Designed for scalability, the 140CPS51100 can easily support systems with higher power requirements, making it suitable for large-scale PLC setups and industrial automation processes. The compact design ensures that the module fits in standard control panels, while the wide input voltage range ensures compatibility with global industrial power standards.

Technical Specifications

Specification	Details
Model	140CPS51100
Module Type	Power Supply Module
Input Voltage Range	85-264 VAC, 47-63 Hz
Output Voltage	24 VDC
Output Current	41.67 A maximum (1000W)
Power Consumption	1000W (maximum)
Efficiency	≥ 93%
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)	6.3 x 4.0 x 7.0 inches (160 x 100 x 180 mm)
Weight	2.5 lbs (1.13 kg)
Protection Features	Overvoltage, overcurrent, and short-circuit protection
Environmental Protection	IP20 (protected against solid objects larger than 12mm)

Recommended Related Models

Schneider Electric 140CPS42400 – A 24V DC power supply offering 480W output for Modicon M340 and Modicon M580 PLCs in smaller applications.
Schneider Electric 140CPS12400 – A 24V DC power supply providing 480W output for industrial automation systems requiring moderate power.
Schneider Electric 140CPS11400 – A mid-range power supply module with 400W output, designed for smaller industrial control systems.
Schneider Electric 140DPS12100 – A high-output power supply module with 1200W, ideal for larger, more complex systems requiring robust power solutions.

Popular Schneider Electric Models

Modicon M340 PLC – A modular PLC that offers flexible control and scalability for industrial automation systems. The 140CPS51100 ensures reliable power for high-demand M340 configurations.
Modicon M580 ePAC – A high-performance Ethernet-based PLC that powers advanced process automation and critical control systems. The 140CPS51100 provides uninterrupted power for these systems.
Schneider Electric 140CPS42400 – A 24V DC power supply offering 480W output, ideal for smaller-scale industrial systems.
Schneider Electric 140CPS12400 – A similar power supply module, offering 480W output for applications requiring reliable 24V DC power.

Applications

The 140CPS51100 is designed for large, high-power systems that require a stable and efficient 24V DC power supply. Some common applications include:

Industrial Automation: Powering robotic systems, automated production lines, material handling systems, and assembly robots in industries like automotive, electronics manufacturing, and food processing.
Process Control: Providing reliable power to process control systems in industries such as chemical processing, oil and gas, and pharmaceutical manufacturing.
Energy Management: Supplying power for smart grid systems, renewable energy systems, and energy distribution networks, ensuring efficient power management.
Transportation: Powering control systems for rail, aviation, and logistics to ensure smooth, automated operation in transportation infrastructure.
Building Automation: Powering HVAC systems, lighting control, fire safety systems, and security systems in commercial and industrial buildings to ensure operational efficiency and safety.

Advantages

High Power Output: The 140CPS51100 provides 1000W (41.67A) of reliable power, ideal for large-scale automation systems and high-demand applications.
Energy Efficiency: Operating with an efficiency of ≥ 93%, the power supply reduces energy consumption and minimizes operational costs for businesses.
Comprehensive Protection: Features such as overvoltage, overcurrent, and short-circuit protection help to protect both the power supply and connected devices from electrical hazards.
Compact Design: Despite its high output, the compact size (160 x 100 x 180 mm) and lightweight (2.5 lbs) allow for easy installation in standard control panels.
Global Compatibility: With an input voltage range of 85-264 VAC, this power supply is compatible with global industrial power standards and can be used in international applications.
Environmental Durability: The IP20 protection rating ensures that the power supply is protected from dust and solid objects larger than 12mm, making it suitable for most industrial environments.
Wide Operating Temperature Range: The module operates efficiently in temperatures ranging from 0°C to 60°C (32°F to 140°F), ensuring reliable performance in both mild and harsh conditions.
Continuous Power Supply: This module ensures continuous, stable 24V DC power to prevent system interruptions and optimize process reliability.
Cost-Effective: High efficiency and built-in protection features reduce maintenance costs and extend the lifespan of the equipment, providing a cost-effective solution.
Scalable Solution: The 140CPS51100 can be used in both small and large industrial setups, providing scalability for growing automation systems.

Technical FAQs

What is the output voltage of the 140CPS51100?
The 140CPS51100 provides a 24V DC output, which is standard for Modicon M340 and Modicon M580 PLC systems.
What is the maximum output current of the 140CPS51100?
The module delivers up to 41.67A with a maximum power output of 1000W.
What is the efficiency rating of the 140CPS51100?
The 140CPS51100 operates with an efficiency rating of ≥ 93%, helping to reduce energy consumption and improve overall system performance.
What protection features are included with the 140CPS51100?
The power supply is equipped with overvoltage, overcurrent, and short-circuit protection, ensuring the safety of both the power supply and connected equipment.
What is the input voltage range for the 140CPS51100?
The module supports an input voltage range of 85-264 VAC, making it compatible with industrial power standards globally.
What is the operating temperature range for the 140CPS51100?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
Is the 140CPS51100 suitable for use in large industrial systems?
Yes, the 140CPS51100 is designed to support large-scale PLC configurations that require reliable and continuous power for high-demand automation and process control applications.
What is the environmental protection rating of the 140CPS51100?
The IP20 protection rating ensures that the module is protected from dust and solid objects larger than 12mm.
How easy is it to integrate the 140CPS51100 into existing systems?
The module is designed for seamless integration with Modicon M340 and Modicon M580 PLC systems, making installation and configuration simple.
Can the 140CPS51100 be used internationally?
Yes, with its 85-264 VAC input voltage range,
